OPERATION MANUAL
BALTECH VP-3470
vibrometer-balancer
2016
BALTECH VP-3470
Operation manual
Copyright
© 2016 BALTECH GmbH
All rights reserved
No part of this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in any form by any means without
the prior written permission of Baltech GmbH.
Trademark
The BALTECH trademark is officially registered in Russia, CIS countries and in the
territory of the European Union. Other registered trademarks, logotypes and names
specified in this document are property of BALTECH GmbH.
Reliability
Baltech GmbH doesn’t take any responsibility for any damages occurring due to
nonobservance of the instructions described in this operation manual.
The information contained in this operation manual may be changed at the discretion
of BALTECH GmbH without prior notice.
BALTECH GmbH doesn’t take any responsibility for any damages, direct or indirect,
that might be originated from use of the information contained in this operation
manual.
BALTECH VP-3470
Operation manual
Content
1. Conventions 9
2. Introduction 10
3. Safety measures 11
3.1. General provisions 11
3.2. Personnel safety 12
3.3. Machine operation mode during the balancing procedure 12
3.4. Laser safety 14
3.5. Installation of trial and correction weights 14
4. Technical description 15
4.1. Application 15
4.2. Technical characteristics 15

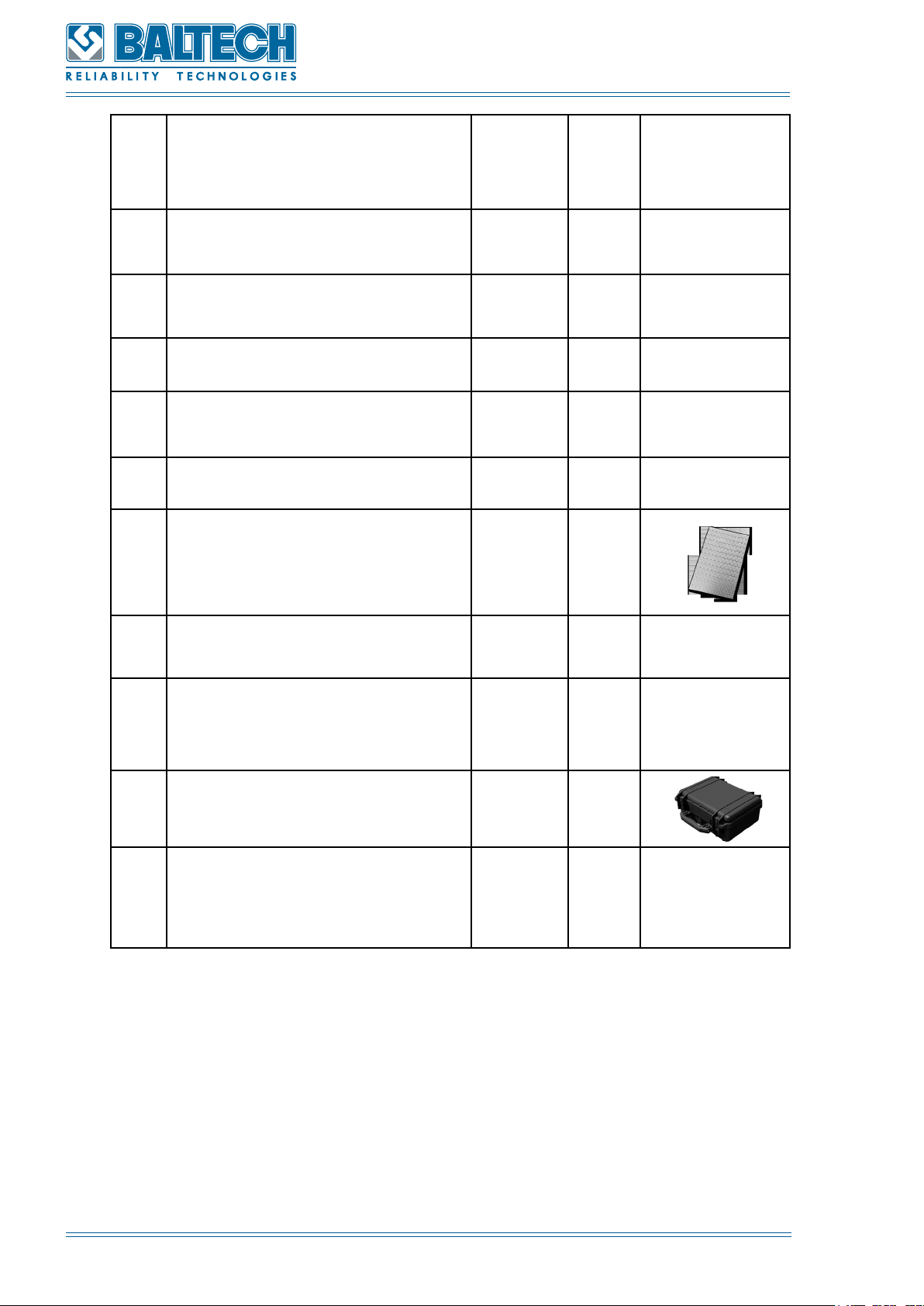

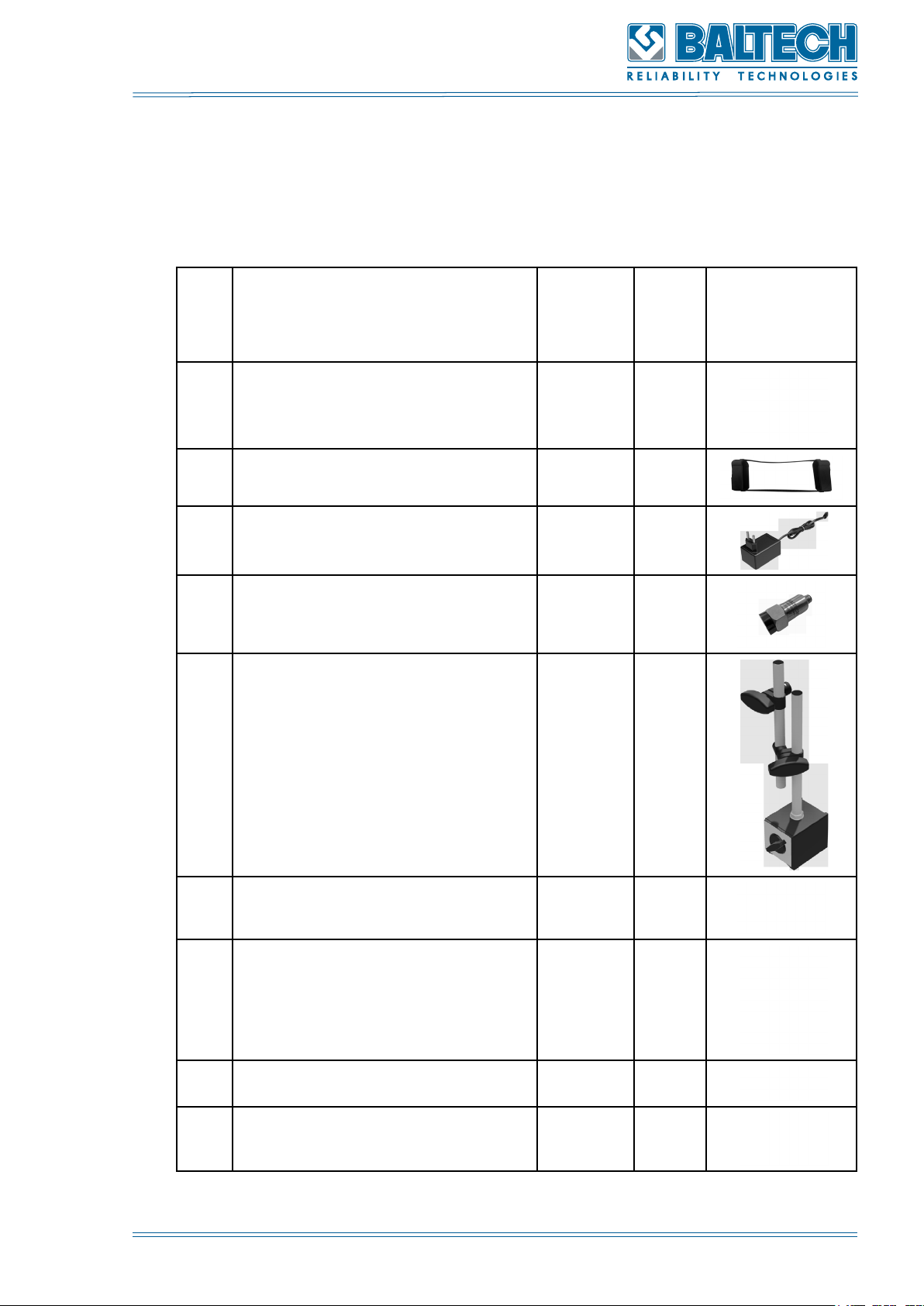

4.3. Delivery set 17
4.4. Design and operation of the display 19
4.5. Marking and packing 22
5. Operation conditions and prestarting procedures 24
5.1. Operation conditions 24
5.2. Preparation to operation 24
5.2.1. Unpacking and installation 24
5.2.2. Accelerometer installation during vibration control 25
5.2.3. Installation recommendations 26
5.2.4. Accelerometer installation during the balancing and diagnostics 27
5.3. Laser tachometer installation 28
5.3.1. Angular marking of the rotor 30
5.3.2. Preparation of the correction weights 30
5.3.3. Digital angle gauge 32
5.4. Power connection 33
5.5. PC connection 34
5.6. Switching on 36
5.7. Switching off 37
6. Programs and functions 38
7. General settings 41
4 Content
BALTECH VP-3470
Operation manual
7.1. General parameter setting
7.2. Connection of the vibration sensors 44
8. Measurements 48
8.1. Setting of the measurement parameters 49
8.2. Overall 51
8.3. Routes 52
8.4. Time waveform 56
8.5. Spectrum 58
8.6. Envelope 59
8.7. Envelope spectrum 61
8.8. Peak and phase 62
8.9. Turning speed 64
9. Balancing 67
9.1. New balancing 67
41
9.2. Manual input 75
9.3. Re-balancing 76
9.4. Inuence Coefcient Method (ICM) 77
9.5. Vector math 80
10. Reports 81
10.1. Report view 81
10.2. Report deletion 82
10.3. Transfer of the balancing reports to PC 83
10.4. Control from PC 83
11. Maintenance 85
12. Troubleshooting 86
12.1. Potential problems and correction methods 86
12.2. Error report 86
13. Storage and transportation 87
14. Warranty liability 88
Content 5
BALTECH VP-3470
Operation manual
List of gures
Figure 1. Appearance of the display unit 19
Figure 2. Upper panel of the display unit 19
Figure 3. Lower panel of the display unit 20
Figure 4. Front panel of the display unit 21
Figure 5. Rear panel of the display unit 22
Figure 6. BALTECH VP-3470 in the transportation case 23
Figure 7. Mounting methods and measure points 26
Figure 8. Marking in the balancing plane 30

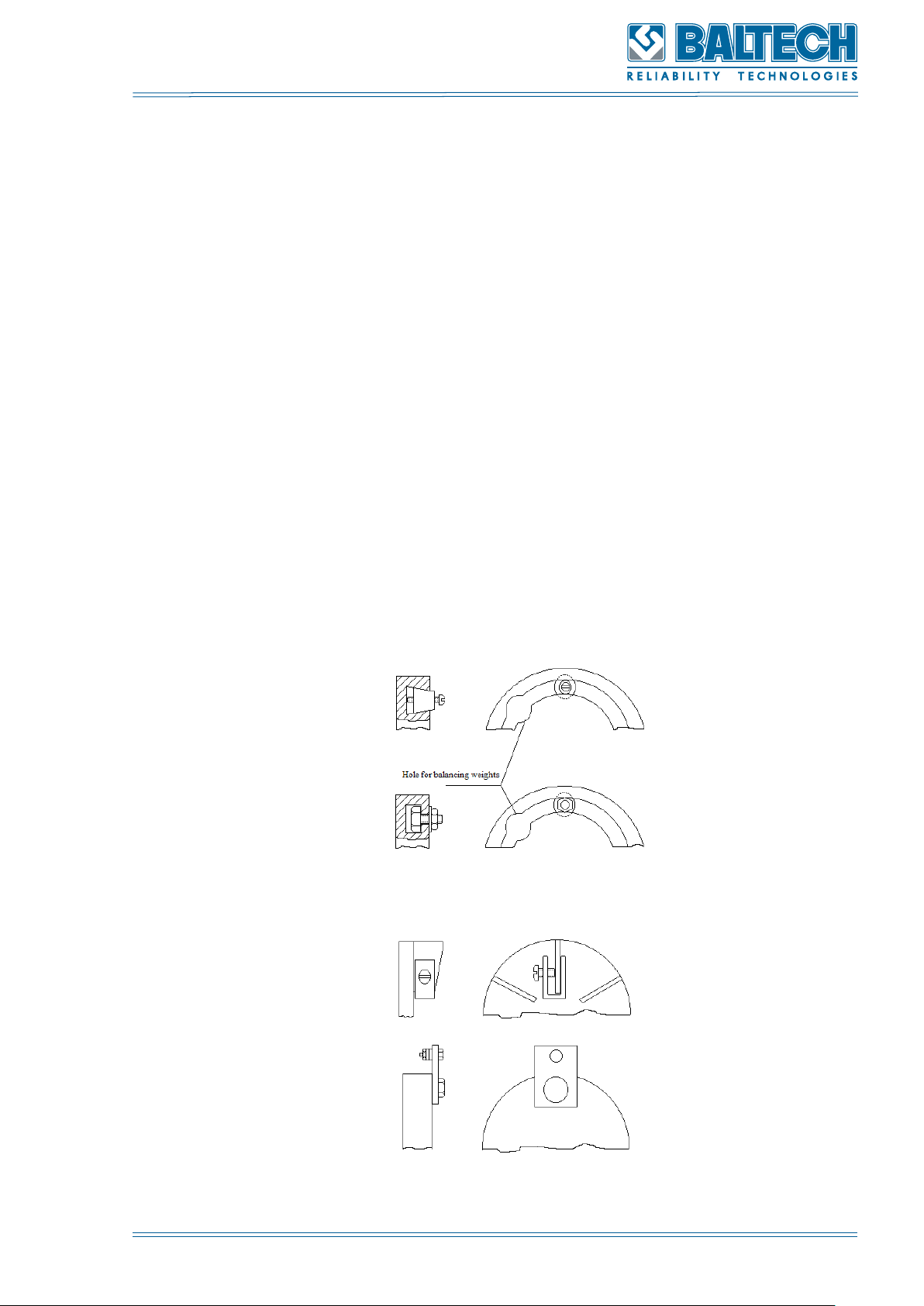

Figure 9. Correction weights 31
Figure 10. Correction weights 31
Figure 11. Angle gauge 32
Figure 12. Connection of the network adapter to the display unit 34
Figure 13. Connection of the display unit to PC 34
Figure 14. Window «Properties» 36
Figure 15. Measurements 37
Figure 16. General parameters menu 41

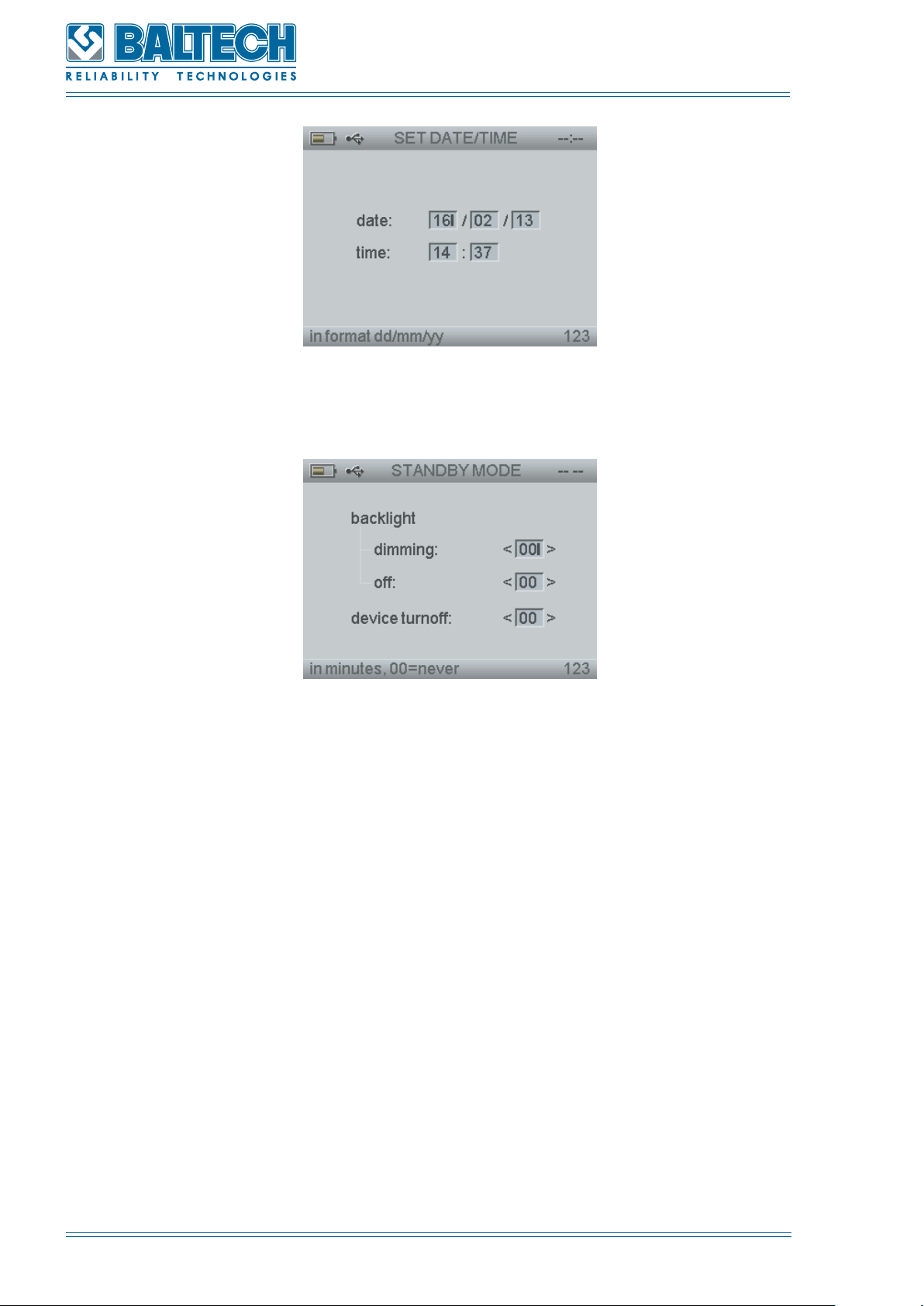

Figure 17. Set date/time 42
Figure 18. Standby mode 42
Figure 19. Backlight 42

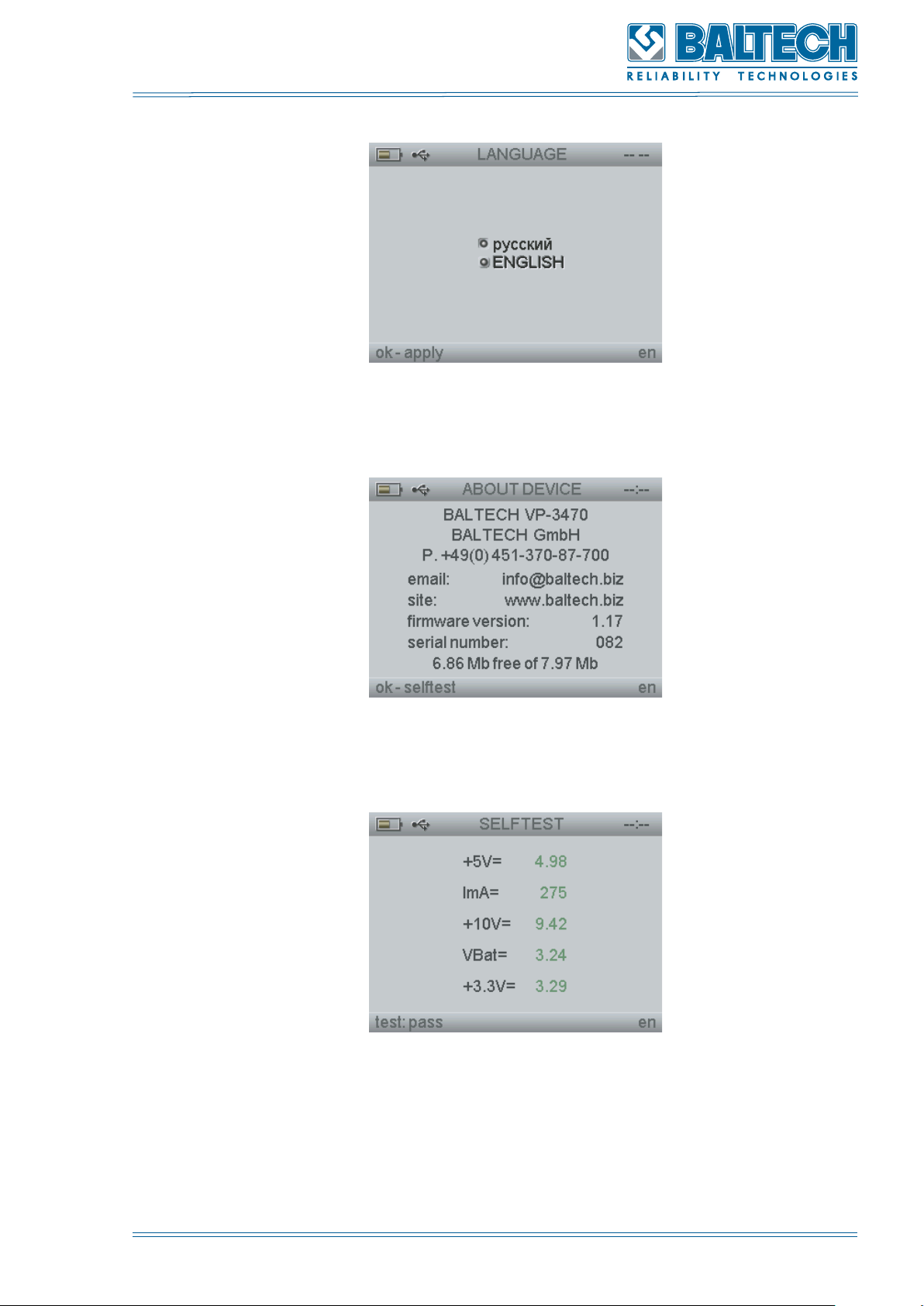

Figure 20. Language 43
Figure 21. About device 43
Figure 22. Selftest 43
Figure 23. Sensors menu 44
Figure 24. Channel 1 45
Figure 25. Channel 2 45

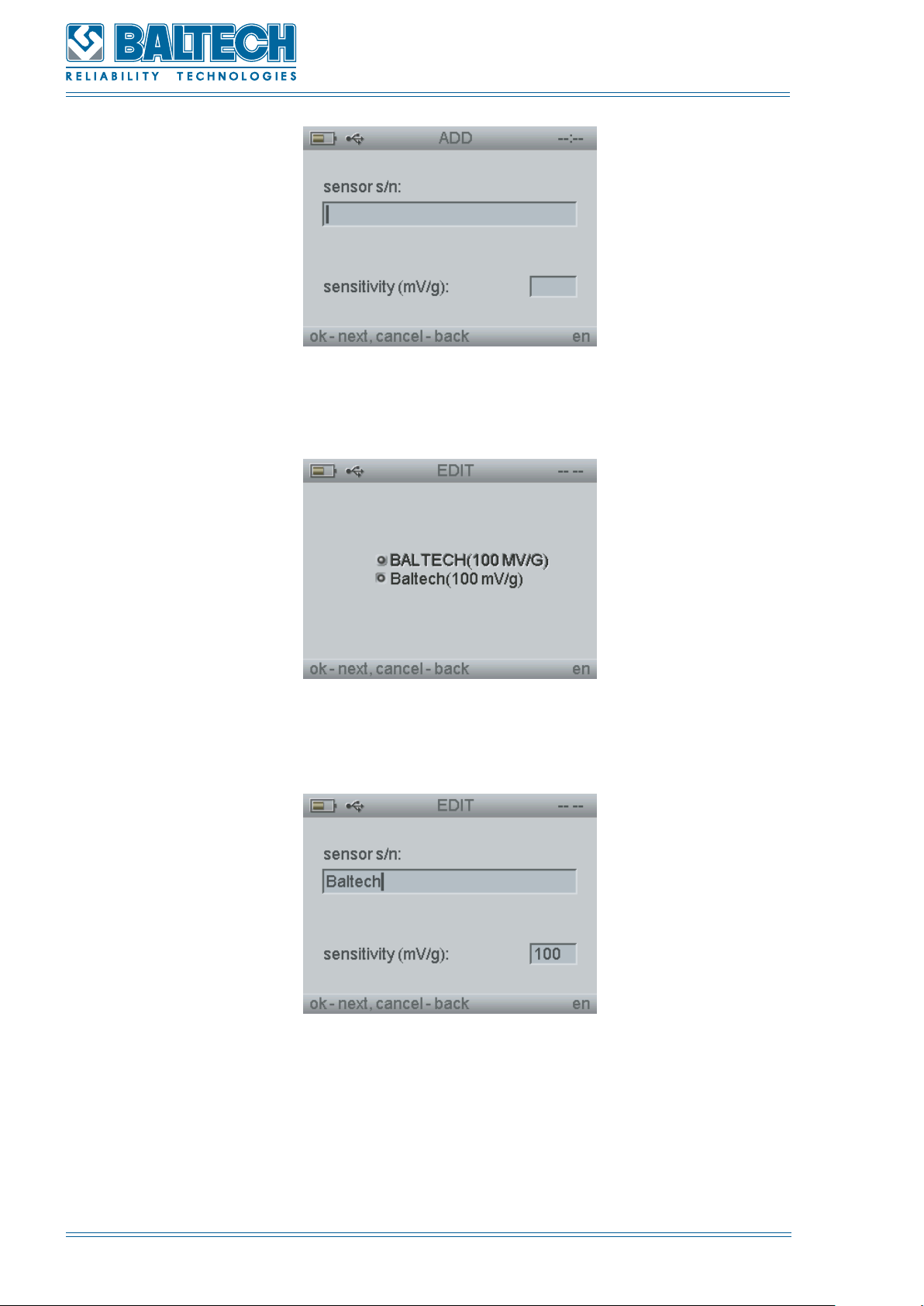

Figure 26. Add 46
Figure 27. Edit 46

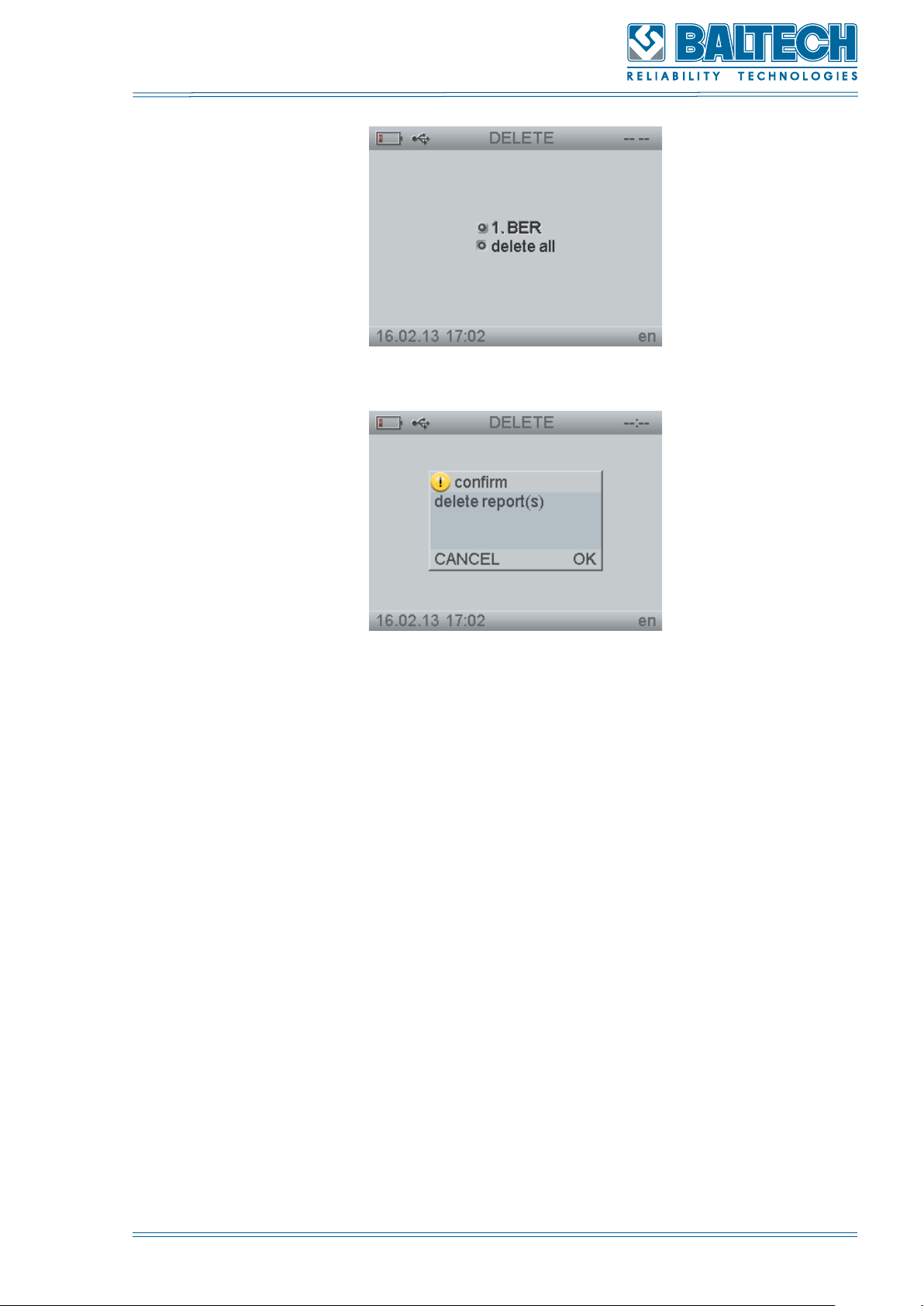

Figure 28. Delete 46

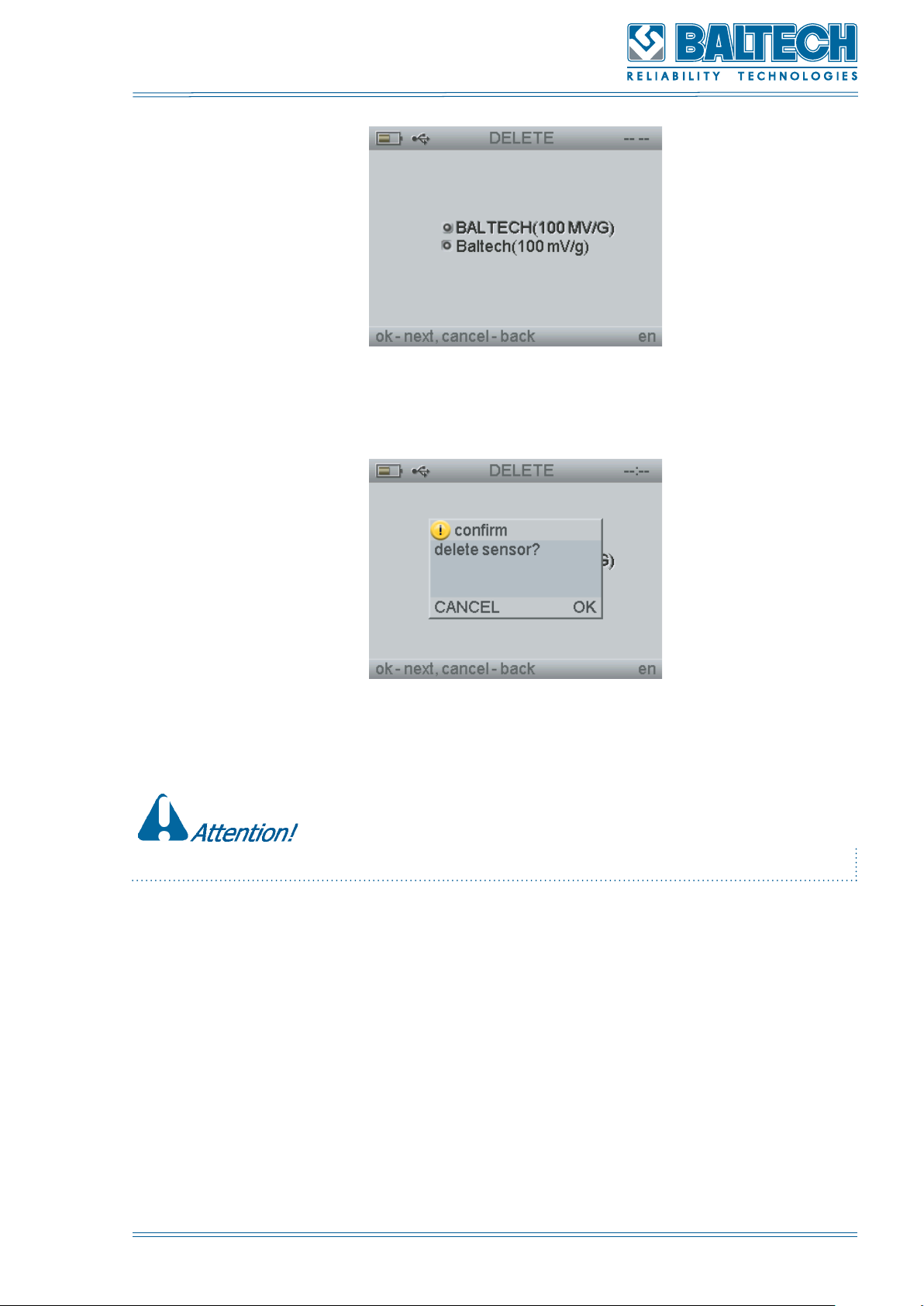

Figure 29. Delete 47
Figure 30. Conrm deletion 47
Figure 31. Measurements menu 48
6 List of figures
BALTECH VP-3470
Operation manual

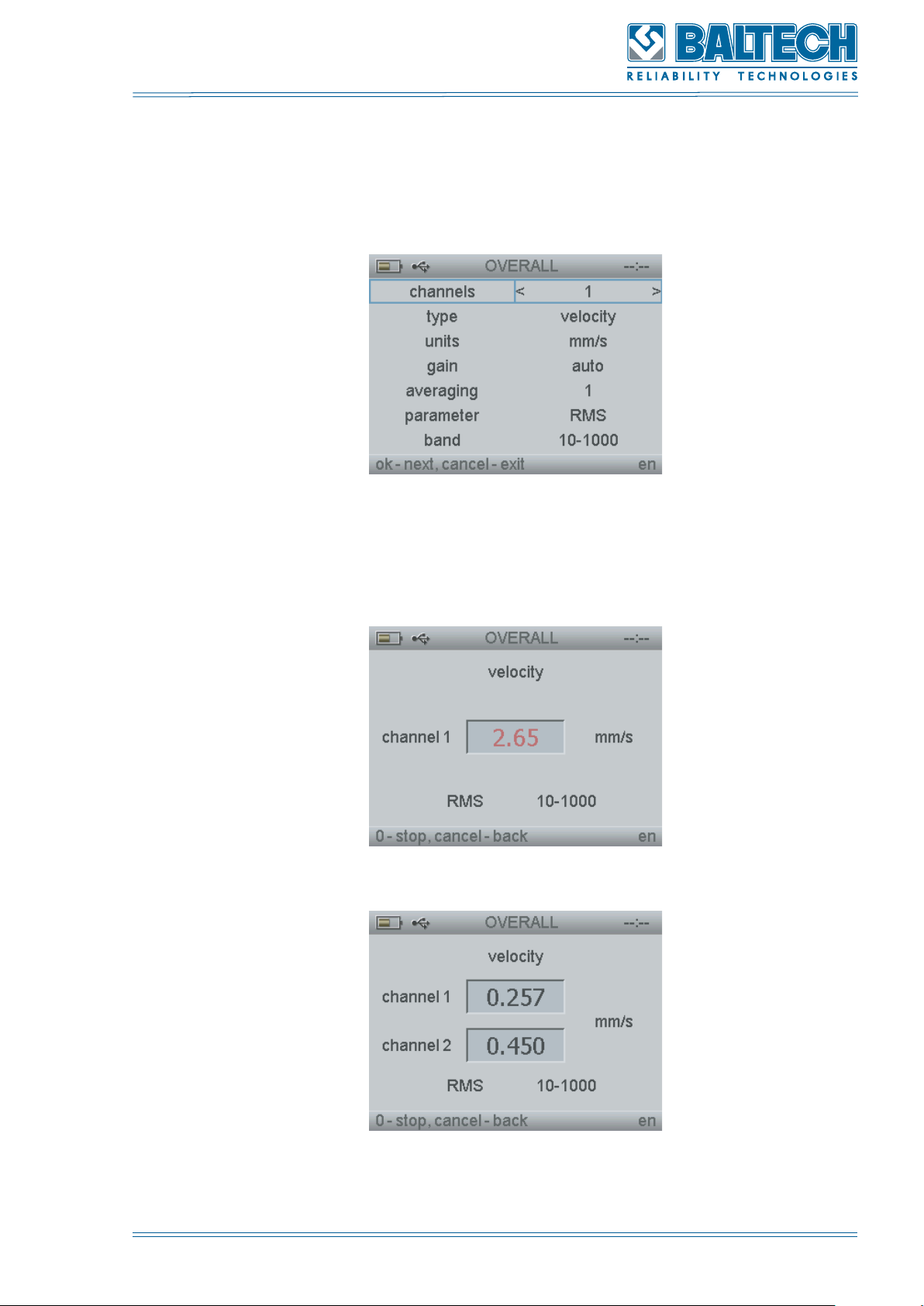

Figure 32. Overall menu
Figure 33. Overall measuring (Channel 1) 51
Figure 34. Overall measuring (2 channels) 51

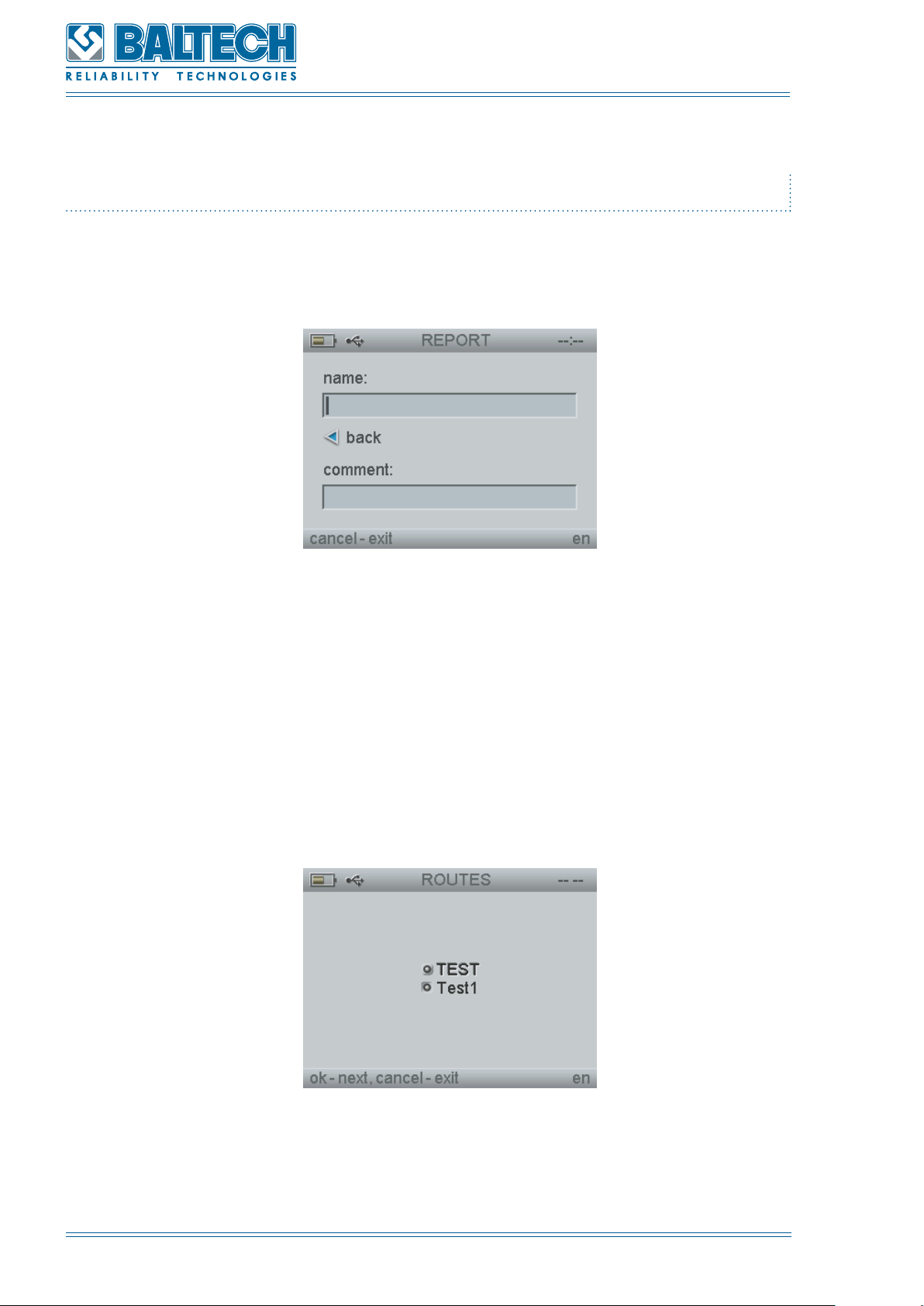

Figure 35. Report saving 52
Figure 36. List of routes 52
Figure 37. List of machines 53

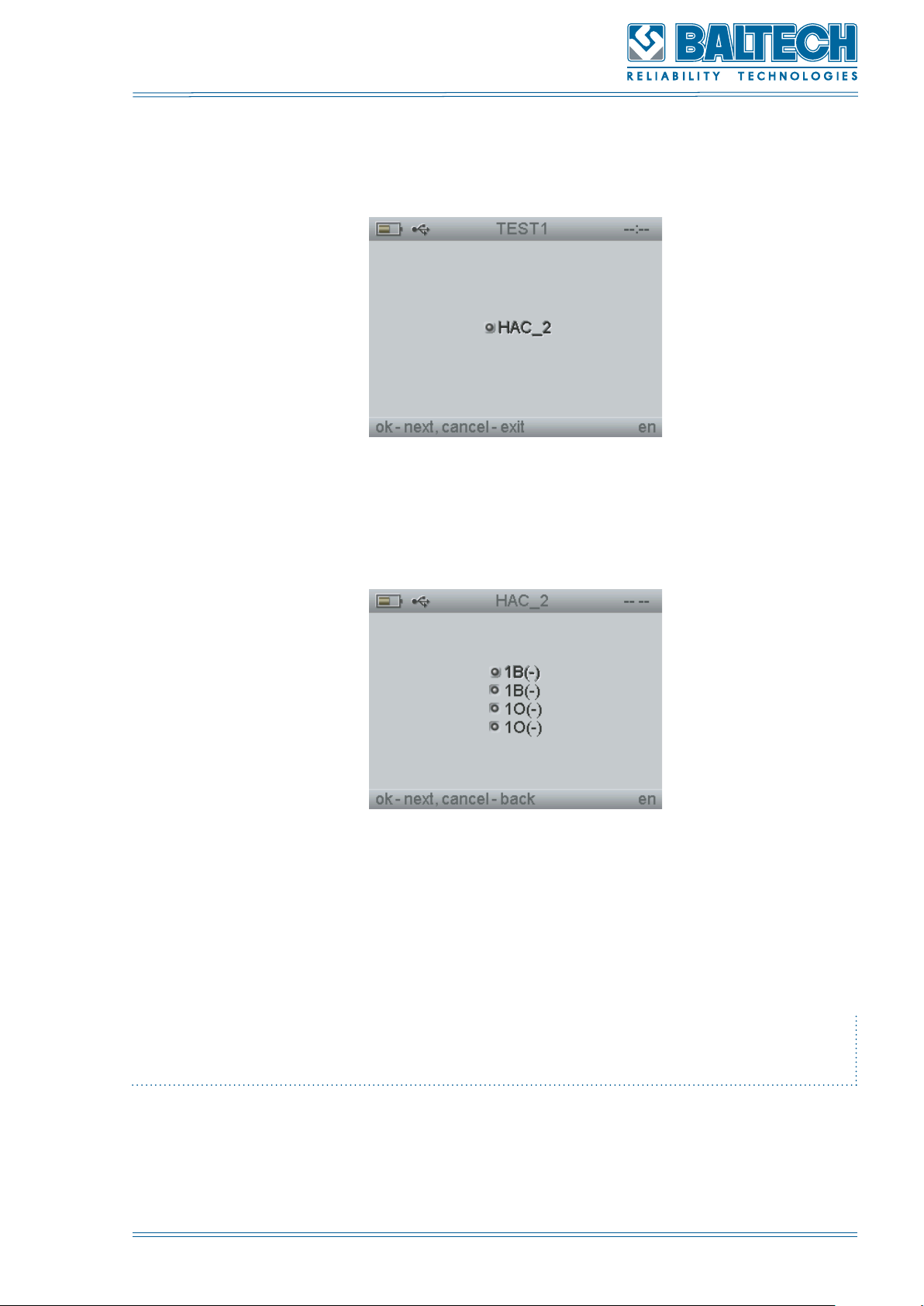

Figure 38. List of measurement points 53
Figure 39. Selection of the measurement channel 54
Figure 40. Sensor is not connected 54

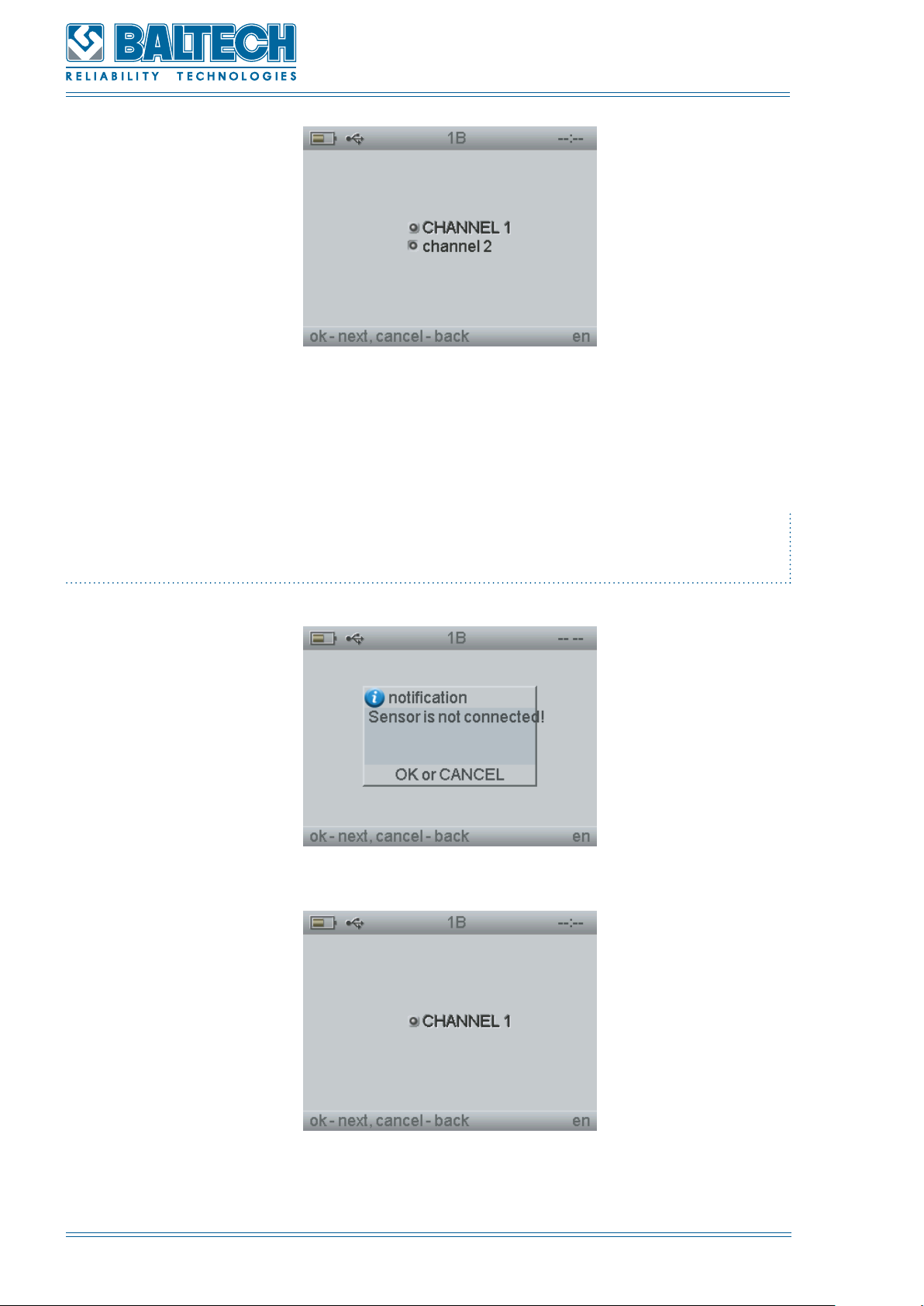

Figure 41. Conrmation of the measurement channel 54
Figure 42. Measurement process in ROUTES function 55
Figure 43. List of measurement points 55

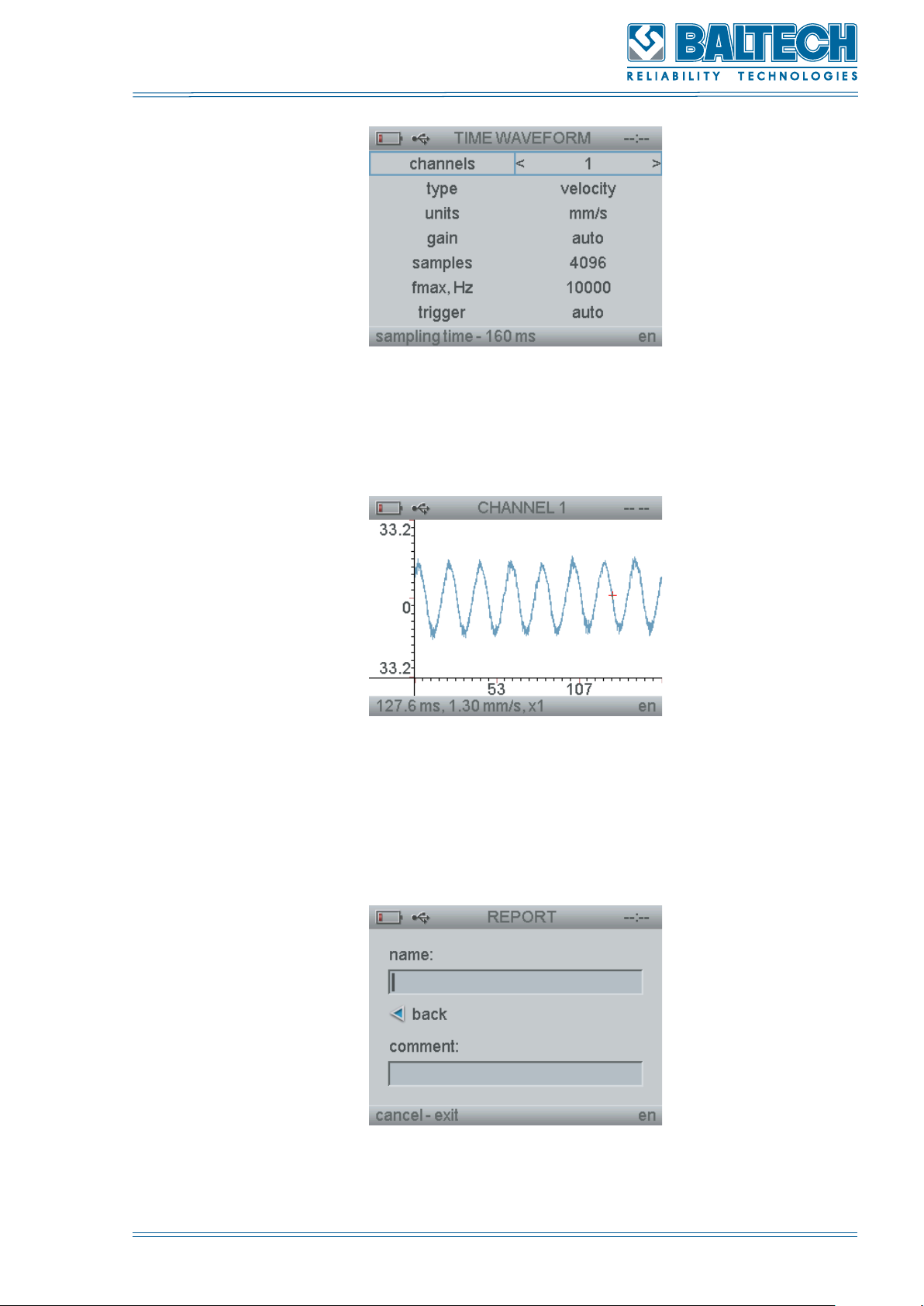

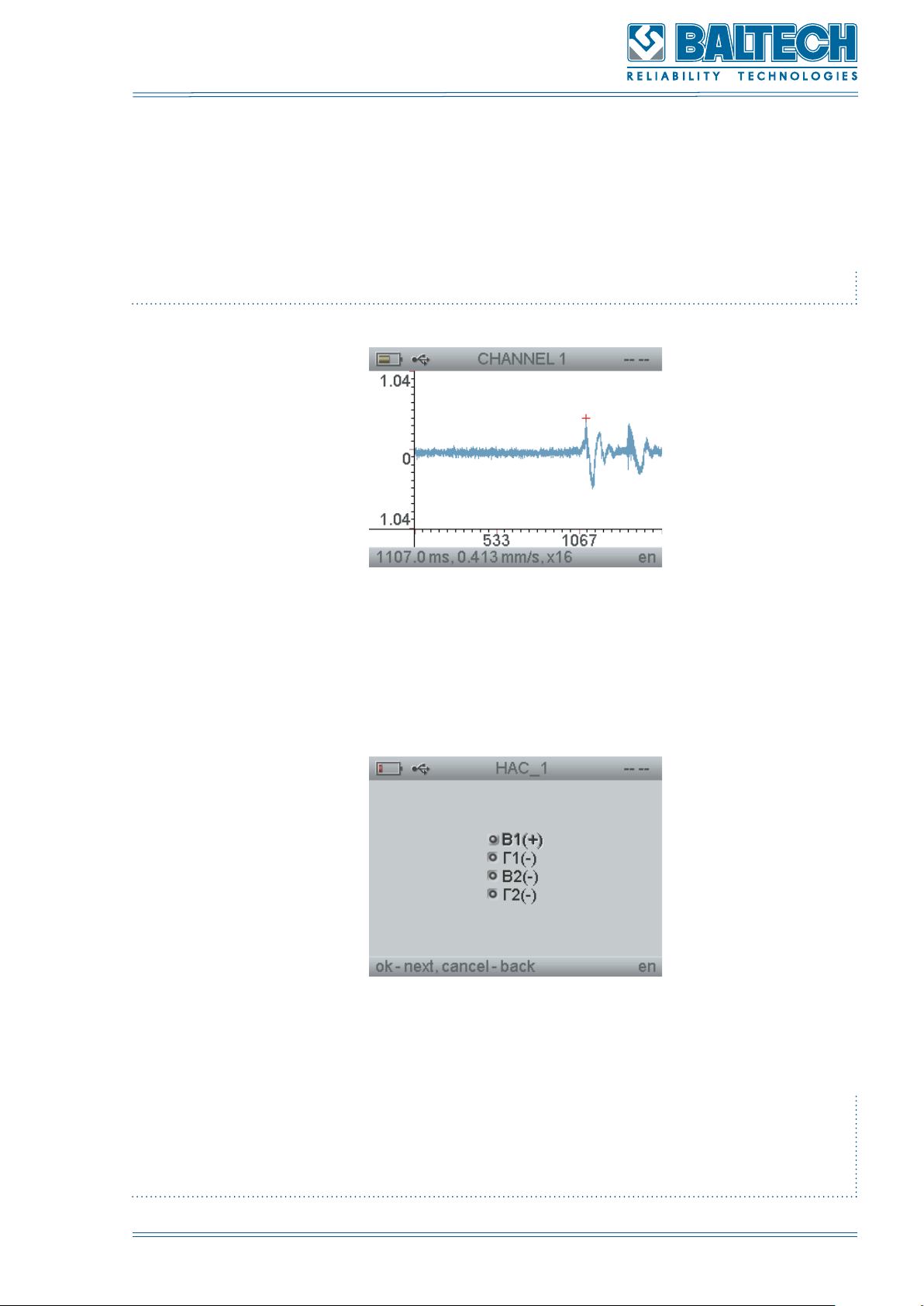

Figure 44. Time waveform 57
Figure 45. Time waveform 57
51
Figure 46. Report saving 57

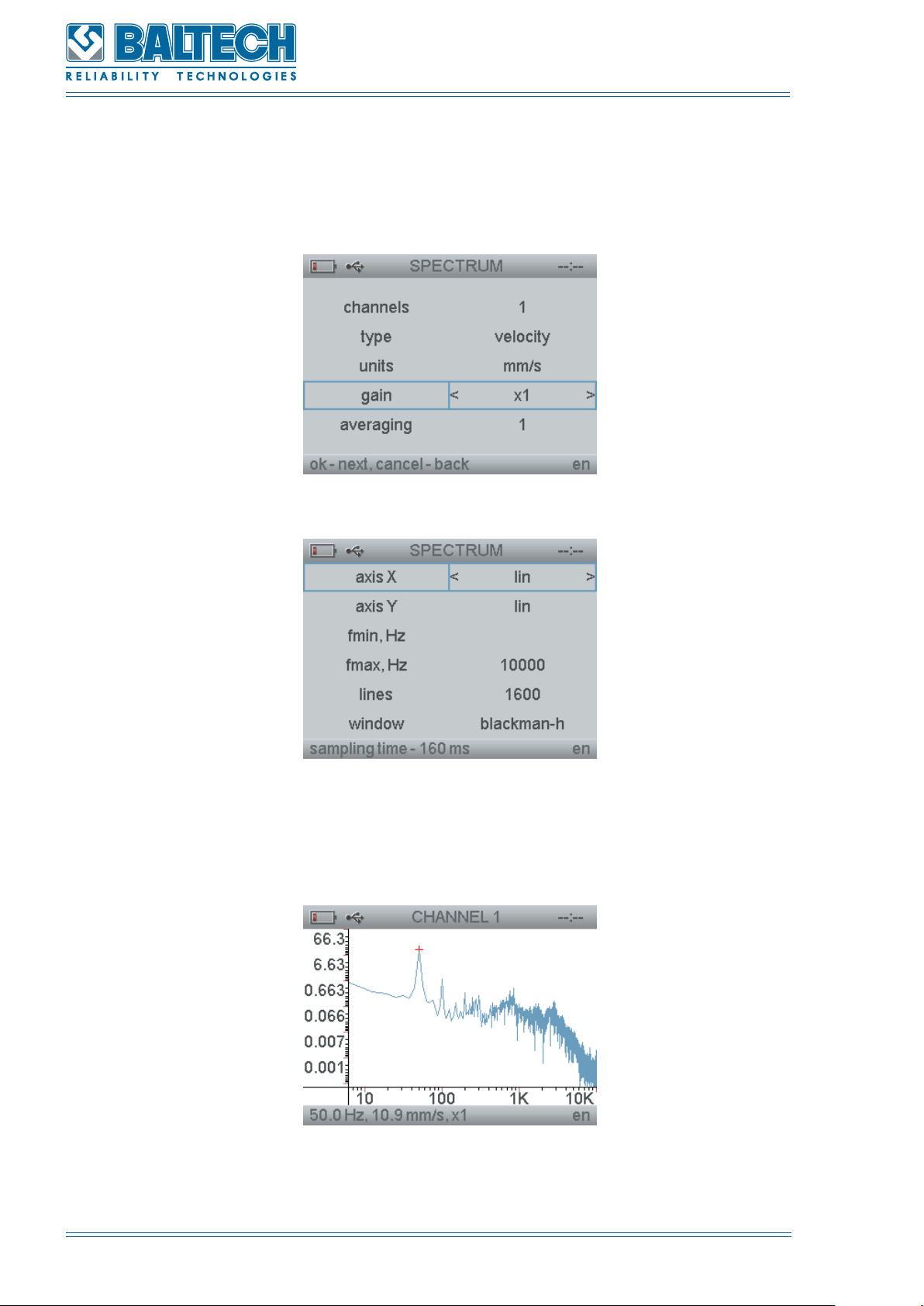

Figure 47. Spectrum 58
Figure 48. Spectrum 58
Figure 49. Spectrum 58

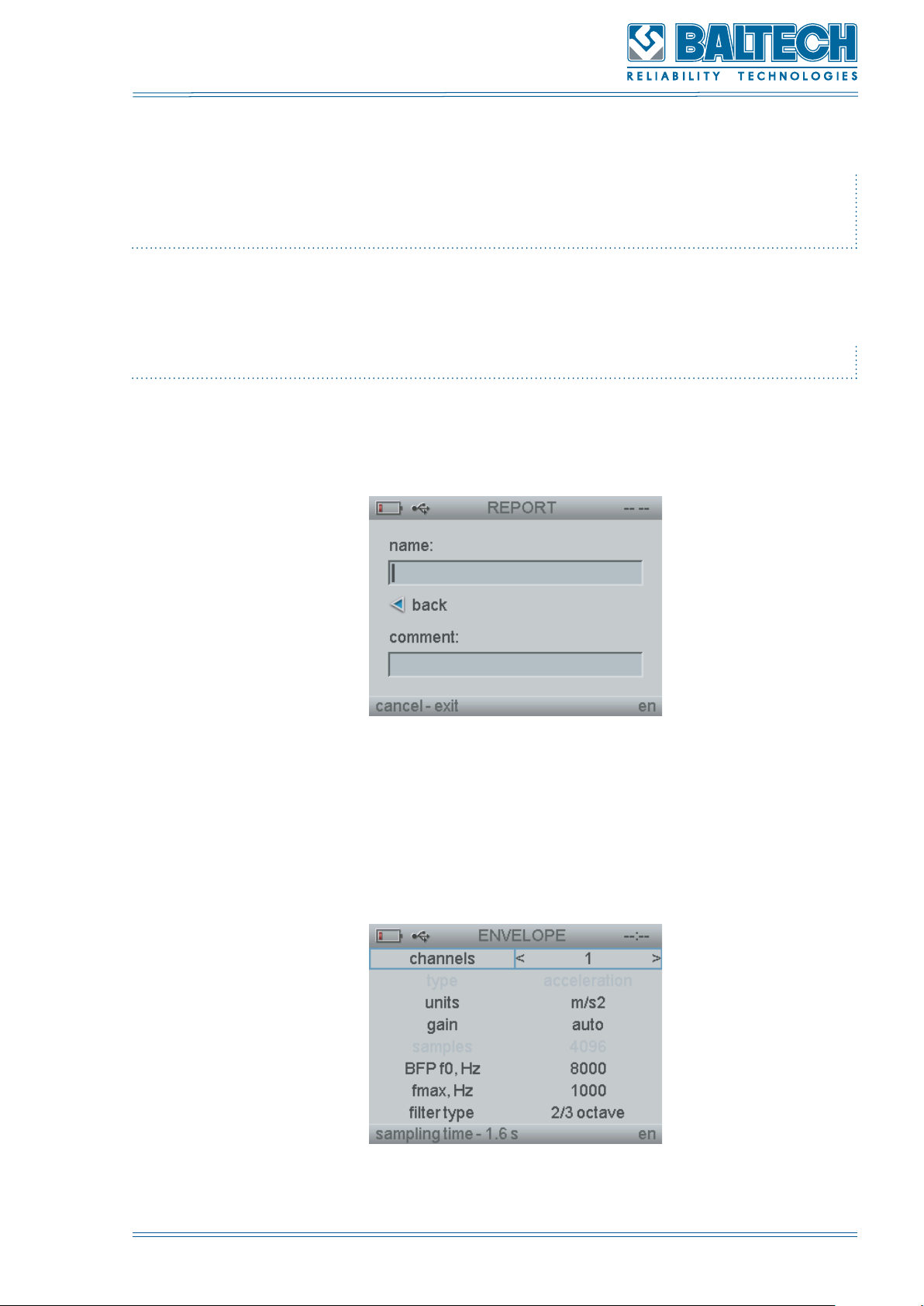

Figure 50. Report saving 59
Figure 51. Envelope settings 59
Figure 52. Envelope measuring 60

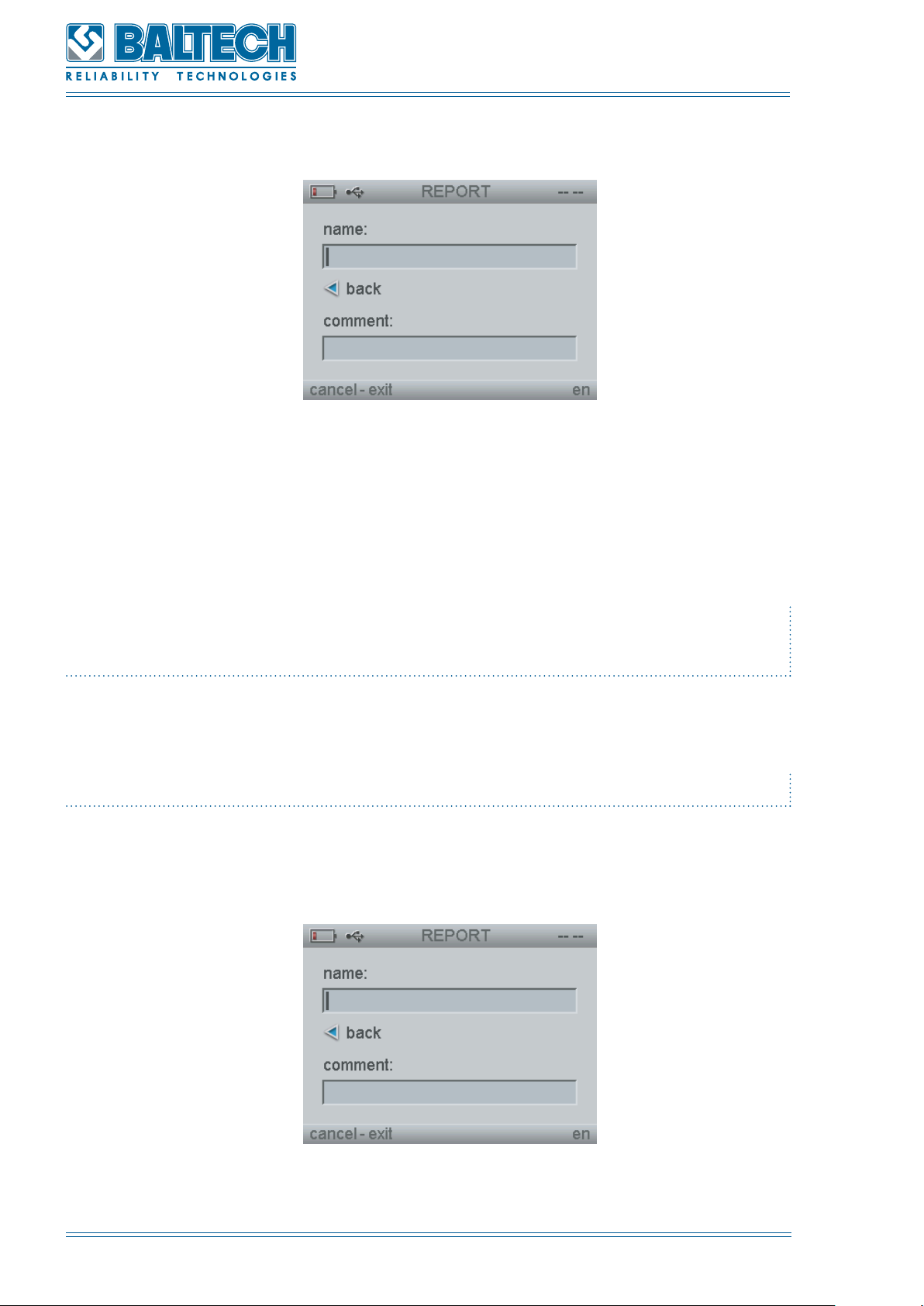

Figure 53. Report saving 60

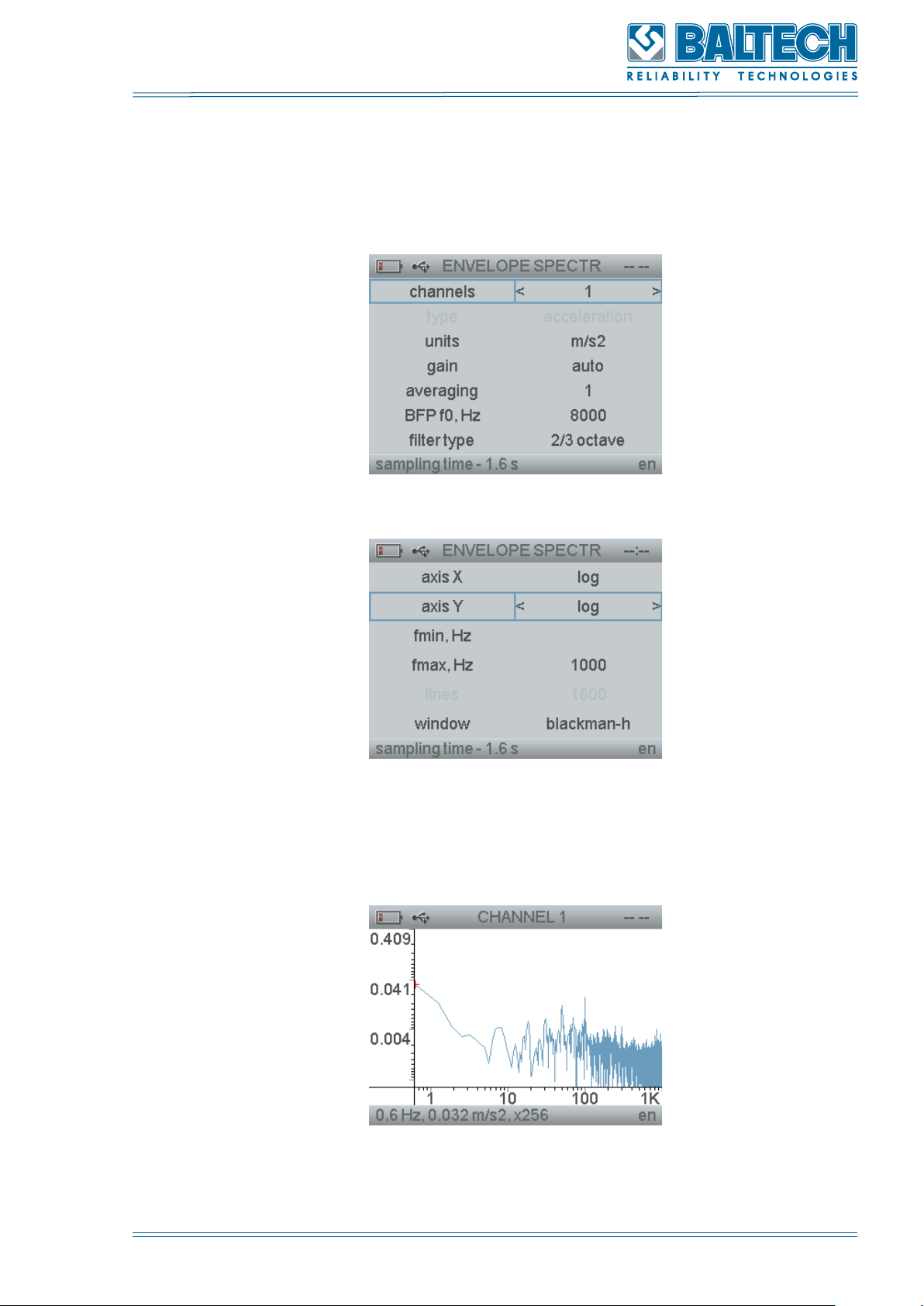

Figure 54. Envelope spectrum 61
Figure 55. Envelope spectrum 61
Figure 56. Envelope spectrum measuring 61

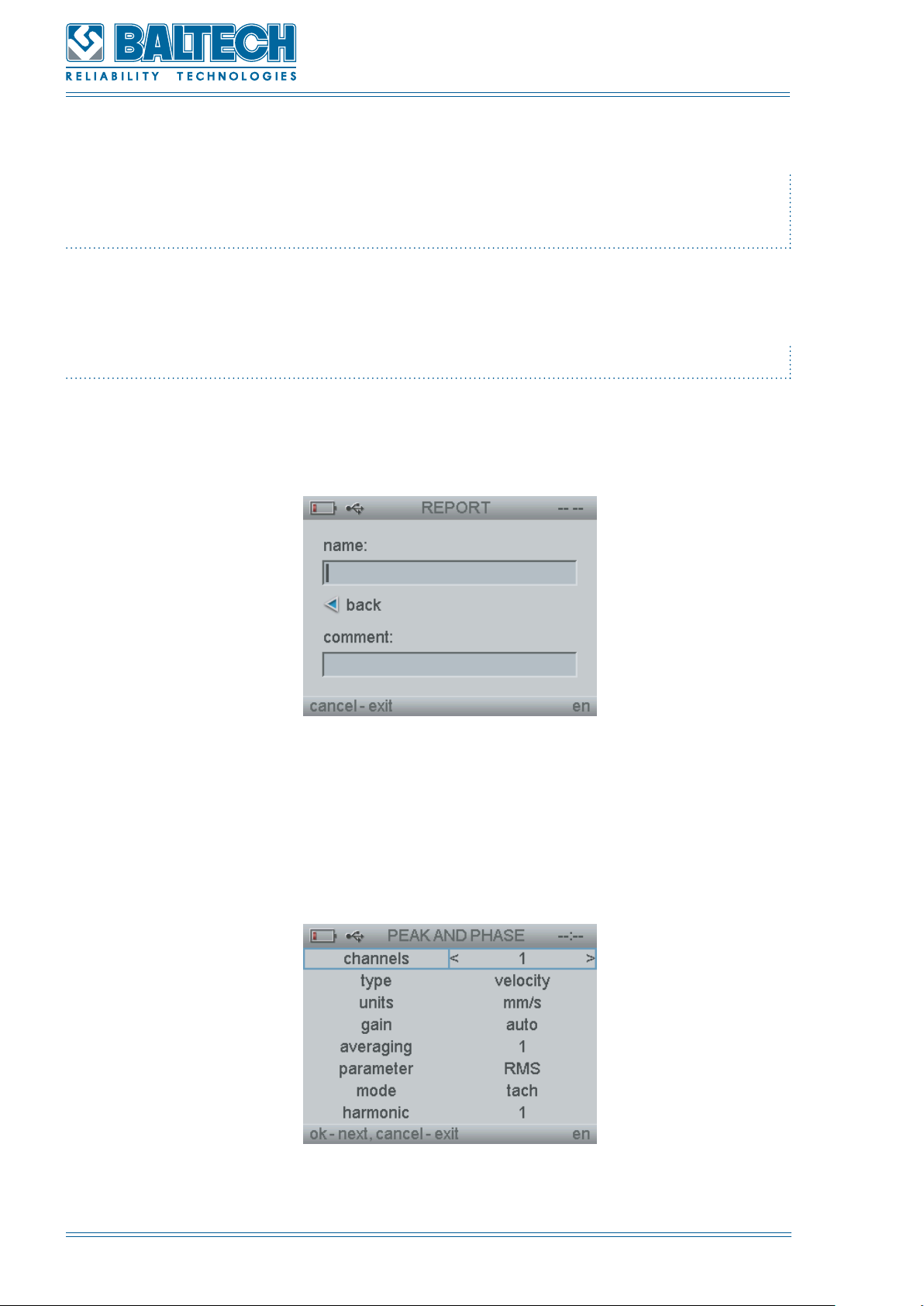

Figure 57. Report saving 62
Figure 58. Peak and phase settings 62
Figure 59. Peak and phase 63

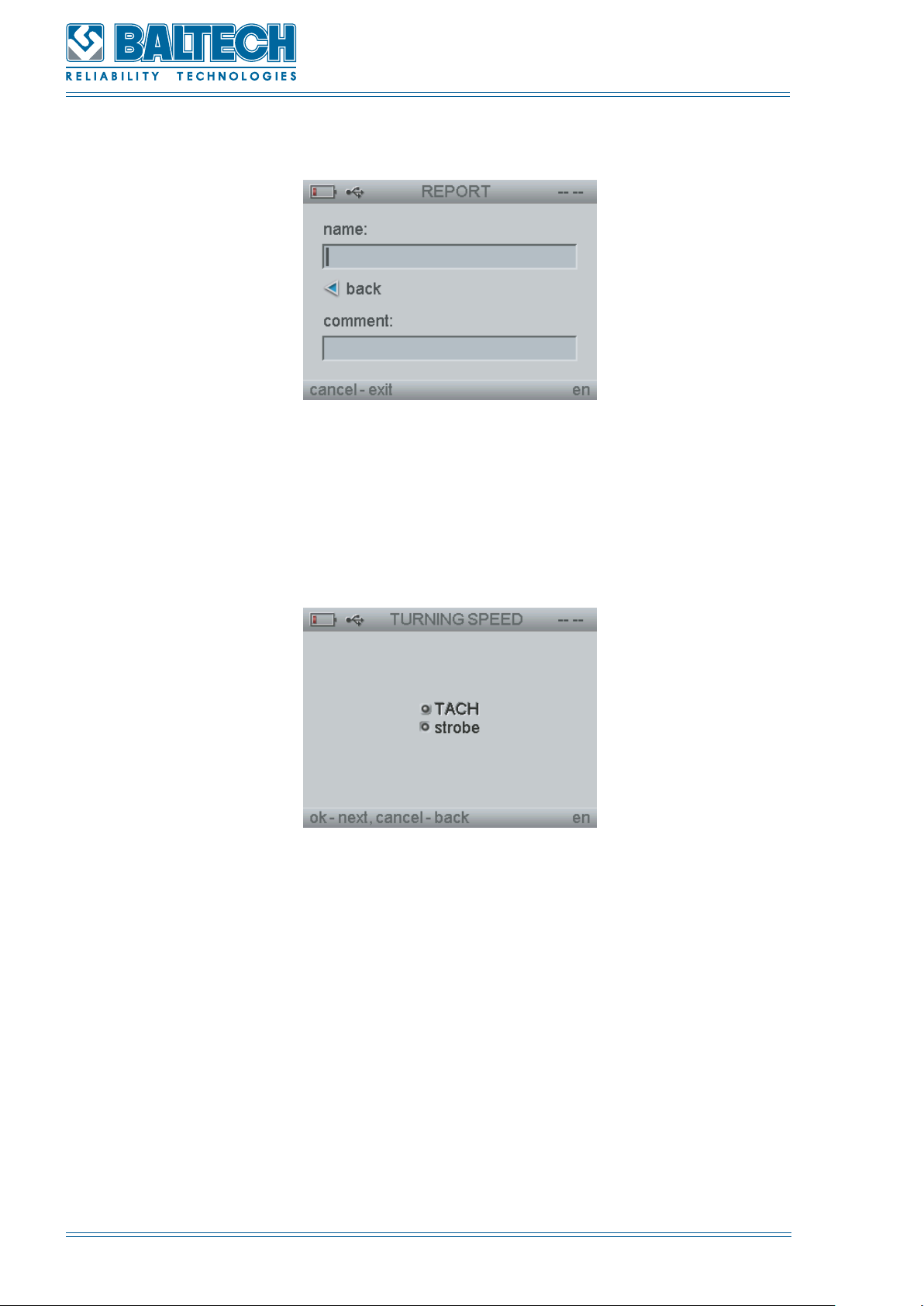

Figure 60. Report saving 64
Figure 61. Turning speed options 64

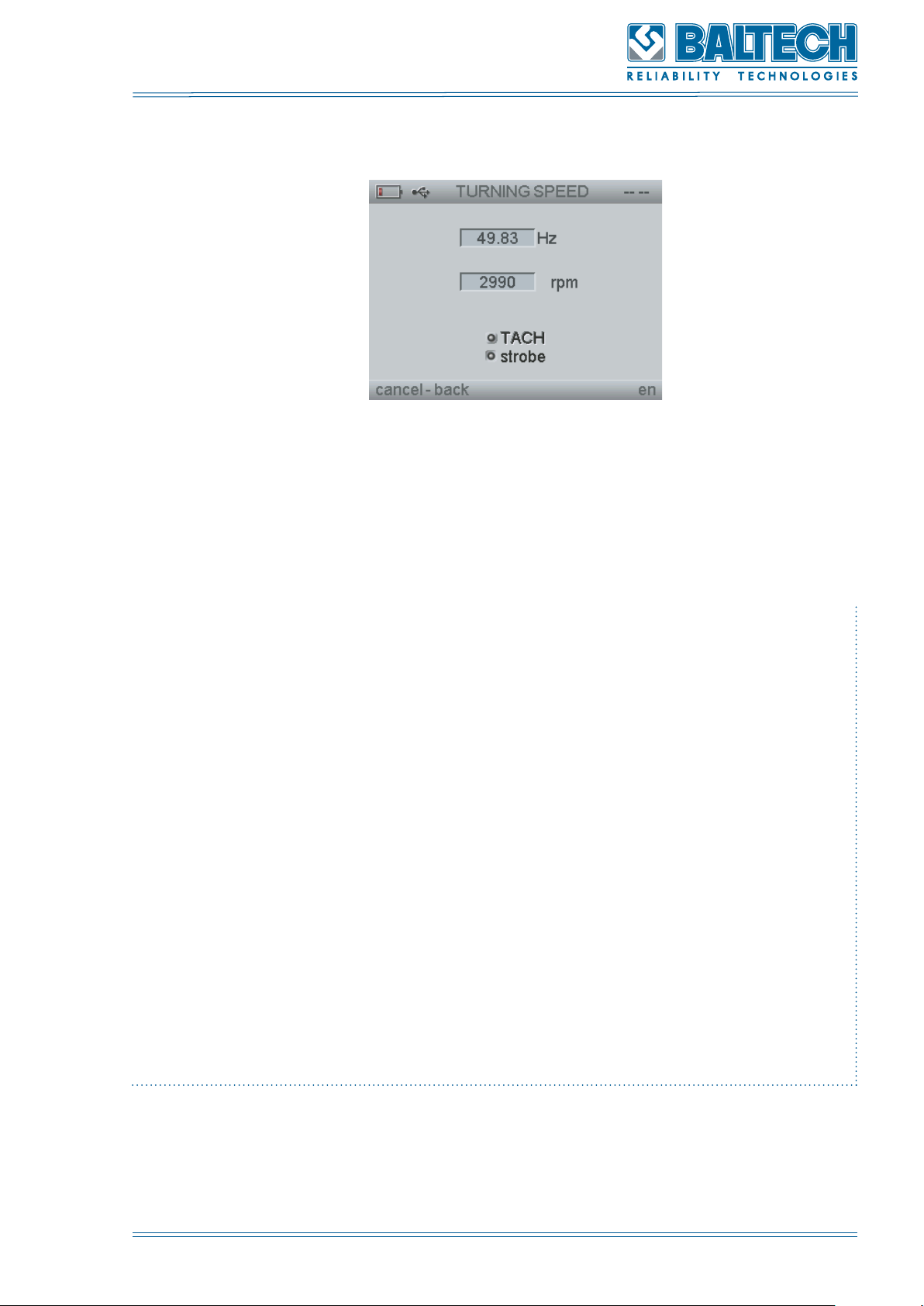

Figure 62. Turning speed results 65
Figure 63. Balancing menu 67
Figure 64. New balancing settings 68

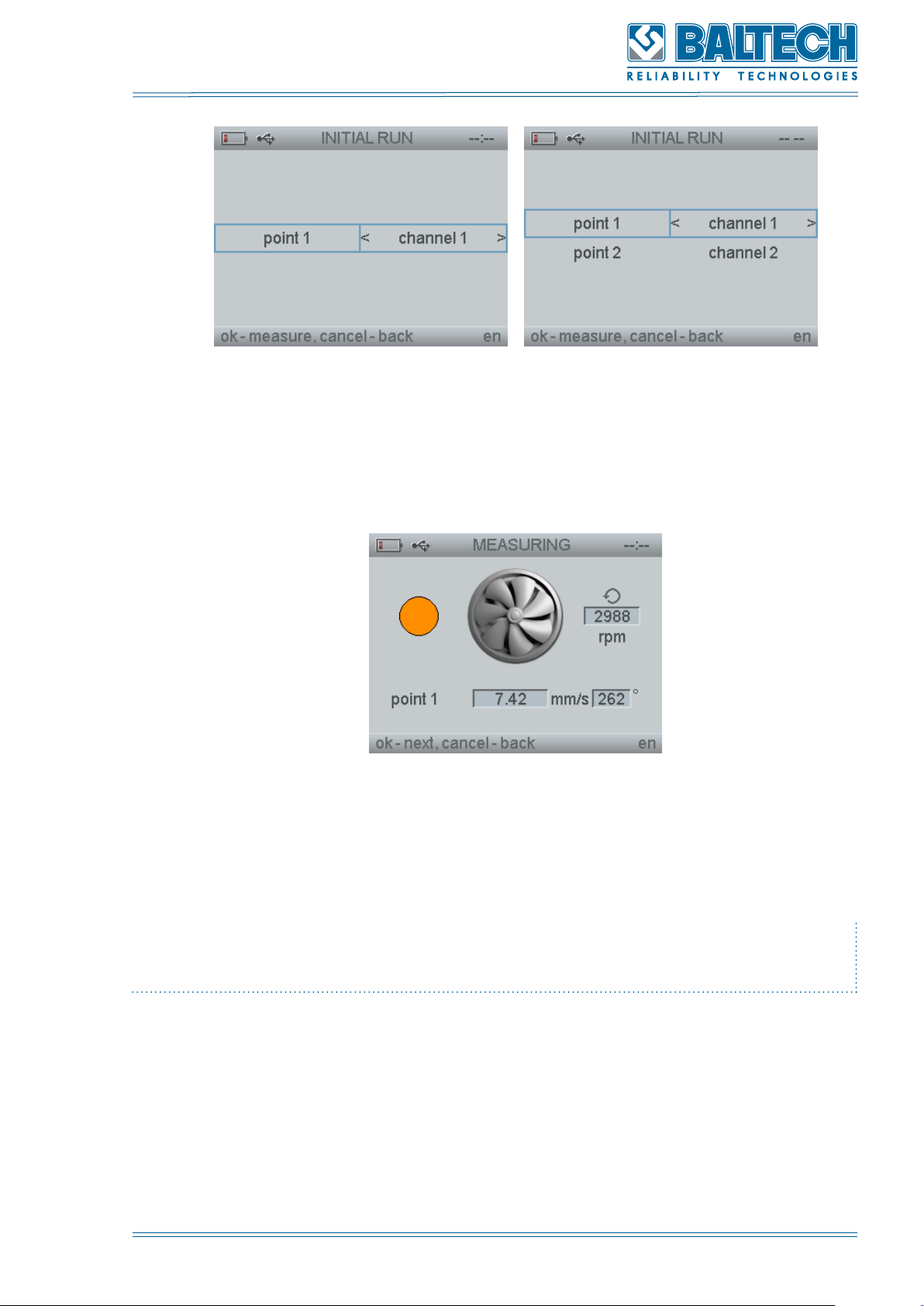

Figure 65. Initial run 69
List of figures 7
BALTECH VP-3470
Operation manual

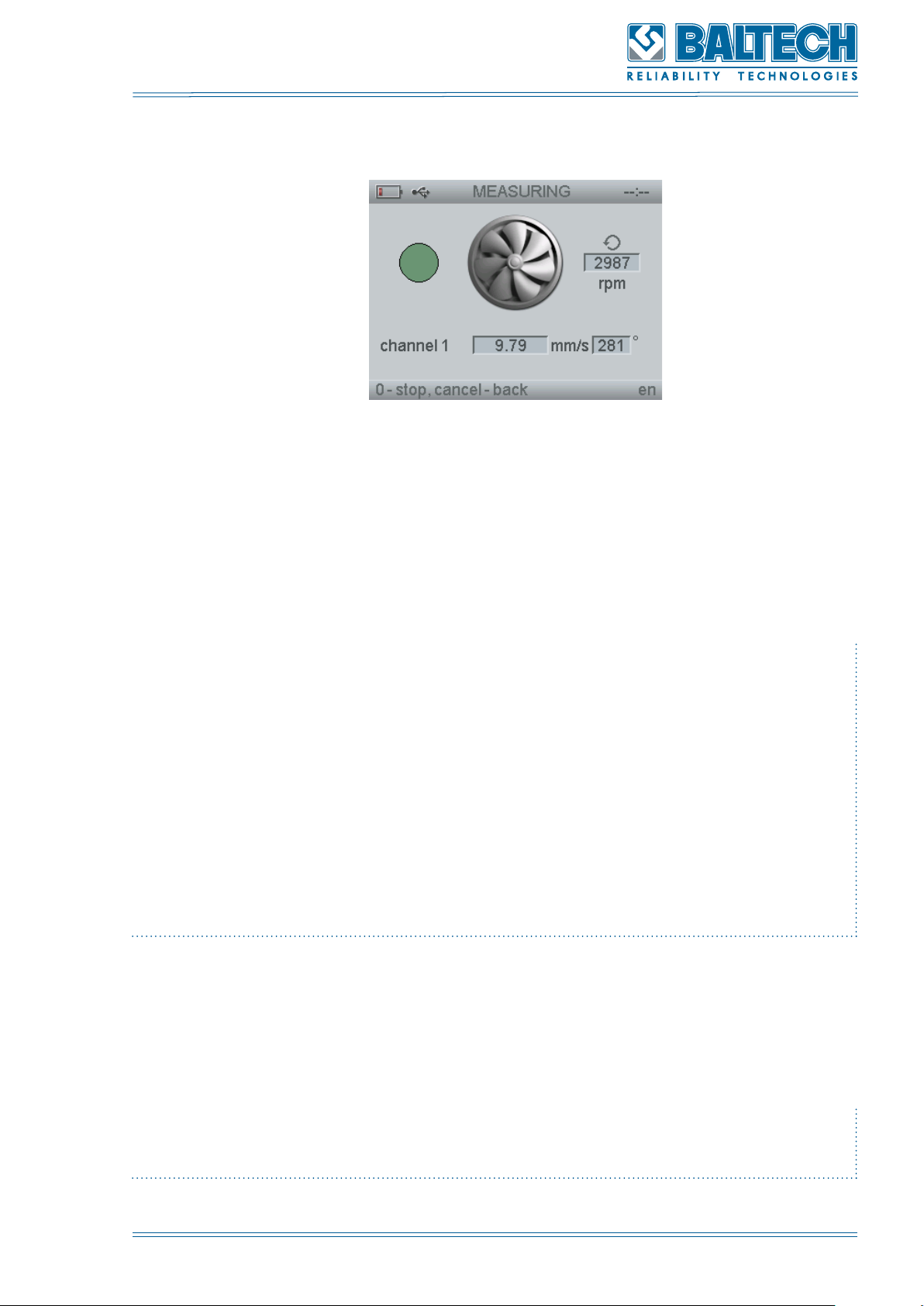

Figure 66. Measuring 69

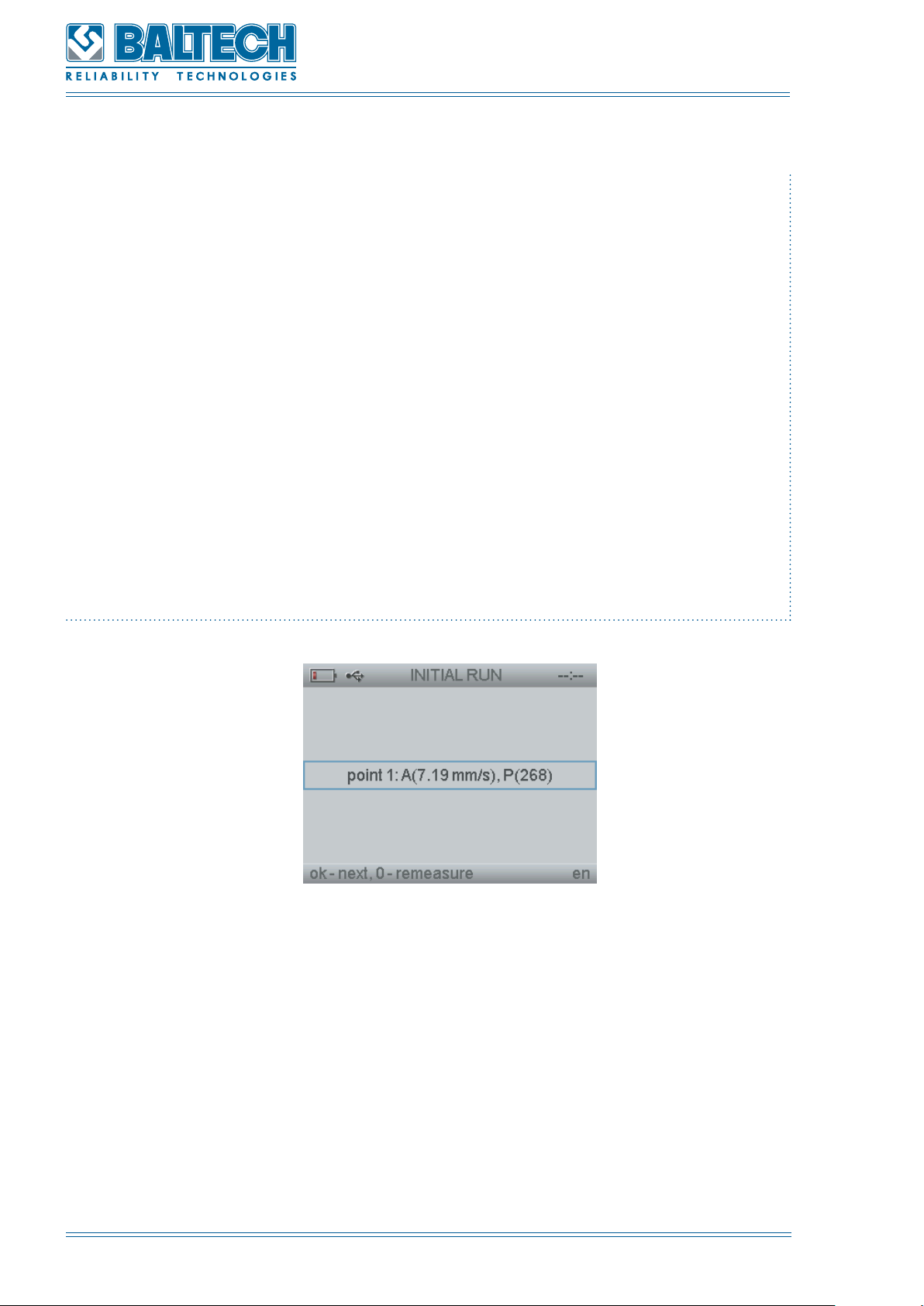

Figure 67. Initial run results 70

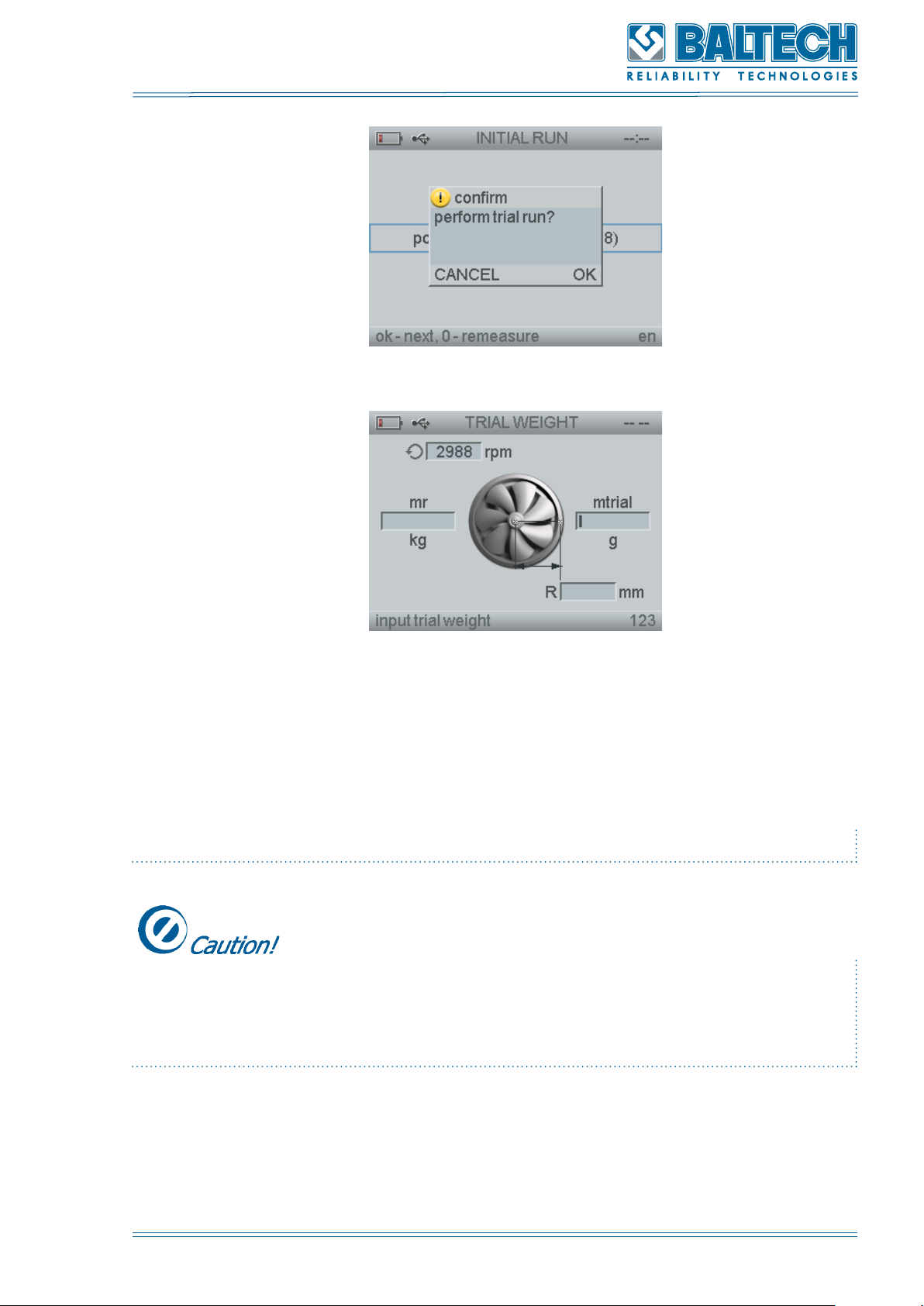

Figure 68. Conrm balancing 71
Figure 69. Trial weight 71

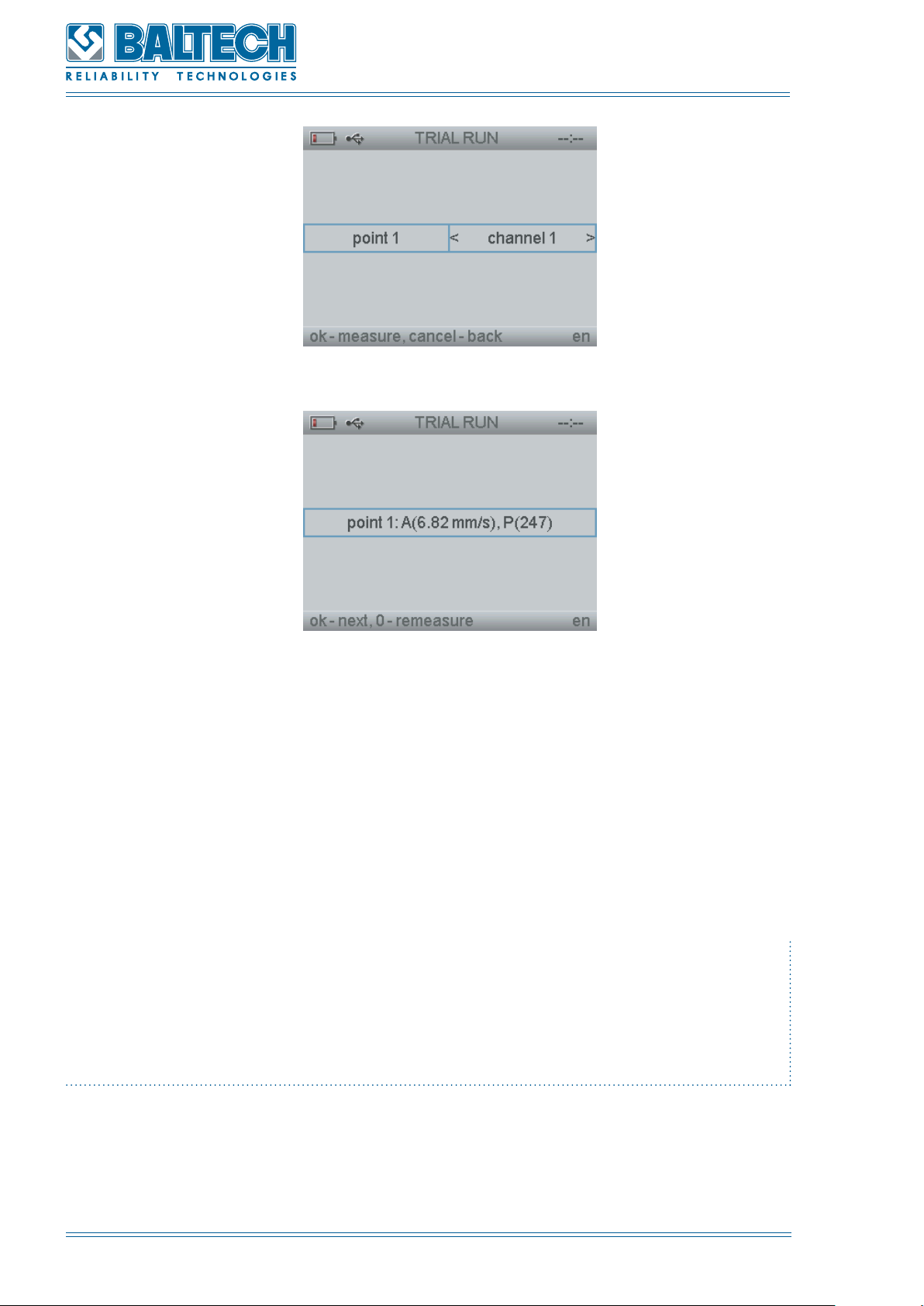

Figure 70. Trial run 72
Figure 71. Results of the trial run 72
Figure 72. Calculation for ordinary balancing 73
Figure 73. Calculation for angle method 73

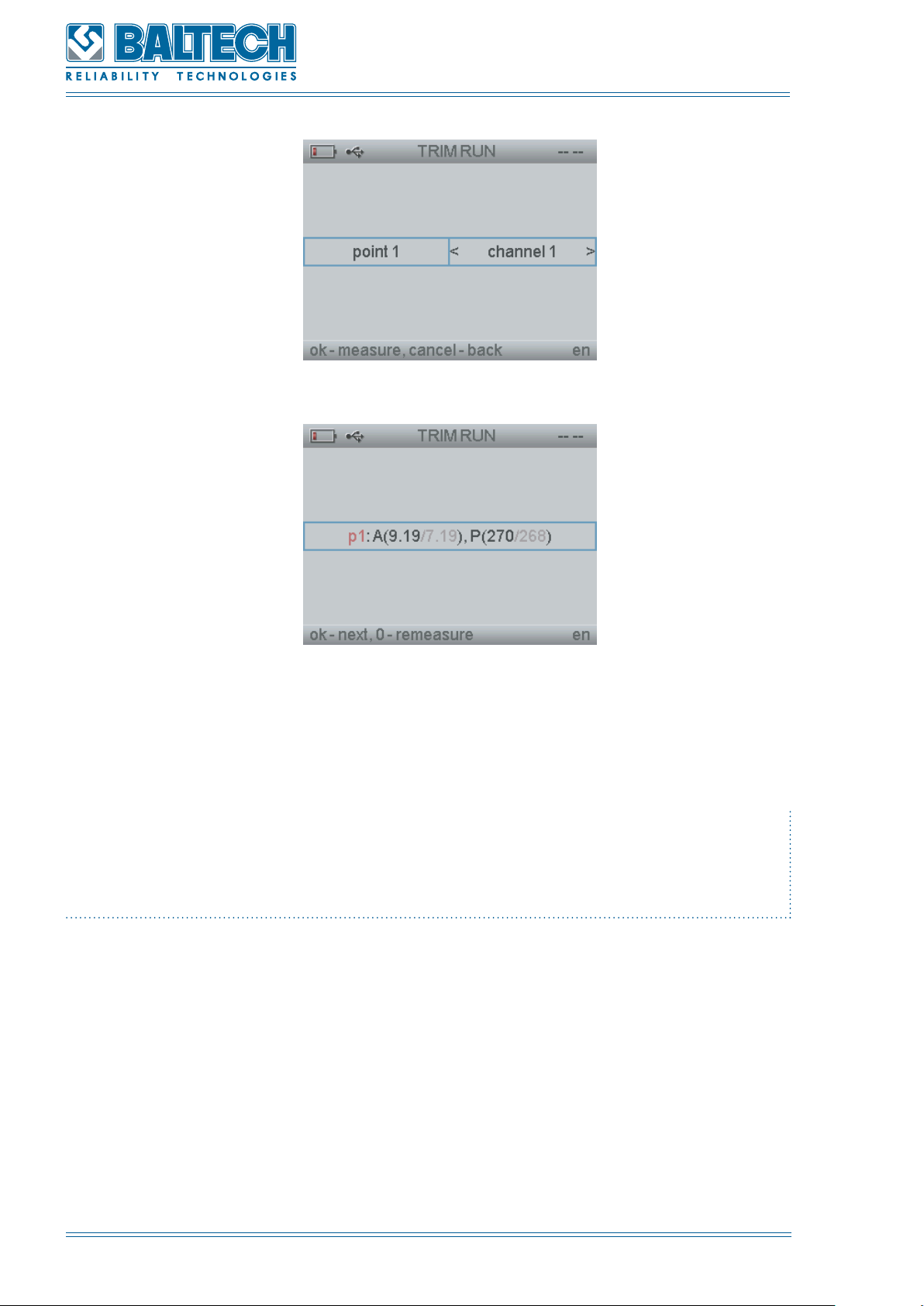

Figure 74. Trim run 74
Figure 75. Trim run results 74

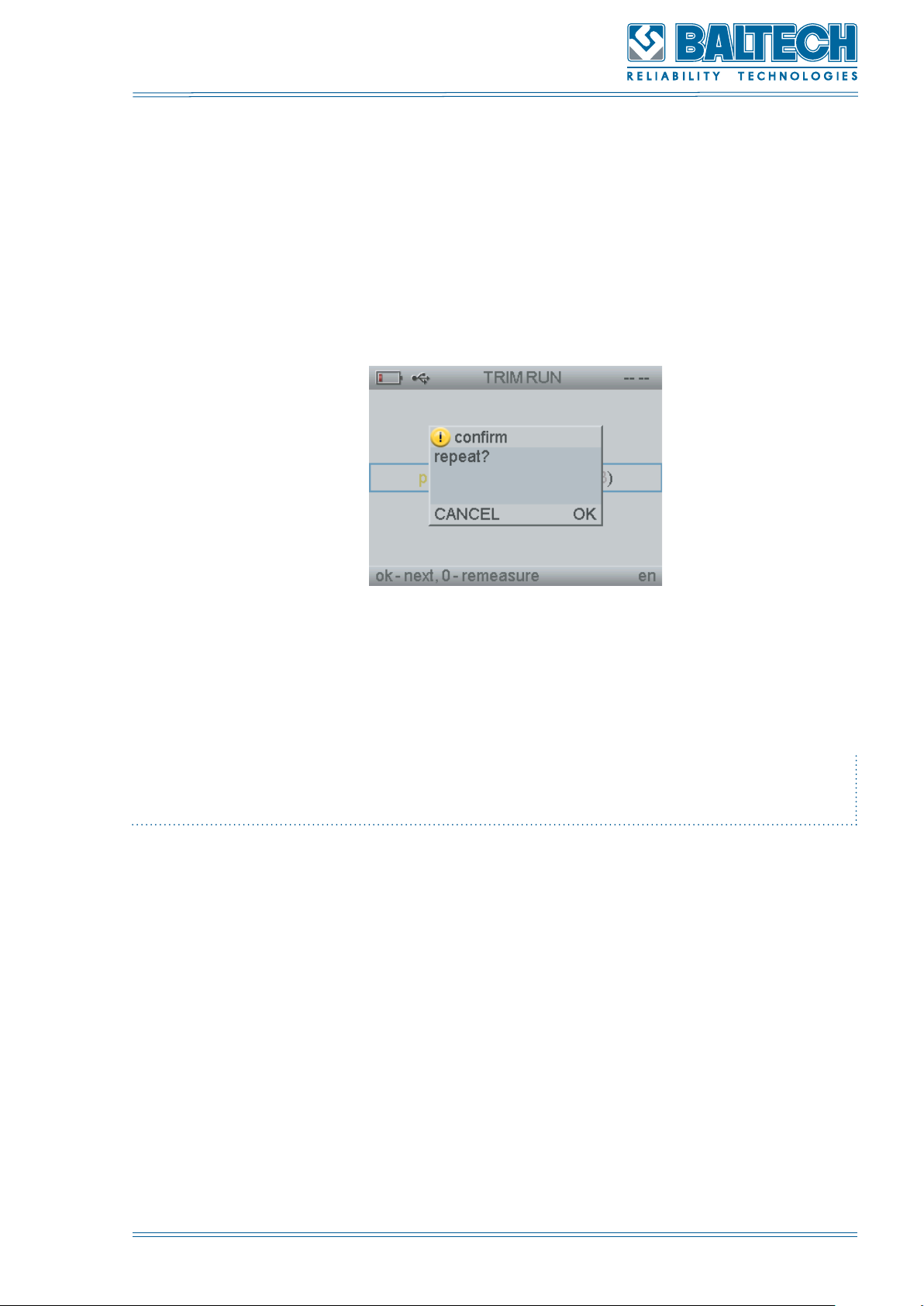

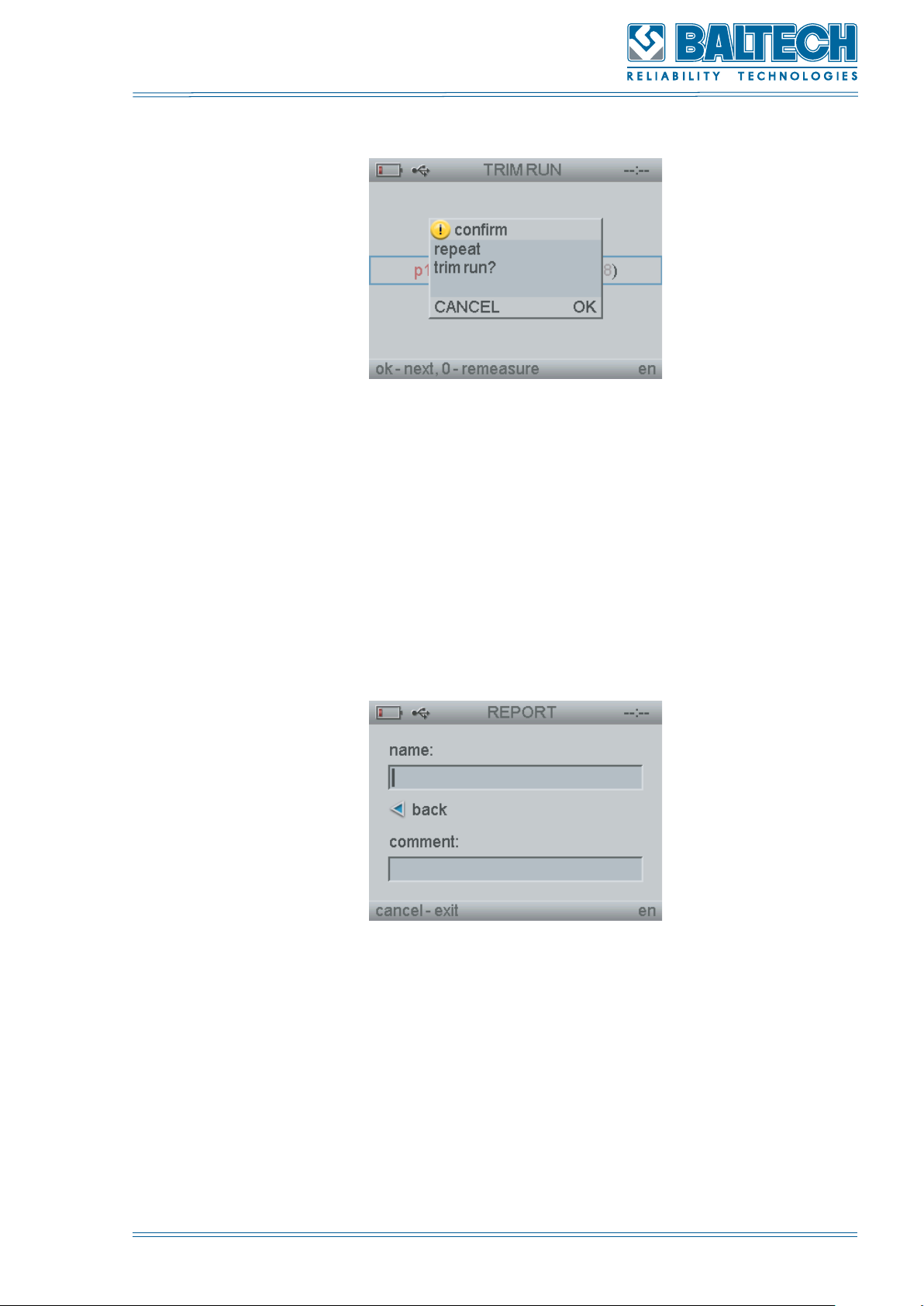

Figure 76. Repeat trim run 75
Figure 77. Report 75

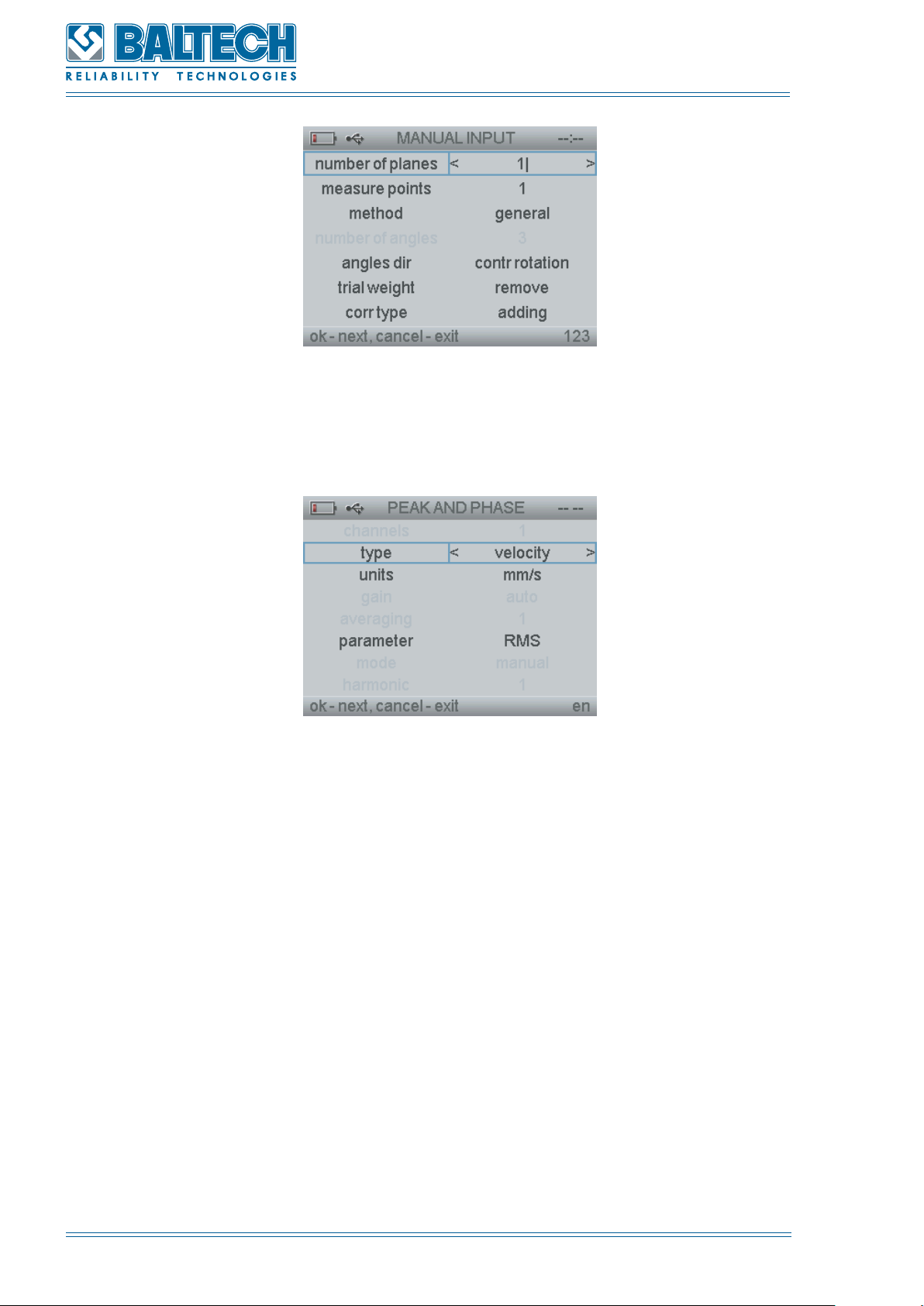

Figure 78. Manual input, step 1 76
Figure 79. Manual input, step 2 76

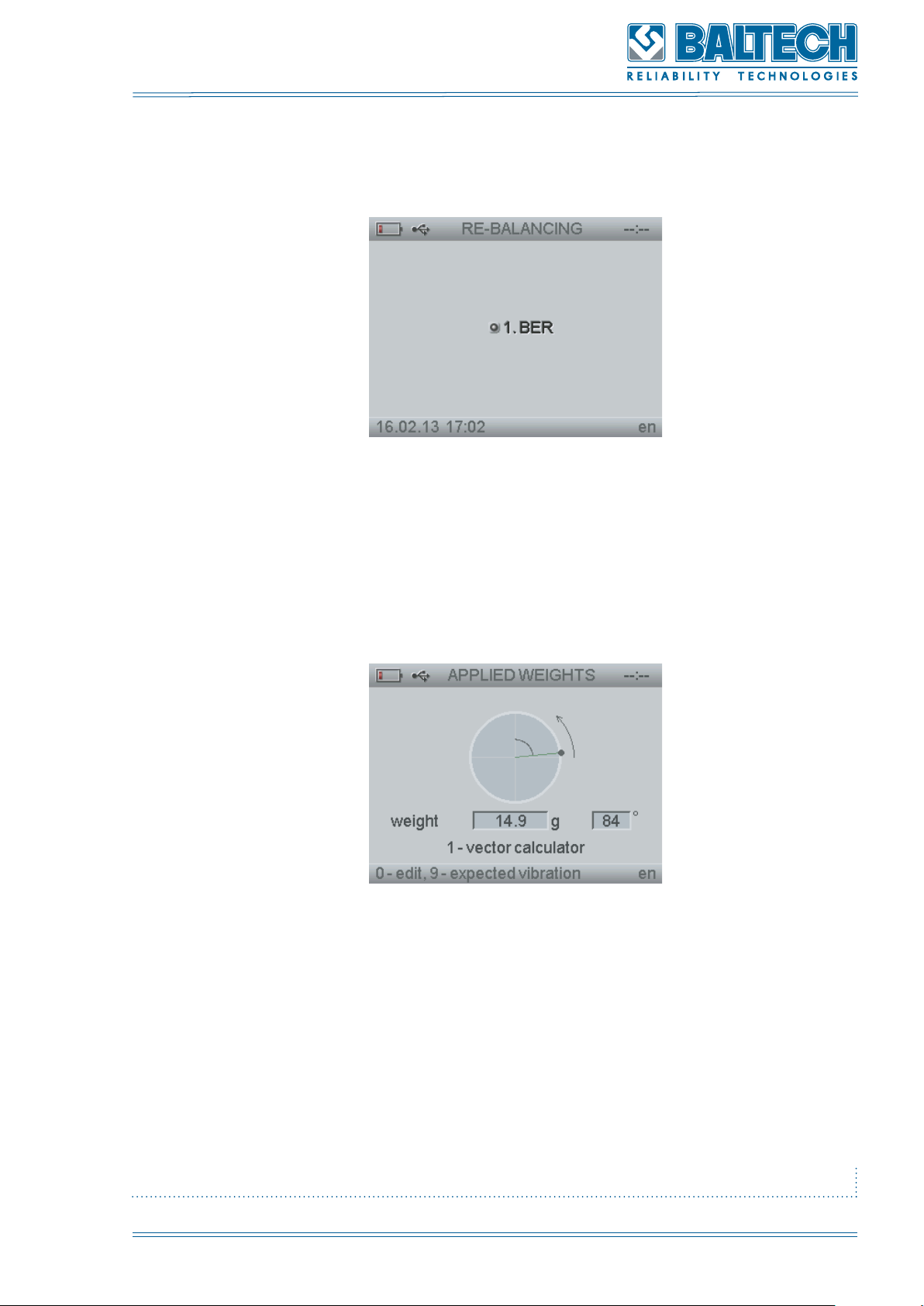

Figure 80. Re-balancing 77
Figure 81. Window with the installed weights 77

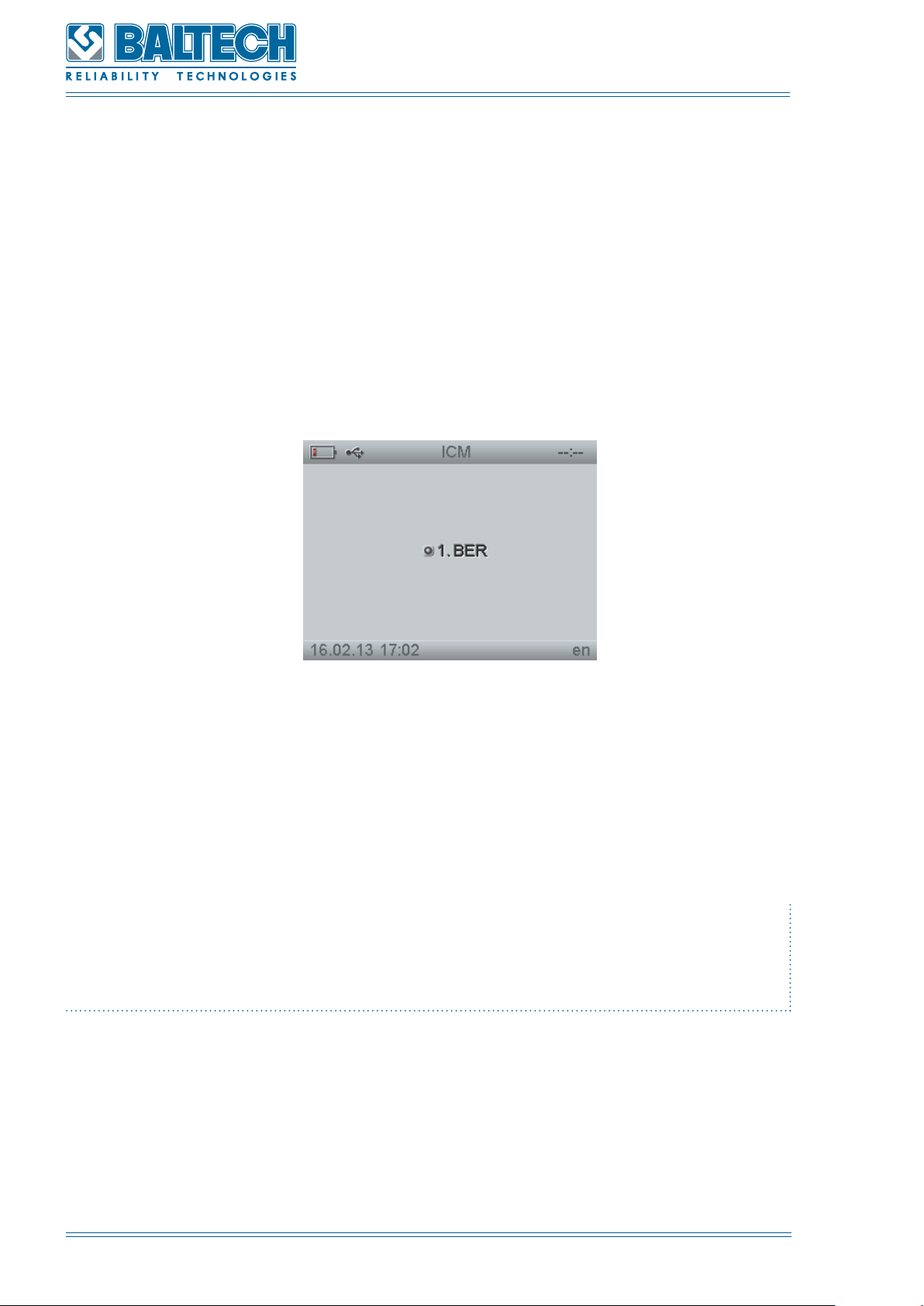

Figure 82. ICM 78
Figure 83. Repeat balancing 79

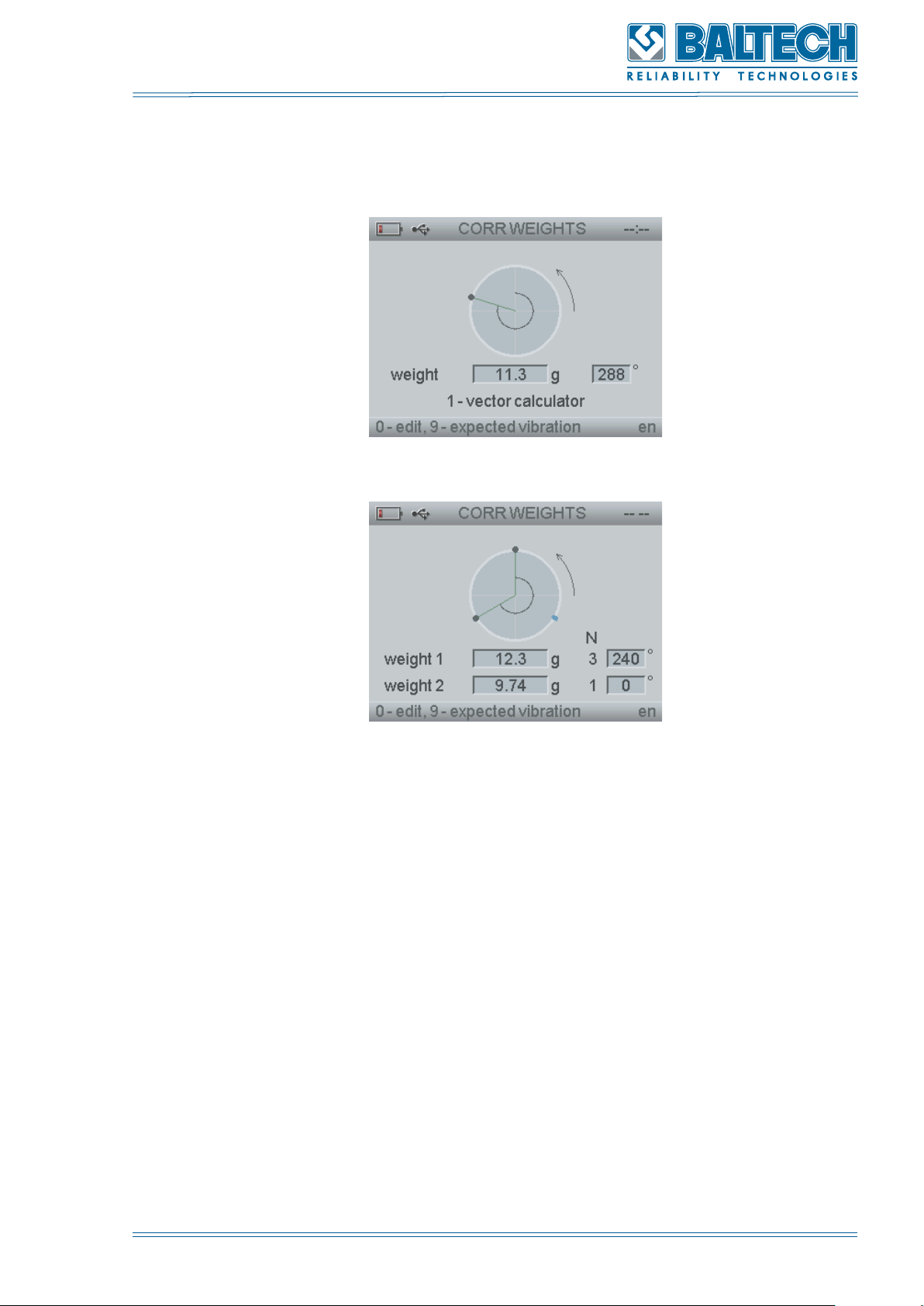

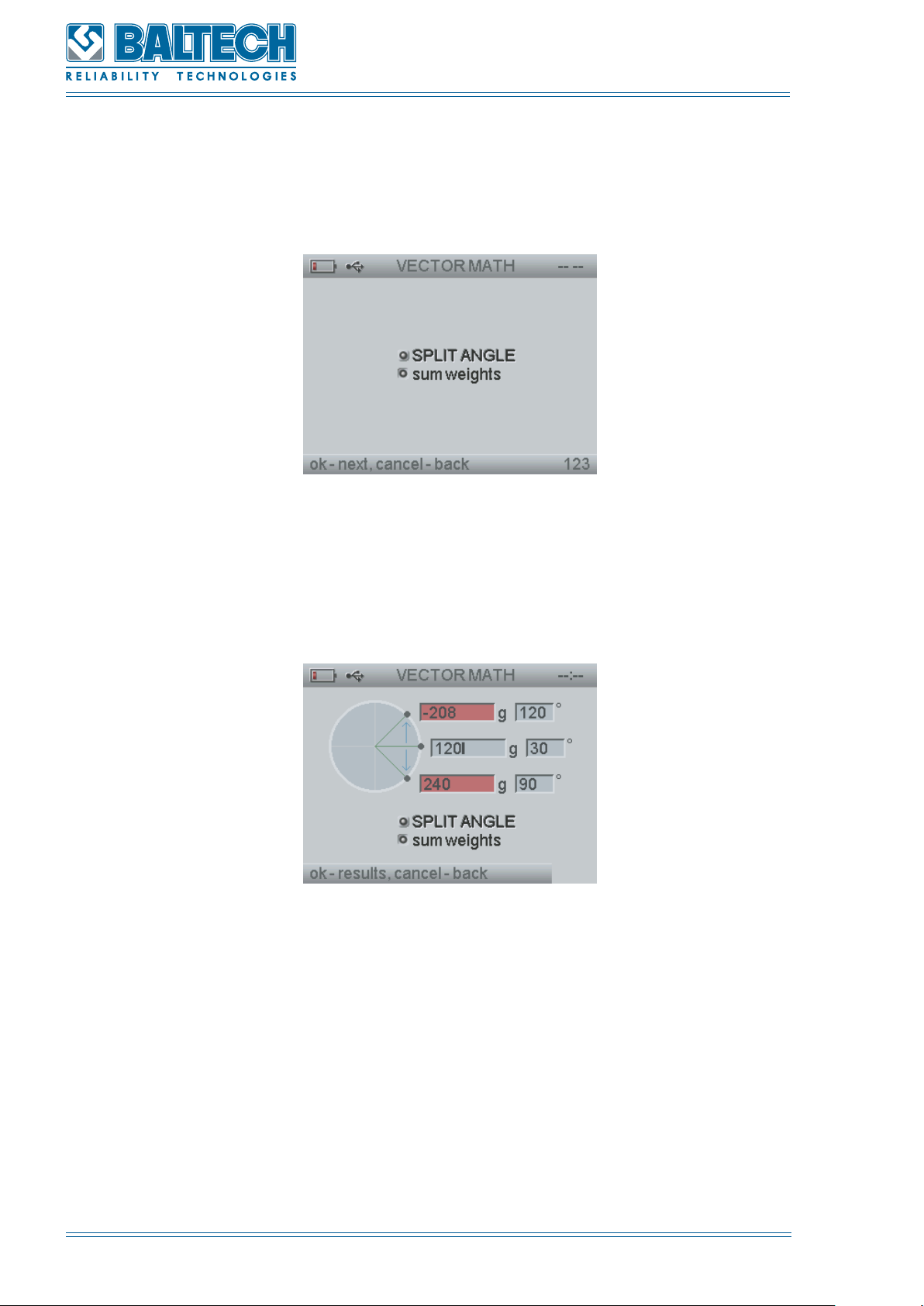

Figure 84. Vector math 80
Figure 85. Vector math 80
Figure 86. Reports functions 81
Figure 87. List of reports 81
Figure 88. Delete 82
Figure 89. Delete 83
Figure 90. Conrm deletion 83
8 List of figures
BALTECH VP-3470
Operation manual
1. Conventions
The following conventions are used throughout this operation manual to call special
attention to the associated text:
A note paragraph contains special comments or instructions.
A caution paragraph alerts you to actions that may injury personnel or have impact
on the equipment.
An attention paragraph alerts you to actions that may have consequences for
equipment and/or personnel.
Conventions 9
BALTECH VP-3470
Operation manual
2. Introduction
This operation manual is intended to familiarize users with application,
design, operation principle, operation instructions, measurement procedure,
safety requirements and requirements to transportation and storage of the
vibrometer-balancer BALTECH VP-3470.
Read the operation manual carefully before you start using the vibrometer-balancer
BALTECH VP-3470.
BALTECH wants our users to be satisfied with the vibrometer-balancer
BALTECH VP-3470. If you have any questions do not hesitate to address to us at
any time.
10 Introduction
BALTECH VP-3470
Operation manual
3. Safety measures
3.1. General provisions
BALTECH VP-3470 is a vibrometer balancer that can be used by any technician
who has received the training at the BALTECH training centre on the course TOP-
105 “Dynamic balancing of the rotors in the own bearings or on the balancing
machines” or TOP-103 “Foundations of the vibration diagnostics”. The instrument
should be used only for its intended purpose. Always observe safety precautions
according to ISO 20806-2007 “Mechanical vibration. Criteria and safeguards for the
in-situ balancing of medium and large rotors”.
Nonobservance of the safety requirements may result in serious injury, death or
failure of the instrument.
For this purpose:
• Do not use the instrument if there are any damages.
• Always use the instrument only for its intended purpose.
• Observe the safety regulations related to the operation of electrical installations.
The vibrometer-balancer BALTECH VP-3470 should be powered from the constant
low voltage generated by a network adapter or internal batteries.
Keep sensors and cables away from moving parts.
Safety measures 11
BALTECH VP-3470
Operation manual
It is strictly prohibited to use the instrument if the atmosphere contains more than
20 per cent of the lower explosive limit of a flammable or explosive substance.
3.2. Personnel safety
During the on-site balancing an operator should have safe access to moving parts to
install trial and correction weights on them. Strictly observe the safety instructions
specifying actions that allow safely stopping the machine operation and instructions
related to the use of auxiliary equipment, excluding its contact with rotating
components.
3.3. Machine operation mode during the balancing procedure
During the on-site balancing the machine starts up and stops repeatedly that can
cause excessive loads. In this case the machine operation requires a special analysis.
The example of this analysis is given in the Table 1 “Safety measures for some types
of machines”.
Repeated startups and stops may result in reliability degradation and service life
reduction of the machine.
12 Safety measures
BALTECH VP-3470
Operation manual
Table 1. Safety measures for some types of machines
Machine
Example Safety measures
class
Turbines Steam or gas turbine Stop the machine to add a correction weight
and apply a phase mark. Make sure that the
shaft is not bent. For this purpose rotate the
shaft for a time to achieve the temperature
equalization.
Electric
motors
Motor for
high
performance fan
Some types of the electric motors are
allowed to be started up only a limited
number of times per hour. The speed takerup from zero to maximum amount can be
uncontrolled. Therefore the size of the trial
weights should be selected in such a way
that the machine can’t be damaged in case
of their installation in improper position.
Large fans High-performance
induced draft fan
The air current generated be the fan
during the balancing procedure should
be distributed properly. Sometimes it is
necessary to close the air valve which can
lead to a breakaway. The fluids fed by the
fan can be hot or contain harmful substances
therefore an operator should not access the
fan (to install the correction weight, etc.) till
the operation conditions are safe.
Safety measures 13
BALTECH VP-3470
Operation manual
Machine
class
Electric
generators
The electric
generator with
hydrogen cooling and
drive from steam or
gas turbine
3.4. Laser safety
Example Safety measures
The above mentioned is related to the
turbines. To enable the access to the internal
correction planes it is sometimes necessary
to use air instead of hydrogen.
But for most generators the duration of run
and maximum rotation frequency are limited
when working in air medium even if there is
no voltage and load. These restrictions must
be observed during the balancing process.
Make sure that the seal is lubricated properly
when working in air medium. Dismounting
of some internal wind breaker plates can be
required to facilitate access to the internal
correction planes. Also make sure that
the dismounting will not cause significant
reduction in the quality of the generator
cooling.
According to the ISO 60825-1-2009 the tach used in the device bolongs to the 2nd
class of laser equipment. The tach is eqipped with a laser diode of capacity less than
1 mWt and wave length in the range 635-670 nm.
By operating the equipment you should follow special requirements:
- do not open the tach.
- do not observe laser light sources by the powered tach.
- do not direct a laser bearm in the eyes of others.
All repair works, which need the tach to be opened, should be performed only by
specialists of BALTECH GmbH.
3.5. Installation of trial and correction weights
When you add the trial and correction weights make sure they are fixed properly
and can withstand the developing centrifugal force. The correction weights should
not interfere with the normal machine operation. If the installation procedure of the
correction weights is specified in the manufacturer’s instructions, strictly observe
them.
14 Safety measures
BALTECH VP-3470
Operation manual
4. Technical description
4.1. Application
The vibrometer-balancer BALTECH VP-3470 is designed to perform:
1) measuring, recording and analysis of the vibration parameters, rotation frequency
of rotating machines and mechanical structures with the purpose of monitoring and
diagnostics of their technical condition. BALTECH VP-3470 allows performing the on-
site monitoring of electric motors, pumps, fans, exhausters, compressors, turbines,
generators in various industries.
2) balancing (up to 4 correction planes and 16 measure points).
4.2. Technical characteristics
The technical characteristics of BALTECH VP-3470 are given in the Table below.
Table 2. Technical characteristics
Frequency range, Hz from 2 to 10000
Measurement range of RMS vibration
acceleration at the base frequency
159.2 Hz, m/s²
Measurement range of RMS vibration
velocity at the base frequency 159.2
Hz, mm/s
Measurement range of vibration
displacement Peak-Peak at the base
frequency 79,6 Hz, um
Permissible absolute error of RMS
vibration acceleration measurement
within the frequency range 10 – 5000
Hz within the operation range of
amplitude and temperature, m/s²
from 0,5 to 300
from 0,5 to 200
from 1 to 1000
±(10%А + 0.1), where A –current
value of the vibration acceleration, m/
s²
Permissible absolute error of RMS
vibration velocity measurement within
the frequency range 10 – 2000 Hz
within the operation range of amplitude
and temperature, mm/s
Technical description 15
±(10%V + 0.1), where V –current
value of the vibration velocity, mm/s
BALTECH VP-3470
Operation manual
Permissible absolute error of
Peak- Peak vibration displacement
measurement within the frequency
range 10 – 1000 Hz within the
operation range of amplitude and
temperature, um
Measurement range of rotor frequency
range, rpm
Permissible absolute error of rotor
frequency range, Hz (rpm)
Cutoff frequency, Hz 200, 500, 1000, 2000, 5000, 10000
Number of lines 400, 800, 1600
Windows Rectangular, Hanning, Blackman- Harris
Dynamic range, dB Not worse than 75
Envelope detector with band-pass filters
2/3 octave, Hz 4000, 5000, 6300, 8000
1/3 octave, Hz 4000, 5000, 6300, 8000
±(10%S + 1), where S –current
value of the Peak-Peak vibration
displacement, um
from 60 to 24000
± 0,1%F, where F – current value of
rotation frequency, Hz (rpm)
1/1 octave, Hz 4000, 5000, 6300, 8000
Graph display LCD
Display size 3.5"
Display resolution, 320х240 pixel 320х240
Memory size, MB 8
Keyboard Film
External device USB
Battery charge indicator Red/Green Charged/Discharged
Protection class IP 54
Display unit weight, kg Not more than 1.00
Weight in the case, kg 190х140х38
Dimensions in the case, mm Not more than 9.00
AC supply voltage, V / Hz 470х140х380
AC supply voltage, V / Hz 220±22 / 50
Power supply, V / mAh 3.3 / 2000
Battery charging time, hour 4
Battery working time, hour Not less than 8
16 Technical description
BALTECH VP-3470
Operation manual
4.3. Delivery set
The delivery set of the vibrometer-balancer BALTECH VP-3470 is given below.
Table 3. Delivery set
№
п/п
1. Display unit 8234 1
2. Shroud 7006 1
3. Power supply 4016 1
4.
Vibration transducer with mounting
magnet
Name Article Q-ty Appearance
8145 2
5. Magnetic stand for tachometer 8147 1
6. USB cable 6442 1
7. Angle gauge 6072 1
8. Led stroboscope 7473 1
9. Tachometer with holder 8148 1
Technical description 17
BALTECH VP-3470
Operation manual
№
п/п
10. Electronic scales 4543 1
11. Middle clamp 4545 1
12. Small clamp 4557 1
13. Scissors 5992 1
14. Signal cable for BALTECH VP-3470 7291 3
15. Reflective film 8151 1
Name Article Q-ty Appearance
16. BALTECH-Expert software 7991 1
17. Operation manual
18. Transportation case 8149 1
19. Package 7209 1
34-10-M-
EN
1
18 Technical description
BALTECH VP-3470
Operation manual
4.4. Design and operation of the display
Figure 1. Appearance of the display unit
The display unit (Figure 1) consists of single-chip microcontroller with power
regulation circuits, color LCD 320 x 240 pixels, four LiFePO4 batteries and nonvolatile
memory for storage of reports and operation information.
There are two channels (01 and 02) on the top panel of the display unit for connecting
the vibration sensors (Figure 2). There is also an output for the tachometer and
stroboscope.
The output for the network adapter (1) and mini USB (2) are located on the lower
panel of the display unit (Figure 3).
Figure 2. Upper panel of the display unit
1. Input «01 channel»
Technical description 19
2. Input «02 channel»
3. Output for stroboscope and tachometer
Figure 3. Lower panel of the display unit
BALTECH VP-3470
Operation manual
1. Plug for a network adapter
2. USB input
The display unit has a robust aluminum housing (IP 65) with a film keyboard on
the front panel. Data interchange between the display unit and PC is conducted via
the USB interface. The function keys and alphanumeric keyboard are located on the
front panel (Figure 4).
To enter a letter press the corresponding button several times till the required letter
is displayed. Press long (more than 2 seconds) to move to the next symbol.
The button 0 is used for lacuna and full point.
20 Technical description
BALTECH VP-3470
Operation manual
Figure 4. Front panel of the display unit
1 – Battery indicator:
Green – battery is charged,
Red – battery is charged
2 – Graphic display
3 – CANCEL
4 – ENTER
5 – Navigation buttons
6 – Alphanumeric keyboard
7 – Power
Technical description 21
4.5. Marking and packing
Marking of the computer unit contains (Figure 5):
- name and label of a vibrometer;
- trademark of the manufactor;
- name of the manufactor;
- serial number according to the system used on the factory;
- specification number;
- IP code according to ISO 14254;
- marking of control units, cottector plugs;
- approval mark of types of measuring instruments;
BALTECH VP-3470
Operation manual
- auxilary information: vibration standards according to ISO 10816-1.
Figure 5. Rear panel of the display unit
The production date is specified in the acceptance certificate.
The system is packed in the transportation case with polyethylene foam inserts for
transportation and storage (Figure 6).
22 Technical description
BALTECH VP-3470
Operation manual
Figure 6. BALTECH VP‑3470 in the transportation case
Technical description 23
BALTECH VP-3470
Operation manual
5. Operation conditions and prestarting procedures
5.1. Operation conditions
BALTECH VP-3470 is intended for use in laboratory and production environment.
It is strictly prohibited to use the instrument if the atmosphere contains more than
20 per cent of the lower explosive limit of a flammable or explosive substance.
Environment conditions:
• Environment temperature: 0…+40°C
• Relative humidity, by 25°C: ≤ 95%
• Atmospheric pressure: 84…106,7 kPa (630-800 mm Hg)
5.2. Preparation to operation
5.2.1. Unpacking and installation
Before you start operating:
• Check all the components for any damages and contamination. If necessary
perform actions described in the section 11 “Maintenance”.
Do not use the instrument if there are any damages.
• Check the delivery set according to the p.4.3. “Delivery set”
• Make sure that the battery is charged.
24 Operation conditions and prestarting procedures
BALTECH VP-3470
Operation manual
5.2.2. Accelerometer installation during vibration control
There are several methods of accelerometer installation but the most common
is mounting on a magnetic base, because this method is convenient and
ensures measurement reliability. The magnetic base allows firmly mounting the
accelerometer on a measurement object and performing measurements one-by-one
on several machines using one accelerometer. The mounting and dismounting of the
accelerometer with the magnetic base takes minimum time.
To ensure the reliable mounting of the accelerometer on the measurement object
make sure that the magnet is firmly installed on the surface of the measurement
object. The mounting surface should be 20х20 mm and free of dirt, corrosion and
flaking paint.
In some cases the sensor can be mounted on a stud or with a probe.
The sensor mounting on the stud ensures the best repeatability of the measurement
results, but this mounting method is less convenient (mounting and dismounting
require much time; the sensor cable can be damaged).
The mounting with the probe is used when other mounting methods are not available.
The measure points should be marked because even small displacement of the
sensor can lead to improper readings.
Operation conditions and prestarting procedures 25
BALTECH VP-3470
Operation manual
5.2.3. Installation recommendations
If you use the MEASUREMENTS program the measure points should be selected
according to the mounting method (Figure 7).
Figure 7. Mounting methods and measure points
a) Mounting on dampers with/without a subframe (Figure 7, a).
The measure points should be located on all the damper mounting bolts, from the
machine side, i.e. above damping, or on the machine bearing surfaces close to
these bolts if there is no way to mount the sensor on the bolts. If the machine has
a subframe, the measure points should be located directly on the points where the
machine is mounted to the subframe.
We recommend that you perform the measurement on the bearing units or as close
to them as possible.
The measurement should be carried out in every measure point in three perpendicular
directions: vertical, horizontal and axial. The technical condition is estimated based
on the highest vibration level.
b) Rigid mounting (Figure 7, б)
The mounting procedure is the same as above. The only difference is that depending
on a particular foundation design the measurements can be carried out only in one
26 Operation conditions and prestarting procedures
BALTECH VP-3470
Operation manual
or two directions where the foundation stiffness is the lowest.
If the foundation stiffness is much the same in all three directions, the measurements
should be made in all the directions. If the foundation stiffness is different in three
directions, the measurement can be made only in the direction of the lowest stiffness.
Moreover as opposed to monolithic structures the stiffness of the frame structures
in the horizontal and axial directions are usually much higher than in the vertical
direction. So the vibration levels can be higher in these directions than in the vertical
one.
Most attention should be given to the horizontal direction where the stiffness is lower
and there is always an internal source of dynamic forces generated be the rotating
rotor (as opposed to axial direction where high dynamic forces occur usually only
due to poor alignment).
Never install the vibration sensors on auxiliary production parts: slopes, shrouds,
etc. even if the vibration in these parts is the highest.
5.2.4. Accelerometer installation during the balancing and diagnostics
The measure points are selected based on the following:
а) First of all it is necessary to control the vibration levels on the bearing units
because they fully take the dynamic forces generated by the unbalanced rotor. As
a rule, the measurement directions are vertical and horizontal, i.e. radial to the
rotation axis. The balancing should be performed based on the measurement
results, in the points (and directions) of the highest vibration level;
b) Before and after the balancing procedure it is necessary to measure the vibration
according to the recommendations given in the p. 5.2.3;
c) Additional measurement points can be measured depending on the individual
requirements to a particular machine. If the vibration levels at the rotation frequency
in the axial direction are comparable or exceed the vibration levels in the radial
Operation conditions and prestarting procedures 27
BALTECH VP-3470
Operation manual
direction (vertical or horizontal) it is necessary first to align the shaft.
To perform the shaft alignment use only professional systems. We recommend
that you use the shaft alignment systems SA Series.
Always mark the measurement points and use them during the next measurements.
Otherwise the monitoring will be incorrect.
After the vibration sensor is mounted make sure that the cable connected to the
display unit is uncoiled!
Install the vibration sensors only on the grounded equipment!
There is settling time for accelerometer that should be taken in account to perform
accurate measurements. After placing accelerometer on the object wait 2-3
seconds then proceed with measurements
5.3. Laser tachometer installation
BALTECH VP-3470 uses a laser tachometer to detect the rotor rotation frequency.
The laser tachometer should be installed using a magnetic rack in compliance with
the safety measures. The laser beam line must be directed toward the rotor axis of
rotation. The permissible deviation of the laser beam from the normal to the rotor
surface is +/- 20 degrees.
28 Operation conditions and prestarting procedures
BALTECH VP-3470
Operation manual
The laser tachometer must be installed at a distance of not less than 0.1 m and
not more than 0.2 m.
Apply the reflective film (included in the delivery set) on the open area of the rotor.
Minimum angular dimension of the mark in degrees:
α
= Kα * n / 1000
min
where n – shaft rotation frequency, rpm,
K
= 3º - conversion factor
α
Minimum linear dimension of the mark in millimeters (when applying on the cylindrical
surface of the shaft):
L
=KL * n * D / 100000 L
min
where n - shaft rotation frequency, rpm,
D – shaft diameter, mm
K
= 2,618 rpm - conversion factor
L
Example:
If n = 9000 rpm and D = 120 mm, the mark length must be more than 28 mm
(27º). The width of the mark must be sufficient for convenient positioning of the
laser beam.
The laser beam of the tachometer must fall on the reflective film. During the shaft
rotation the tachometer will give an impulse when detecting the mark.
=KL * n * D / 100000
min
To set up the maximum sensitivity of the tachometer turn the shaft in such a way
that the mark doesn’t reflect the beam and press the button on the tachometer.
Hold the button till the status led lights up.
Operation conditions and prestarting procedures 29
BALTECH VP-3470
Operation manual
Before you start measuring make sure that the tachometer catches the marks stably.
If you use the tachometer for the phase detection (during the balancing) note the
following:
Do not touch the installed tachometer till the balancing procedure is completed.
If the tachometer is moved during the balancing, all the measurements must be
carried out all over again.
5.3.1. Angular marking of the rotor
Angular rotor marking should be performed according to the defined direction
(towards/against rotation).
The angular marking is made according to the direction defined in the balancing
parameter settings (towards/against rotation).The first mark can be located at any
place. An operator can decide himself how to apply the mark on the rotor: it can be
an angular mark from 0 to 360°, or sequential numbering of blades (for example,
on a fan) or holes on the rotor coupling etc. (Figure 8).
Figure 8. Marking in the balancing plane
5.3.2. Preparation of the correction weights
Some machines (large electric motors, pumps, turbines, etc.) have special balancing
planes. Often such machines are delivered to the customer with installed correction
30 Operation conditions and prestarting procedures
BALTECH VP-3470
Operation manual
weights and spare weights for the balancing purpose. In this case we recommend
that you use them.
It is especially related to heavy electrical machines, for example, turbine electric
generators.
However in most cases a user can produce the correction weight himself depending
on the design of the balancing plane. If the machine doesn’t have a balancing plane
then one can use some available parts of the rotor.
For example, half couplings can be used as balancing planes. As for pumps,
exhausters and similar machines the correction weights can be installed on blades
and turbine discs. In some cases one can use so called technological planes that are
mounted on the rotors for the balancing purpose. They are removed and a required
correction weight is mounted (e.g. welded) on the rotor. Further the technological
plane is used to perform the balancing of a similar machine. The Figure 9 and Figure
10 show the most common correction weights and installation methods.
Figure 9. Correction weights
Figure 10. Correction weights
Operation conditions and prestarting procedures 31
BALTECH VP-3470
Operation manual
5.3.3. Digital angle gauge
The maximum delivery set of BALTECH VP-3470 contains a digital angle gauge,
which allows measuring angle of rotation of the parts with a horizontal axis of
rotation. The appearance of the angle gauge and its control elements are shown
on the Figure 11.
Figure 11. Angle gauge
1. On\off button
2. LCD display
3. Zero button
4. Magnet base
How to use the angle gauge for detection of the installation place of the correction
weights:
1. After the installation place of the correction weight is calculated and determined it
is necessary to turn the correction weight in such a way that the installation place of
the trial weight (zero angle) is in the location convenient for installing the correction
weight.
2. Mark the position of the test weight on the stationary part of the machine using
a chalk or marker.
32 Operation conditions and prestarting procedures
BALTECH VP-3470
Operation manual
3. When installing the angle gauge following two conditions must be observed:
a) The front plane of the angle gauge must be perpendicular to the rotor rotation
axis;
b) In any rotor position the indicator of the angle gauge must be always available
for taking the readings.
4. Switch on the angle gauge by pressing the Power key. Use 0 to reset the readings.
5. The angle gauge shows angles in the range ± 180º. If the calculated angle is less
than 180 degrees, rotate the rotor against direction of rotation till the angle gauge
shows the result. The place of installation of the correction weight will be opposite
to the mark on the stationary part of the machine (p.2).
6. If the calculated angle is more than 180 degrees, the rotor must be rotated
towards direction of rotation by 360°C- Fnominal, where Fnominal is the angle
position value of the correction weight. The place of installation of the correction
weight is opposite to the mark on the stationary part of the machine (p.2).
When using the digital angle gauge always observe the safety measures.
5.4. Power connection
BALTECH VP-3470 is powered from four LiFePO4 batteries that are installed in the
display unit. The batteries are charged from a standard network adapter 5V (Figure
12).
Operation conditions and prestarting procedures 33
BALTECH VP-3470
Operation manual
Figure 12. Connection of the network adapter to the display unit
5.5. PC connection
To transfer the reports kept in the device memory you should use the USB port (Figure
3). For this purpose you need to connect the computer unit to the USB input via an in-
terface cable, which is included into the delivery set (Figure 13).
Figure 13. Connection of the display unit to PC
34 Operation conditions and prestarting procedures
BALTECH VP-3470
Operation manual
Quick detachment of the interface cable from the device is prohibited. The detach-
ment should be performed with the function “Safe detachment of the device”.
By detection of any malfunctions of the file system of the device the formatting is pro-
hibited. For error correction of the file system you should perform its check using the
function of automatic error correction.
For check of the device file system you should follow the actions below:
1) please open context menu of the memory store in MS Windows with the right
mouse button;
2) please choose in the context menu «Properties»;
3) please open the tab «Service» and press the button «Perform checks»;
4) please tick the box in the opened window near the clause “Automatic correction of
system errors” and press the button “Start”.
Operation conditions and prestarting procedures 35
BALTECH VP-3470
Operation manual
Figure 14. Window «Properties»
If the above described procedure could not help to eliminate operation failures, please
contact technical specialists of BALTECH GmbH.
5.6. Switching on
To switch on the display unit press the Power button on the keyboard of the
display unit (Figure 4). The screen will show the rotating company logotype. The
MEASUREMENT program will be displayed on the screen (Figure 14).
36 Operation conditions and prestarting procedures
BALTECH VP-3470
Operation manual
Figure 15. Measurements
5.7. Switching off
To switch off the device press and hold down the Power button (Figure 4). Then
unplug the connected sensors.
Operation conditions and prestarting procedures 37
BALTECH VP-3470
Operation manual
6. Programs and functions
The main functions are performed with the display unit which has the following
built-in programs:
1) MEASUREMENTS
2) BALANCING
3) REPORTS
4) SENSORS
5) GENERAL SETTINGS
Each program has different functions. The description of each function is given
below.
38 Programs and functions
BALTECH VP-3470
Operation manual
PROGRAM FUNCTION BRIEF DESCRIPTION
Overall
Routes
Table 4. Programs and functions
Performs vibration measurement (vibration
velocity, vibration displacement, vibration
acceleration) in a defined frequency range.
Performs the route measurements set in the
database management software BALTECH
EXPERT.
Time
waveform
Spectrum
Envelope Allows the user to view the envelope.
MEASUREMENTS
Envelope
spectr
Peak and
phase
Turning
speed
New
balancing
Manual input
Re-balancing Performs balancing using the saved data.
Allows the user to view the vibration
waveform.
Allows the user to view the vibration
spectrum.
Allows the user to view the spectral
components of the envelope.
Detects the amplitude and phase of the
vibration signal relative to the tachometer or
stroboscope.
Measures the rotor speed using the
tachometer or stroboscope.
Performs balancing of rotating parts.
Calculates the balancing weights and
installation angle based on the existing data
on the vibration amplitude and phase.
BALANCING
ICM
Vector math
Open
Delete Allows the user to delete the saved reports.
Send to PC
REPORTS
Control from PCAllows connecting the device to PC to perform
Performs balancing using existing dynamic
influence coefficients.
Calculates the place of installation of the
balancing weights if the recommended
installation places are not available.
Allows the user to open and view the saved
reports.
Allows the user to transfer the saved reports
into PC.
control from the PC.
Programs and functions 39
BALTECH VP-3470
Operation manual
PROGRAM FUNCTION BRIEF DESCRIPTION
SENSORS
Channel 1
Channel 2
Add
Edit
Delete
Set date/
time
Standby
mode
Backlight Allows adjusting the display backlight.
Language
Allows selecting the parameters of the
vibration sensor for the channel 1.
Allows selecting the parameters of the
vibration sensor for the channel 2.
Allows adding the vibration sensor to the
database.
Служит для изменения параметров датчика
вибрации в базе данных.
Allows deleting the parameters of the
vibration sensor from the database.
Allows setting the date and time.
Allows setting the standby mode.
Allows selecting a language:
1. Russian
2. English
Connect to
PC
GENERAL SETTINGS
About device
The menu navigation is performed using the navigation buttons qput, Enter/
Cancel (Figure 4). The selected function is displayed with capital letters. To confirm
the selection press Enter. The program has a step-by-step menu that guides the
user throughout the whole procedure, step by step.
Connect to PC
Allows viewing the device information:
software version, serial number, free memory.
It also allows performing self- testing of the
device.
40 Programs and functions
BALTECH VP-3470
Operation manual
7. General settings
7.1. General parameter setting
To set up the general parameters use the program GENERAL PARAMERS (Figure
15).
Figure 16. General parameters menu
Table 5. General parameter setting
Task Procedure Note
Set date/time General settings > set date/time
Standby mode General settings > Standby mode
Backlight General settings > Backlight
Language selection General settings > Language
Preventative
maintenance of the
file system
General settings > Connect to PC -
Date format:
dd/mm/yy (Figure
16)
Time setting in
minutes (Figure
17)
Backlight setting in
percentage from
0 to 100% (Figure
18)
Russian and
English (Figure 19)
Device information General settings > About device Figure 20
Press Enter to
Self-testing General settings > About device
General settings 41
activate the self-
testing (Figure 21)
Figure 17. Set date/time
BALTECH VP-3470
Operation manual
Figure 18. Standby mode
Figure 19. Backlight
42 General settings
BALTECH VP-3470
Operation manual
Figure 20. Language
Figure 21. About device
Figure 22. Selftest
General settings 43
BALTECH VP-3470
Operation manual
7.2. Connection of the vibration sensors
To ensure the correct measurement results make sure that the vibration sensor
parameters are set properly. The main parameter of the vibration sensor is the
sensitivity which is specified in the technical passport. The information about the
vibration sensor sensitivity is stored in the instrument and can be edited or deleted.
For this purpose use the SENSORS program (Figure 22).
Figure 23. Sensors menu
The procedure is described in the Table below.
Table 6. Setting and connection of the vibration sensors
Task Procedure Note
Connection of the
vibration sensor to the
Channel 1
Connection of the
vibration sensor to the
Channel 2
Adding of the
information about a
new vibration sensor
Sensors > Channel 1
Sensors > Channel 2
Sensors > Add
Select the sensor
from the list of
sensors (Figure 23)
Select the sensor
from the list of
sensors (Figure 24)
Enter the serial
number of the
vibration sensor and
its sensitivity which
is specified in the
technical passport
(Figure 25)
Editing of the
information about the
vibration sensor
44 General settings
Sensors > Edit
Edit the information
about the vibration
sensor (Figure 26,
Figure 27)
BALTECH VP-3470
Operation manual
Task Procedure Note
Deletion of the
information about the
vibration sensor
Sensors >Delete
Delete the
information about
the vibration sensor
(Figure 28, Figure
29)
Figure 24. Channel 1
Figure 25. Channel 2
General settings 45
Figure 26. Add
BALTECH VP-3470
Operation manual
Figure 27. Edit
Figure 28. Delete
46 General settings
BALTECH VP-3470
Operation manual
Figure 29. Delete
Figure 30. Confirm deletion
Connect the sensors that were tested by the BALTECH specialists only.
General settings 47
BALTECH VP-3470
Operation manual
8. Measurements
The MEASUREMENTS program designed to perform measurement of the vibration
level, vibration phase and rotation frequency. This program has 8 functions (see
Table 4, Figure 30).
Figure 31. Measurements menu
Each function is set up individually (except for the ROUTES). The procedure is as
follows:
1) Parameter setting;
2) Measurement;
3) Saving of the measurement results.
To navigate through the program MEASUREMENTS use the navigation buttons. To
activate the function press Enter. Use Enter to save the parameter settings, to start
the measurement and to save the measurement results. Cancel is used to cancel
all the changes and measurement results.
48 Measurements
BALTECH VP-3470
Operation manual
8.1. Setting of the measurement parameters
The table below contains the parameters and ranges for the MEASUREMENTS
program, designed to perform the vibration analysis.
All the changes are saved in the memory of the display unit.
Measurements 49
BALTECH VP-3470
Operation manual
Channels
Type
Table 7. Parameters
Units
Gain
Averaging
Parameter
Band
Samples
1) velocity
1) mm/s, dB
auto
,х1, х2,
RMS
Peak
2-200,
2-1000,
1, 2, 1+2
3) acceleration
2) displacement
dB, g
3) m/s2,
2) um, dB
х32
х10, х16,
х4, х5, х8,
1-100
Kurtosis
Peak- Peak
Crest factor
10-1000,
10-2000,
10-10000
-
512, 1024,
1, 2, 1+2
1) velocity
2) displacement
2) um,
1) mm/s
-
-
-
-
1536,
2048,
3) acceleration
3) m/s2, g
2560,
3072,
3584, 4096
auto
1) velocity
1) mm/s, dB
,х1, х2,
1, 2, 1+2
3) acceleration
2) displacement
dB, g
3) m/s2,
2) um, dB
х32
х10, х16,
х4, х5, х8,
1-100
-
-
-
auto
acceleration
,х1, х2,
1, 2
m/s2, g
х10, х16,
х4, х5, х8,
-
-
-
4096
х32
auto
acceleration
,х1, х2,
1, 2
m/s2, g
х10, х16,
х4, х5, х8,
1-100
-
-
-
х32
auto
1) velocity
11) mm/s, dB
,х1, х2,
RMS
1, 2, 1+2
3) acceleration
2) displacement
dB, g
3) m/s2,
2) um, dB
х32
х10, х16,
х4, х5, х8,
1-100
Peak
Peak- Peak
-
-
Fmax.Hz
Parameter
Start up
Hz
BFP f0,
type
Filter
axis X
axis Y
Fmin, Hz
Lines
Window
Mode
-
-
-
-
-
-
-
-
-
-
1000,
2000,
200, 500,
auto
tacho
-
-
-
-
-
-
-
-
5000,
10000
manual
1000,
2000,
200, 500,
-
-
-
log, lin
log, lin
0-180
(interval
400, 800,
Hanning
Rectangle
-
5000,
10000
20)
1600
lackman-h
200, 500,
4000,
5000,
1/1 octave,
1000
-
6300,
2/3 octave,
-
-
-
-
-
-
1/3 octave,
8000
200, 500,
4000,
5000,
1/1 octave,
0-900
Hanning
1000
-
6300,
8000
2/3 octave,
1/3 octave,
log, lin
log, lin
100)
(interval
1600
Rectangle
Blackman-h
tach
-
-
-
-
-
-
-
-
-
strobe
Harmonic
Function
-
Overall
-
Time
waveform
-
Spectrum
-
Envelope
-
Envelope
spectrum
1-10
Peak and
phase
50 Measurements
BALTECH VP-3470
Operation manual
8.2. Overall
1. Set the parameters and press Enter to start the measurement.
Figure 32. Overall menu
2. Perform the measurement.
Figure 33. Overall measuring (Channel 1)
Figure 34. Overall measuring (2 channels)
Measurements 51
If the measurement value is red, it is incorrect!
3. Press 0 > Enter to save the measurement result. (Figure 4)
BALTECH VP-3470
Operation manual
Figure 35. Report saving
8.3. Routes
Configure the routes in the BALTECH Expert software (see the Operation manual)
and download it to the vibrometer-balancer BALTECH VP-3470 (if the Route was not
configured and downloaded before).
Activate the Route function.
Figure 36. List of routes
52 Measurements
BALTECH VP-3470
Operation manual
Press Enter to select the required route in the list of routes (Figure 35). Press Enter
to select a machine (Figure 36).
Figure 37. List of machines
Press Enter to select a measure point (Figure 37).
Figure 38. List of measurement points
Select/ confirm the measurement channel.
The measurement channel should be selected when two vibration sensors are
connected to the device (Figure 38).
Measurements 53
BALTECH VP-3470
Operation manual
Figure 39. Selection of the measurement channel
The instrument automatically detects to which channel the sensor is connected. If
no sensor is connected, the device will notify about it (Figure 39).
Figure 40. Sensor is not connected
Figure 41. Confirmation of the measurement channel
54 Measurements
BALTECH VP-3470
Operation manual
After the measurement channel is selected the measuring process starts (Figure
40).
To stop the measurement process press and hold Cancel.
Figure 42. Measurement process in ROUTES function
To save the measurement results press Enter. The list of the measure points will be
displayed on the screen.
Figure 43. List of measurement points
The measure points in which the measurement was performed, are marked with
“+” sign. To perform the measurement again press Enter and carry out the above
actions.
Measurements 55
BALTECH VP-3470
Operation manual
During the next measurement the previously used channel will be selected
automatically. Make sure that the sensor is connected to the required channel.
To view the measurement results download in to the BALTECH Expert software.
8.4. Time waveform
1. Set up the parameters and press Enter to start the measurement.
There are three ways of starting the measurement:
1) auto- the measurement starts after Enter is pressed/ To stop the measurement
press 0.
2) tacho- the measurement starts only if the tachometer is connected. To perform
a new measurement press 0.
3) manual- after the first measurement is performed the measurement procedure
stops. To perform the next measurement press 0.
56 Measurements
BALTECH VP-3470
Operation manual
2. Perform the measurement.
Figure 44. Time waveform
Figure 45. Time waveform
2. Press 0 to stop the measurement.
Press Enter to save the results.
Figure 46. Report saving
Measurements 57
BALTECH VP-3470
Operation manual
8.5. Spectrum
1. Set the function parameters and press Enter to start the measurement.
2. Perform the measurement.
Figure 47. Spectrum
Figure 48. Spectrum
Figure 49. Spectrum
58 Measurements
BALTECH VP-3470
Operation manual
When viewing the graph use the button 3 (decrease) and 4 (increase) to adjust
the scale.
Press 0 to perform the measurement again. To return to the settings press Cancel.
3. Press Enter to save the measurement results.
Figure 50. Report saving
8.6. Envelope
1. Set the function parameters and press Enter to start the measurement.
Figure 51. Envelope settings
Measurements 59
2. Perform the measurement
Figure 52. Envelope measuring
BALTECH VP-3470
Operation manual
When viewing the graph use the button 3 (decrease) and 4 (increase) to adjust
the scale.
Press 0 to perform the measurement again. To return to the settings press Cancel.
3. Press Enter to save the measurement results.
Figure 53. Report saving
60 Measurements
BALTECH VP-3470
Operation manual
8.7. Envelope spectrum
1. Set the function parameters and press Enter to start the measurement.
Figure 54. Envelope spectrum
Figure 55. Envelope spectrum
2. Perform the measurement.
Figure 56. Envelope spectrum measuring
Measurements 61
BALTECH VP-3470
Operation manual
When viewing the graph use the button 3 (decrease) and 4 (increase) to adjust
the scale.
Press 0 to perform the measurement again. To return to the settings press Cancel.
3. Press Enter to save the measurement results.
Figure 57. Report saving
8.8. Peak and phase
1. Set the function parameters and press Enter to start the measurement.
Figure 58. Peak and phase settings
62 Measurements
BALTECH VP-3470
Operation manual
2. Perform the measurement
Figure 59. Peak and phase
If the mode “Strobo” is selected the rotation speed and phase should be entered
manually.
The color of the light indicator changes depending on the stability of the phase
and rotation speed values.
• Blue: the rotation speed values are not stable;
• Red: no signal from the vibration sensor or tachometer (phase measurement is
not available);
• Orange: the phase readings are not stable, fluctuation more than ±15°;
• Yellow: instantaneous values of the phase vary not more than ±15°;
• Green: the phase readings are stable, deviation is not more than ±7,5°.
3. Press 0, then press Enter to save the measurement results.
If you press 0 again the phase will be measured again. In the mode Strobo the
button 0 is not active. Instead press Cancel.
Measurements 63
8.9. Turning speed
BALTECH VP-3470
Operation manual
Figure 60. Report saving
1. Select the required option and press Enter.
Figure 61. Turning speed options
64 Measurements
BALTECH VP-3470
Operation manual
2. Perform the measurement.
Figure 62. Turning speed results
The results are displayed in Hz and RPM.
To measure the rotation speed with the stroboscope set the estimated rotation
speed and direct the light flux transmitted by the stroboscope to the rotating
rotor. If the defined rotation speed of the rotor and the flicker frequency of the
stroboscope coincide, a “stationary machine” effect occurs. Therefore the flicker
frequency of the stroboscope should be changed till the effect occurs. To change
the flicker frequency of the stroboscope use the navigation keys. The Up and Down
buttons change the rotation speed or frequency in Hz at the following intervals:
1) in Hz - 0,1
2) in RPM - 10.
The Left and Right buttons change the rotation speed and frequency in Hz at the
following intervals:
1) in Hz - 0,01
2) in RPM - 1.
Measurements 65
BALTECH VP-3470
Operation manual
We recommend receiving the training TOP-103 “Foundations of the vibration
diagnostics” at the BALTECH training centre.
3. The measurement results from the “Tach” option are not saved.
66 Measurements
BALTECH VP-3470
Operation manual
9. Balancing
The BALANCING program includes 5 functions (Table 4).
To navigate through the BALANCING program use the navigation (Up and Down)
buttons. To activate the function press Enter. Use Enter to save the parameter
settings, start the measurement and save the measurement results. Cancel is used
to cancel all the changes and measurement results. The Left and Right buttons
are used to change the parameters.
9.1. New balancing
Figure 63. Balancing menu
1. Press Enter to activate NEW BALANCING function.
2. Set the balancing parameters.
Balancing 67
BALTECH VP-3470
Operation manual
Figure 64. New balancing settings
Set the number of planes (from 1 to 4), number of measure points (from 1 to 16),
method (general or angles), number of angles (from 3 to 360; this parameter is
available for the angle method), angle direction (towards/ against the direction of
rotation), trial weight (removal or adding) (Figure 63).
If the angle method is selected, set the number of angles (from 3 to 360). The
number of angles corresponds to the number of available installation places of the
correction weights. To calculate the installation angle divide 360° by the number
of planes.
3. Perform the phase measurement. Press Enter to move to PEAK AND PHASE
function (Figure 57).
4. Press Enter to move to INITIAL RUN window (Figure 64).
Set the channel for each point.
68 Balancing
BALTECH VP-3470
Operation manual
Figure 65. Initial run
5. Press Enter to start the measurement (Figure 65). The vibration, phase and
rotation speed will be displayed on the screen.
Figure 66. Measuring
If the “strobe” mode was selected, the rotation speed and phase value should be
entered manually.
The light indicator 1 in this window (Figure 65) is designed to notify about any
restrictions occurred during the balancing.
Balancing 69
BALTECH VP-3470
Operation manual
The color of the light indicator changes depending on the stability of the phase
and rotation speed values.
• Blue: the rotation speed values are not stable (balancing can’t be performed,
adjust the tachometer position);
• Red: no signal from the vibration sensors;
• Orange: the phase readings are not stable, fluctuation more than ±15° (during
the balancing the calculation accuracy of the correction weight will be low. Some
additional defects can present. Before you start balancing, perform the vibration
analysis and eliminate the detected defects) ;
• Yellow: instantaneous values of the phase vary not more than ±15° (balancing
can be done, the calculation accuracy of the correction weight is mean);
• Green: the phase readings are stable, deviation is not more than ±7,5°.
Figure 67. Initial run results
6. Based on the received results an operator can decide if the balancing is required.
To start the balancing press Enter (Figure 67). To stop the balancing and save the
measuring report, press Cancel. If you press Enter the “Trial weight” window will
open (Figure 68). To calculate the trial weight perform the following:
a) Enter the rotation speed (RPM), weight of the rotor (mp) and radius of installation
of the trial weight.
b) Press Enter. The device will calculate the trial weight.
70 Balancing
BALTECH VP-3470
Operation manual
Figure 68. Confirm balancing
Figure 69. Trial weight
7. Install the calculated weight according to the instructions of the p. 3.4.
The amount of the trial weight can be defined without performing calculation.
Before you start installing the trial weight read the Section 3 carefully again.
Incorrect correction weight or improper installation can injury an operator or lead
to serious damage of the machine.
8. Press Enter. The window TRIAL WEIGHT (Figure 69) will open.
Balancing 71
Figure 70. Trial run
BALTECH VP-3470
Operation manual
Figure 71. Results of the trial run
9. Press Enter to start the measurement. The measurement process is completed
when the light indicator becomes green. Press Enter to move to CORR WEIGHTS
function (Figure 71). This window shows the recommended mass and installation
angle of the correction weight.
The correction weight is installed on the same radius of the balancing plane as
the trial weight. The installation angle of the correction weight is calculated from
the installation place of the trial weight towards or against direction of rotation
depending on the defined settings (Figure 63).
In this window you can also select the function VECTOR MATH and EXPECTED
VIBRATION by pressing the corresponding buttons. If the angle method is selected,
72 Balancing
BALTECH VP-3470
Operation manual
the window CORR. WEIGHTS will show several installation angles of the correction
weights and their values (Figure 73).
Figure 72. Calculation for ordinary balancing
Figure 73. Calculation for angle method
10. Install the correction weight according to the given recommendations (p.9).
Press Enter. The window TRIM RUN will open (Figure 73). Press Enter to move to
the window MEASURING. When the light indicator becomes green press Enter to get
the results of the trim run (Figure 74). This window shows the vibration and phase
levels received during the trial and trim runs.
Balancing 73
Figure 74. Trim run
BALTECH VP-3470
Operation manual
Figure 75. Trim run results
If the control measuring shows that the vibration doesn’t correspond to the
requirements due to the residual unbalance, it is necessary to repeat the trim run
(Figure 75).
74 Balancing
BALTECH VP-3470
Operation manual
Figure 76. Repeat trim run
11. Press Enter to move to the window MEASURING (p.9). Perform the actions
specified in the p. 9-11.
Or
12. Press Cancel to move to the window REPORT (Figure 76). Enter the name of
the report, press Enter to save the balancing report. You can also add comments to
the report.
Figure 77. Report
9.2. Manual input
1. Select MANUAL INPUT from the BALANCING program (Figure 62) and press Enter.
The window with the parameters will open (Figure 77).
Balancing 75
Figure 78. Manual input, step 1
2. Press Enter to move to the PEAK AND PHASE (Figure 78).
BALTECH VP-3470
Operation manual
Figure 79. Manual input, step 2
3. Perform the actions described in the p, 2-11 to carry out the single –plane
balancing (9.1.NEW BALANCING). The vibration phase and amplitude must be
entered manually.
9.3. Re‑balancing
If you have already made the balancing of the machine and you have got the
balancing reports we recommend that you perform the scheduled balancing of this
machine using RE-BALANCING.
To perform the re-balancing install the tachometer at the same place as it was
installed during the balancing. Check the location of the reflective mark (it should
be the same).
76 Balancing
BALTECH VP-3470
Operation manual
Procedure:
1. Select RE-BALANCING from the BALANCING program and press Enter (Figure 78).
Figure 80. Re‑balancing
2. Select a report and press Enter. The window with the installed weights will open
(Figure 80).
Figure 81. Window with the installed weights
3. Press Enter to move to INITIAL RUN (Figure 64).
4. Perform the actions described in the p. 4-11 (9.1. NEW BALANCING).
9.4. Inuence Coefcient Method (ICM)
The ICM is a proportionality coefficient between the vibration and unbalance.
Balancing 77
BALTECH VP-3470
Operation manual
The ICM allows performing balancing of the rotors within one run which considerably
facilitates the balancing procedure. Besides, ICM makes it possible to evaluate the
dynamic forces occurred in the rotor supports, based on the vibration levels. Though
machines of the same class can have different ICM, deviation from the average
values are within the limits that make it possible to perform the rotor balancing.
To receive the ICM perform the balancing according to the p. 9.1.”New balancing”
and then perform the following:
1. Activate ICM and press Enter (Figure 81).
Figure 82. ICM
2. Select a balancing report and press Enter. The window INITIAL RUN will open
(Figure 64).
In this window you can select only the measuring channel for each measure point.
The number of the measure points and all the settings are taken from the reports
of the initial balancing.
3. Press Enter to move to MEASURING (Figure 65). Here you can see the vibration
level and phase and the rotation speed (right window).
4. Pres Enter to receive the results of the initial run. (Figure 66)
5. Press Enter to move to CORR WEIGHTS (Figure 71, Figure 72). Here you can see
78 Balancing
BALTECH VP-3470
Operation manual
the correction weight and installation angle.
6. After the correction weight is installed press Enter to move to TRIM RUN (Figure
73).
7. Press Enter to move to MEASURING (Figure 65).
8. Press Enter to receive the results of the trim run (Figure 74).
9. Press Enter to repeat the balancing (Figure 83).
Figure 83. Repeat balancing
If you want to repeat the balancing press Enter and perform the actions described
in the p. 2-8.
10. Press Enter to save the balancing results.
Balancing 79
9.5. Vector math
1. Activate VECTOR MATH and press Enter (Figure 83).
BALTECH VP-3470
Operation manual
Figure 84. Vector math
3. Select the method: split angle or sum weights. Pres Enter to move VECTOR MATH
(Figure 84).
Figure 85. Vector math
4. Enter the data into the grey fields and press Enter. The red fields will be filled in
with the calculated values.
80 Balancing
BALTECH VP-3470
Operation manual
10. Reports
REPORTS (Figure 86) includes the functions (Figure 86) allowing you to view the
balancing data saved in the instrument memory and to transfer them to PC using
the BALTECH Expert software. This function is also used to view and delete the
measuring results.
Figure 86. Reports functions
10.1. Report view
To open and view the report:
1. Select REPORTS the main menu and press Enter.
2. Select Open and press Enter.

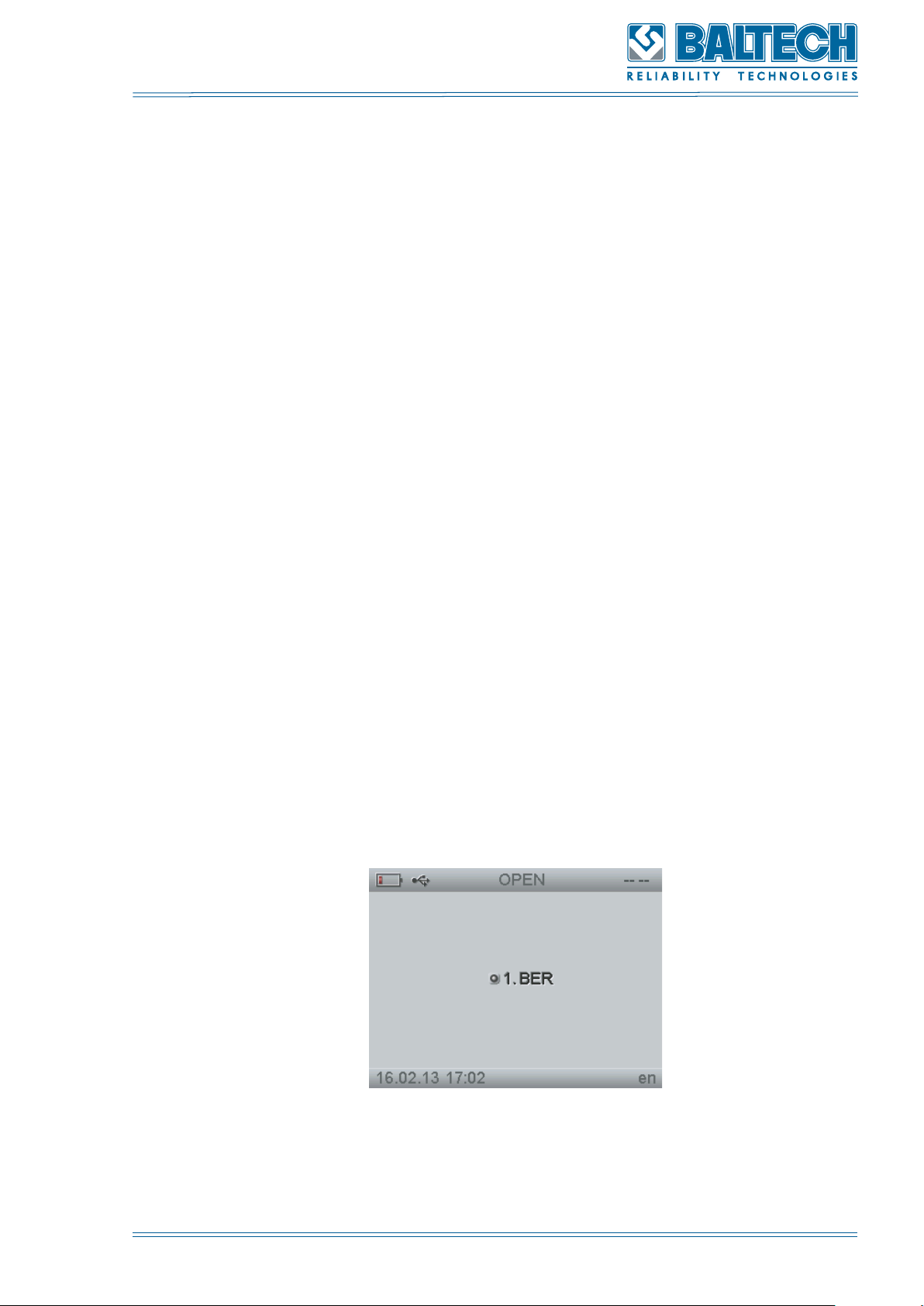

Figure 87. List of reports
3. The last 40 reports will be displayed on the screen (Figure 86). If there are no
Reports 81
BALTECH VP-3470
Operation manual
saved reports, the device will show “List empty”.
The device can store about 1000 reports.
Use the navigation buttons to select the required report and press Enter.
10.2. Report deletion
To save the report:
1. Select REPORTS from the main menu and press Enter.
2. Select DELETE and press Enter.

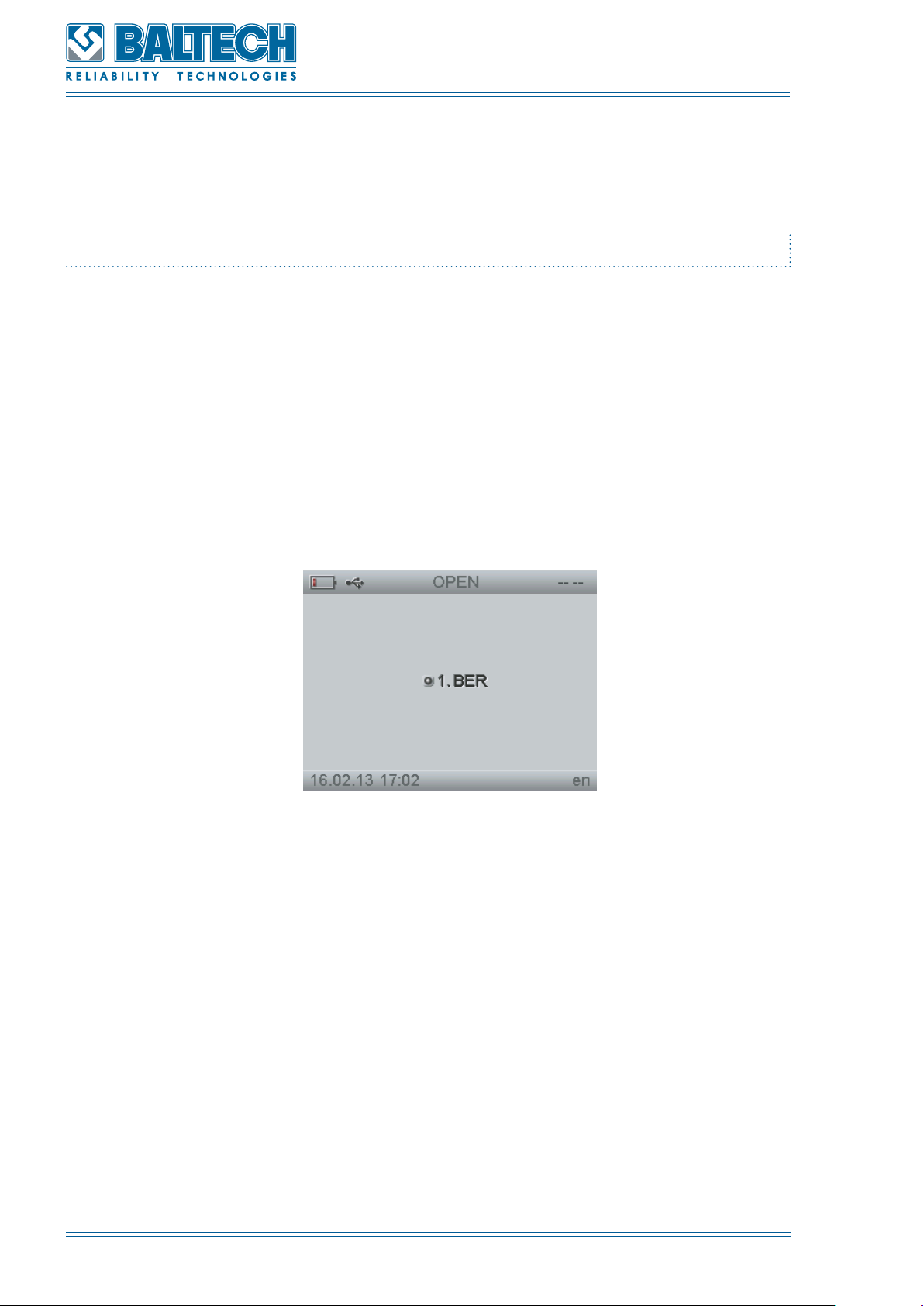

Figure 88. Delete
4. Use the navigation button to select the required report and press Enter. To delete
all the reports select DELETE ALL. Press Enter to confirm the deletion or Cancel to
cancel the deletion (Figure 89).
82 Reports
BALTECH VP-3470
Operation manual
Figure 89. Delete
Figure 90. Confirm deletion
10.3. Transfer of the balancing reports to PC
You can transfer the saved reports to PC. To do this:
1. Connect the display unit to PC (see section p. 5.4).
2. Run the BALTECH Expert software on your PC.
3. Select REPORTS program from the main menu and press Enter. The window
Reports will open.
5. Select Send to PC and press Enter. The transfer process will be displayed on the
screen. To exit this mode press Cancel.
10.4. Control from PC
You can connect the display unit to PC and to receive the data from the sensors
directly on the PC. The main operation is done in the program RealTime, installed
on the PC. To do this:
Reports 83
BALTECH VP-3470
Operation manual
1. Connect the display unit to the PC
2. Run the program wxRealTime.exe on the PC (this program is installed together
with the BALTECH Expert software).
To exit this mode press Cancel.
During the first connection to PC the installation of drivers may be required. The
required driver is located on the internal memory of the display unit and on the
BALTECH-EXPERT CD.
84 Reports
BALTECH VP-3470
Operation manual
11. Maintenance
During the operation avoid excessive contamination of the device and its components.
Do not shock the device and avoid the excessive mechanical loads.
Special attention should be given to the connectors and cables. Keep them away
from liquid, dust and dirt. If necessary clean the device with a cotton cloth moisture
in soap solution and wipe dry.
Do not use organic solvents.
Maintenance 85
12. Troubleshooting
12.1. Potential problems and correction methods
The potential problems and corrections method are given in the Table 8.
Table 8. Potential problems
Problem Reason Correction
BALTECH VP-3470
Operation manual
The device doesn’t
switch on, but
when connecting
the battery charger
a red led lights up
The device doesn’t
switch on, but
when connecting
the battery charger
a red led doesn’t
light up
The device doesn’t switch on, but when connecting the battery charger a red led
doesn’t light up Excessive battery discharge Connect the battery charger
and charge the battery till a green led lights up. The charging can take several days.
After switching on set the date and time.
Battery is discharged Connect the battery
charger and charge the
battery till a green led
lights up
Excessive battery discharge Connect the battery
charger and charge the
battery till a green led
lights up. The charging
can take several days.
After switching on set the
date and time.
12.2. Error report
If any unknown error messages appear, consult with the BALTECH specialists.
Correction of unknown faults should be conducted only by the BALTECH specialists.
86 Troubleshooting
BALTECH VP-3470
Operation manual
13. Storage and transportation
The display unit should be stored packaged in heated space. During the warm
season the device can be stored in unheated premises. During transportation and
storage the system should be packed in the transportation case.
The packed device should be stored in dry heated space under the temperature
from – 10 to + 40ºC and relative humidity up to 80 %, in the absence of acid fumes,
alkali fumes and other aggressive environments.
Wait at least two hours after transportation of the system under negative temperature
before operating it.
Storage and transportation 87
BALTECH VP-3470
Operation manual
14. Warranty liability
Product warranty period is 24 months under date of actual filling of warranty
certificate, but not later than the first month from delivery date of the product.
The present warranty is extended to production and design defects of the product.
The warranty is not provided if:
• the product was used for other than the purpose specified;
• operation conditions, storage and transportation conditions of the product were
disrupted;
• there are mechanical defects (shears, splits and etc) or damages from influence of
chemically aggressive substances, high temperatures, high humidity / dustiness,
concentrated fumes, electrical discharges, water;
• the product was connected incorrectly or electric power system does not
correspond to technical characteristics of the product.
Warranty repair is performed at service centre BALTECH GmbH , address: Kronsforder
Allee 45, 23560 Lübeck German, t/f: +49(0)451-370-87-700,
e-mail: info@baltech.biz, I net: http://www.baltech.biz
In case of warranty repair the user pays all charges on product transportation to
service centre. Product return after warranty repair “BALTECH” company realizes
at own expense.
88 Warranty liability
Loading...
