Baltech VP-3410 Operation Manual

OPERATION MANUAL

Version 03

BALTECH
VP-3410

VIBRATION METER

CONTENT

1

1. Introduction .............................................................2

1.1. Applied conventions .......................................................2

2. Requirements of security measures...........................3

3. Technical description.................................................3

3.1. Assignment.................................................................3

3.2. Technical characteristics................................................3

3.3. Structure of vibration meter...........................................5

3.4. Structure and functioning of vibration meter...................5

3.4.1. General principles of operation...................................5

3.5. Marking and packing.....................................................6

4. Commission of vibration meter.................................7

4.1. Operation conditions of vibration meter...........................7

4.2. Setting-up procedures...................................................7

4.2.1. Unpacking and exterior check of xture.......................7

4.2.2. Sensor installation......................................................7

4.2.3. Power supply connection............................................8

4.3. Application of vibration meter.........................................8

4.3.1. Measurement mode...................................................8

4.3.2. Choice of interval for frequency range.........................9

4.3.3. Execution of measurements......................................10

5. Maintenance support .............................................10

5.1. Replacement of batteries..............................................10

6. Storage and transport..............................................11

7. Warranty liabilities..................................................12

8. Acceptance and packing certicate..........................13

9. Training....................................................................14

2

INTRODUCTION

The present operation manual (OM) is intended to introduce to
a user an application, structure, operation principle, operation
instructions, measurement procedure, safety requirements and
requirements to transportation and storage of vibration meters
BALTECH VP-3410.

All employees of BALTECH GmbH want our users to be satised
with operation of purchased xtures around here. That

is why, if required in the event of any questions connected
with operation of vibration meter, do not hesitate to contact
specialists of BALTECH GmbH.

1.1. Applied conventions

Conventions given below are used in this operation manual to
emphasize the associated text.

1

NOTE

Paragraphs emphasized with word Note contain special
comments or instructions.

ATTENTION

Paragraphs emphasized with word Attention alerts you about

actions, which could cause minor injuries and inuence on

the system.

REQUIREMENTS OF SECURITY
MEASURES

• Do not use the xture if there are any damages of its

units or parts.

• Apply vibration meter only its intended purpose.

TECHNICAL DESCRIPTION

3.1. Assignment

Vibration meter BALTECH VP-3410 is designed to perform
vibration measurement of a wide range of machines for the
purpose of checking their technical condition.

The vibration meter is a simple, portable measurement xture,

which allows to perform the following tasks:

• measurement of acceleration;

• measurement of velocity;

• measurement of displacement.

3.2. Technical characteristics

Technical characteristics of vibration meter BALTECH VP-3410
are given in the Table 3-1.

Table 3-1

Measurement range of acceleration, m/s2 Pk from 1 to 199,9

Measurement range of velocity, mm/s RMS from 1 tо 199,9

Measurement range of displacement (amplitude),
mkm Pk-Pk

from 1 tо 1999

Frequency range, Hz:

At measurement of acceleration

from 10 to 1000;

from 1000 to 10000

At measurement of RMS velocity from 10 to 1000

At measurement of displacement from 10 to 500

2

ATTENTION

Nonobservance of requirements of security measures may

result in serious injury, death or failure of the xture. For this

purpose please follow

3

3

4

Absolute expanded uncertainity,
unit of measurement, up to:

Via measuring circuit of acceleration (on
frequency reference 160 Hz) and velocity
(on frequency reference 80 Hz)

±2 dgt
±(0,05 × x)

Via measuring circuit of displacement (on
frequency reference
45 Hz)

±2 dgt
±(0,06 × x)

где x – measured

value of vibration
characteristics

Deviation of xture reading within the range of operation

frequency from reading on frequency reference, %, up to:

Via measuring circuit of acceleration within
the range from 12,5 to 1000 Hz and from
1000 to 1000 Hz

±5

Via measuring circuit of velocity within the
range from 12,5 to 800 Hz

±5

Via measuring circuit of velocity on
frequencies 10 Hz and 1000 Hz

-10

Via measuring circuit of displacement within
the range from 12,5 to 500 Hz

-15; +5

Change of reading depending of
temperature within operation range of
temperatures, %/10oC, up to

3

Operation conditions:

Temperature range, oC от 0 до 50

Outside dimensions
(length, width, height), mm

138 × 68 × 30

Weight, g 270

3.3. Structure of vibration meter

The delivery set is listed in the Table. 3-2.

Table. 3-2

№ Name Qty

1 Measurement unit 1

2

Vibration sensor with cable and
magnet clamp and chip shield

1

3 Battery, 9V, type D 1

4 Operation manual 1

5 Packing 1

3.4. Structure and functioning
of vibration meter

3.4.1. General principles of operation

The vibration meter BALTECH VP-3410 consists of electronic
unit and piezoelectric acceleration sensor (further piezosensor).

Piezosensor is connected to the xture via cable (Pic. 3-1).
The xture case is made of ABS plastic and has one sensor input
for sensor and display, reecting changes and current settings.

5

1. Electronic unit

2. Piezosensor

3. Magnet clamp

4. Cable

5. Chip shield

Рiс. 3-1. Visual appearance of vibration meter BALTECH VP-3410

4.

5.

2.

1.

3.

Measurement and setting
control is performed with
buttons of membrane
keyboard on the front side
(Picture 3-2). Battery is inside
the case in a battery pack.

Рiс. 3-2. Front panel of vibration meter BALTECH VP-3410

3.5. Marking and packing

Marking of xture is made in the form of the nameplate on the

back side of electronic unit. On the nameplate it is indicated the

name of xture, power supply, capacity, article, serial number

and name of manufacturer.

Рiс. 3-3. Appearance of vibration meter BALTECH VP-3410

Packing of the xture is done in special cartoon.

6

1. Display

2. ON/OFF

3. Choice of measurement mode

4. Change of frequency range

COMMISSION OF VIBRATION METER

4.1. Operation conditions of vibration meter

• environmental temperature, °С - from 0 to +50

• relative humidity at 25 °С: to 95%

4.2. Setting-up procedures

4.2.1. and exterior check of xture

To unpack the xture you just need to draw it out of the

packing cartoon.
Before starting the measurements it is necessary to make

exterior check of the xture on absence of mechanical damages

and contaminations.

To check the delivery set of the xture according to division 3.3.

«Structure of vibration meter».
In the presence of contaminations it is necessary to make
technical service according to division 5 of the present OM.

7

4

ATTENTION

In the presence of any mechanical damages please make

sure that they do not inuence on xture reading, otherwise
send the xture for repair.

4.2.2. Sensor installation

Vibration meter BALTECH VP-3410 uses an acceleration sensor,

which is connected to the electronic xture with a help of low-

noise cable.
Sensor installation on the object is done with the help of magnet
clamp, shipped with the sensor.
The place of installation need to be cleaned
and put consistent lubricant for resonance
lowering. (Pic. 4-1)

Рiс. 4-1. Sensor with magnet clamp

4.2.3. Power supply connection

Just press the measurement button to switch on the fixture.
(Pic. 4-2)

Рiс. 4-2. Switching on the power supply

4.3. Application of vibration meter

Before making measurements make sure that the battery is not
discharged. If it is necessary, change the battery according to
division 5.1.

4.3.1. Measurement mode

Press the button «A•V•S» for the choice of measurement mode
(Pic. 3-2): acceleration, velocity or displacement. Selected
measurement mode is indicated by arrow in the right part of the
screen. (Pic. 4-3).

8

ATTENTION

Before sensor installation it is necessary to remove chip
shield.

ATTENTION

Before operation please make sure that the sensor rmly

connected to magnet clamp.

NOTE

The vibration meter switches off automatically in a minute
without pressing the button of measurement.

9

Рис. 4-3. Indicator of measurement mode

4.3.2. Choice of interval for frequency range

While measuring of acceleration it can be used button of change
for frequency range «HI*Lo» (Pic. 3-2). Selected frequency
range will be indicated by arrow in the left part of the screen.
(Pic. 4-4).

Рiс. 4-4. Indicator of range (HI/Lo*)

*- where HI: 1 kHz -10 kHz is used for measurement of high-frequency vibration.
Lo: 10 Hz-1 kHz is used for measurement of common vibration.

А-Аcceleration

V-Velocity

S-Displacement

Measurement
mode indicator

NOTE

The choice of frequency range is possible only for
measurement of acceleration.

4.3.3. Execution of measurements

To carry out the following measurements:

1. Press and withhold the measurement button during
several seconds, after that the vibration meter is ready for
measurement;

2. Install a sensor on measurement point. Press
measurement button and withhold it. Upon that on the
screen it will appear the result of measurement.

3. Release the measurement button. The measured value
will be on the screen, and you can read and record it.

4. Press the measurement button for further measurements.

MAINTENANCE SUPPORT OF VIBRATION
METER

It is necessary to keep vibration meter VP-3410 clean, not to
allow severe contamination. If there any contaminations on the
electronic unit, then one should wipe it with wet nap.

5.1. Replacement of batteries

If while operation with the xture it will appear a message

«BAT» and it means that battery supply is very low, it is
necessary to replace battery.

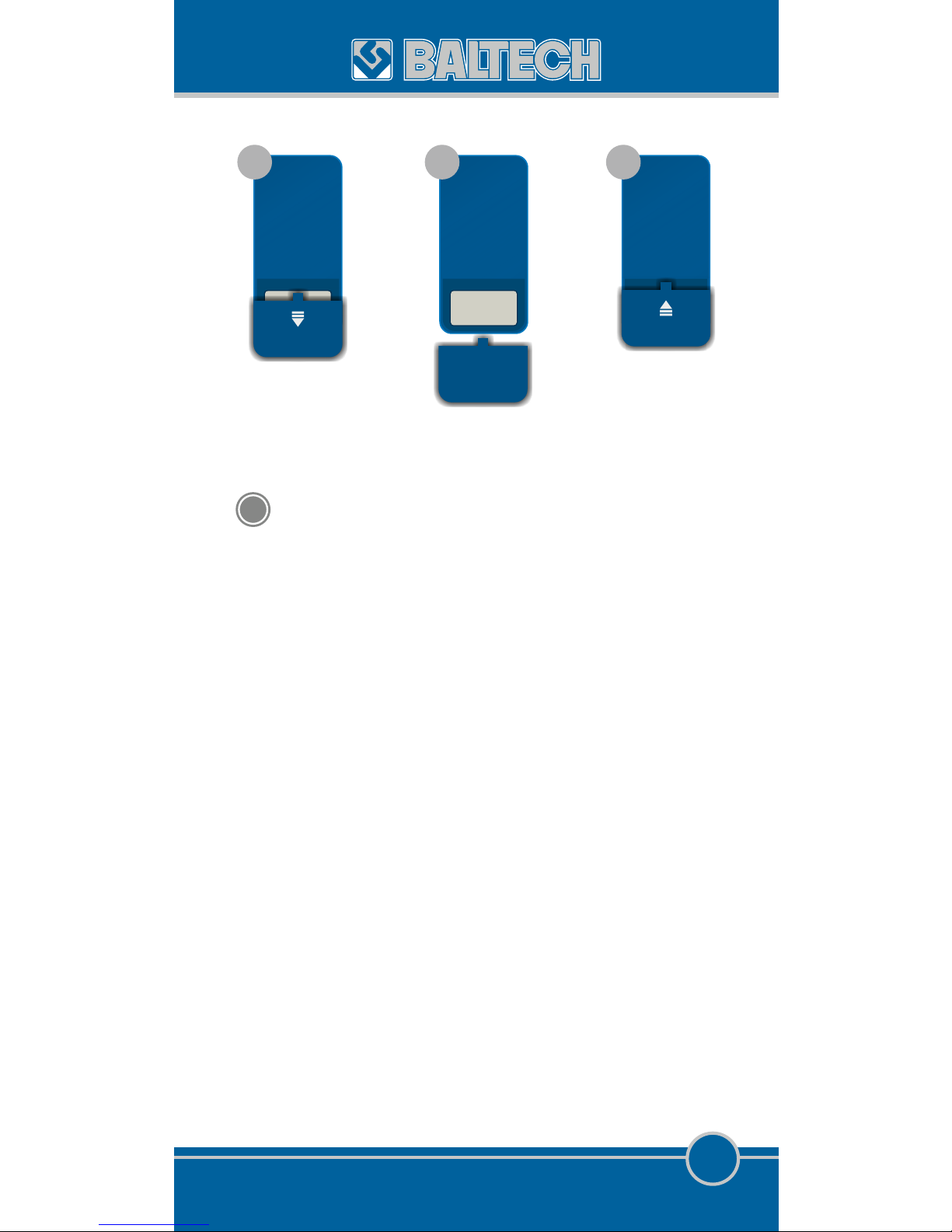

For replacement of battery (Pic. 5-1):

Step 1 Open the battery pack;

Step 2

Insert the battery type D in accordance with
markings of battery polarity;

Step 3 Close the battery pack.

10

ATTENTION

The sensor must be reliably connected with measured object,
otherwise the results of measurement can be inaccurate.

5

11

Рiс. 5-1. Replacement of battery

STORAGE AND TRANSPORT

While transportation the vibration meter must be protected
from heavy shocks and vibrations. If the vibration meter is not
used for a long period of time, it is necessary to remove the

battery in order to prevent outow of liquid from it, which may
result in the xture damage.

Батарея

(6F22, 6LF22)

1

2

3

6

12

7

WARRANTY LIABILITIES

Product warranty period is 12 months under date of actual

lling of warranty certicate, but not later than the rst month

from delivery date of the product.
The present warranty is extended to production and design
defects of the product.
The warranty is not provided if:

• the product was used for other than the purpose specied;

• operation conditions, storage and transportation
conditions of the product were disrupted;

• there are mechanical defects (shears, splits and etc)

or damages from inuence of chemically aggressive

substances, high temperatures, high humidity / dustiness,
concentrated fumes, electrical discharges, water;

• the product was connected incorrectly or electric power
system does not correspond to technical characteristics of
the product.

Warranty repair is performed at service centre BALTECH GmbH,
address: Kronsforder Allee 45, 23560 Lübeck Germany,
t/f: [phone], e-mail: [e-mail],
I net: http://www.baltech.biz

NOTE

In case of warranty repair the user pays all charges on
product transportation to service centre. Product return after
warranty repair BALTECH GmbH realizes at own expense.

8

ACCEPTANCE AND PACKING
CERTIFICATES

Vibration meter BALTECH VP-3410 No. __________ as one set

of shipment with acceleration sensor No. __________ was

qualied for operation.

Date for release «_____» ________________20______

Place of seal ____________________

signature of manufacturer

representative

Vibration meter BALTECH VP-3410 No. ________________
was packed at the manufacturer place according to requirement
of technical regulations.

Date of release «_____» _______________20_____г.

Place of seal ____________________

signature of manufacturer

representative

13

TRAINING

Center for professional development
and further training BALTECH GmbH

Training course

Vibration condition monitoring and

diagnostics. Theory and practice

For effective and proper operation of xtures series BALTECH VP

we recommend you to draw attention:

• Specialists, who work with the xture, must be certied on the
course ТОР-103 «Vibration condition monitoring and diagnostics.

Theory and practice» in the center for professional development
and further training BALTECH GmbH.

Kronsforder Allee 45, 23560 Lübeck Germany

Contacts Tel.: [phone]

E-Mail: [e-mail]

www.baltech.biz

• It is possible to organize a group not less than 5 for people
training at your enterprise.

9

License on training and education №1872 от 06.05.2016

Trainees get

CERTIFICATE ON FURTHER TRAINING

14

WE INVITE IN THE TRAINING!

Training

course

TOP-103

BALTECH GmbH

Kronsforder Allee 45, 23560 Lübeck Germany

[phone]

E-Mail: [e-mail]

www.baltech.biz
