33550 CPU-RACK
Vertical / Horizontal CPU Holder
Assembly Instructions
Page 2
WOW
CPU-RACK

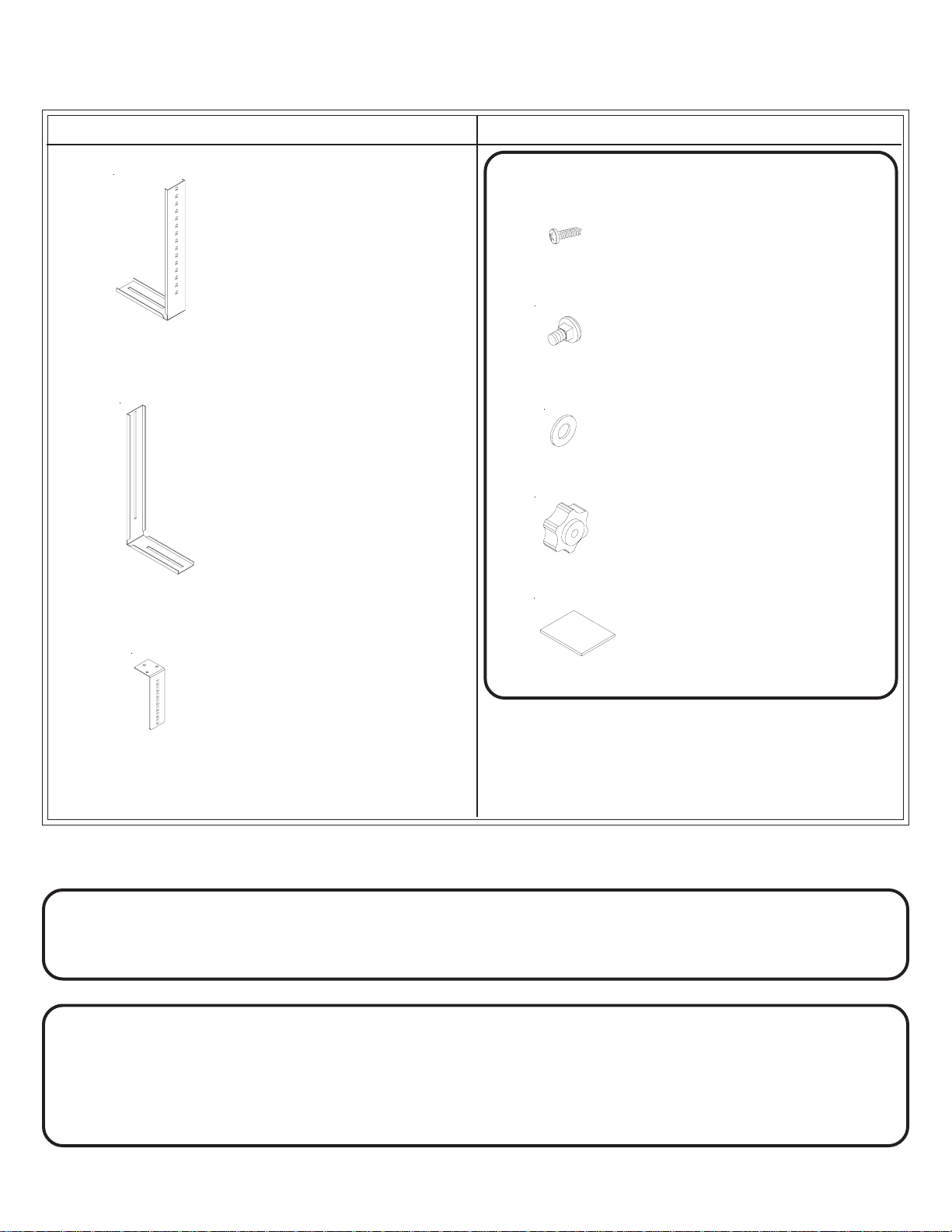

Part Drawing Description Qty
P1 Outer Slide 2 EA
P2 Inner Slide 2 EA
Vertical / Horizontal CPU Holder
Part Drawing Description Qty
Hardware List
A1 Short Wood Screw 12 EA
A2 Shoulder Bolt 6 EA
B Flat Washer 6 EA
C Knob 6 EA
D Adhesive Pad 4 EA
P3 Mounting Bracket 4 EA
T ools Required: Phillips Head Screw Driver
( Power Screw Driver Preferred )
Do not use unless all screws are tight. At least every six months, check all screws to be sure
they are tight. If parts are missing, broken, damaged, or worn, stop use of the product until
repairs are made by your dealer using factory authorized parts.
Should you require assistance during assembly, please call our Customer Service Department
Monday - Friday 8 a.m. - 5 p.m. Central Standard Time
T oll-Free Customer Service
1-800-749-2258
Page 3
33550 CPU-RACK (V ertical)

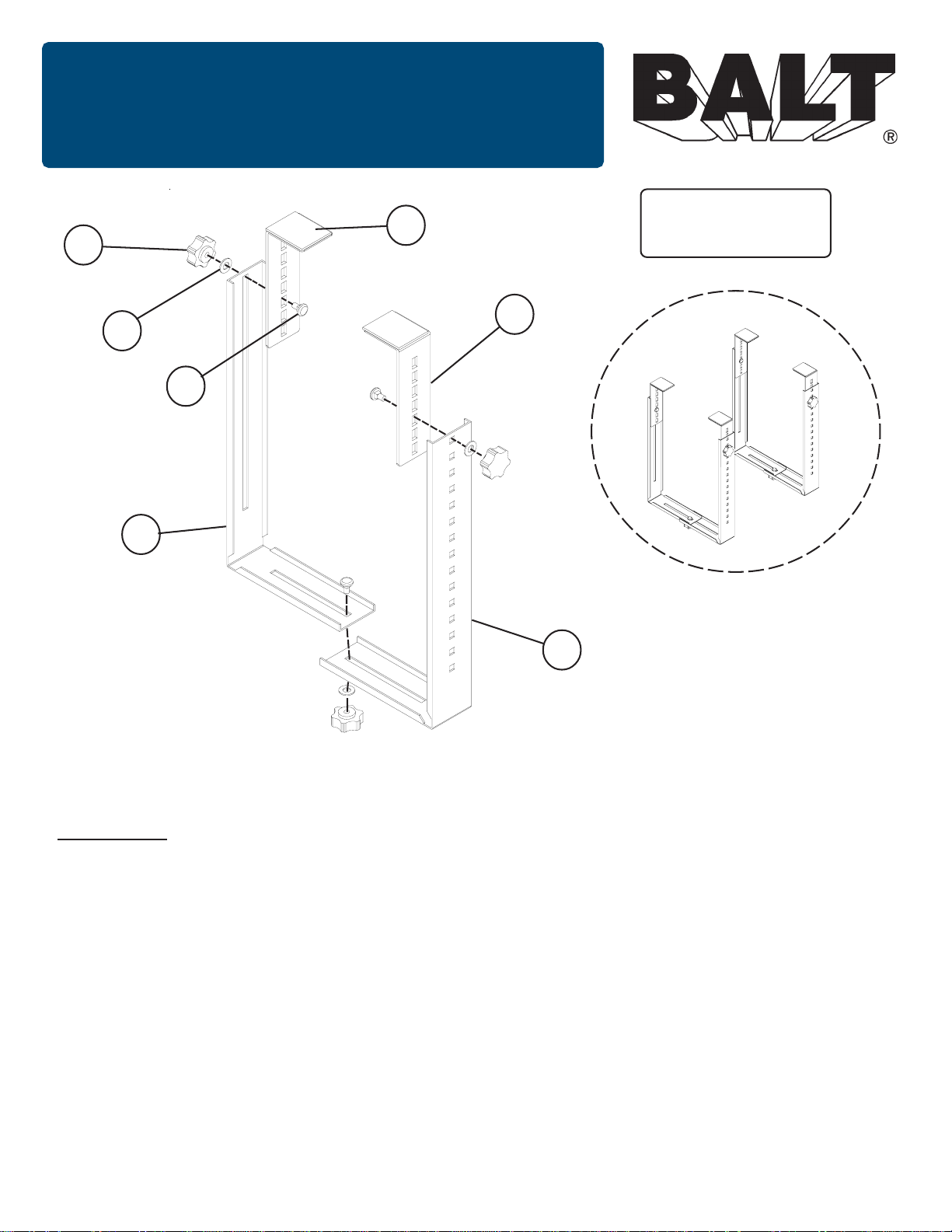

Assembly Diagram
D
C
P3
B
A2
P2
P1
Illustration # 1
for Vertical CPUs
To Assemble: ( Follow Illustration # 1 for VERTICAL or Illustration # 2 for HORIZONT AL )
1. Identify and Separate all the Parts and Hardware.
2. Assemble 1 Outer Slide (P1), 1 Inner Slide (P2), and 2 Mounting Brackets (P3)
using 3 Shoulder Bolts (A2), 3 Flat Washers (B), and 3 Knobs (C)
as shown in illustration # 1 ( or # 2 for Horizonatal ).
Do not tighten all the way .
Repeat the process using the other Outer slide, Inner slide, and Mounting Brackets.
3. Adjust the width and height of these assemblies accoring to the size of your CPU, and tighten
the Knobs. Remove the paper from one side of 4 Adhesive pads (D) and stick these on the
Mounting Brackets (P3) as shown in illustration. Rempve paper from the other side and stick these
assemblies at the desired location.
Page 4
33550 CPU-RACK (Horizontal)

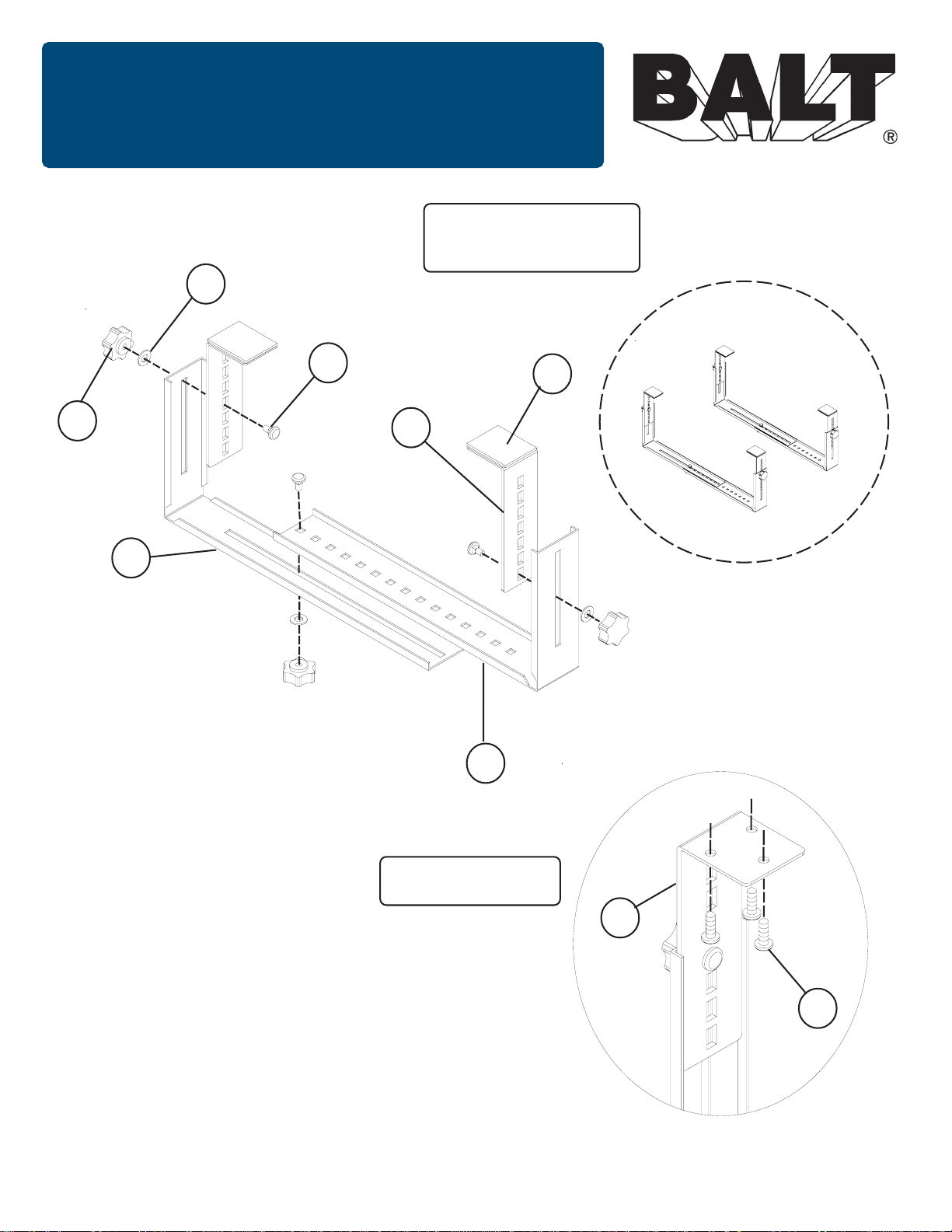

Assembly Diagram
Illustration # 2
for Horizontal CPUs
B
A2
C
P2
P3
P1
D
4. Attach 4 Mounting brackets (P3) to
the bottom side of the Work surface
using 12 wood screws (A1)
as shown in illustration # 3.
Adhesive Pad (D) not shown
on Illustration # 3.
Illustration # 3
P3
A1
CPURACK_asm - 03/24/00
Page 5
33550 CPU-RACK
Vertical / Horizontal CPU Holder

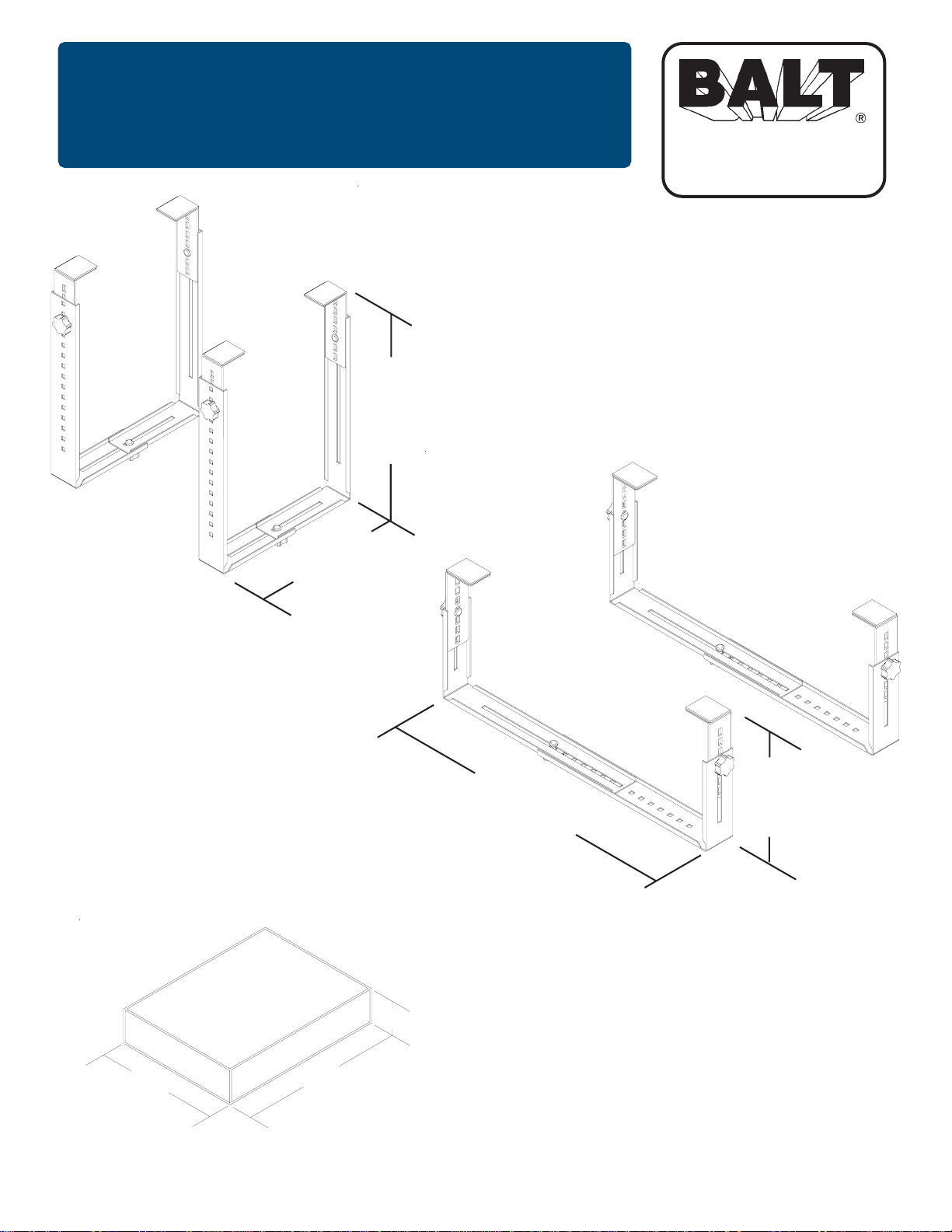

13¼ - 17¾”
5¼ - 9¾”
For more information
1-800-749-2258
Shipping Information
0.2 Cubic Feet
5 lbs.
8”
15”
3”
13¼ - 25¾”
5½ - 10”
Used for fastening CPU underneath the desk
Vertically or Horizontally.
Black color, all Metal frames
Ships UPS.
CPURACK_asm.pm6 - 6/13/00
