Page 1
-
135 LITTLE NINE DRIVE
MOREHEAD CITY, NC 28557
(800) 242-2559
DCi
REFRIGERATEDBOXESINC.
APPLY SILICONE TO INSIDE CORNER OF DOOR FRAME
PRIOR TO INSTALLING HEATER WIRES AND HEATER STRIKES.
PRESS HEATER WIRES DIRECTLY INTO SILICONE TO
ENSURE PROPER HEAT TRANSFER.
ONLY HEATER WIRE LEADS ARE TO ENTER INTO
ELETRICAL BOX. MAKE CERTAIN THAT HEATER WIRE
DOES NOT OVERLAP ITSELF AT ENTRANCE SLOT.
EXERCISE CAUTION WHEN REINSTALLING HEATER STRIKE
MAKING CERTAIN NOT TO PINCH HEATER WIRE BETWEEN
HEATER STRIKE AND DOOR FRAME.
I~
AX: (252) 240-0384
@)
INSTRUCTION
INSTRUCTIONMANUAL:
NUMBER: IM-405-02 DATE:10 01 02

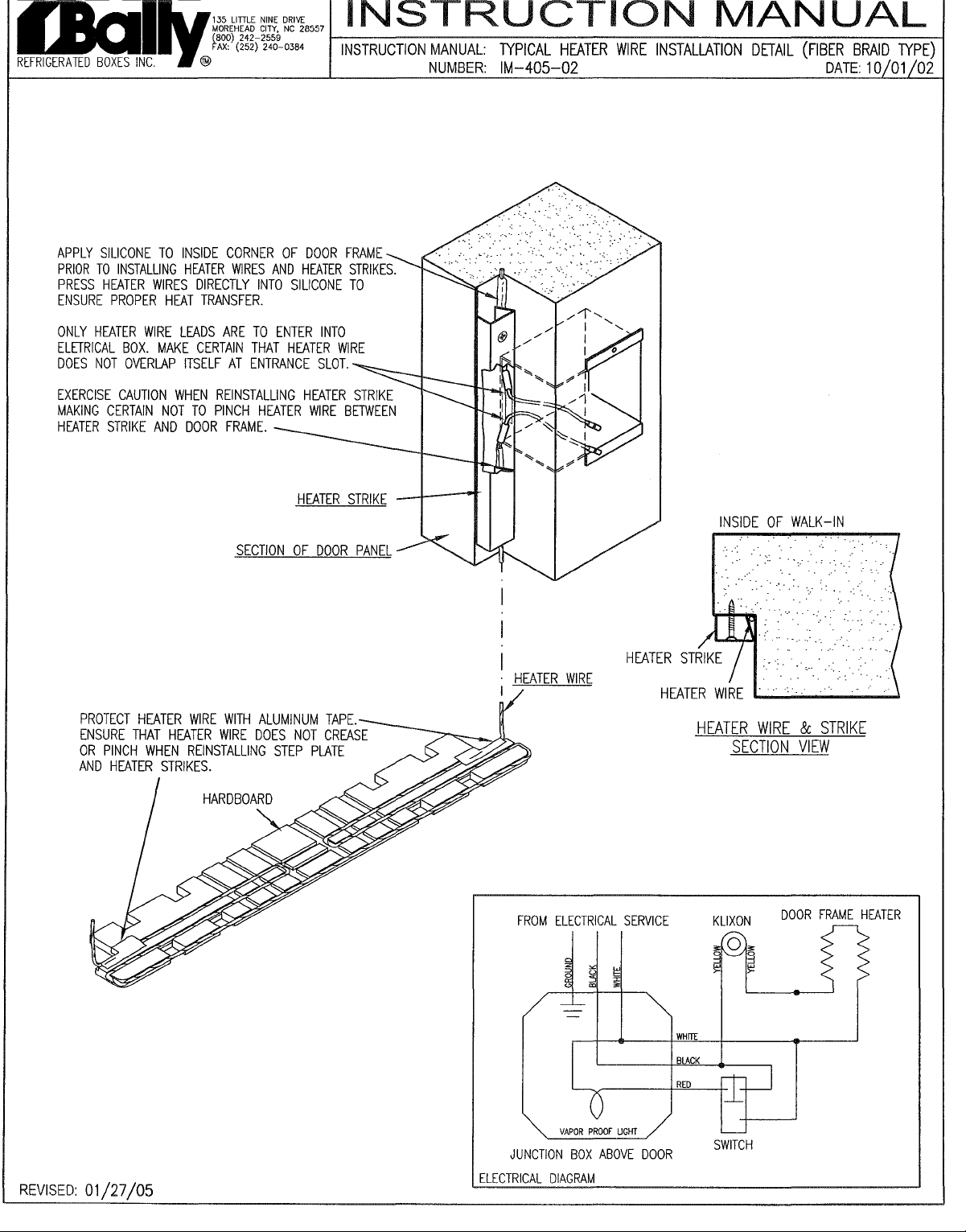

TYPICAL HEATER WIRE INSTALLATION DETAil (FIBER BRAID TYPE)
MANUAL
HEATER STRIKE
SECTION OF DOOR PANEL
PROTECT HEATER WIRE WITH ALUMINUM TAPE.
ENSURE THAT HEATER WIRE DOES NOT CREASE
OR PINCH WHEN REINSTALLING STEP PLATE
AND HEATER STRIKES.
HEATER WIRE
FROM ELECTRICALSERVICE
INSIDE OF WALK-IN
....
. .
'
.
.
' .
.
" "
.
. .
HEATER WIRE&STRIKE
SECTION VIEW
KLiXON
""0",,
o
DOOR FRAME HEATER
0
=i
~
REVISED: 01/27/05
VAPOR PROOF LIGHT
JUNCTION BOX ABOVE DOOR
ELECTRICAL DIAGRAM
WHrrE
BLACK
RED
SWITCH
