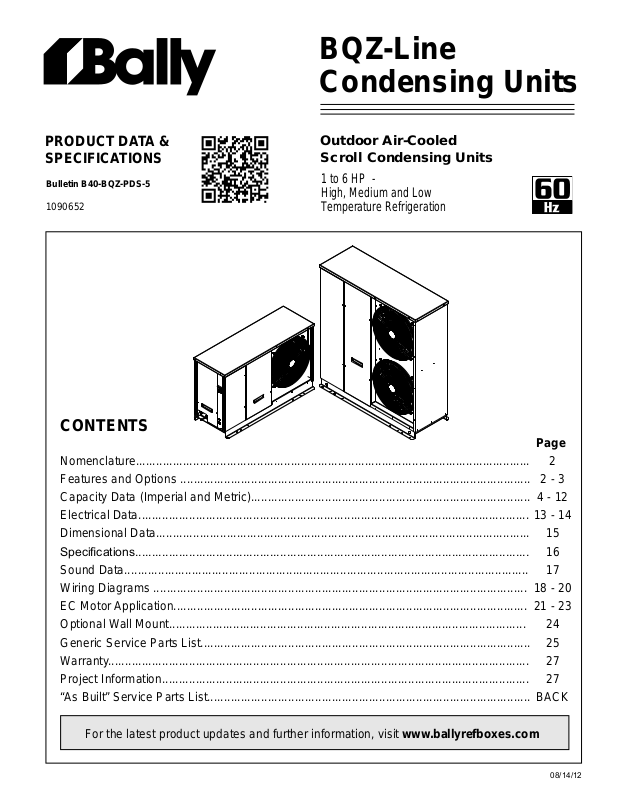

Bally Refrigerated Boxes BQZA010H8 User Manual

BQZ-Line

08/14/12

Condensing Units

PRODUCT DATA &
SPECIFICATIONS

Bulletin B40-BQZ-PDS-5

1090652

Outdoor Air-Cooled
Scroll Condensing Units

1 to 6 HP -
High, Medium and Low
Temperature Refrigeration

CONTENTS

Page

Nomenclature.....................................................................................................................

Features and Options ........................................................................................................

Capacity Data (Imperial and Metric)...................................................................................

Electrical Data....................................................................................................................

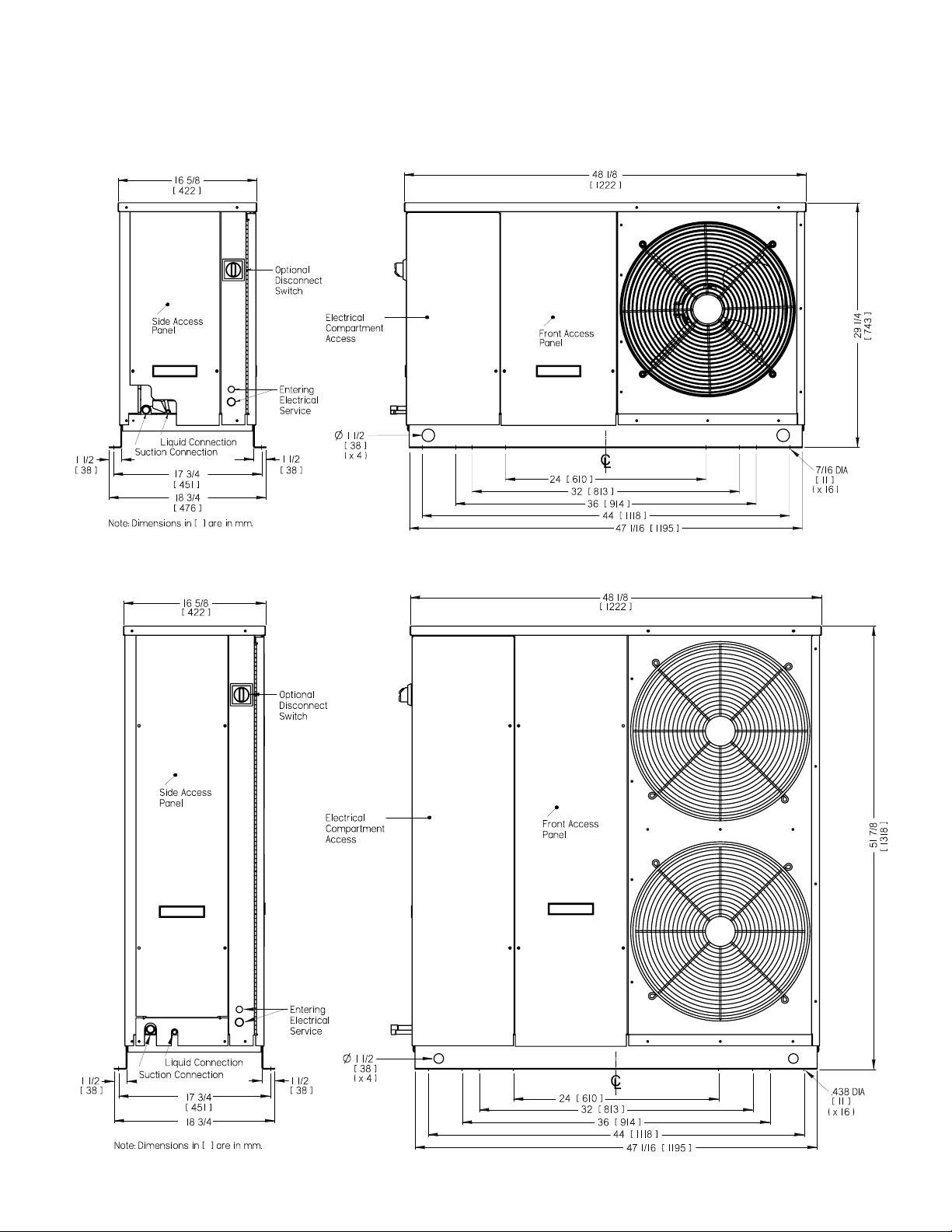

Dimensional Data...............................................................................................................

Specications.....................................................................................................................

Sound Data........................................................................................................................

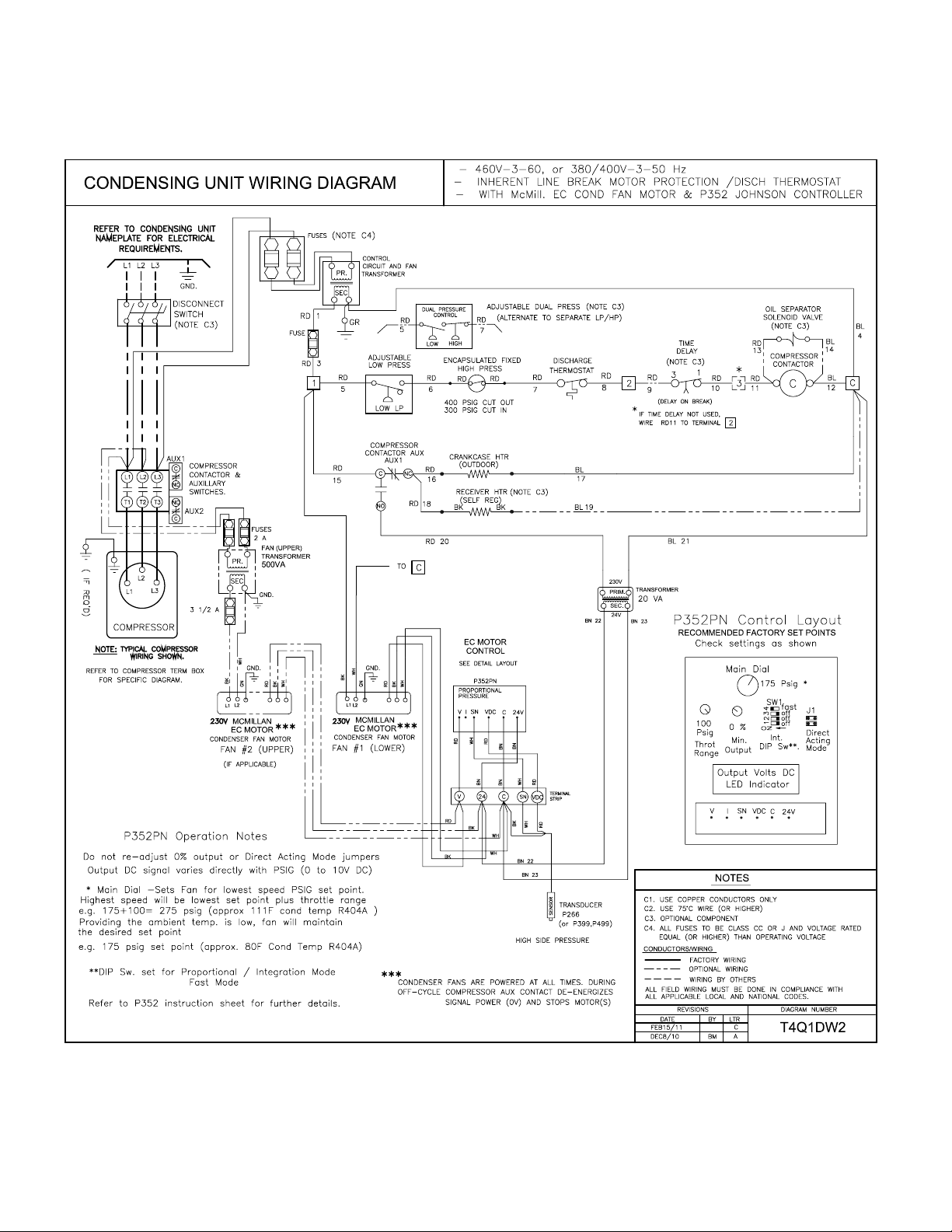

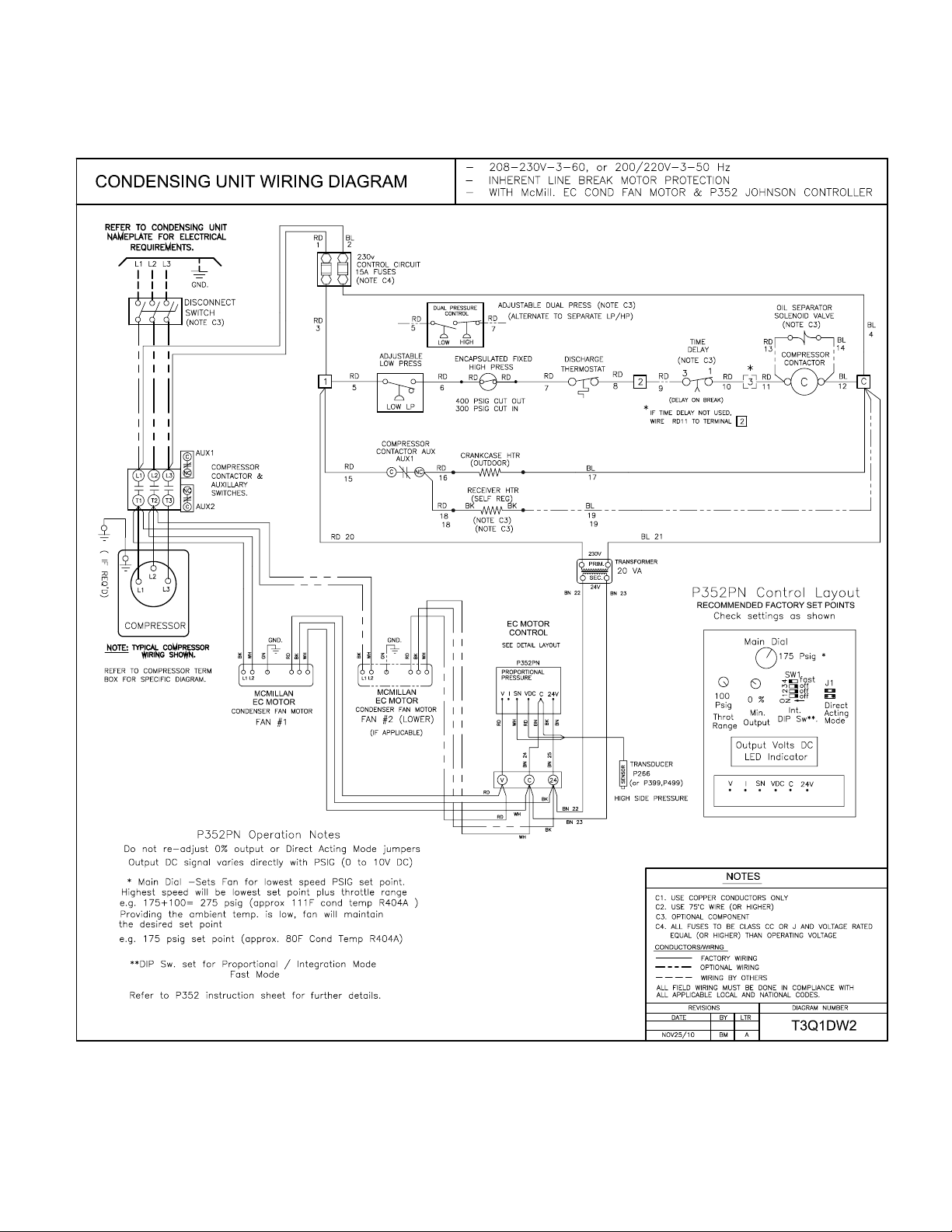

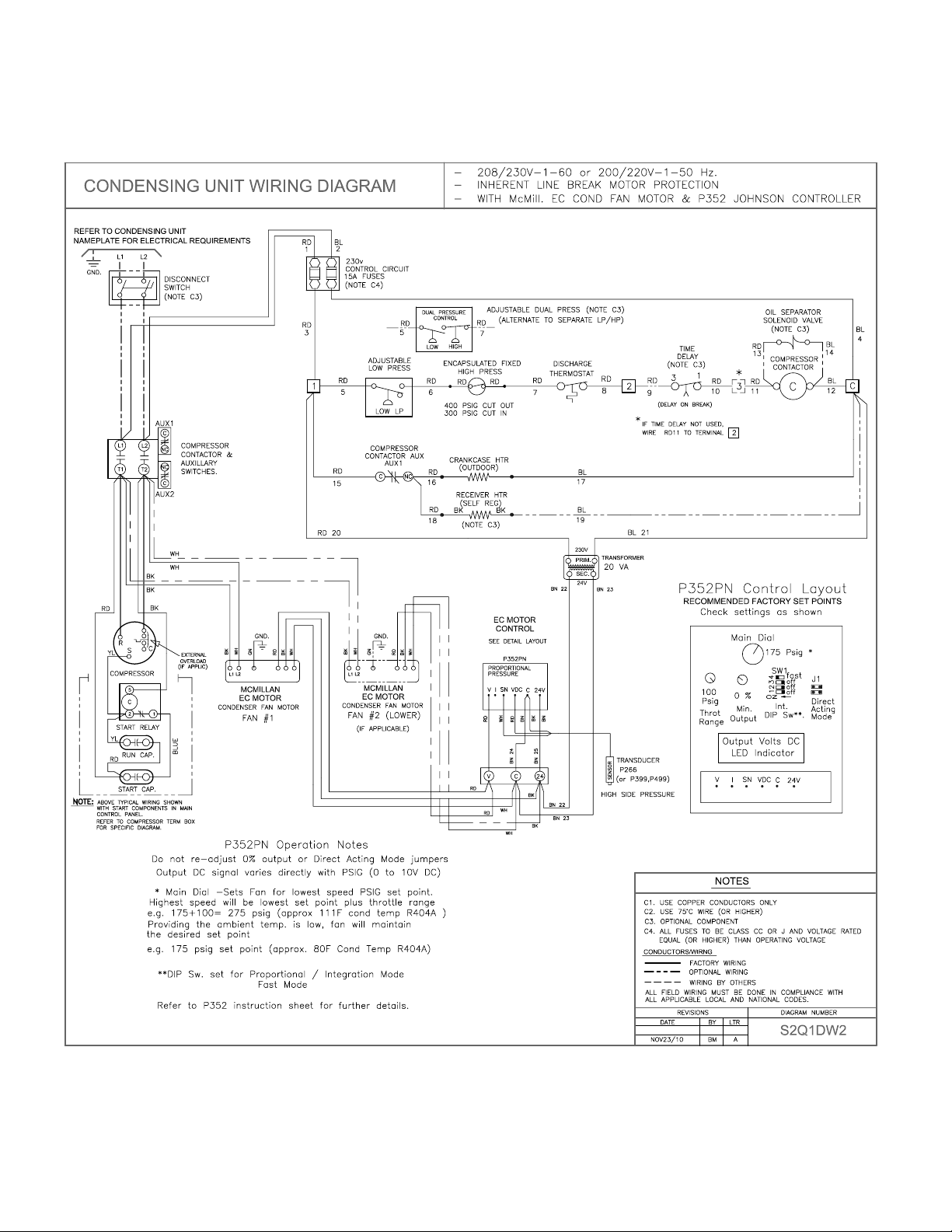

Wiring Diagrams ...............................................................................................................

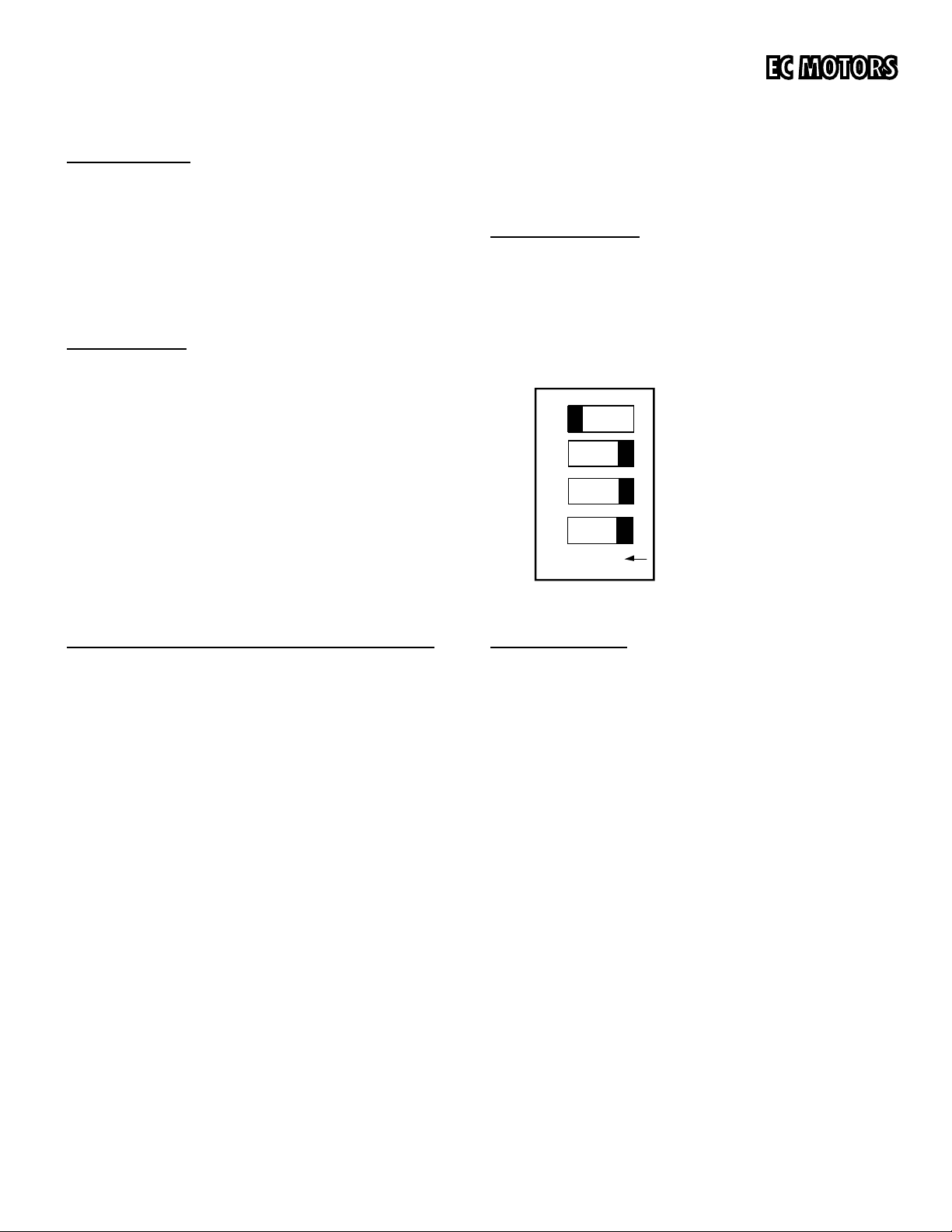

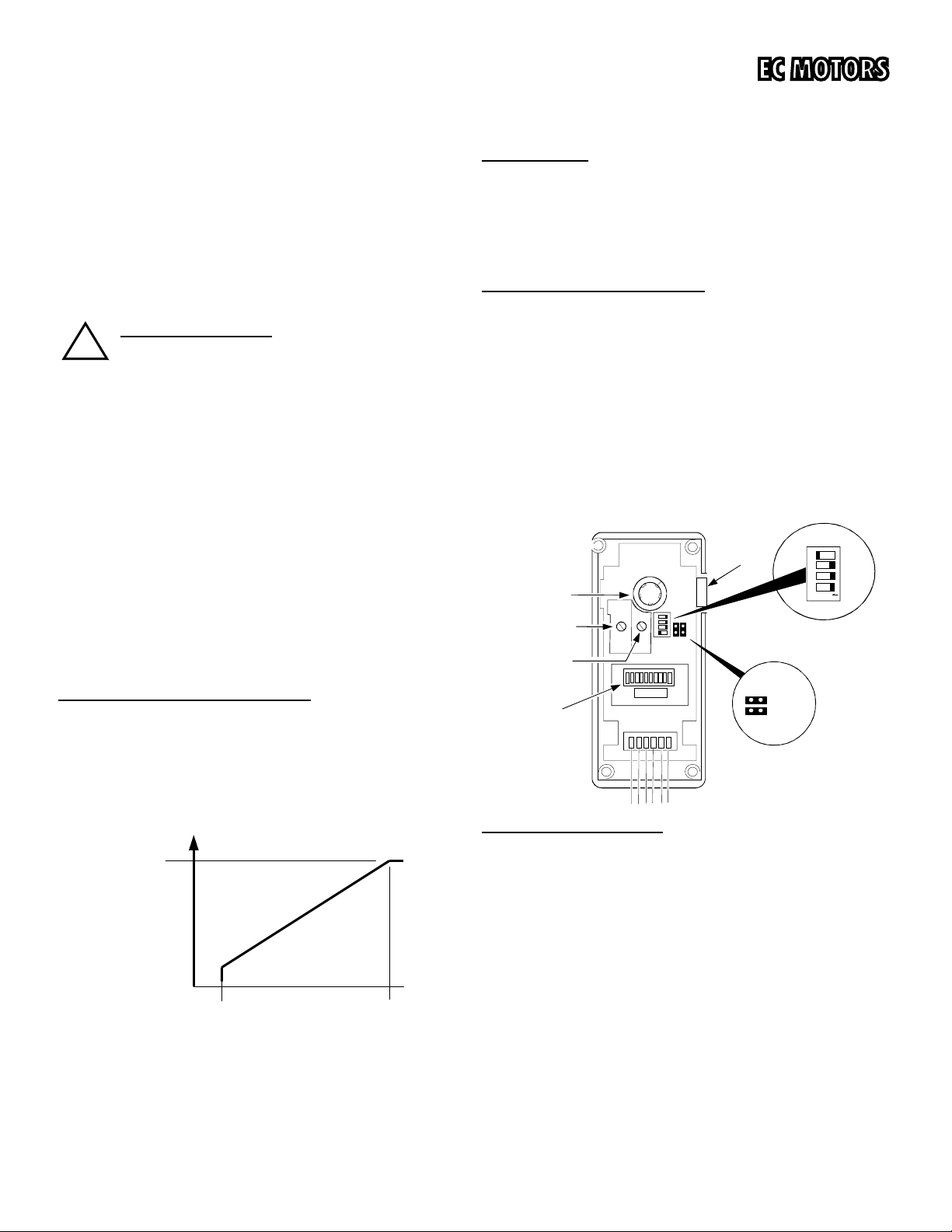

EC Motor Application.........................................................................................................

Optional Wall Mount..........................................................................................................

Generic Service Parts List..................................................................................................

Warranty.............................................................................................................................

Project Information.............................................................................................................

“As Built” Service Parts List................................................................................................

For the latest product updates and further information, visit www.ballyrefboxes.com

13 - 14

18 - 20
21 - 23

2

2 - 3

4 - 12

15
16
17

24
25
27
27

BACK

Model Name

08/14/12

B40-BQZ-PDS-5

- 2 -

B = Bally

NOMENCLATURE

B QZ A 030 H 8 - H T3 A

Series

A = Latest Catalog Series

Model Series
QZ = Quiet Scroll Air Cooled Condensing Unit Line

Compressor Manufacturer

A = Copeland
T = Tecumseh

Nominal HP

010 - 060 = 1 - 6 HP

Application Range

H = High and Med Temp
M = Med Temp
E = Extended Medium Temperature
L = Low Temp

• Copeland or Tecumseh Scroll compressors

• Heavy duty weatherproof construction

• High efciency enhanced tube and n condenser design

• High efciency variable speed EC motor as head pressure control

• Receiver with fusible plug and liquid shut-off valve

• Liquid injection (low temperature models)

• Adjustable low pressure control and xed high pressure control

• Discharge thermostat on applicable models only

Voltage*

S2 = 208/230-1-60* S3 = 230-1-60
S6 = 200/220-1-50 S7 = 200-1-50*
T3 = 208/230-3-60 T4 = 460-3-60
T7 = 200/220-3-50 T9 = 380/400-3-50

STANDARD FEATURES

• Painted cabinet

TM

• Gold Coat

• Crankcase heater

• Time delay relay

ns

Enclosure

H = Outdoor

Refrigerant*

6 = R404A / R507*
7 = R407C
8 = R404A / R507 / R22 / R407C

* subject to compressor availability

OPTIONAL ACCESSORIES

• Sealed liquid line lter drier and sight glass

• Suction accumulator

• Sealed suction lter

• Heated and insulated receiver - required in ambients below 10°F

• Non-fused disconnect switch

• Pump down toggle switch

• Mechanical time clock

• Sound insulated compressor compartment *

• Wall mount kit

• Oil seperator (2 fan models only)

• QuickVac evacuation and refrigerant recovery valves

* see sound data table on page 17

OPTIONAL FEATURE PACKAGES

08/14/12

B40-BQZ-PDS-5

- 3 -

(Factory Mounted)

Package A:

• Standard Features (see pg. 2)

Package B:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass
Package C:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass

• Plus Suction Accumulator

• Plus Mechanical Time Clock
Package D:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass

• Plus Heated and Insulated Receiver

(required in ambients below 10°F)

Package E:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass

• Plus Heated and Insulated Receiver

(required in ambients below 10°F)

• Plus Suction Accumulator

• Plus Mechanical Time Clock

Package F:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass

• Plus Mechanical Time Clock

Package G:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass

• Plus Heated and Insulated Receiver
(required in ambients below 10°F)

• Plus Mechanical Time Clock

Package H:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass

• Plus Suction Accumulator

• Plus Heated and Insulated Receiver
(required in ambients below 10°F)

Package J:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass

• Plus Compressor Compartment Sound Insulation

Package K:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier & Sight Glass

• Plus Compressor Compartment Sound Insulation

• Plus Mechanical Time Clock

BQZA

08/14/12

B40-BQZ-PDS-5

- 4 -

COPELAND

CONDENSING

UNIT

MODEL

BQZA010H8

Compressor

Model

ZS09KAE

BQZA011H8

Compressor

Model

ZS11KAE

BQZA015H8

Compressor

Model

ZS13KAE

BQZA020H8

Compressor

Model

ZB15KCE

BQZA025H8

Compressor

Model

ZB19KCE

BQZA030H8

Compressor

Model

ZB21KCE

BQZA035H8

Compressor

Model

ZB26KCE

BQZA040H8

Compressor

Model

ZB30KCE

BQZA050H8

Compressor

Model

ZB38KCE

BQZA060H8

Compressor

Model

ZB45KCE

SATURATED

TEMPERATURE

° F ° C

45 (7.2) 18700 (5480) 18200 (5330) 17700 (5190) 17200 (5040) 16700 (4890) 16200 (4750) 15700 (4600)
40 (4.4) 17100 (5010) 16700 (4890) 16200 (4750) 15800 (4630) 15300 (4480) 14900 (4370) 14400 (4220)
35 (1.7) 15600 (4570) 15200 (4450) 14800 (4340) 14400 (4220) 14000 (4100) 13600 (3990) 13200 (3870)
30 (-1.1) 14300 (4190) 13900 (4070) 13500 (3960) 13200 (3870) 12800 (3750) 12400 (3630) 12000 (3520)
25 (-3.9) 13000 (3810) 12700 (3720) 12300 (3600) 12000 (3520) 11700 (3430) 11300 (3310) 11000 (3220)
20 (-6.7) 11800 (3460) 11500 (3370) 11200 (3280) 10900 (3190) 10600 (3110) 10300 (3020) 9900 (2900)
15 (-9.4) 10700 (3140) 10400 (3050) 10100 (2960) 9800 (2870) 9600 (2810) 9300 (2730) 8900 (2610)
10 (-12.2) 9600 (2810) 9400 (2750) 9100 (2670) 8800 (2580) 8600 (2520) 8300 (2430) 8000 (2340)
45 (7.2) 21600 (6330) 21000 (6150) 20400 (5980) 19800 (5800) 19300 (5660) 18700 (5480) 18100 (5300)
40 (4.4) 19800 (5800) 19300 (5660) 18700 (5480) 18200 (5330) 17700 (5190) 17200 (5040) 16600 (4860)
35 (1.7) 18100 (5300) 17700 (5190) 17200 (5040) 16700 (4890) 16200 (4750) 15700 (4600) 15200 (4450)
30 (-1.1) 16600 (4860) 16100 (4720) 15700 (4600) 15300 (4480) 14800 (4340) 14400 (4220) 13900 (4070)
25 (-3.9) 15100 (4430) 14700 (4310) 14300 (4190) 13900 (4070) 13500 (3960) 13100 (3840) 12700 (3720)
20 (-6.7) 13700 (4020) 13400 (3930) 13000 (3810) 12700 (3720) 12300 (3600) 11900 (3490) 11500 (3370)
15 (-9.4) 12400 (3630) 12100 (3550) 11800 (3460) 11400 (3340) 11100 (3250) 10700 (3140) 10400 (3050)
10 (-12.2) 11200 (3280) 10900 (3190) 10600 (3110) 10300 (3020) 10000 (2930) 9600 (2810) 9300 (2730)
45 (7.2) 25100 (7360) 24400 (7150) 23800 (6980) 23100 (6770) 22400 (6560) 21800 (6390) 21100 (6180)
40 (4.4) 23000 (6740) 22400 (6560) 21800 (6390) 21200 (6210) 20600 (6040) 20000 (5860) 19300 (5660)
35 (1.7) 21000 (6150) 20500 (6010) 19900 (5830) 19400 (5690) 18800 (5510) 18300 (5360) 17700 (5190)
30 (-1.1) 19200 (5630) 18700 (5480) 18200 (5330) 17700 (5190) 17200 (5040) 16700 (4890) 16200 (4750)
25 (-3.9) 17500 (5130) 17100 (5010) 16600 (4860) 16100 (4720) 15700 (4600) 15200 (4450) 14700 (4310)
20 (-6.7) 15900 (4660) 15500 (4540) 15100 (4430) 14700 (4310) 14200 (4160) 13800 (4040) 13300 (3900)
15 (-9.4) 14400 (4220) 14000 (4100) 13700 (4020) 13300 (3900) 12900 (3780) 12500 (3660) 12000 (3520)
10

45 (7.2) 28400 (8320) 27700 (8120) 27000 (7910) 26200 (7680) 25500 (7470) 24700 (7240) 23900 (7000)
40 (4.4) 26000 (7620) 25400 (7440) 24700 (7240) 24000 (7030) 23300 (6830) 22600 (6620) 21900 (6420)
35 (1.7) 23800 (6980) 23200 (6800) 22600 (6620) 22000 (6450) 21300 (6240) 20700 (6070) 20000 (5860)
30 (-1.1) 21700 (6360) 21200 (6210) 20600 (6040) 20000 (5860) 19400 (5690) 18800 (5510) 18200 (5330)
25 (-3.9) 19800 (5800) 19300 (5660) 18800 (5510) 18200 (5330) 17700 (5190) 17100 (5010) 16600 (4860)
20 (-6.7) 17900 (5250) 17500 (5130) 17000 (4980) 16500 (4840) 16000 (4690) 15500 (4540) 15000 (4400)
15 (-9.4) 16200 (4750) 15800 (4630) 15300 (4480) 14900 (4370) 14400 (4220) 14000 (4100) 13500 (3960)
10 (-12.2) 14500 (4250) 14100 (4130) 13700 (4020) 13300 (3900) 12900 (3780) 12500 (3660) 12000 (3520)
45 (7.2) 28400 (8320) 27700 (8120) 27000 (7910) 26200 (7680) 25500 (7470) 24700 (7240) 23900 (7000)
40 (4.4) 26000 (7620) 25400 (7440) 24700 (7240) 24000 (7030) 23300 (6830) 22600 (6620) 21900 (6420)
35 (1.7) 23800 (6980) 23200 (6800) 22600 (6620) 22000 (6450) 21300 (6240) 20700 (6070) 20000 (5860)
30 (-1.1) 21700 (6360) 21200 (6210) 20600 (6040) 20000 (5860) 19400 (5690) 18800 (5510) 18200 (5330)
25 (-3.9) 19800 (5800) 19300 (5660) 18800 (5510) 18200 (5330) 17700 (5190) 17100 (5010) 16600 (4860)
20 (-6.7) 17900 (5250) 17500 (5130) 17000 (4980) 16500 (4840) 16000 (4690) 15500 (4540) 15000 (4400)
15 (-9.4) 16200 (4750) 15800 (4630) 15300 (4480) 14900 (4370) 14400 (4220) 14000 (4100) 13500 (3960)
10 (-12.2) 14500 (4250) 14100 (4130) 13700 (4020) 13300 (3900) 12900 (3780) 12500 (3660) 12000 (3520)
45 (7.2) 40700 (11930) 39600 (11610) 38600 (11310) 37500 (10990) 36300 (10640) 35200 (10320) 34000 (9960)
40 (4.4) 37500 (10990) 36500 (10700) 35500 (10400) 34500 (10110) 33500 (9820) 32400 (9500) 31300 (9170)
35 (1.7) 34400 (10080) 33500 (9820) 32600 (9550) 31700 (9290) 30700 (9000) 29700 (8700) 28700 (8410)
30 (-1.1) 31500 (9230) 30700 (9000) 29800 (8730) 29000 (8500) 28100 (8240) 27200 (7970) 26300 (7710)
25 (-3.9) 28700 (8410) 28000 (8210) 27200 (7970) 26400 (7740) 25600 (7500) 24800 (7270) 23900 (7000)
20 (-6.7) 26100 (7650) 25400 (7440) 24700 (7240) 24000 (7030) 23200 (6800) 22500 (6590) 21700 (6360)
15 (-9.4) 23600 (6920) 22900 (6710) 22300 (6540) 21600 (6330) 21000 (6150) 20300 (5950) 19600 (5740)
10 (-12.2) 21200 (6210) 20600
45 (7.2) 49300 (14450) 48100 (14100) 46900 (13740) 45600 (13360) 44300 (12980) 43000 (12600) 41600 (12190)
40 (4.4) 45300 (13280) 44100 (12920) 43000 (12600) 41800 (12250) 40700 (11930) 39400 (11550) 38200 (11200)
35 (1.7) 41400 (12130) 40400 (11840) 39400 (11550) 38300 (11220) 37200 (10900) 36100 (10580) 35000 (10260)
30 (-1.1) 37800 (11080) 36900 (10810) 35900 (10520) 35000 (10260) 34000 (9960) 32900 (9640) 31900 (9350)
25 (-3.9) 34400 (10080) 33600 (9850) 32700 (9580) 31800 (9320) 30900 (9060) 30000 (8790) 29000 (8500)
20 (-6.7) 31200 (9140) 30500 (8940) 29700 (8700) 28800 (8440) 28000 (8210) 27100 (7940) 26200 (7680)
15 (-9.4) 28200 (8260) 27500 (8060) 26800 (7850) 26000 (7620) 25200 (7390) 24400 (7150) 23600 (6920)
10 (-12.2) 25300 (7410) 24700 (7240) 24000 (7030) 23300 (6830) 22600 (6620) 21800 (6390) 21100 (6180)
45 (7.2) 57800 (16940) 56400 (16530) 54900 (16090) 53500 (15680) 52000 (15240) 50400 (14770) 48900 (14330)
40 (4.4) 53100 (15560) 51800 (15180) 50400 (14770) 49100 (14390) 47700 (13980) 46300 (13570) 44800 (13130)
35 (1.7) 48600 (14240) 47400 (13890) 46200 (13540) 44900 (13160) 43600 (12780) 42300 (12400) 41000 (12020)
30 (-1.1) 44400 (13010) 43200 (12660) 42100 (12340) 41000 (12020) 39800 (11660) 38600 (11310) 37300 (10930)
25 (-3.9) 40300 (11810) 39300 (11520) 38300 (11220) 37200 (10900) 36100 (10580) 35000 (10260) 33900 (9940)
20 (-6.7) 36500 (10700) 35600 (10430) 34700 (10170) 33700 (9880) 32700 (9580) 31700 (9290) 30700 (9000)
15 (-9.4) 33000 (9670) 32100 (9410) 31200 (9140) 30400 (8910) 29500 (8650) 28600 (8380) 27700 (8120)
10 (-12.2) 29600 (8670) 28800 (8440) 28000 (8210) 27200 (7970) 26400 (7740) 25600 (7500) 24800 (7270)
45 (7.2) 69400 (20340) 67600 (19810) 65800 (19280) 64000 (18760) 62100 (18200) 60200 (17640) 58300 (17090)
40 (4.4) 63800 (18700) 62200 (18230) 60600 (17760) 58900 (17260) 57100 (16730) 55400 (16240) 53600 (15710)
35 (1.7) 58500 (17140) 57000 (16700) 55500 (16270) 53900 (15800) 52400 (15360) 50700 (14860) 49100 (14390)
30 (-1.1) 53500 (15680) 52100 (15270) 50700 (14860) 49300 (14450) 47800 (14010) 46300 (13570) 44800 (13130)
25 (-3.9) 48700 (14270) 47400 (13890) 46200 (13540) 44800 (13130) 43500 (12750) 42100 (12340) 40800 (11960)
20 (-6.7) 44200 (12950) 43000 (12600) 41800 (12250) 40600 (11900) 39400 (11550) 38200 (11200) 36900 (10810)
15 (-9.4) 39900 (11690) 38900 (11400) 37800 (11080) 36700 (10760) 35600 (10430) 34500 (10110) 33300 (9760)
10 (-12.2) 35900 (10520) 34900 (10230) 33900 (9940) 32900
45 (7.2) 82300 (24120) 80200 (23500) 78100 (22890) 75900 (22240) 73600 (21570) 71200 (20870) 68800 (20160)
40 (4.4) 75800 (22210) 73800 (21630) 71800 (21040) 69800 (20460) 67600 (19810) 65400 (19170) 63200 (18520)
35 (1.7) 69500 (20370) 67700 (19840) 65800 (19280) 63900 (18730) 62000 (18170) 59900 (17550) 57800 (16940)
30 (-1.1) 63500 (18610) 61900 (18140) 60200 (17640) 58400 (17120) 56600 (16590) 54700 (16030) 52700 (15440)
25 (-3.9) 57900 (16970) 56400 (16530) 54800 (16060) 53100 (15560) 51500 (15090) 49700 (14570) 47900 (14040)
20 (-6.7) 52600 (15420) 51200 (15010) 49700 (14570) 48200 (14130) 46700 (13690) 45100 (13220) 43400 (12720)
15 (-9.4) 47600 (13950) 46300 (13570) 45000 (13190) 43600 (12780) 42200 (12370) 40700 (11930) 39200 (11490)
10 (-12.2) 43100 (12630) 41900 (12280) 40600 (11900) 39400 (11550) 38100 (11170) 36700 (10760) 35400 (10370)

CAPACITY DATA -

R22

60Hz

HIGH TEMPERATURE

SUCTION

80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

(-12.2) 13000 (3810) 12600 (3690) 12300 (3600) 11900 (3490) 11500 (3370) 11200 (3280) 10800 (3170)

CAPACITY BTU/H (WATTS)

(6040) 20100 (5890) 19500 (5710) 18900 (5540) 18300 (5360) 17700 (5190)

AMBIENT TEMPERATURE °F (°C)

R22

(9640) 32000 (9380) 31000 (9090) 30000 (8790)

--- Outside Operating Range † Max 40°F RGT

BQZA

08/14/12

B40-BQZ-PDS-5

- 5 -

COPELAND

CAPACITY DATA -

R404A

R507

HIGH/MEDIUM TEMPERATURE

60Hz

SATURATED

MODEL

BQZA010H8 30 (-1.1) 14700 (4310) 14200 (4160) 13700 (4020) 13100 (3840) 12600 (3690) 12000 (3520) 11400 (3340)

Compressor 15 (-9.4) 11000 (3220) 10600 (3110) 10300 (3020) 9860 (2890) 9450 (2770) 9030 (2650) 8600 (2520)

Model 10 (-12.2) 10000 (2930) 9650 (2830) 9300 (2730) 8950 (2620) 8580 (2510) 8210 (2410) 7820 (2290)

ZS09KAE 5 (-15) 9040 (2650) 8730 (2560) 8420 (2470) 8110 (2380) 7780 (2280) 7440 (2180) 7100 (2080)

BQZA011H8 30 (-1.1) 17400 (5100) 16800 (4920) 16100 (4720) 15500 (4540) 14800 (4340) 14100 (4130) 13400 (3930)

Compressor 15 (-9.4) 13100 (3840) 12700 (3720) 12200 (3580) 11700 (3430) 11200 (3280) 10700 (3140) 10200 (2990)

Model 10 (-12.2) 11900 (3490) 11500 (3370) 11100 (3250) 10600 (3110) 10200 (2990) 9730 (2850) 9250 (2710)

ZS11KAE 5 (-15) 10800 (3170) 10400 (3050) 10000 (2930) 9650 (2830) 9250 (2710) 8840 (2590) 8410 (2460)

BQZA015H8 30 (-1.1) 20100 (5890) 19400 (5690) 18600 (5450) 17900 (5250) 17100 (5010) 16300 (4780) 15500 (4540)

Compressor 15 (-9.4) 15100 (4430) 14600 (4280) 14000 (4100) 13500 (3960) 12900 (3780) 12300 (3600) 11700 (3430)

Model 10 (-12.2) 13700 (4020) 13200 (3870) 12700 (3720) 12200 (3580) 11700 (3430) 11200 (3280) 10700 (3140)

ZS13KAE 5 (-15) 12400 (3630) 1

BQZA020H8 30 (-1.1) 22770 (6672) 21870 (6408) 20960 (6141) 20030 (5869) 19090 (5593) 18120 (5309) 17150 (5025)

Compressor 15 (-9.4) 17540 (5139) 16840 (4934) 16150 (4732) 15440 (4524) 14700 (4307) 13950 (4087) 13190 (3865)

Model 10 (-12.2) 15960 (4676) 15340 (4495) 14700 (4307) 14050 (4117) 13390 (3923) 12710 (3724) 12000 (3516)

ZB15KCE 5 (-15) 14480 (4243) 13910 (4076) 13340 (3909) 12750 (3736) 12150 (3560) 11520 (3375) 10880 (3188)

BQZA025H8 30 (-1.1) 27280 (7993) 26160 (7665) 25020 (7331) 23870 (6994) 22680 (6645) 21480 (6294) 20250 (5933)

Compressor 15 (-9.4) 21170 (6203) 20310 (5951) 19440 (5696) 18530 (5429) 17610 (5160) 16660 (4881) 15700 (4600)

Model 10 (-12.2) 19320 (5661) 18540 (5432) 17730 (5195) 16920 (4958) 16080 (4711) 15210 (4457) 14320 (4196)

ZB19KCE 5 (-15) 17570 (5148) 16860 (4940) 16130

SUCTION

TEMP.

F° (C°)
40 (4.4) 17700 (5190) 17100 (5010) 16500 (4840) 15800 (4630) 15200 (4450) 14500 (4250) 13800 (4040)
35 (1.7) 16200 (4750) 15600 (4570) 15000 (4400) 14400 (4220) 13800 (4040) 13200 (3870) 12500 (3660)

25 (-3.9) 13400 (3930) 12900 (3780) 12400 (3630) 11900 (3490) 11400 (3340) 10900 (3190) 10400 (3050)
20 (-6.7) 12200 (3580) 11700 (3430) 11300 (3310) 10800 (3170) 10400 (3050) 9930 (2910) 9450 (2770)

0 (-17.8) 8150 (2390) 7860 (2300) 7590 (2220) 7320 (2150) 7020 (2060) 6730 (1970) 6430 (1880)

-5 (-20.6)
40 (4.4) 20900 (6130) 20100 (5890) 19400 (5690) 18600 (5450) 17800 (5220) 17000 (4980) 16100 (4720)
35 (1.7) 19100 (5600) 18400 (5390) 17700 (5190) 16900 (4950) 16200 (4750) 15500 (4540) 14700 (4310)

25 (-3.9) 15900 (4660) 15300 (4480) 14700 (4310) 14100 (4130) 13500 (3960) 12900 (3780) 12200 (3580)
20 (-6.7) 14400 (4220) 13900 (4070) 13400 (3930) 12800 (3750) 12300 (3600) 11700 (3430) 11100 (3250)

0 (-17.8) 9730 (2850) 9400 (2750) 9060 (2660) 8730 (2560) 8380 (2460) 8010 (2350) 7630 (2240)

-5 (-20.6)
40 (4.4) 24200 (7090) 23300 (6830) 22400 (6560) 21500 (6300) 20600 (6040) 19700 (5770) 18700 (5480)
35 (1.7) 22000 (6450) 21200 (6210) 20400 (5980) 19600 (5740) 18800 (5510) 17900 (5250) 17100 (5010)

25 (-3.9)
20 (-6.7) 16600 (4860) 16000 (4690) 15400 (4510) 14800 (4340) 14200 (4160) 13500 (3960) 12900 (3780)

0 (-17.8) 11200 (3280) 10800 (3170) 10400 (3050) 10000 (2930) 9620 (2820) 9210 (2700) 8780 (2570)

-5 (-20.6)
40 (4.4) 26690 (7820) 25640 (7513) 24570 (7199) 23490 (6883) 22390 (6560) 21270 (6232) 20130 (5898)
35 (1.7) 24700 (7237) 23720 (6950) 22730 (6660) 21720 (6364) 20710 (6068) 19670 (5763) 18610 (5453)

25 (-3.9) 20940 (6135) 20120 (5895) 19280 (5649) 18420 (5397) 17560 (5145) 16660 (4881) 15760 (4618)
20 (-6.7) 19190 (5623) 18440 (5403) 17670 (5177) 16880 (4946) 16090 (4714) 15280 (4477) 14440 (4231)

0 (-17.8) 13080 (3832) 12580 (3686) 12050 (3531) 11530 (3378) 10970 (3214) 10410 (3050) 9830 (2880)

-5 (-20.6)
40 (4.4) 31790 (9314) 30480 (8931) 29160 (8544) 27810 (8148) 26450 (7750) 25050 (7340) 23650 (6929)
35 (1.7) 29490 (8641) 28280 (8286) 27050 (7926) 25800 (7559) 24530 (7187) 23240 (6809) 21910 (6420)

25 (-3.9) 25150 (7369) 24120 (7067) 23070 (6760) 22010 (6449) 20920 (6130) 19800 (5801) 18670 (5470)
20 (-6.7) 23110 (6771) 22180 (6499) 21210 (6215) 20220 (5924) 19230 (5634) 18200 (5333) 17150 (5025)

0 (-17.8) 15910 (4662) 15280 (4477) 14620 (4284) 13930 (4081) 13240 (3879) 12520 (3668) 11770 (3449)

-5 (-20.6)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)

7300 (2140) 7060 (2070) 6810 (2000) 6570 (1930) 6320 (1850) 6060 (1780) 5790 (1700)

8740 (2560) 8440 (2470) 8150 (2390) 7850 (2300) 7540 (2210) 7220 (2120) 6880 (2020)

18300 (5360) 17600 (5160) 16900 (4950) 16300 (4780) 15600 (4570) 14900 (4370) 14200 (4160)

10000 (2930) 9680 (2840) 9350 (2740) 9010 (2640) 8650 (2540) 8300 (2430) 7910 (2320)

11780 (3452) 11320 (3317) 10860 (3182) 10370 (3038) 9880 (2895) 9370 (2745) 8830 (2587)

14350 (4205) 13780 (4038) 13190 (3865) 12570 (3683) 11940 (3498) 11290 (3308) 10610 (3109)

CAPACITY BTU/H (WATTS)

1900 (3490) 11500 (3370) 11100 (3250) 10600 (3110) 10200 (2990) 9700 (2840)

R404A R507

(4726) 15380 (4506) 14620 (4284) 13830 (4052) 13010 (3812)

AMBIENT TEMPERATURE °F (°C)

table continues on next page >>>

BQZA

08/14/12

B40-BQZ-PDS-5

- 6 -

COPELAND

CAPACITY DATA -

R404A

R507

HIGH/MEDIUM TEMPERATURE (cont’d)

60Hz

SATURATED

MODEL

BQZA030H8 30 (-1.1) 32430 (9502) 31090 (9109) 29730 (8711) 28340 (8304) 26930 (7890) 25490 (7469) 24020 (7038)

Compressor 15 (-9.4) 25200 (7384) 24170 (7082) 23110 (6771) 22040 (6458) 20940 (6135) 19800 (5801) 18640 (5462)

Model 10 (-12.2) 23010 (6742) 22070 (6467) 21110 (6185) 20130 (5898) 19110 (5599) 18080 (5297) 17010 (4984)

ZB21KCE 5 (-15) 20930 (6132) 20080 (5883) 19200 (5626) 18310 (5365) 17390 (5095) 16440 (4817) 15470 (4533)

BQZA035H8 30 (-1.1) 40390 (11840) 38820 (11380) 37230 (10910) 35610 (10440) 33960 (9950) 32290 (9460) 30580 (8960)

Compressor 15 (-9.4) 31000 (9090) 29800 (8730) 28580 (8380) 27330 (8010) 26060 (7640) 24770 (7260) 23440 (6870)

Model 10 (-12.2) 28180 (8260) 27100 (7940) 26000 (7620) 24860 (7290) 23710 (6950) 22520 (6600) 21300 (6240)

ZB26KCE 5 (-15) 25550 (7490) 24570 (7200) 23570 (6910) 22540 (6610) 21490 (6300) 20410 (5980) 19300 (5660)

BQZA040H8 30 (-1.1) 46520 (13630) 44700 (13100) 42850 (12560) 40960 (12000) 39040 (11440) 37080 (10870) 35080 (10280)

Compressor 15 (-9.4) 35460 (10390) 34080 (9990) 32670 (9570) 31230 (9150) 29740 (8720) 28220 (8270) 26660 (7810)

Model 10 (-12.2) 32140 (9420) 30890 (9050) 29600 (8670) 28290 (8290) 26930 (7890) 25540 (7490) 24110 (7070)

ZB30KCE 5 (-15) 29010 (8500) 27870 (8170) 26700 (7820) 25490 (7470) 24260 (7110) 22980 (6730) 21670 (6350)

BQZA050H8 30 (-1.1) 55670 (16320) 53460 (15670) 51200 (15010) 48910 (14330) 46570 (13650) 44190 (12950) 41770 (12240)

Compressor 15 (-9.4) 43000 (12600) 41300 (12100) 39560 (11590) 37790 (11080) 35980 (10540) 34130 (10000) 32220 (9440)

Model 10 (-12.2) 39190 (11490) 37640 (11030) 36070 (10570) 34450 (10100) 32790 (9610) 31100 (9110) 29350 (8600)

ZB38KCE 5 (-15) 35570 (10420) 34190 (10020) 32750 (9600) 31290 (9170) 29780 (8730) 28230 (8270) 26640 (7810)

BQZA060H8 30 (-1.1) 65430 (19180) 62800 (18400) 60120 (17620) 57410 (16830) 54640 (16010) 51830 (15190) 48950 (14350)

Compressor 15 (-9.4) 50640 (14840) 48630 (14250) 46570 (13650) 44460 (13030) 42300 (12400) 40100 (11750) 37830 (11090)

Model 10 (-12.2) 46180 (13530) 44340 (12990) 42470 (12450) 40550 (11880) 38580 (11310) 36560 (10710) 34480 (10110)

ZB45KCE 5 (-15) 41950 (12290) 40290 (11810) 38590

SUCTION

TEMP.

F° (C°)
40 (4.4) 37770 (11067) 36200 (10607) 34620 (10144) 33010 (9672) 31370 (9191) 29720 (8708) 28020 (8210)
35 (1.7) 35050 (10270) 33600 (9845) 32130 (9414) 30630 (8975) 29110 (8529) 27560 (8075) 25980 (7612)

25 (-3.9) 29910 (8764) 28690 (8406) 27430 (8037) 26150 (7662) 24840 (7278) 23510 (6888) 22140 (6487)
20 (-6.7) 27500 (8058) 26380 (7729) 25220 (7389) 24050 (7047) 22850 (6695) 21610 (6332) 20350 (5963)

0 (-17.8) 18960 (5555) 18200 (5333) 17400 (5098) 16590 (4861) 15750 (4615) 14890 (4363) 14000 (4102)

-5 (-20.6)
40 (4.4) 47470 (13910) 45620 (13370) 43750 (12820) 41850 (12260) 39930 (11700) 37970 (11130) 35980 (10540)
35 (1.7) 43850 (12850) 42150 (12350) 40410 (11840) 38660 (11330) 36880 (10810) 35060 (10280) 33210 (9730)

25 (-3.9) 37100 (10870) 35660 (10450) 34200 (10020) 32710 (9590) 31200 (9140) 29640 (8690) 28070 (8230)
20 (-6.7) 33960 (9950) 32640 (9570) 31310 (9180) 29950 (8780) 28560 (8370) 27140 (7950) 25680 (7530)

0 (-17.8) 23070 (6760) 22190 (6500) 21280 (6240) 20360 (5970) 19400 (5690) 18430 (5400) 17410 (5100)

-5 (-20.6)
40 (4.4) 54770 (16050) 52630 (15420) 50440 (14780) 48230 (14130) 45970 (13470) 43670 (12800) 41330 (12110)

35 (1.7) 50560 (14820) 48580 (14240) 46570 (13650) 44520 (13050) 42430 (12430) 40310 (11810) 38140 (11180)
25 (-3.9)

20 (-6.7) 38970 (11420) 37450 (10980) 35900 (10520) 34310 (10060) 32700 (9580) 31040 (9100) 29340 (8600)

0 (-17.8) 26060 (7640) 25020 (7330) 23950 (7020) 22860 (6700) 21720 (6370) 20560 (6030) 19360 (5670)

-5 (-20.6)
40 (4.4) 65110 (19080) 62510 (18320) 59870 (17550) 57200 (16760) 54480 (15970) 51720 (15160) 48920 (14340)
35 (1.7) 60290 (17670) 57890 (16970) 55450 (16250) 52960 (15520) 50440 (14780) 47880 (14030) 45270 (13270)

25 (-3.9) 51250 (15020) 49200 (14420) 47130 (13810) 45020 (13190) 42870 (12560) 40680 (11920) 38430 (11260)
20 (-6.7) 47020 (13780) 45150 (13230) 43250 (12680) 41320 (12110) 39330 (11530) 37320 (10940) 35250 (10330)

0 (-17.8) 32180 (9430) 30920 (9060) 29630 (8680) 28310 (8300) 26940 (7900) 25530 (7480) 24070 (7050)

-5 (-20.6)
40 (4.4) 76400 (22390) 73320 (21490) 70200 (20570) 67040 (19650) 63830 (18710) 60560 (17750) 57250 (16780)
35 (1.7) 70810 (20750) 67960 (19920) 65070 (19070) 62130 (18210) 59150 (17340) 56100 (16440) 53010 (15540)

25 (-3.9) 60270 (17660) 57860 (16960) 55400 (16240) 52890 (15500) 50340 (14750) 47730 (13990) 45070 (13210)
20 (-6.7) 55350 (16220) 53130 (15570) 50870 (14910) 48570 (14230) 46220 (13550) 43820 (12840) 41360 (12120)

0 (-17.8) 37970 (11130) 36470 (10690) 34930 (10240) 33360 (9780) 31730 (9300) 30050 (8810) 28320 (8300)

-5 (-20.6)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)

17100 (5010) 16410 (4808) 15710 (4603) 14970 (4386) 14210 (4164) 13420 (3932) 12610 (3695)

20750 (6080) 19960 (5850) 19140 (5610) 18310 (5370) 17450 (5110) 16560 (4850) 15630 (4580)

42650 (12500) 40990 (12010) 39290 (11510) 37560 (11010) 35790 (10490) 33990 (9960) 32140 (9420)

23290 (6830) 22330 (6540) 21370 (6260) 20360 (5970) 19320 (5660) 18260 (5350) 17160 (5030)

28990 (8500) 27870 (8170) 26700 (7820) 25500 (7470) 24270 (7110) 22980 (6730) 21650 (6340)

34220 (10030) 32880 (9640) 31490 (9230) 30060 (8810) 28590 (8380) 27070 (7930) 25480 (7470)

CAPACITY BTU/H (WATTS)

(11310) 36840 (10800) 35060 (10280) 33210 (9730) 31310 (9180)

R404A R507

AMBIENT TEMPERATURE °F (°C)

BQZA

08/14/12

B40-BQZ-PDS-5

- 7 -

COPELAND

CAPACITY DATA -

R407C

HIGH/MEDIUM TEMPERATURE

60Hz

MODEL

BQZA010H8

Compressor

Model

ZS09KAE

BQZA011H8

Compressor

Model

ZS11KAE

BQZA015H8

Compressor

Model

ZS13KAE

BQZA020H8

Compressor

Model

ZB15KCE

BQZA025H8

Compressor

Model

ZB19KCE

BQZA030H8

Compressor

Model

ZB21KCE

BQZA035H8

Compressor

Model

ZB26KCE

SATURATED

SUCTION

TEMP.

° F ° C

45 (7.2) 17100 (5010) 16600 (4860) 16100 (4720) 15700 (4600) 15200 (4450) 14700 (4310) 14200 (4160)
40 (4.4) 15700 (4600) 15300 (4480) 14800 (4340) 14400 (4220) 14000 (4100) 13500 (3960) 13100 (3840)
35 (1.7) 14300 (4190) 13900 (4070) 13600 (3990) 13200 (3870) 12800 (3750) 12400 (3630) 12000 (3520)
30 (-1.1) 13000 (3810) 12700 (3720) 12300 (3600) 12000 (3520) 11700 (3430) 11300 (3310) 10900 (3190)
25 (-3.9) 11800 (3460) 11500 (3370) 11200 (3280) 10900 (3190) 10600 (3110) 10300 (3020) 9900 (2900)
20 (-6.7) 10600 (3110) 10400 (3050) 10100 (2960) 9800 (2870) 9500 (2780) 9300 (2730) 9000 (2640)
15 (-9.4) 9500 (2780) 9300 (2730) 9000 (2640) 8800 (2580) 8500 (2490) 8300 (2430) 8000 (2340)
10 (-12.2) 8500 (2490) 8200 (2400) 8000 (2340) 7800 (2290) 7600 (2230) 7300 (2140) 7100 (2080)
45 (7.2) 20100 (5890) 19500 (5710) 18900 (5540) 18300 (5360) 17700 (5190) 17200 (5040) 16600 (4860)
40 (4.4) 18400 (5390) 17900 (5250) 17400 (5100) 16900 (4950) 16300 (4780) 15800 (4630) 15300 (4480)
35 (1.7) 16800 (4920) 16400 (4810) 15900 (4660) 15400 (4510) 15000 (4400) 14500 (4250) 14000 (4100)

30 (-1.1) 15300 (4480) 14900 (4370) 14500 (4250) 14100 (4130) 13700 (4020) 13300 (3900) 12800 (3750)
25 (-3.9) 13900 (4070) 13500 (3960) 13200 (3870) 12800 (3750) 12400 (3630) 12100 (3550) 11700 (3430)
20 (-6.7) 12500 (3660) 12200 (3580) 11900 (3490) 11600 (3400) 11200 (3280) 10900 (3190) 10500 (3080)
15 (-9.4) 11200 (3280) 11000 (3220) 10700 (3140) 10400 (3050) 10100 (2960) 9700 (2840) 9400 (2750)
10 (-12.2) 10000 (2930) 9700 (2840) 9500 (2780) 9200 (2700) 8900 (2610) 8600 (2520) 8300 (2430)
45 (7.2) 23200 (6800) 22500 (6590) 21800 (6390) 21200 (6210) 20500 (6010) 19900 (5830) 19200 (5630)
40 (4.4) 21300 (6240) 20700 (6070) 20100 (5890) 19500 (5710) 18900 (5540) 18300 (5360) 17700 (5190)
35 (1.7) 19400 (5690) 18900 (5540) 18400 (5390) 17800 (5220) 17300 (5070) 16800 (4920) 16200 (4750)
30 (-1.1) 17700 (5190) 17200 (5040) 16700 (4890) 16300 (4780) 15800 (4630) 15300 (4480) 14800 (4340)
25 (-3.9) 16000 (4690) 15600 (4570) 15200 (4450) 14800 (4340) 14300 (4190) 13900 (4070) 13500 (3960)
20 (-6.7) 14400 (4220) 14100 (4130) 13700 (4020) 13300 (3900) 12900 (3780) 12500 (3660) 12100 (3550)
15 (-9.4) 12900 (3780) 12600 (3690) 12300 (3600) 11900 (3490) 11600 (3400) 11200 (3280) 10800 (3170)
10 (-12.2) 11500 (3370) 11200 (3280) 10900 (3190) 10600 (3110) 10300 (3020) 9900 (2900) 9600 (2810)

45 (7.2) 27500 (8060) 26700 (7820) 25900 (7590) 25000 (7330) 24200 (7090) 23300 (6830) 22400 (6560)

40 (4.4) 25200 (7390) 24400 (7150) 23700 (6950) 22900 (6710) 22100 (6480) 21300 (6240) 20400 (5980)

35 (1.7) 23000 (6740) 22300 (6540) 21600 (6330) 20900 (6130) 20100 (5890) 19300 (5660) 18500 (5420)

30 (-1.1) 20900 (6130) 20200 (5920) 19600 (5740) 18900 (5540) 18200 (5330) 17500 (5130) 16800 (4920)

25 (-3.9) 18900 (5540) 18300 (5360) 17700 (5190) 17100 (5010) 16500 (4840) 15800 (4630) 15100 (4430)

20 (-6.7) 17100 (5010) 16500 (4840) 16000 (4690) 15400 (4510) 14800 (4340) 14200 (4160) 13500 (3960)

15 (-9.4) 15400 (4510) 14900 (4370) 14400 (4220) 13800 (4040) 13300 (3900) 12700 (3720) 12100 (3550)

10 (-12.2) 13800 (4040) 13300 (3900) 12800 (3750) 12300 (3600) 1
45 (7.2) 30100 (8820) 29200 (8560) 28200 (8260) 27200 (7970) 26100 (7650) 25000 (7330) 23900 (7000)
40 (4.4) 27400 (8030) 26600 (7800) 25700 (7530) 24700 (7240) 23800 (6980) 22800 (6680) 21700 (6360)
35 (1.7) 24800 (7270) 24100 (7060) 23200 (6800) 22400 (6560) 21500 (6300) 20600 (6040) 19700 (5770)
30 (-1.1) 22400 (6560) 21700 (6360) 21000 (6150) 20200 (5920) 19400 (5690) 18600 (5450) 17800 (5220)
25 (-3.9) 20100 (5890) 19500 (5710) 18800 (5510) 18100 (5300) 17500 (5130) 16700 (4890) 16000 (4690)
20 (-6.7) 18000 (5280) 17400 (5100) 16800 (4920) 16200 (4750) 15600 (4570) 15000 (4400) 14400 (4220)
15 (-9.4) 16000 (4690) 15500 (4540) 15000 (4400) 14400 (4220) 13900 (4070) 13400 (3930) 12800 (3750)
10 (-12.2) 14200 (4160) 13700 (4020) 13300 (3900) 12800 (3750) 12400 (3630) 11900 (3490) 11400 (3340)
45 (7.2) 37800 (11080) 36600 (10730) 35400 (10370) 34100 (9990) 32800 (9610) 31400 (9200) 30100 (8820)
40 (4.4) 34600 (10140) 33500 (9820) 32400 (9500) 31200 (9140) 30000 (8790) 28800 (8440) 27500 (8060)
35 (1.7) 31600 (9260) 30600 (8970) 29500 (8650) 28500 (8350) 27400 (8030) 26300 (7710) 25100 (7360)
30 (-1.1) 28700 (8410) 27800 (8150) 26800 (7850) 25900 (7590) 24900 (7300) 23900 (7000) 22800 (6680)
25 (-3.9) 26000 (7620) 25200 (7390) 24300 (7120) 23400 (6860) 22500 (6590) 21600 (6330) 20700 (6070)
20 (-6.7) 23400 (6860) 22700 (6650) 21900 (6420) 21100 (6180) 20300 (5950) 19500 (5710) 18700 (5480)
15 (-9.4) 21100 (6180) 20400 (5980) 19700 (5770) 19000 (5570) 18300 (5360) 17500 (5130) 16800 (4920)
10 (-12.2) 18800 (5510) 18200 (5330) 17600 (5160) 17000 (4980) 16300 (4780) 15700 (4600) 15000 (4400)

45 (7.2) 47100 (13800) 45800 (13420) 44400 (13010) 43100 (12630) 41600 (12190) 40100 (11750) 38500 (11280)

40 (4.4) 43300 (12690) 42100 (12340) 40800 (11960) 39500 (11580) 38100 (11170) 36600 (10730) 35100 (10290)

35 (1.7) 39500 (11580) 38400 (11250) 37200 (10900) 35900 (10520) 34600 (10140) 33200 (9730) 31800 (9320)

30 (-1.1) 35800 (10490) 34700 (10170) 33600 (9850) 32500 (9520) 31200 (9140) 30000 (8790) 28600 (8380)

25 (-3.9) 32300 (9470) 31300 (9170) 30300 (8880) 29200 (8560) 28000 (8210) 26800 (7850) 25600 (7500)

20 (-6.7) 29000 (8500) 28100 (8240) 27100 (7940) 26100 (7650) 25100 (7360) 24000 (7030) 22900 (6710)

15 (-9.4) 26100 (7650) 25200 (7390) 24400 (7150) 23500 (6890) 22500 (6590) 21500 (6300) 20500 (6010)

10 (-12.2) 23500 (6890) 22800 (6680) 22000 (6450) 21200 (6210) 20400 (5980) 19500 (5710) 18600 (5450)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)

CAPACITY BTU/H (WATTS)

R407C

AMBIENT TEMPERATURE °F (°C)

1800 (3460) 11300 (3310) 10700 (3140)

NOTE: The capacities shown above are rated at dew point. The dew point is a saturation point and is the condition (pressure and temperature) at

which a gas begins to condense. Since R407C has signicant glide, the saturated gas and saturated liquid temperatures are not the same.

It is important that all components of a system are selected correctly

table continues on next page >>>

BQZA

08/14/12

B40-BQZ-PDS-5

- 8 -

COPELAND

CAPACITY DATA -

R407C

HIGH/MEDIUM TEMPERATURE (cont’d)

60Hz

SATURATED

MODEL

BQZA040H8

Compressor

Model

ZB30KCE

BQZA050H8

Compressor

Model

ZB38KCE

BQZA060H8

Compressor

Model

ZB45KCE

NOTE: The capacities shown above are rated at dew point. The dew point is a saturation point and is the condition (pressure and temperature) at

which a gas begins to condense. Since R407C has signicant glide, the saturated gas and saturated liquid temperatures are not the same.

It is important that all components of a system are selected correctly

SUCTION

TEMP.

° F ° C

45 (7.2) 53300 (15620) 51900 (15210) 50500 (14800) 49000 (14360) 47400 (13890) 45800 (13420) 44200 (12950)
40 (4.4) 48600 (14240) 47300 (13860) 46000 (13480) 44600 (13070) 43100 (12630) 41700 (12220) 40200 (11780)
35 (1.7) 44200 (12950) 43000 (12600) 41700 (12220) 40400 (11840) 39100 (11460) 37800 (11080) 36400 (10670)
30 (-1.1) 40000 (11720) 38900 (11400) 37700 (11050) 36600 (10730) 35400 (10370) 34100 (9990) 32900 (9640)
25 (-3.9) 36100 (10580) 35100 (10290) 34000 (9960) 33000 (9670) 31900 (9350) 30700 (9000) 29600 (8670)
20 (-6.7) 32500 (9520) 31600 (9260) 30600 (8970) 29600 (8670) 28600 (8380) 27600 (8090) 26500 (7770)
15 (-9.4) 29100 (8530) 28300 (8290) 27400 (8030) 26500 (7770) 25600 (7500) 24600 (7210) 23700 (6950)

10 (-12.2) 26100 (7650) 25300 (7410) 24400 (7150) 23600 (6920) 22800 (6680) 21900 (6420) 21100 (6180)
45 (7.2) 65700 (19250) 64100 (18790) 62300 (18260) 60400 (17700) 58500 (17140) 56400 (16530) 54300 (15910)
40 (4.4) 60300 (17670) 58700 (17200) 57100 (16730) 55300 (16210) 53500 (15680) 51600 (15120) 49700 (14570)
35 (1.7) 55100 (16150) 53600 (15710) 52100 (15270) 50500 (14800) 48800 (14300) 47000 (13770) 45200 (13250)
30 (-1.1) 50100 (14680) 48800 (14300) 47300 (13860) 45800 (13420) 44300 (12980) 42700 (12510) 41000 (12020)
25 (-3.9) 45500 (13330) 44200 (12950) 42900 (12570) 41500 (12160) 40100 (11750) 38600 (11310) 37100 (10870)
20 (-6.7) 41100 (12050) 39900 (11690) 38700 (11340) 37400 (10960) 36100 (10580) 34800 (10200) 33500 (9820)
15 (-9.4) 36900 (10810) 35900 (10520) 34800 (10200) 33600 (9850) 32500 (9520) 31300 (9170) 30100 (8820)
10 (-12.2) 33100 (9700) 32200 (9440) 31200 (9140) 30100 (8820) 29100 (8530) 28100 (8240) 27000 (7910)
45 (7.2) 75600 (22160) 73600 (21570) 71500 (20950) 69300 (20310) 67100 (19660) 64800 (18990) 62400 (18290)
40 (4.4) 69100 (20250) 67300 (19720) 65400 (19170) 63400 (18580) 61300 (17970) 59200 (17350) 57000 (16700)
35 (1.7) 63000 (18460) 61300 (17970) 59600 (17470) 57800 (16940) 55900 (16380) 53900 (15800) 51900 (15210)
30 (-1.1) 57300 (16790) 55800 (16350) 54200 (15880) 52500 (15390) 50800 (14890) 49000 (14360) 47100 (13800)
25 (-3.9) 52000 (15240) 50600 (14830) 49100 (14390) 47600 (13950) 45900 (13450) 44300 (12980) 42600 (12480)
20 (-6.7) 47000 (13770) 45700 (13390) 44300 (12980) 42900 (12570) 41400 (12130) 39900 (11690) 38300 (11220)
15 (-9.4) 42400 (12430) 41100 (12050) 39800 (11660) 38500 (11280) 37100 (10870) 35700 (10460) 34200 (10020)
10 (-12.2) 38000 (11140) 36800 (10780) 35600 (10430) 34400 (10080) 33100 (9700) 31800 (9320) 30400 (8910)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)

CAPACITY BTU/H (WATTS)

R407C

AMBIENT TEMPERATURE °F (°C)

BQZA

08/14/12

B40-BQZ-PDS-5

- 9 -

COPELAND

CAPACITY DATA -

LOW TEMPERATURE

R404A

R507

60Hz

SATURATED

MODEL

BQZA020L6 -10 (-23.3) 10640 (3118) 10260 (3006) 9860 (2889) 9470 (2775) 9070 (2658) 8670 (2540) 8280 (2426)

Compressor -20 (-28.9) 8640 (2532) 8340 (2444) 8030 (2353) 7720 (2262) 7400 (2168) 7090 (2077) 6790 (1989)

Model -25 (-31.7) 7740 (2268) 7470 (2189) 7180 (2104) 6910 (2025) 6630 (1943) 6350 (1861) 6090 (1784)

ZF06K4E -30 (-34.4) 6880 (2016) 6640 (1946) 6390 (1872) 6140 (1799) 5890 (1726) 5650 (1655) 5420 (1588)

BQZA025L6 -10 (-23.3) 13480 (3950) 13010 (3812) 12530 (3671) 12010 (3519) 11490 (3367) 10940 (3205) 10370 (3038)

Compressor -20 (-28.9) 10910 (3197) 10540 (3088) 10160 (2977) 9770 (2863) 9350 (2740) 8910 (2611) 8460 (2479)

Model -25 (-31.7) 9770 (2863) 9440 (2766) 9100 (2666) 8750 (2564) 8380 (2455) 7990 (2341) 7590 (2224)

ZF08K4E -30 (-34.4) 8690 (2546) 8410 (2464) 8110 (2376) 7800 (2285) 7480 (2192) 7130 (2089) 6770 (1984)

BQZA030L6 -10 (-23.3) 14780 (4331) 14260 (4178) 13720 (4020) 13170 (3859) 12600 (3692) 12000 (3516) 11380 (3334)

Compressor -20 (-28.9) 11980 (3510) 11570 (3390) 11150 (3267) 10720 (3141) 10270 (3009) 9800 (2871) 9300 (2725)

Model

ZF09K4E -30 (-34.4) 9570 (2804) 9250 (2710) 8910 (2611) 8580 (2514) 8220 (2408) 7840 (2297) 7470 (2189)

BQZA035L6 -10 (-23.3) 17760 (5204) 17090 (5007) 16410 (4808) 15700 (4600) 14970 (4386) 14220 (4166) 13430 (3935)

Compressor -20 (-28.9) 14450 (4234) 13920 (4079) 13390 (3923) 12820 (3756) 12240 (3586) 11660 (3416) 1

Model -25 (-31.7) 12960 (3797) 12500 (3663) 12010 (3519) 11520 (3375) 11010 (3226) 10480 (3071) 9930 (2909)

ZF11K4E -30 (-34.4) 11590 (3396) 11170 (3273) 10740 (3147) 10310 (3021) 9860 (2889) 9400 (2754) 8910 (2611)

BQZA045L6 -10 (-23.3) 22440 (6580) 21570 (6320) 20630 (6050) 19660 (5760) 18660 (5470) 17640 (5170) 16620 (4870)

Compressor -20 (-28.9) 18040 (5290) 17290 (5070) 16520 (4840) 15720 (4610) 14910 (4370) 14110 (4140) 13350 (3910)

Model -25 (-31.7) 16020 (4690) 15350 (4500) 14640 (4290) 13920 (4080) 13220 (3870) 12530 (3670) 11890 (3480)

ZF13K4E -30 (-34.4) 14130 (4140) 13520 (3960) 12880 (3770) 12250 (3590) 11640 (3410) 11070 (3240) 10540 (3090)

BQZA055L6 -10 (-23.3) 26520 (7770) 25580 (7500)

Compressor -20 (-28.9) 21440 (6280) 20690 (6060) 19900 (5830) 19080 (5590) 18250 (5350) 17390 (5100) 16520 (4840)

Model -25 (-31.7) 19160 (5620) 18480 (5420) 17780 (5210) 17050 (5000) 16320 (4780) 15560 (4560) 14790 (4330)

ZF15K4E -30 (-34.4) 17050 (5000) 16440 (4820) 15810 (4630) 15160 (4440) 14510 (4250) 13850 (4060) 13190 (3870)

BQZA060L6 -10 (-23.3) 31360 (9190) 30270 (8870) 29170 (8550) 28040 (8220) 26860 (7870) 25650 (7520) 24390 (7150)

Compressor -20 (-28.9) 25260 (7400) 24410 (7150) 23560 (6900) 22690 (6650) 21800 (6390) 20880 (6120) 19940 (5840)

Model -25 (-31.7) 22530 (6600) 21790 (6390) 21030 (6160) 20280 (5940) 19510 (5720) 18720 (5490) 17900 (5250)

ZF18K4E -30 (-34.4) 20010 (5860) 19340 (5670) 18690 (5480) 18040 (5290) 17380 (5090) 16710 (4900) 16000 (4690)

SUCTION

TEMP.

F° (C°)

0 (-17.8)

-5 (-20.6) 11740 (3440) 11310 (3314) 10870 (3185) 10420 (3053) 9980 (2924) 9520 (2789) 9080 (2660)

-15 (-26.1) 9610 (2816) 9270 (2716) 8910 (2611) 8570 (2511) 8210 (2406) 7860 (2303) 7520 (2203)

-35 (-37.2) 6080 (1781) 5860 (1717) 5630 (1650) 5410 (1585) 5180 (1518) 4960 (1453) 4760 (1395)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 14910 (4369) 14370 (4210) 13830 (4052) 13260 (3885) 12660 (3709) 12050 (3531) 11420 (3346)

-15 (-26.1) 12150 (3560) 11740 (3440) 11310 (3314) 10860 (3182) 10380 (3041) 9900 (2901) 9390 (2751)

-35 (-37.2) 7720 (2262) 7460 (2186) 7190 (2107) 6910 (2025) 6630 (1943) 6320 (1852) 6000 (1758)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 16330 (4785) 15740 (4612) 15140 (4436) 14520 (4254) 13870 (4064) 13210 (3871) 12520 (3668)

-15 (-26.1) 13340 (3909) 12870 (3771) 12400 (3633) 11910 (3490) 11390 (3337) 10870 (3185) 10310 (3021)

-25 (-31.7) 10720 (3141) 10360 (3035) 10000 (2930) 9610 (2816) 9210 (2699) 8790 (2575) 8360 (2449)

-35 (-37.2) 8490 (2488) 8210 (2406) 7920 (2321) 7610 (2230) 7290 (2136) 6960 (2039) 6620 (1940)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 19580 (5737) 18840 (5520) 18070 (5295) 17270 (5060) 16450 (4820) 15610 (4574) 14740 (4319)

-15 (-26.1) 16040 (4700) 15460 (4530) 14850 (4351) 14220 (4166) 13570 (3976) 12890 (3777) 12200 (3575)

-35 (-37.2) 10320 (3024) 9950 (2915) 9580 (2807) 9190 (2693) 8790 (2575) 8380 (2455) 7950 (2329)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 24840 (7280) 23900 (7000) 22880 (6710) 21810 (6390) 20710 (6070) 19580 (5740) 18450 (5410)

-15 (-26.1) 20170 (5910) 19370 (5680) 18510 (5420) 17630 (5170) 16730 (4900) 15810 (4630) 14930 (4380)

-35 (-37.2) 12370 (3630) 11810 (3460) 11250 (3300) 10700 (3140) 10170 (2980) 9710 (2850) 9310 (2730)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 29340 (8600) 28280 (8290) 27170 (7960) 26030 (7630) 24840 (7280) 23610 (6920) 22370 (6560)

-15 (-26.1) 23900 (7000) 23050 (6760) 22170 (6500) 21250 (6230) 20310 (5950) 19340 (5670) 18340 (5370)

-35 (-37.2) 15100 (4430) 14540 (4260) 13980 (4100) 13400 (3930) 12820 (3760) 12240 (3590) 11670 (3420)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 34740 (10180) 33520 (9820) 32260 (9450) 30960 (9070) 29640 (8690) 28270 (8290) 26840 (7870)

-15 (-26.1) 28200 (8260) 27250 (7990) 26270 (7700) 25270 (7410) 24240 (7100) 23190 (6800) 22090 (6470)

-35 (-37.2) 17680 (5180) 17090 (5010) 16520 (4840) 15950 (4670) 15380 (4510) 14810 (4340) 14220 (4170)

-40 (-40.0)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)

12900 (3780) 12420 (3639) 11930 (3495) 11420 (3346) 10930 (3202) 10430 (3056) 9930 (2909)

5320 (1559) 5110 (1497) 4900 (1436) 4690 (1374) 4480 (1313) 4290 (1257) 4110 (1204)

16420 (4811) 15820 (4635) 15210 (4457) 14570 (4269) 13910 (4076) 13230 (3876) 12530 (3671)

6810 (1995) 6570 (1925) 6330 (1855) 6080 (1781) 5820 (1705) 5540 (1623) 5260 (1541)

17980 (5268) 17330 (5078) 16640 (4876) 15950 (4673) 15230 (4462) 14480 (4243) 13710 (4017)

7510 (2200) 7250 (2124) 6980 (2045) 6710 (1966) 6420 (1881) 6120 (1793) 5820 (1705)

21500 (6300) 20670 (6056) 19810 (5804) 18930 (5546) 18020 (5280) 17080 (5004) 16120 (4723)

9180 (2690) 8840 (2590) 8490 (2488) 8150 (2388) 7790 (2282) 7430 (2177) 7060 (2069)

27370 (8020) 26360 (7730) 25250 (7400) 24100 (7060) 22890 (6710) 21640 (6340) 20390 (5980)

10720 (3140) 10220 (3000) 9720 (2850) 9250 (2710) 8830 (2590) 8470 (2480) 8190 (2400)
32330 (9470) 31140 (9130) 29910 (8770) 28640 (8390) 27320 (8010) 25960 (7610) 24560 (7200)

13300 (3900) 12790 (3750) 12270 (3600) 11760 (3450) 11250 (3300) 10740 (3150) 10240 (3000)
38340 (11240) 36950 (10830) 35540 (10420) 34080 (9990) 32590 (9550) 31040 (9100) 29430 (8630)

15550 (4560) 15030 (4400) 14510 (4250) 14020 (4110) 13520 (3960) 13040 (3820) 12550 (3680)

CAPACITY BTU/H (WATTS)

24590 (7210) 23560 (6900) 22500 (6590) 21410 (6270) 20300 (5950)

R404A R507

AMBIENT TEMPERATURE °F (°C)

1040 (3235)

CAPACITY DATA -

08/14/12

B40-BQZ-PDS-5

- 10 -

BQZT

R404A

R507

60Hz

MEDIUM TEMPERATURE

TECUMSEH

SATURATED

MODEL

BQZT010M6 30 (-1.1) 15200 (4450) 14600 (4280) 14000 (4100) 13400 (3930) 12800 (3750) 12200 (3580) 11500 (3370)

Compressor 20 (-6.7) 12700 (3720) 12200 (3580) 11700 (3430) 11200 (3280) 10600 (3110) 10100 (2960) 9600 (2810)

Model 15 (-9.4) 11500 (3370) 11000 (3220) 10600 (3110) 10100 (2960) 9670 (2830) 9210 (2700) 8730 (2560)

VSA9490Z 10 (-12.2) 10400 (3050) 10000 (2930) 9600 (2810) 9190 (2690) 8780 (2570) 8360 (2450) 7930 (2320)

BQZT011M6 30 (-1.1) 17300 (5070) 16500 (4840) 15800 (4630) 15000 (4400) 14300 (4190) 13600 (3990) 12900 (3780)

Compressor 20 (-6.7) 14600 (4280) 14000 (4100) 13300 (3900) 12700 (3720) 12000 (3520) 11400 (3340) 10800 (3170)

Model 15 (-9.4) 13300 (3900) 12700 (3720) 12100 (3550) 11600 (3400) 11000 (3220) 10400 (3050) 9890 (2900)

VSA9510Z 10 (-12.2) 12000 (3520) 11500 (3370) 11000 (3220) 10500 (3080) 9960 (2920) 9470 (2780) 8980 (2630)

BQZT015M6 30 (-1.1) 19700 (5770) 19000 (5570) 18300 (5360) 17500 (5130) 16800 (4920) 16000 (4690) 15200 (4450)

Compressor 20 (-6.7) 16400 (4810) 15800 (4630) 15200 (4450) 14600 (4280) 14000 (4100) 13400 (3930) 12700 (3720)

Model

VSA9512Z 10 (-12.2) 13500 (3960) 13000 (3810) 12600 (3690) 12100 (3550) 11600 (3400) 1110

BQZT020M6 30 (-1.1) 23100 (6770) 22300 (6540) 21600 (6330) 20800 (6100) 20000 (5860) 19200 (5630) 18500 (5420)

Compressor 20 (-6.7) 19200 (5630) 18500 (5420) 17800 (5220) 17100 (5010) 16500 (4840) 15800 (4630) 15100 (4430)

Model 15 (-9.4) 17400 (5100) 16800 (4920) 16200 (4750) 15500 (4540) 14900 (4370) 14300 (4190) 13600 (3990)

VSA9514Z 10 (-12.2) 15800 (4630) 15200 (4450) 14700 (4310) 14100 (4130) 13500 (3960) 12900 (3780) 12300 (3600)

BQZT025M6 30 (-1.1) 27300 (8000) 26300 (7710) 25300 (7410) 24300 (7120) 23200 (6800) 22100 (6480) 21000 (6150)

Compressor 20 (-6.7) 23100 (6770) 22200 (6510) 21400 (6270) 20500 (6010) 19600 (5740) 18700 (5480) 17800 (5220)

Model 15 (-9.4) 21100 (6180) 20400 (5980) 19600 (5740) 18800 (5510) 18000 (5280) 17200 (5040) 16300 (4780)

VSA9517Z 10 (-12.2) 19300 (5660) 18600 (5450) 17900 (5250) 17200 (5040) 16500 (4840) 15700 (4600) 14900 (4370)

BQZT030M6 30 (-1.1) 32200 (9440) 31100 (9110)

Compressor 20 (-6.7) 27300 (8000) 26400 (7740) 25500 (7470) 24500 (7180) 23500 (6890) 22400 (6560) 21200 (6210)

Model 15 (-9.4) 25000 (7330) 24200 (7090) 23400 (6860) 22500 (6590) 21600 (6330) 20600 (6040) 19600 (5740)

VSA9512Z 10 (-12.2) 22900 (6710) 22200 (6510) 21400 (6270) 20600 (6040) 19800 (5800) 18900 (5540) 17900 (5250)

SUCTION

TEMP.

F° (C°)
40 (4.4) 18100 (5300) 17400 (5100) 16700 (4890) 16000 (4690) 15200 (4450) 14500 (4250) 13800 (4040)
35 (1.7) 16600 (4860) 16000 (4690) 15300 (4480) 14600 (4280) 14000 (4100) 13300 (3900) 12600 (3690)

25 (-3.9) 13900 (4070) 13400 (3930) 12800 (3750) 12200 (3580) 11700 (3430) 11100 (3250) 10500 (3080)

5 (-15) 9350 (2740) 9000 (2640) 8650 (2540) 8300 (2430) 7940 (2330) 7560 (2220) 7170 (2100)

0 (-17.8)
40 (4.4) 20200 (5920) 19400 (5690) 18500 (5420) 17700 (5190) 16900 (4950) 16100 (4720) 15300 (4480)
35 (1.7) 18700 (5480) 17900 (5250) 17100 (5010) 16300 (4780) 15500 (4540) 14800 (4340) 14000 (4100)

25 (-3.9) 15900 (4660) 15200 (4450) 14500 (4250) 13800 (4040) 13100 (3840) 12500 (3660) 11800 (3460)

5 (-15) 10600 (3110) 10200 (2990) 9790 (2870) 9350 (2740) 8910 (2610) 8490 (2490) 8070 (2370)

0 (-17.8)
40 (4.4) 23400 (6860) 22500 (6590) 21600 (6330) 20700 (6070) 19800 (5800) 18800 (5510) 17800 (5220)
35 (1.7) 21500 (6300) 20700 (6070) 19900 (5830) 19100 (5600) 18200 (5330) 17400 (5100) 16500 (4840)

25 (-3.9) 18000 (5280) 17400 (5100) 16700 (4890) 16000 (4690) 15400 (4510) 14600 (4280) 13900 (4070)

15 (-9.4) 14900 (4370) 14400 (4220) 13900 (4070) 13300 (3900) 12800 (3750) 12200 (3580) 11600 (3400)

5 (-15) 12200 (3580) 11800 (3460) 11400 (3340) 11000 (3220) 10500 (3080) 10000 (2930) 9560 (2800)

0 (-17.8)
40 (4.4) 27700 (8120) 26800 (7850) 25900 (7590) 25100 (7360) 24200 (7090) 23300 (6830) 22500 (6590)
35 (1.7) 25300 (7410) 24500 (7180) 23700 (6950) 22800 (6680) 22000 (6450) 21200 (6210) 20400 (5980)

25 (-3.9) 21100 (6180) 20300 (5950) 19600 (5740) 18900 (5540) 18200 (5330) 17400 (5100) 16700 (4890)

5 (-15) 14300 (4190) 13800 (4040) 13300 (3900) 12800 (3750) 12300 (3600) 11700 (3430) 11200 (3280)

0 (-17.8)
40 (4.4) 32100 (9410) 31000 (9090) 29800 (8730) 28600 (8380) 27400 (8030) 26100 (7650) 24800 (7270)
35 (1.7) 29600 (8670) 28500 (8350) 27500 (8060) 26400 (7740) 25200 (7390) 24100 (7060) 22900 (6710)

25 (-3.9) 25100 (7360) 24200 (7090) 23300 (6830) 22300 (6540) 21400 (6270) 20400 (5980) 19300 (5660)

5 (-15) 17600 (5160) 16900 (4950) 16300 (4780) 15700 (4600) 15000 (4400) 14300 (4190) 13600 (3990)

0 (-17.8)
40 (4.4) 37500 (10990) 36100 (10580) 34700 (10170) 33200 (9730) 31700 (9290) 30100 (8820) 28500 (8350)
35 (1.7) 34800 (10200) 33600 (9850) 32300 (9470) 30900 (9060) 29500 (8650) 28100 (8240) 26600 (7800)

25 (-3.9) 29700 (8700) 28700 (8410) 27700 (8120) 26600 (7800) 25400 (7440) 24200 (7090) 23000 (6740)

5 (-15) 20800 (6100) 20200 (5920) 19500 (5710) 18800 (5510) 18000 (5280) 17200 (5040) 16300 (4780)

0 (-17.8)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)

8360 (2450) 8070 (2370) 7770 (2280) 7470 (2190) 7150 (2100) 6810 (2000) 6480 (1900)

9230 (2710) 8880 (2600) 8540 (2500) 8190 (2400) 7840 (2300) 7490 (2200) 7140 (2090)

11000 (3220) 10700 (3140) 10300 (3020) 9900 (2900) 9490 (2780) 9060 (2660) 8630 (2530)

13000 (3810) 12500 (3660) 12100 (3550) 11600 (3400) 11100 (3250) 10600 (3110) 10100 (2960)

15900 (4660) 15300 (4480) 14800 (4340) 14200 (4160) 13600 (3990) 13000 (3810) 12400 (3630)

18800 (5510) 18200 (5330) 17700 (5190) 17000 (4980) 16300 (4780) 15600 (4570) 14800 (4340)

CAPACITY BTU/H (WATTS)

29900 (8760) 28700 (8410) 27400 (8030) 26100 (7650) 24800 (7270)

R404A R507

AMBIENT TEMPERATURE °F (°C)

0 (3250) 10600 (3110)

table continues on next page >>>

CAPACITY DATA -

08/14/12

B40-BQZ-PDS-5

- 11 -

BQZT

R404A

R507

60Hz

MEDIUM TEMPERATURE (cont’d)

TECUMSEH

SATURATED

MODEL

BQZT035M6 30 (-1.1) 38500 (11280) 37000 (10840) 35500 (10400) 34000 (9960) 32500 (9520) 31000 (9090) 29500 (8650)

Compressor 20 (-6.7) 32400 (9500) 31200 (9140) 29900 (8760) 28600 (8380) 27400 (8030) 26100 (7650) 24800 (7270)

Model 15 (-9.4) 29500 (8650) 28400 (8320) 27200 (7970) 26100 (7650) 24900 (7300) 23800 (6980) 22600 (6620)

VSA9524Z 10 (-12.2) 26700 (7820) 25700 (7530) 24700 (7240) 23700 (6950) 22600 (6620) 21600 (6330) 20600 (6040)

BQZT040M6 30 (-1.1) 46400 (13600) 44600 (13070) 42700 (12510) 40800 (11960) 39000 (11430) 37100 (10870) 35200 (10320)

Compressor 20 (-6.7) 39600 (11610) 38000 (11140) 36400 (10670) 34800 (10200) 33200 (9730) 31600 (9260) 30000 (8790)

Model 15 (-9.4) 36300 (10640) 34900 (10230) 33400 (9790) 32000 (9380) 30500 (8940) 29100 (8530) 27600 (8090)

VSA9528Z 10 (-12.2) 33200 (9730) 31900 (9350) 30600 (8970) 29200 (8560) 27900 (8180) 26600 (7800) 25200 (7390)

BQZT050M6 30 (-1.1) 56000 (16410) 53800 (15770) 51600 (15120) 49400 (14480) 47200 (13830) 45000 (13190) 42700 (12510)

Compressor 20 (-6.7) 47700 (13980) 45800 (13420) 43900 (12870) 42000 (12310) 40100 (11750) 38200 (11200) 36200 (10610)

Model

VSA9536Z 10 (-12.2) 39900 (11690) 38400 (1

BQZT060M6 30 (-1.1) 67200 (19690) 64700 (18960) 62100 (18200) 59400 (17410) 56700 (16620) 53900 (15800) 51100 (14980)

Compressor 20 (-6.7) 57000 (16700) 54900 (16090) 52800 (15470) 50600 (14830) 48400 (14180) 46100 (13510) 43700 (12810)

Model 15 (-9.4) 52300 (15330) 50400 (14770) 48500 (14210) 46500 (13630) 44400 (13010) 42300 (12400) 40200 (11780)

VSA9544Z 10 (-12.2) 47900 (14040) 46100 (13510) 44400 (13010) 42500 (12460) 40700 (11930) 38700 (11340) 36800 (10780)

SUCTION

TEMP.

F° (C°)
40 (4.4) 44700 (13100) 43000 (12600) 41300 (12100) 39500 (11580) 37800 (11080) 36100 (10580) 34300 (10050)
35 (1.7) 41600 (12190) 40000 (11720) 38400 (11250) 36800 (10780) 35100 (10290) 33500 (9820) 31900 (9350)

25 (-3.9) 35400 (10370) 34000 (9960) 32700 (9580) 31300 (9170) 29900 (8760) 28500 (8350) 27100 (7940)

5 (-15) 24100 (7060) 23200 (6800) 22300 (6540) 21400 (6270) 20500 (6010) 19600 (5740) 18600 (5450)

0 (-17.8)
40 (4.4) 53800 (15770) 51700 (15150) 49600 (14540) 47500 (13920) 45300 (13280) 43200 (12660) 41000 (12020)
35 (1.7) 50000 (14650) 48000 (14070) 46100 (13510) 44100 (12920) 42100 (12340) 40000 (11720) 38000 (11140)

25 (-3.9) 42900 (12570) 41200 (12070) 39500 (11580) 37800 (11080) 36000 (10550) 34300 (10050) 32500 (9520)

5 (-15) 30100 (8820) 28900 (8470) 27700 (8120) 26600 (7800) 25400 (7440) 24200 (7090) 23000 (6740)

0 (-17.8)
40 (4.4) 64900 (19020) 62400 (18290) 59900 (17550) 57400 (16820) 54900 (16090) 52300 (15330) 49800 (14590)
35 (1.7) 60400 (17700) 58100 (17030) 55700 (16320) 53300 (15620) 51000 (14950) 48600 (14240) 46200 (13540)

25 (-3.9) 51800 (15180) 49800 (14590) 47700 (13980) 45700 (13390) 43600 (12780) 41500 (12160) 39400 (11550)

15 (-9.4) 43800 (12840) 42000 (12310) 40300 (11810) 38600 (11310) 36800 (10780) 35000 (10260) 33200 (9730)

5 (-15) 36200 (10610) 34800 (10200) 33500 (9820) 32000 (9380) 30600 (8970) 29200 (8560) 27700 (8120)

0 (-17.8)
40 (4.4) 78400 (22980) 75300 (22070) 72100 (21130) 68900 (20190) 65600 (19230) 62300 (18260) 58900 (17260)
35 (1.7) 72700 (21310) 69900 (20490) 67000 (19640) 64100 (18790) 61100 (17910) 58000 (17000) 54900 (16090)

25 (-3.9) 62000 (18170) 59700 (17500) 57300 (16790) 54900 (16090) 52400 (15360) 49900 (14620) 47300 (13860)

5 (-15) 43700 (12810) 42100 (12340) 40400 (11840) 38700 (11340) 37000 (10840) 35300 (10350) 33500 (9820)

0 (-17.8)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)

21600 (6330) 20800 (6100) 20100 (5890) 19300 (5660) 18500 (5420) 17700 (5190) 16900 (4950)

27000 (7910) 26000 (7620) 25000 (7330) 23900 (7000) 22900 (6710) 21800 (6390) 20700 (6070)

32700 (9580) 31500 (9230) 30200 (8850) 29000 (8500) 27700 (8120) 26400 (7740) 25100 (7360)

39800 (11660) 38300 (11220) 36700 (10760) 35100 (10290) 33500 (9820) 31900 (9350) 30200 (8850)

CAPACITY BTU/H (WATTS)

1250) 36800 (10780) 35200 (10320) 33600 (9850) 32000 (9380) 30400 (8910)

R404A R507

AMBIENT TEMPERATURE °F (°C)

BQZT

08/14/12

B40-BQZ-PDS-5

- 12 -

TECUMSEH

CAPACITY DATA -

LOW TEMPERATURE

R404A

R507

60Hz

SATURATED

MODEL

BQZT020L6 -10 (-23.3) 10900 (3190) 10500 (3080) 10100 (2960) 9750 (2860) 9350 (2740) 8940 (2620) 8510 (2490)

Compressor -20 (-28.9) 8750 (2560) 8440 (2470) 8140 (2390) 7830 (2290) 7520 (2200) 7190 (2110) 6860 (2010)

Model -25 (-31.7) 7780 (2280) 7520 (2200) 7250 (2120) 6970 (2040) 6700 (1960) 6420 (1880) 6130 (1800)

VSBG475Z -30 (-34.4) 6890 (2020) 6660 (1950) 6420 (1880) 6180 (1810) 5940 (1740) 5700 (1670) 5450 (1600)

BQZT025L6 -10 (-23.3) 12600 (3690) 12200 (3580) 11800 (3460) 11300 (3310) 10900 (3190) 10400 (3050) 9950 (2920)

Compressor -20 (-28.9) 10100 (2960) 9800 (2870) 9460 (2770) 9120 (2670) 8780 (2570) 8420 (2470) 8040 (2360)

Model -25 (-31.7) 9010 (2640) 8730 (2560) 8430 (2470) 8140 (2390) 7830 (2290) 7530 (2210) 7200 (2110)

VSBG494Z -30 (-34.4) 7990 (2340) 7740 (2270) 7490 (2200) 7230 (2120) 6970 (2040) 6710 (1970) 6430 (1880)

BQZT030L6 -10 (-23.3) 15100 (4430) 14600 (4280) 14100 (4130) 13500 (3960) 13000 (3810) 12400 (3630) 11700 (3430)

Compressor -20 (-28.9) 12100 (3550) 11700 (3430) 11300 (3310) 10900 (3190) 10500 (3080) 10000 (2930) 9510 (2790)

Model

VSBG511Z -30 (-34.4) 9520 (2790) 9250 (2710) 8960 (2630) 8650 (2540) 8340 (2440) 7990 (2340) 7620 (2230)

BQZT035L6 -10 (-23.3) 16900 (4950) 16300 (4780) 15700 (4600) 15100 (4430) 14400 (4220) 13800 (4040) 13100 (3840)

Compressor -20 (-28.9) 13600 (3990) 13100 (3840) 12700 (3720) 12200 (3580) 11700 (3430) 11200 (3280) 10600 (3110)

Model -25 (-31.7) 12100 (3550) 11700 (3430) 11300 (3310) 10900 (3190) 10400 (3050) 9960 (2920) 9490 (2780)

VSBG513Z -30 (-34.4) 10800 (3170) 10400 (3050) 10000 (2930) 9670 (2830) 9280 (2720) 8880 (2600) 8460 (2480)

BQZT045L6 -10 (-23.3) 21000 (6150) 20400 (5980) 19700 (5770) 18900 (5540) 18200 (5330) 17400 (5100) 16500 (4840)

Compressor -20 (-28.9) 16900 (4950) 16400 (4810) 15800 (4630) 15300 (4480) 14600 (4280) 14000 (4100) 13300 (3900)

Model -25 (-31.7) 15000 (4400) 14600 (4280) 14100 (4130) 13600 (3990) 13000 (3810) 12400 (3630) 11800 (3460)

VSAG514Z -30 (-34.4) 13200 (3870) 12800 (3750) 12400 (3630) 12000 (3520) 11500 (3370) 11000 (3220) 10500 (3080)

BQZT055L6 -10 (-23.3) 25300 (7410) 24400 (7150)

Compressor -20 (-28.9) 20000 (5860) 19300 (5660) 18600 (5450) 18000 (5280) 17300 (5070) 16600 (4860) 15900 (4660)

Model -25 (-31.7) 17600 (5160) 17000 (4980) 16500 (4840) 15900 (4660) 15400 (4510) 14800 (4340) 14200 (4160)

VSAG518Z -30 (-34.4) 15300 (4480) 14900 (4370) 14500 (4250) 14000 (4100) 13600 (3990) 13100 (3840) 12700 (3720)

BQZT060L6 -10 (-23.3) 33900 (9940) 32800 (9610) 31600 (9260) 30300 (8880) 29000 (8500) 27500 (8060) 26000 (7620)

Compressor -20 (-28.9) 27200 (7970) 26300 (7710) 25400 (7440) 24400 (7150) 23300 (6830) 22100 (6480) 20800 (6100)

Model -25 (-31.7) 24100 (7060) 23400 (6860) 22600 (6620) 21700 (6360) 20700 (6070) 19600 (5740) 18500 (5420)

VSAG523Z -30 (-34.4) 21200 (6210) 20600 (6040) 20000 (5860) 19200 (5630) 18300 (5360) 17400 (5100) 16400 (4810)

SUCTION

TEMP.

F° (C°)

0 (-17.8)

-5 (-20.6) 12100 (3550) 11700 (3430) 11300 (3310) 10800 (3170) 10400 (3050) 9900 (2900) 9420 (2760)

-15 (-26.1) 9800 (2870) 9450 (2770) 9100 (2670) 8760 (2570) 8400 (2460) 8030 (2350) 7650 (2240)

-35 (-37.2) 6060 (1780) 5860 (1720) 5660 (1660) 5460 (1600) 5250 (1540) 5040 (1480) 4830 (1420)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 14000 (4100) 13600 (3990) 13100 (3840) 12600 (3690) 12100 (3550) 11600 (3400) 11000 (3220)

-15 (-26.1) 11300 (3310) 11000 (3220) 10600 (3110) 10200 (2990) 9800 (2870) 9390 (2750) 8960 (2630)

-35 (-37.2) 7050 (2070) 6830 (2000) 6600 (1930) 6390 (1870) 6170 (1810) 5940 (1740) 5710 (1670)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 16800 (4920) 16200 (4750) 15600 (4570) 15000 (4400) 14300 (4190) 13700 (4020) 13000 (3810)

-15 (-26.1) 13600 (3990) 13100 (3840) 12700 (3720) 12200 (3580) 11700 (3430) 11100 (3250) 10600 (3110)

-25 (-31.7) 10800 (3170) 10400 (3050) 10100 (2960) 9730 (2850) 9360 (2740) 8950 (2620) 8530 (2500)

-35 (-37.2) 8390 (2460) 8160 (2390) 7930 (2320) 7680 (2250) 7400 (2170) 7110 (2080) 6800 (1990)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 18700 (5480) 18000 (5280) 17300 (5070) 16600 (4860) 15900 (4660) 15200 (4450) 14400 (4220)

-15 (-26.1) 15200 (4450) 14700 (4310) 14100 (4130) 13600 (3990) 13000 (3810) 12400 (3630) 1

-35 (-37.2) 9620 (2820) 9280 (2720) 8950 (2620) 8610 (2520) 8260 (2420) 7920 (2320) 7550 (2210)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 23200 (6800) 22500 (6590) 21700 (6360) 20900 (6130) 20100 (5890) 19200 (5630) 18300 (5360)

-15 (-26.1) 18900 (5540) 18300 (5360) 17700 (5190) 17100 (5010) 16400 (4810) 15600 (4570) 14900 (4370)

-35 (-37.2) 11500 (3370) 11200 (3280) 10900 (3190) 10500 (3080) 10100 (2960) 9680 (2840) 9200 (2700)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 28300 (8290) 27200 (7970) 26200 (7680) 25100 (7360) 24100 (7060) 23000 (6740) 21900 (6420)

-15 (-26.1) 22500 (6590) 21700 (6360) 21000 (6150) 20200 (5920) 19400 (5690) 18500 (5420) 17700 (5190)

-35 (-37.2) 13300 (3900) 12900 (3780) 12600 (3690) 12300 (3600) 12000 (3520) 11600 (3400) 11200 (3280)

-40 (-40.0)
0 (-17.8)

-5 (-20.6) 37500 (10990) 36200 (10610) 34900 (10230) 33500 (9820) 32000 (9380) 30500 (8940) 28800 (8440)

-15 (-26.1) 30500 (8940) 29500 (8650) 28400 (8320) 27300 (8000) 26100 (7650) 24700 (7240) 23300 (6830)

-35 (-37.2) 18600 (5450) 18100 (5300) 17600 (5160) 16900 (4950) 16200 (4750) 15400 (4510) 14500 (4250)

-40 (-40.0)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)

13400 (3930) 12900 (3780) 12400 (3630) 11900 (3490) 11400 (3340) 10900 (3190) 10400 (3050)

5300 (1550) 5130 (1500) 4960 (1450) 4790 (1400) 4610 (1350) 4430 (1300) 4250 (1250)

15500 (4540) 15000 (4400) 14500 (4250) 13900 (4070) 13400 (3930) 12800 (3750) 12200 (3580)

6170 (1810) 5990 (1760) 5800 (1700) 5620 (1650) 5430 (1590) 5240 (1540) 5040 (1480)

18600 (5450) 17900 (5250) 17200 (5040) 16500 (4840) 15800 (4630) 15100 (4430) 14300 (4190)

7350 (2150) 7170 (2100) 6980 (2050) 6770 (1980) 6550 (1920) 6310 (1850) 6060 (1780)

20500 (6010) 19700 (5770) 19000 (5570) 18200 (5330) 17400 (5100) 16600 (4860) 15700 (4600)

8610 (2520) 8310 (2440) 8000 (2340) 7710 (2260) 7400 (2170) 7100 (2080) 6770 (1980)

25500 (7470) 24700 (7240) 23900 (7000) 23000 (6740) 22100 (6480) 21200 (6210) 20200 (5920)

9910 (2900) 9700 (2840) 9450 (2770) 9160 (2680) 8830 (2590) 8460 (2480) 8050 (2360)

31500 (9230) 30300 (8880) 29100 (8530) 27900 (8180) 26700 (7820) 25500 (7470) 24200 (7090)

11400 (3340) 11200 (3280) 10900 (3190) 10700 (3140) 10500 (3080) 10200 (2990) 9950 (2920)

41200 (12070) 39800 (11660) 38400 (11250) 36800 (10780) 35200 (10320) 33500 (9820) 31800 (9320)

16200 (4750) 15900 (4660) 15500 (4540) 15000 (4400) 14400 (4220) 13700 (4020) 12900 (3780)

CAPACITY BTU/H (WATTS)

23500 (6890) 22600 (6620) 21600 (6330) 20700 (6070) 19700 (5770)

R404A R507

AMBIENT TEMPERATURE °F (°C)

1800 (3460)

BQZA

08/14/12

B40-BQZ-PDS-5

- 13 -

COPELAND

ELECTRICAL DATA

COPELAND MODELS

WITH STANDARD EC FAN MOTOR

60Hz

CONDENSING

UNIT

MODEL

BQZA010H8-H

BQZA011H8-H

BQZA015H8-H

BQZA020H8-H

BQZA025H8-H

BQZA030H8-H

BQZA035H8-H

BQZA040H8-H

BQZA050H8-H

BQZA060H8-H

BQZA020L6-H

BQZA025L6-H

BQZA030L6-H

BQZA035L6-H

BQZA045L6-H

BQZA055L6-H

BQZA060L6-H

COMPRESSOR

MODEL NO.

S2 ZS09KAE-PFV 208-230/1/60 10.0 40.3 1 165 1.7 14.2 20
T3 ZS09KAE-TF5 208-230/3/60 8.0 55.4 1 165 1.7 11.7 15
T4 ZS09KAE-TFD 460/3/60 3.8 28 1 165 0.9 5.7 15
S2 ZS11KAE-PFV 208-230/1/60 12.6 55 1 165 1.7 17.5 30
T3 ZS11KAE-TF5 208-230/3/60 10.4 58 1 165 1.7 14.7 25
T4 ZS11KAE-TFD 460/3/60 4.3 28 1 165 0.9 6.3 15
S2 ZS13KAE-PFV 208-230/1/60 12.0 56 1 165 1.7 16.7 25
T3 ZS13KAE-TF5 208-230/3/60 9.7 58 1 165 1.7 13.8 20
T4 ZS13KAE-TFD 460/3/60 4.8 29 1 165 0.9 6.9 15
S2 ZB15KCE-PFV 208-230/1/60 15.7 61 1 165 1.7 21.3 35
T3 ZB15KCE-TF5 208-230/3/60 8.9 55 1 165 1.7 12.8 20
T4 ZB15KCE-TFD 460/3/60 5.0 27 1 165 0.9 7.2 15
S2 ZB19KCE-PFV 208-230/1/60 17.9 73 1 165 1.7 24.1 40
T3 ZB19KCE-TF5 208-230/3/60 10.0 63 1 165 1.7 14.2 20
T4 ZB19KCE-TFD 460/3/60 5.0 31 1 165 0.9 7.2 15
S2 ZB21KCE-PFV 208-230/1/60 20.7 95 1 165 1.7 27.6 45
T3 ZB21KCE-TF5 208-230/3/60 12.1 77 1 165 1.7 16.8 25
T4 ZB21KCE-TFD 460/3/60 7.4 39 1 165 0.9 10.2 15
S2 ZB26KCE-PFV 208-230/1/60 23.6 127 2 330 3.4 32.9 50
T3 ZB26KCE-TF5 208-230/3/60 13.9 88 2 330 3.4 20.8 30
T4 ZB26KCE-TFD 460/3/60 7.1 44 2 330 1.8 10.7 15
S2 ZB30KCE-PFV 208-230/1/60 26.8 132 2 330 3.4 36.9 60
T3 ZB30KCE-TF5 208-230/3/60 15.7 115 2 330 3.4 23.0 35
T4 ZB30KCE-TFD 460/3/60 7.5 47.5 2 330 1.8 11.2 15
S2 ZB38KCE-PFV 208-230/1/60 31.1 175 2 330 3.4 42.3 70
T3 ZB38KCE-TF5 208-230/3/60 22.1 115 2 330 3.4 31.0 50
T4 ZB38KCE-TFD 460/3/60 9.6 63 2 330 1.8 13.8 20
T3 ZB45KCE-TF5 208-230/3/60 22.5 156 2 330 3.4 31.5 50

T4 ZB45KCE-TFD 460/3/60 11.5 70 2 330 1.8 16.2 25
S2 ZF06K4E-PFV 208-230/1/60 13.6 61 1 165 1.7 18.7 30
T3 ZF06K4E-TF5 208-230/3/60 9.3 55 1 165 1.7 13.3 20
T4 ZF06K4E-TFD 460/3/60 4.3 27 1 165 0.9 6.3 15
S2 ZF08K4E-PFV 208-230/1/60 16.4 73 1 165 1.7 22.2 35
T3 ZF08K4E-TF5 208-230/3/60 9.7 63 1 165 1.7 13.8 20
T4 ZF08K4E-TFD 460/3/60 5.0 31 1 165 0.9 7.2 15
S2 ZF09K4E-PFV 208-230/1/60 16.4 88 1 165 1.7 22.2 35
T3 ZF09K4E-TF5 208-230/3/60 9.6 77 1 165 1.7 13.7
T4 ZF09K4E-TFD 460/3/60 5.7 39 1 165 0.9 8.0 15
S2 ZF11K4E-PFV 208-230/1/60 20.7
T3 ZF11K4E-TF5 208-230/3/60 12.1 88 1 165 1.7 16.8 25
T4 ZF11K4E-TFD 460/3/60 7.1 44 1 165 0.9 9.8 15
S2 ZF13K4E-PFV 208-230/1/60 26.8 129 2 330 3.4 36.9 60
T3 ZF13K4E-TF5 208-230/3/60 15.0 99 2 330 3.4 22.2 35
T4 ZF13K4E-TFD 460/3/60 8.2 49.5 2 330 1.8 12.1 20
S2 ZF15K4E-PFV 208-230/1/60 31.8 169 2 330 3.4 43.2 70
T3 ZF15K4E-TF5 208-230/3/60 21.4 123 2 330 3.4 30.2 50
T4 ZF15K4E-TFD 460/3/60 9.6 62 2 330 1.8 13.8 20
T3 ZF18K4E-TF5 208-230/3/60 23.9 156 2 330 3.4 33.3 50
T4 ZF18K4E-TFD 460/3/60 9.3 70 2 330 1.8 13.4 20

POWER
SUPPLY

COMPRESSOR
RLA LRA QTY WATTS FLA MCA MOP

109 1 165 1.7 27.6 45

WITH STANDARD EC

CONDENSER FAN MOTOR

UNIT

20

BQZT

08/14/12

B40-BQZ-PDS-5

- 14 -

TECUMSEH

ELECTRICAL DATA

TECUMSEH MODELS

WITH STANDARD EC FAN MOTOR

60Hz

CONDENSING

UNIT

MODEL

BQZT010M6-H

BQZT011M6-H

BQZT015M6-H

BQZT020M6-H

BQZT025M6-H

BQZT030M6-H

BQZT035M6-H

BQZT040M6-H

BQZT050M6-H

BQZT060M6-H

BQZT020L6-H

BQZT025L6-H

BQZT030L6-H

BQZT035L6-H

BQZT045L6-H

BQZT055L6-H

BQZT060L6-H

COMPRESSOR

MODEL NO.

S2A VSA9490ZNA 208-230/1/60 11.7 50.7 1 165 1.7 16.3 25
T3A VSA9490ZXT 208-230/3/60 6.6 40.5 1 165 1.7 10.0 15
S2A VSA9510ZNA 208-230/1/60 13.4 65.9 1 165 1.7 18.5 30
T3A VSA9510ZXT 208-230/3/60 7.9 40.5 1 165 1.7 11.6 15
S2A VSA9512ZNA 208-230/1/60 13.3 65.9 1 165 1.7 18.3 30
T3A VSA9512ZXT 208-230/3/60 8.6 48.5 1 165 1.7 12.5 20
S2A VSA9514ZNA 208-230/1/60 15.6 83 1 165 1.7 21.2 35
T3A VSA9514ZXT 208-230/3/60 9.9 48.5 1 165 1.7 14.1 20
T4A VSA9514ZXG 460/3/60 4.5 25 1 165 0.9 6.5 15
S2A VSA9517ZNA 208-230/1/60 20.5 83 1 165 1.7 27.3 45
T3A VSA9517ZXT 208-230/3/60 11.7 77.5 1 165 1.7 16.3 25
T4A VSA9517ZXG 460/3/60 5.0 33.7 1 165 0.9 7.2 15
S2A VSA9512ZNA 208-230/1/60 20.9 101.6 1 165 1.7 27.8 45
T3A VSA9521ZXT 208-230/3/60 12.4 80 1 165 1.7 17.2 25
T4A VSA9512ZXG 460/3/60 6.6 38 1 165 0.9 9.2 15
T3A VSA9524ZXT 208-230/3/60 15.2 80 2 330 3.4 22.4 35
T4A VSA9524ZXG 460/3/60 6.7 40.8 2 330 1.8 10.2 15
T3A VSA9528ZXT 208-230/3/60 16.8 96 2 330 3.4 24.4 40
T4A VSA9528ZXG 460/3/60 10.7 47.5 2 330 1.8 15.2 25
T3A VSA9536ZXT 208-230/3/60 21.1 153 2 330 3.4 29.8 50
T4A VSA9536ZXG 460/3/60 11.0 72.9 2 330 1.8 15.6 25
T3A VSA9544ZXT 208-230/3/60 TBA TBA 2 300 3.4 TBA 45
T4A VSA9544ZXG 460/3/60 15.0 80.4 2 330 1.8 20.6 35

S2A VSBG475ZNA 208-230/1/60 11.9 69.8 1 165 1.7 16.6 25
T3A VSAG475ZXT 208-230/3/60 8.7 77.5 1 165 1.7 12.6 20
S2A VSBG494ZNA 208-230/1/60 14.4 71.9 1 165 1.7 19.7 30
T3A VSAG494ZXT 208-230/3/60 11.1 80.0 1 165 1.7 15.6 25
T4A VSBG494ZXG 460/3/60 3.2 29.5 1 165 0.9 4.9 15
S2A VSBG511ZNA 208-230/1/60 15.5 83.6 1 165 1.7 21.1 35
T3A VSAG511ZXT 208-230/3/60 10.7 80.0 1 165 1.7 15.1 25
T4A VSAG511ZXG 460/3/60 5.0 40.8 1 165 0.9 7.2 15
S2A VSBG513ZNA 208-230/1/60 TBA TBA 1 165 1.7 TBA TBA
T3A VSAG513ZXT 208-230/3/60 11.1 80.0 1 165 1.7 15.6 25
T3A VSAG514ZXT 208-230/3/60 14.1 96.0 2 330 3.4 21.0 35
T4A VSAG514ZXG 460/3/60 6.1 48.3 2 330 1.8 9.4 15
T3A VSAG518ZXT 208-230/3/60 18.3 153.0 2 330 3.4 26.3 40
T4A VSAG518ZXG 460/3/60 8.8 73.0 2
T3A VSAG523ZXT 208-230/3/60 19.9 156 2 330 3.4 28.3 45
T4A VSAG523ZXG 460/3/60 10.4 80.4 2 330 1.8 14.8 25

POWER

SUPPLY

COMPRESSOR
RLA LRA QTY WATTS FLA MCA MOP

WITH STANDARD EC

CONDENSER FAN MOTOR

330 1.8 12.8 20

UNIT

BQZ

08/14/12

B40-BQZ-PDS-5

- 15 -

DIMENSIONAL DATA

60Hz

COPELAND

08/14/12

B40-BQZ-PDS-5

- 16 -

SPECIFICATIONS

COPELAND MODELS

60HzBQZA

CONDENSING

UNIT

MODEL

BQZA010H8 * 5/8 16 3/8 10 11 5.0 300 136
BQZA011H8 * 5/8 16 3/8 10 11 5.0 305 139
BQZA015H8 * 7/8 22 3/8 10 14 6.4 305 139
BQZA020H8 * 7/8 22 3/8 10 14 6.4 325 148
BQZA025H8 * 7/8 22 1/2 13 19.5 8.9 325 148
BQZA030H8 * 7/8 22 1/2 13 19.5 8.9 325 148
BQZA035H8 * 7/8 22 1/2 13 21.5 9.8 490 223
BQZA040H8 * 1 1/8 29 1/2 13 21.5 9.8 515 234
BQZA050H8 * 1 1/8 29 1/2 13 21.5 9.8 515 234
BQZA060H8 * 1 1/8 29 1/2 13 30.0 13.6 520 236

BQZA020L6 7/8 22 3/8 10 11.0 5.0 320 145
BQZA025L6 7/8 22 3/8 10 14.0 6.4 325 148
BQZA030L6 7/8 22 3/8 10 14.0 6.4 325 148
BQZA035L6 7/8 22 1/2 13 19.5 8.9 325 148
BQZA045L6 1 1/8 29 1/2 13 21.5 9.8 490 223
BQZA055L6 1 1/8 29 1/2 13 21.5 9.8 500 227
BQZA060L6 1 1/8 29 1/2 13 21.5 9.8 510 232

* PUBLISHED RECEIVER CAPACITY IS BASED ON

FOR ALERNATE REFRIGERANTS, MULTIPLY

SUCTION (OD) LIQUID (OD)

Inches mm Inches mm Lbs. Kgs Lbs. Kgs

UNIT CONNECTIONS

* NOTE ON ALTERNATE REFRIGERANTS:

R407C

1.10 1.15 1.00

R404A

R404A

R22

VALUE BY THE APPROPRIATE VALUE BELOW:

RECEIVER CAPACITY

90% FULL *

ON MODELS USING “8” AS REFRIGERANT CODE.

APPROX. SHIPPING WEIGHT

R507

SPECIFICATIONS

TECUMSEH MODELS

TECUMSEH

CONDENSING

UNIT

MODEL

BQZT010M6 5/8 16 3/8 10 11 5.0 325 148

BQZT011M6 5/8 16 3/8 10 11 5.0 325 148
BQZT015M6 7/8 22 3/8 10 14 6.4 325 148
BQZT020M6 7/8 22 3/8 10 14 6.4 325 148
BQZT025M6 7/8 22 1/2 13 19.5 8.9 325 148
BQZT030M6 7/8 22 1/2 13 19.5 8.9 325 148
BQZT035M6 7/8 22 1/2 13 21.5 9.8 490 223
BQZT040M6 1 1/8 29 1/2 13 21.5 9.8 515 234
BQZT050M6 1 1/8 29 1/2 13 21.5 9.8 515 234
BQZT060M6 1 1/8 29 1/2 13 30.0 13.6 520 236

BQZT020L6 7/8 22 3/8 10 11.0 5.0 320 145

BQZT025L6 7/8 22 3/8 10 14.0 6.4 325 148

BQZT030L6 7/8 22 3/8 10 14.0 6.4 325 148

BQZT035L6 7/8 22 1/2 13 19.5 8.9 325 148

BQZT045L6 1 1/8 29 1/2 13 21.5 9.8 490 223

BQZT055L6 1 1/8 29 1/2 13 21.5 9.8 500 227

BQZT060L6 1 1/8 29 1/2 13 21.5 9.8 510 232

SUCTION (OD) LIQUID (OD)

Inches mm Inches mm Lbs. Kgs Lbs. Kgs

UNIT CONNECTIONS

RECEIVER CAPACITY

90% FULL

APPROX. SHIPPING WEIGHT

60HzBQZT

BQZ

08/14/12

B40-BQZ-PDS-5

- 17 -

SOUND PRESSURE LEVELS

(dBA - 60Hz)

60Hz

COPELAND

CONDENSING UNIT

MODEL

BQZA010H8 BQZT010M6 55 58
BQZA011H8 BQZT011M6 56 59
BQZA015H8 BQZT015M6 58 61
BQZA020H8 BQZT020M6 55 58
BQZA025H8 BQZT025M6 55 58
BQZA030H8 BQZT030M6 57 60
BQZA035H8 BQZT035M6 57 59
BQZA040H8 BQZT040M6 58 60
BQZA050H8 BQZT050M6 59 61
BQZA060H8 BQZT060M6 59 61
BQZA020L6 BQZT020L6 53 56
BQZA025L6 BQZT025L6 54 57
BQZA030L6 BQZT030L6 55 58
BQZA035L6 BQZT035L6 55 58
BQZA045L6 BQZT045L6 59 61
BQZA055L6 BQZT055L6 59 61
BQZA060L6 BQZT060L6 59 61

- Data is typical of “free eld” conditions. Factors such as reecting wall, background noise and
installation may have signicant inuence on data

- Testing performed according to AHRI Standard 270

- For more accurate ratings refer to AHRI Standard 275 for correction factors due to reecting planes

- Data is for 100% fan speed. Further sound reductions of approx. 4-6 dBA can be expected at ambients
below 70°F

TECUMSEH

CONDENSING UNIT

MODEL

dBA @ 10 ft.

with Sound Insulated

Compressor Compartment

dBA @ 10 ft.

without Sound Insulated

Compressor Compartment

BQZ

08/14/12

B40-BQZ-PDS-5

- 18 -

TYPICAL UNIT WIRING DIAGRAM -

230/1/60 - STANDARD EC FAN MOTOR

60Hz

BQZ

08/14/12

B40-BQZ-PDS-5

- 19 -

TYPICAL UNIT WIRING DIAGRAM -

230/3/60 - STANDARD EC FAN MOTOR

60Hz

BQZ

08/14/12

B40-BQZ-PDS-5

- 20 -

TYPICAL UNIT WIRING DIAGRAM -

60Hz

460/3/60 - STANDARD EC FAN MOTOR

BQZ

08/14/12

B40-BQZ-PDS-5

- 21 -

EC MOTOR APPLICA TION

EC MOTORS

60Hz

EC Motors - Features and Benets

Air cooled condensing units utilizing electrically commu-

tated motor (EC motor) technology offer many benets;

Improved Efciency, Reduced Sound Levels, Speed Con-

trol, Simplicity and Reliability.

Efciency

EC motors are more energy efcient than conventional

AC (PSC and shaded pole) motors. Unlike AC motors that

see efciency decrease as the motor speed is decreased,
an EC motor efciency remains consistent throughout its

range of operation.
Head Pressure Control

EC motors make it easier to maintain stable head pres­sures when motor speeds are varied according to operat-

ing conditions. When compared to a conventional ooded

valve system, EC motors do a much better job maintaining
stable head pressures. System performance is further
enhanced with consistent liquid temperatures that en­sure optimized operation of the nozzle and TX valve in
the evaporator. In colder ambients, special consideration
should be given to the use of heated and insulated receiv­ers and wind guard protection on the condenser.

Reduced Refrigerant Charge

System charges can be reduced by 30 – 40% by utiliz­ing variable speed EC motors to control head pressures.
The elimination of the head pressure control valve also

eliminates the need for extra refrigerant required to ood

the condenser. In colder ambients, special consideration
should be given to the use of insulated receivers and wind
guard protection on the condenser.

Reduced Energy Consumption

When a system’s head pressure is controlled using a

ooded head pressure control valve, the condenser fan

motor runs at 100% fan speed all of the time. When head
pressure is controlled using an EC motor and the motor
speed is varied according to operating conditions, this
results in lower energy consumption of the motor.
There are also potential energy savings available from the
compressor by running with lower head pressure setting
controlled by a simple EC motor controller.

The amount of energy to be saved depends on; ambient

conditions, system operation conditions and head pres­sure set point.

Sound

As EC motor speeds vary for different operating conditions
they also offer reduced sound levels when compared to
conventional motor running full speed. Sound levels are
reduced on cooler days and in evenings.

Simplicity and Reliability

The installation and control of EC motors is very simple
compared to other methods of speed control used on
conventional AC motors. Lower running operating temper­atures and smooth transitional speed changes make EC
motors durable and reliable.

Full RPM

!

BQZ

08/14/12

B40-BQZ-PDS-5

- 22 -

EC MOTOR APPLICA TION

(cont’d)

EC MOTORS

60Hz

Variable Speed EC Condenser Fan Motors

ECM fan/motor combinations using DC motors with inte­gral AC to DC conversion allow direct connection to the AC

mains with all the energy saving and control benets of a

DC motor. Ideally, with multiple motors on the condenser,
all should simultaneously slow down /speed up together.
This provides for maximum energy savings and smoothest
head pressure control.

Important Warnings:
(Please read before handling motors)

1. When connecting the unit to the power supply,
dangerous voltages occur. Due to motor
capacitor discharge time, do not open the motor
within 5 minutes after disconnection of all phases.

2. With a Control voltage fed in or a set speed value
being saved, the motor will restart automatically
after a power failure.

3. Dangerous external voltages can be present at the
motor terminals even when the unit is turned off.

4. The Electronics housing can get hot.

5. The cycling on and off of EC motors should be
controlled by the DC control voltage (i.e. 0V DC
will turn motor off). Excessive cycling of the motor
by line voltage contactors may cause stress on
the motors and reduce the motor life.

Speed Adjustment Characteristics

The EC motor varies its speed linearly based on a 1-10V
input signal. At 10 VDC, the motor runs at full speed. At 0
to approx. 1 VDC, the motor turns off. A chart of the speed
control curve is shown below. The motor can be controlled
at any speed below its nominal RPM.

Control Signal

The input control signal is supplied by an external control
signal from a factory installed proportional pressure con­trol. Units with factory installed proportional pressure con­trols are adjusted with initial factory settings. These may

require further adjustments to suit local eld conditions.

Proportional Pressure Control (Factory Installed)
Units equipped with factory installed P352 controls use a
proportional/integral pressure controller to vary and main­tain the motor speed at the desired head pressure. The
controller has two main user adjustable features:

• Head Pressure Set point

• Throttling range

Leave the minimum Output setting at 0% and Jumpers
should be set for Direct Acting (do not re-adjust)

Module

User Adjust

Setpoint

Potentiometer

User Adjust

Throttling Range

Potentiometer

0%

Minimum

Output

Potentiometer

LED Indicator

(Percent of Output)

THROT
RANGE

OUTPU

Connector

MIN

T

Operation Mode

Jumper Positions

34
2
1

N

O

Integration DIP Switch

Direct

Acting

RPM

1

Control voltage [V dc]

Head Pressure Set Point

The head pressure set point potentiometer is adjustable
from 90-250 psig. This maintains a minimum condens­ing temp at the corresponding pressure set point. Typical
R404A set points are from 170-200 psig. (i.e. 78oF - 89oF
Condensing Temperature).
Note: Very low set points may cause the fan motors to run
full speed continually even if the condenser is properly
sized. The fans will turn off if the system pressure falls
below the desired set point.

10

BQZ

08/14/12

B40-BQZ-PDS-5

- 23 -

EC MOTOR APPLICA TION

(cont’d)

EC MOTORS

60Hz

Minimum Output

The minimum output potentiometer controls the minimum
signal sent to the motor and is factory set at 0%. It is ad­justable between 0 and 60% of the output range. If this is
adjusted to 50%, the motors will not start running until 5V
is applied to the motor. The motor will start running at 50%
of full speed. To maximize sound reduction and energy
savings and to provide the most stable control, it is recom­mended this setting be left at 0%.

Throttling range

The throttling range potentiometer controls how far the
system pressure deviates from the control set point to
generate a 100% output signal from the control and is ad­justable from 10 -100 psig. The throttling range determines
how quickly the motor will reach full speed when detecting
a change in head pressure. For example, if the set point
is 190 psig and the throttling range is 50 psig, when the
system pressure is below 190 psig, the fans will be off.
When the system pressure reaches 240 psig (190+50)
the fans will be at full speed. To make the fans ramp more
slowly the throttling range should be increased. To maxi-

mize sound reduction and energy efciency and to provide

for the most stable control, it is recommended this setting
be left at 100 psig.

Direct Acting (DA) mode. Failure to ensure J1 jumper is
in direct acting mode will cause the system to trip on high
head pressure.

Integration constant

The integration constant switch provides ability to change
controller from a proportional only control to a propor­tional plus integral control. To provide the most respon­sive system and to maintain a stable head pressure, it is
recommended the integration setting be left on “fast” with
the Mode switch set to OFF (Proportional AND Integral
activated)

FAST (on)

3 4

2
1

O

N

MEDIUM (off)
SLOW (off)

OFF (set for PROPORTIONAL /
INTEGRAL MODE)

Reverse acting or direct acting mode of operation

The reverse acting/direct acting jumper is used to en­sure the controller responds correctly to the desired head
pressure. In Direct Acting (DA) mode, the motor speed
increases as the pressure rises above desired set point.
For proper condenser operation, this jumper MUST be in

Transducer Wiring

The P352PN controls use a P266 (P399,or P499) pres­sure transducer to generate a 0.5 to 4.5 VDC input signal.
The transducer is wired to the terminal block at the bottom
of the control as shown in the diagram below.

Interior View and Typical Wiring of P352PN Control

BQZ

08/14/12

B40-BQZ-PDS-5

- 24 -

OPTIONAL WALL MOUNT INSTRUCTIONS

BQZ

08/14/12

B40-BQZ-PDS-5

- 25 -

PART DESCRIPTION MODELS PART NUMBER

EC Fan Motor - 1/3 HP ALL 1089880
Transformer (req’d for EC Motor on 460V models) 460V Models 1086000-0207
Fan Blade ALL 1090668
Motor Mount ALL 1089899
Fan Guard ALL 1089892
Pressure Control, P352PN-3C, Fan Motor Speed Control ALL 1087946
Transformer, 24V, for pressure control ALL 170110
Pressure Transducer ALL 1073355
Wall Mounting Kit ALL 1089895

GENERIC SERVICE PARTS LIST

60Hz

NOTES

08/14/12

B40-BQZ-PDS-5

- 26 -

Finished Goods Warranty

08/14/12

B40-BQZ-PDS-5

- 27 -

The terms and conditions as described below in the General Warranty Policy cover all products
manufactured by National Refrigeration.

GeneraL Warranty PoLiCy

Subject to the terms and conditions hereof, the Company warrants all Products, including Service
Parts, manufactured by the Company to be free of defects in material or workmanship, under nor­mal use and application for a period of one (1) year from the original date of installation, or eighteen

(18) months from the date of shipment from the Company, whichever occurs rst. Any replacement

part(s) so supplied will be warranted for the balance of the product’s original warranty. The part(s) to
be replaced must be made available in exchange for the replacement part(s) and reasonable proof
of the original installation date of the product must be presented in order to establish the effective
date of the warranty, failing which, the effective date will be based upon the date of manufacture plus
thirty (30) days. Any labour, material, refrigerant, transportation, freight or other charges incurred in
connection with the performance of this warranty will be the responsibility of the owner at the cur­rent rates and prices then in effect. This warranty may be transferred to a subsequent owner of the
product.

this Warranty does not CoVer

(a) Damages caused by accident, abuse, negligence, misuse, riot, re, ood, or Acts of God (b) damages

caused by operating the product in a corrosive atmosphere (c) damages caused by any unauthorized
alteration or repair of the system affecting the product’s reliability or performance (d) damages caused
by improper matching or application of the product or the product’s components (e) damages caused by
failing to provide routine and proper maintenance or service to the product (f) expenses incurred for the
erecting, disconnecting, or dismantling the product (g) parts used in connection with normal maintenance,

such as lters or belts (h) products no longer at the site of the original installation (i) products installed

or operated other than in accordance with the printed instructions, with the local installation or building
codes and with good trade practices (j) products lost or stolen.

No one is authorized to change this WARRANTY or to create for or on behalf of the Company any
other obligation or liability in connection with the Product(s). There is no other representation, warranty
or condition in any respect, expressed or implied, made by or binding upon the Company other than the
above or as provided by provincial or state law and which cannot be limited or excluded by such law,
nor will we be liable in any way for incidental, consequential, or special damages however caused.

The provisions of this additional written warranty are in addition to and not a modication of or subtraction

from the statutory warranties and other rights and remedies provided by Federal, Provincial or State
laws.

PROJECT INFORMATION

System
Model Number Date of Start-Up
Serial Number Service Contractor
Refrigerant Phone
Electrical Supply Fax

“AS BUILT” SERVICE PARTS LIST

08/14/12

Service Parts List

Label

To Be Attached

HERE

DISTRIBUTED BY:

General Sales, Parts & Service Manufacturing & Engineering

135 Little Nine Drive, Morehead City, NC 28557

252-240-2829 • 1-800-24-BALLY • FAX: [phone]
e-mail: [email protected] • www.ballyrefboxes.com

Due to Manufacturer’s policy of continuous product improvement,

the Manufacturer reserves the right to make changes without notice.
