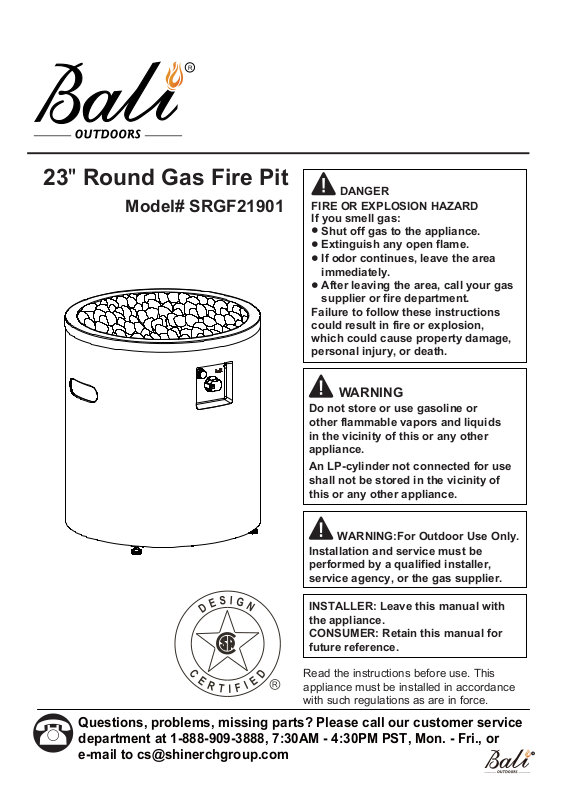

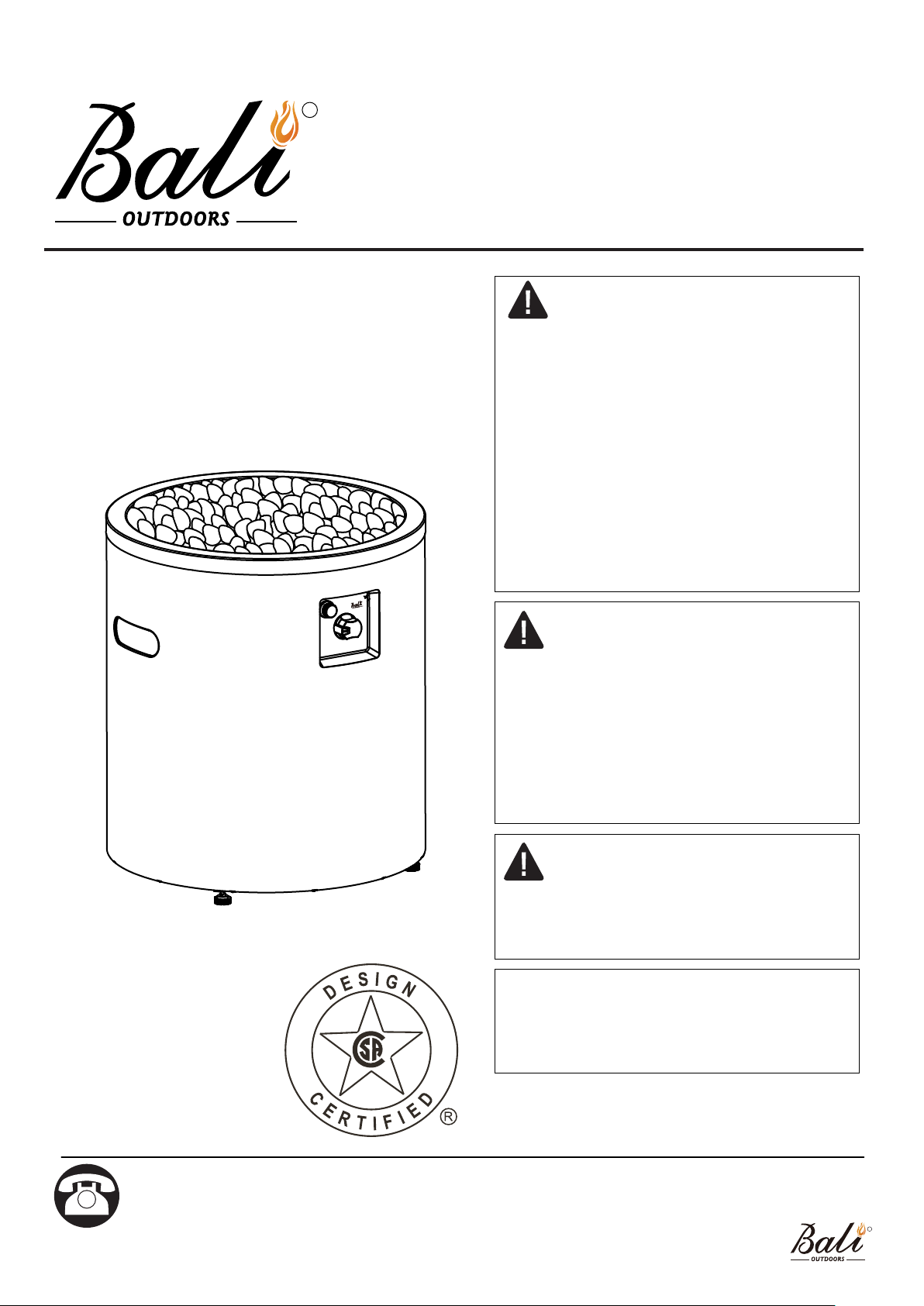

Page 1
R
23" Round Gas Fire Pit
Model# SRGF21901
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
●
Shut off gas to the appliance.
●
Extinguish any open flame.
●
If odor continues, leave the area
immediately.
●
After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion,
which could cause property damage,
personal injury, or death.
WARNING
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING:For Outdoor Use Only.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
INSTALLER: Leave this manual with
the appliance.
CONSUMER: Retain this manual for
future reference.
Read the instructions before use. This
appliance must be installed in accordance
with such regulations as are in force.
Questions, problems, missing parts? Please call our customer service
department at 1-888-909-3888, 7:30AM - 4:30PM PST, Mon. - Fri., or
e-mail to [email protected]
R
Page 2

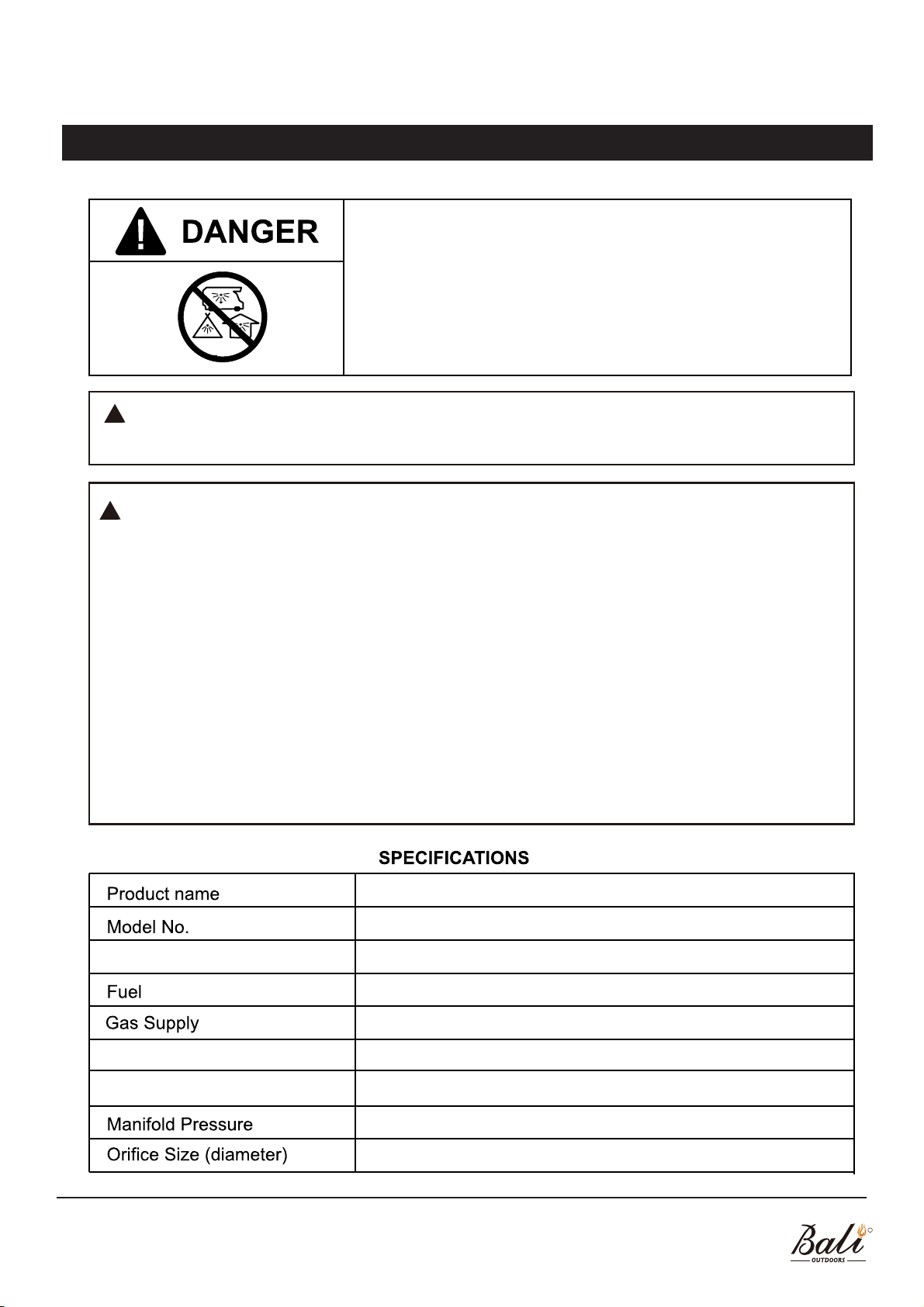

PRECAUTIONS
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
!
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.
!
WARNING
: Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Read the installation, operation
and maintenance instructions thoroughly before installing or
servicing this equipment.
WHAT TO DO IF YOU SMELL GAS?
•
Do not try to light the appliance.
•
Do not touch any electrical switch; do not use any phone in the vicinity of this product.
•
Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
•
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or gas
supplier.
23” Round Gas Fire Pit
SRGF21901
50,000 Btu/h (14.65kW)Input
Propane
20-lb. LP - gas cylinder
Min. gas supply for input adj.
25PSI (175kPa)
Max. gas supply:
250PSI (1750kPa)
11 in wc (2.74kPa).
2.25 mm
R
1
Page 3
WARNINGS AND CAUTIONS
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with either the
•
Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling
Code, CSA B 149.2.
•
This appliance requires 20 lb (9 kg) LP gas supply cylinder.
•
The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner shall be that specified by the manufacturer.
•
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that control compartment, burners,
and circulating air passageways of the appliance be kept clean.
Always place the appliance on a firm and level surface.
•
• Do not burn solid fuels in this gas appliance.
•
Use the appliance outdoors in a well-ventilated space only, not in a building, garage, or any other
enclosed area.
•
When using the appliance, keep the appliance area clear and at least 50 inches from combustible
materials, gasoline and other flammable liquid and vapors. Certain items or materials, when stored
under the appliance or nearby, will be subjected to radiant heat and could be seriously damaged.
Inspect the gas connections of appliance prior to each use. Do not operate the unit if there is gas leak.
•
A qualified service person should inspect the appliance annually.
Inspect the hose before each use of the appliance. The hose assembly must be replaced prior to the
•
appliance being put into operation if there is evidence of excessive abrasion or wear or if the hose is
damaged. The replacement hose assembly shall be that specified by the manufacturer.
•
Alert children and adults to the hazards of high surface temperatures and keep them away
to avoid burns or clothing ignition.
•
Carefully supervise children and pets when they are near the appliance.
•
Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
•
Do not hang clothing or other flammable materials on or near the appliance.
•
Do not use the appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
•
The LP-gas supply cylinder to be used must be: Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT); or the Standard
for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission,
CAN/CSA-B339, as applicable;
The LP-gas supply cylinder to be used must be provided with a listed overfilling prevention device;
•
and provided with a cylinder connection device compatible with the connection for the appliance.
•
Use only a cylinder supply system arranged for vapor withdrawal, and the cylinder must include a
collar to protect the cylinder valve.
2
R
Page 4
WARNINGS AND CAUTIONS
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
Perform a leak test with a soapy solution before use it:
1. To check gas connections.
2. After connecting a new cylinder.
3. Upon re-assembly after disassembly.
This appliance is designed to operate with a standard 20 Ib propane cylinder with Approved
Cylinder Connection.
!
WARNING:
This product can expose you to chemicals including lead, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information, go to:
www.P65Warnings.ca.gov.
PREPARATION
Before beginning assembly of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
R
3
Page 5

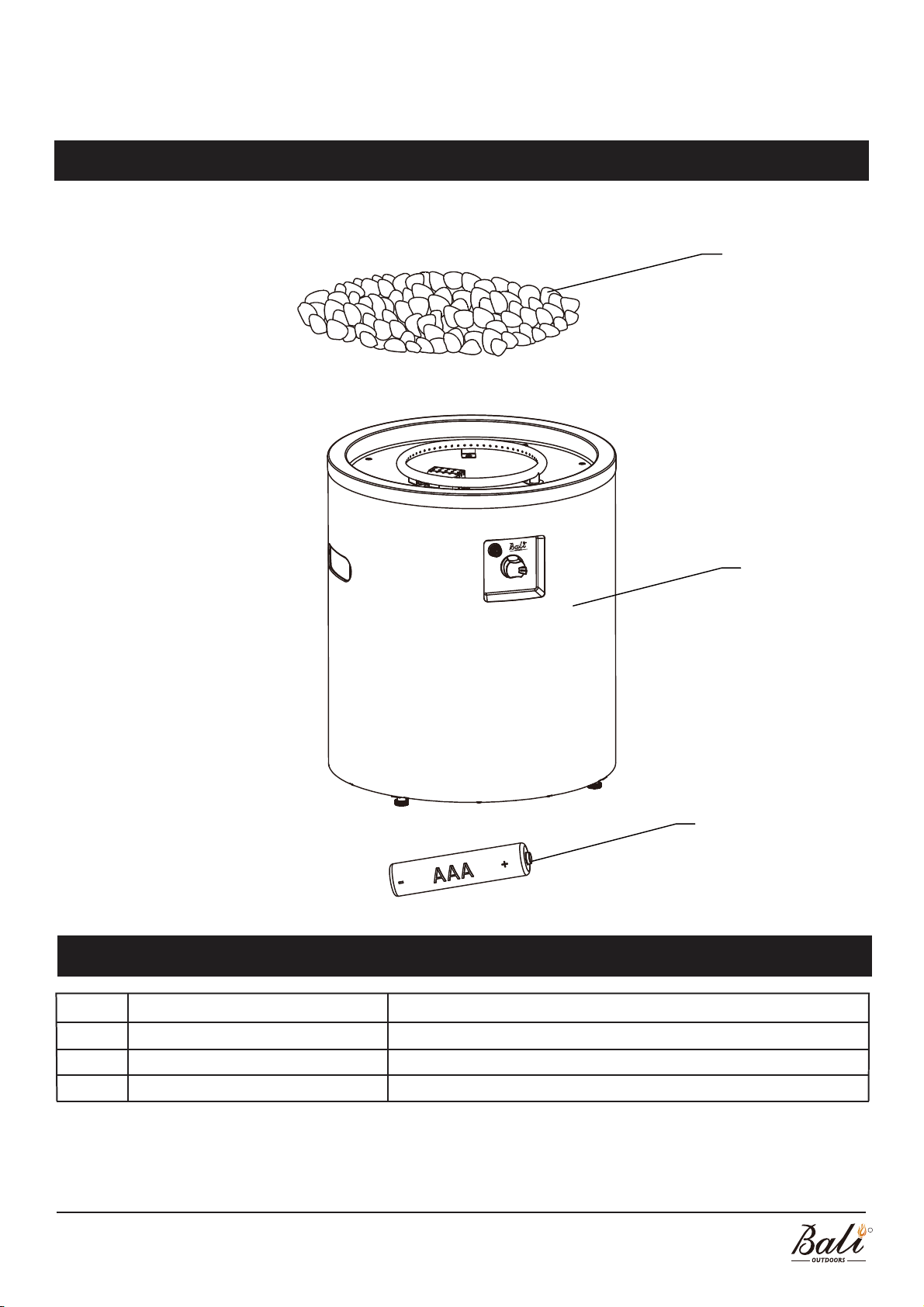

EXPLODED VIEW
B
A
PARTS
Part Description Quantity
A
B
C
Gas Fire Pit
Glass Beads
AAA Battery ( not included)
1 pc
1 bag
1 pc
4
C
R
Page 6

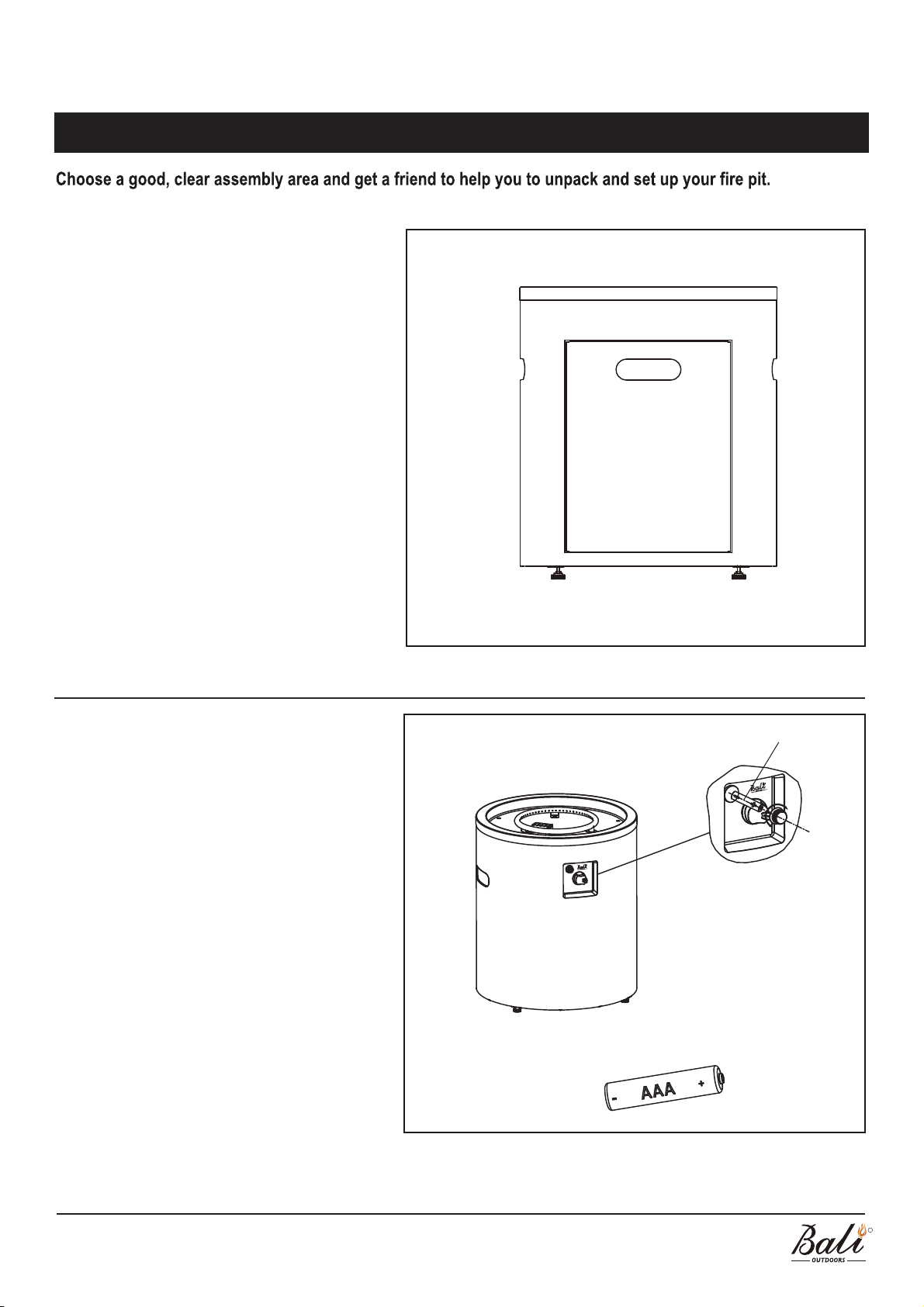

ASSEMBLY INSTRUCTIONS
Step 1
Take the gas fire pit from the packaging.
Note:
The foot stands at the bottom can be
adjusted when come across uneven
ground.
TION
Fig.1
Step 2
Unscrew the battery compartment cap
on the control
battery (C) (not included) with anode
end of battery located towards the battery
compartment cap.
panel, install one AAA
Fig.2
C
Battery Compartment Cap
(not included)
R
5
Page 7
ASSEMBLY INSTRUCTIONS
Step 3

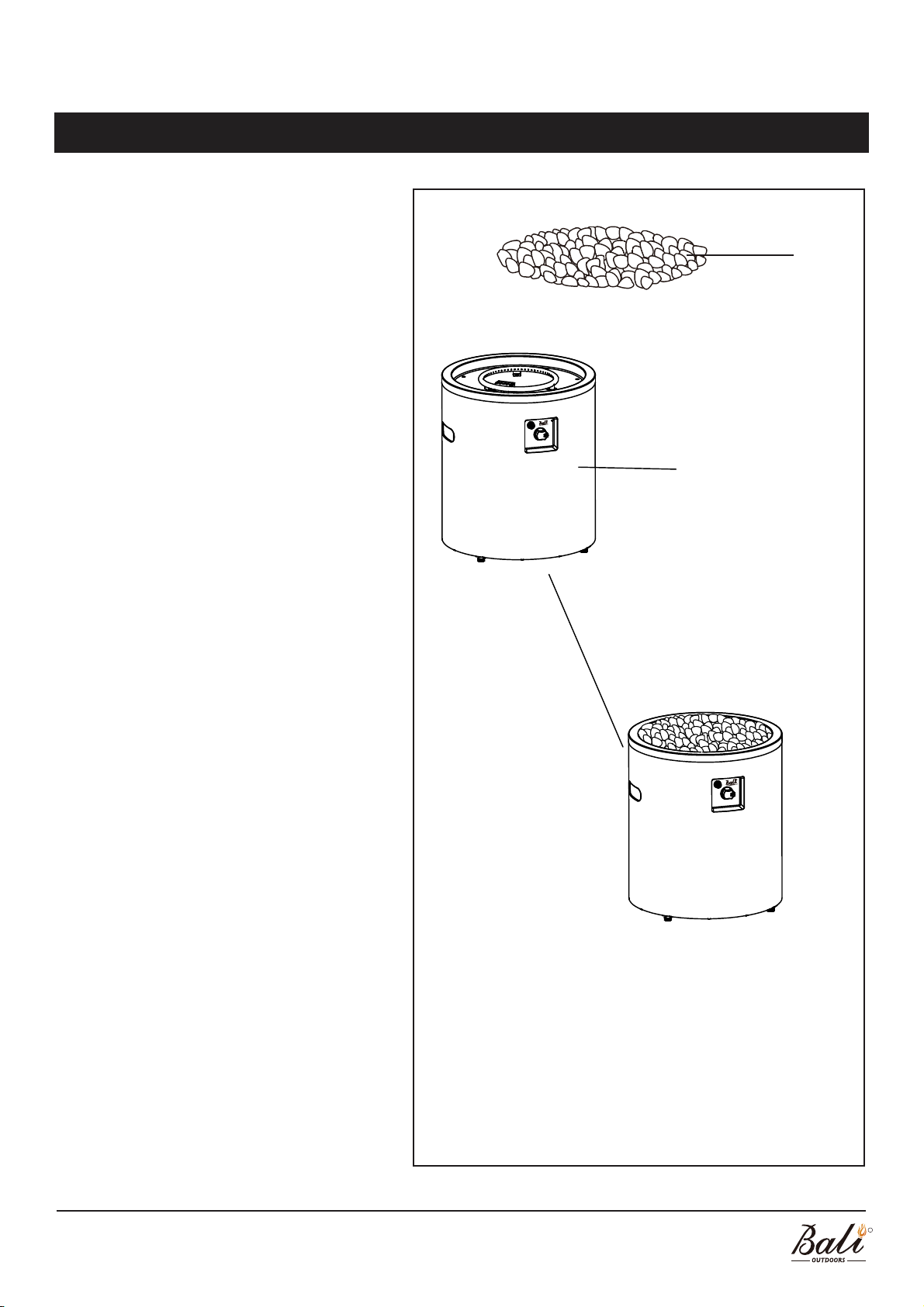

Fig. 3
Place glass beads (B) (Max. 24.25lb)
onto the burning area
of the gas fire pit (A).
B
A
WARNING:
Failure to position the parts in accordance
with these
diagrams or failure to use only
parts specifically approved with this
appliance may result in property damage
or personal injury.
R
6
Page 8
INSTALLATION INSTRUCTIONS
INSALLATION
Two or more people are recommended for easier installation.
LOCATION
Your fire pit must be installed on a flat, stable surface, away from any combustible material or
construction.
SET-UP

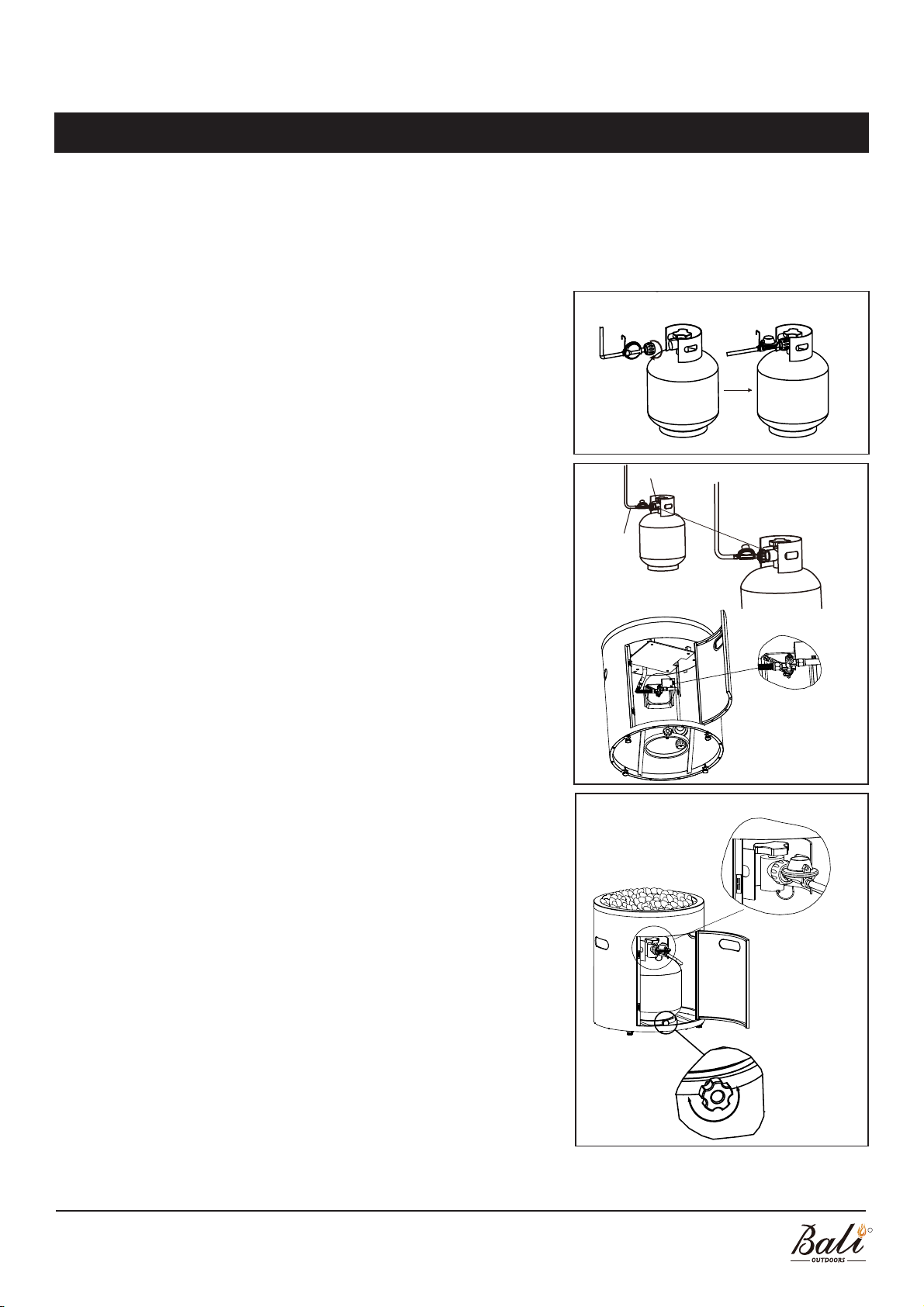

Fig.4
1. Place fire pit on any level, outdoor, non-combustible surface.
NOTE: Do not place the appliance on grass or dirt. This may
prevent proper safety venting.
Tighten
2. Open the door panel, attach regulator to cylinder and turn
clockwise by hand. (Fig. 4)
3. Place cylinder in the holder assembly. Turn the cylinder
clamp screw clockwise to secure the gas cylinder. (Fig. 6)
Note:
After the regulator is connected to the gas cylinder,
Fig.5
P2
regulator & cylinder
connection
P1
the regulator faces outwards as illustrated (Fig. 6).
It is convenient for customer to operate the cylinder valve.
CHECK FOR LEAKS
Perform leakage check as below for safety purpose.
Make sure the fire pit valve is turned OFF before
performing the leakage check by below steps (Fig. 5):
1) Make leak solution by mixing 1 part liquid soap and
3 parts water.
2) Turn on the cylinder valve.
3) Spoon several drops (or use squirt bottle) of the solution
onto the gas hose/regulator (P1) regulator/cylinder (P2)
and valve/gas hose.
4) Inspect the connections and look for bubbles.
5) If no bubbles appear, the connection is safe.
6) If bubbles appear, there is leak. Turn off the cylinder valve,
loosen and re-tighten this connection.
7) Check for leakage again.
8) If bubbles still appear, do not attempt to use the gas fire pit
again, turn off the cylinder valve, please call our customer
service department at 1-888-909-3888 or e-mail to
[email protected].
Fig.6
R
7
Page 9
OPERATION
WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS . FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
WARNING!!!
Do not use an open flame to check for leakage.
Do not smoke during testing.
Do not test indoors.
A leak check must be performed whenever the gas
cylinder is replaced.
NOTE:
U
se only the pressure regulator supplied with this fire pit.
Replace them with those specified by the manufacturer
only.
Before turning gas supply ON
Your
fire pit was designed and approved for OUTDOOR
USE ONLY. DO NOT use it inside a building or any other
enclosed area.
Make sure surrounding areas are free of combustible
materials, gasoline, and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.
WARNING
FOR YOUR SAFETY:
If at any time you are unable to
light burner and smell gas, wait 5
minutes to allow gas to dissipate
before attempting to light gas
appliance. If after 1 minute, you
are unable to light burner, wait 5
minutes and allow flammable
vapors to dissipate before
attempting to light gas appliance.
WARNING
FOR YOUR SAFETY:
DO NOT touch or move gas appliance
for at least 45 minutes after use.
WARNING
Lighting operations should comply
with Lighting Instruction section.
Improper lighting operations will
cause serious injury and explosion.
R
8
Page 10
OPERATION
WARNING:DO NOT ATTEMPT TO OPERATE THIS HEATER UNTIL YOU HAVE READ
AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN
PROPERTY DAMAGE,SERIOUS INJURY,OR DEATH.
Before Lighting
The gas fire pit should be thoroughly inspected before each
use, and by a qualified service person at least annually.
If relighting a hot gas fire pit, always wait at least 5 minutes.

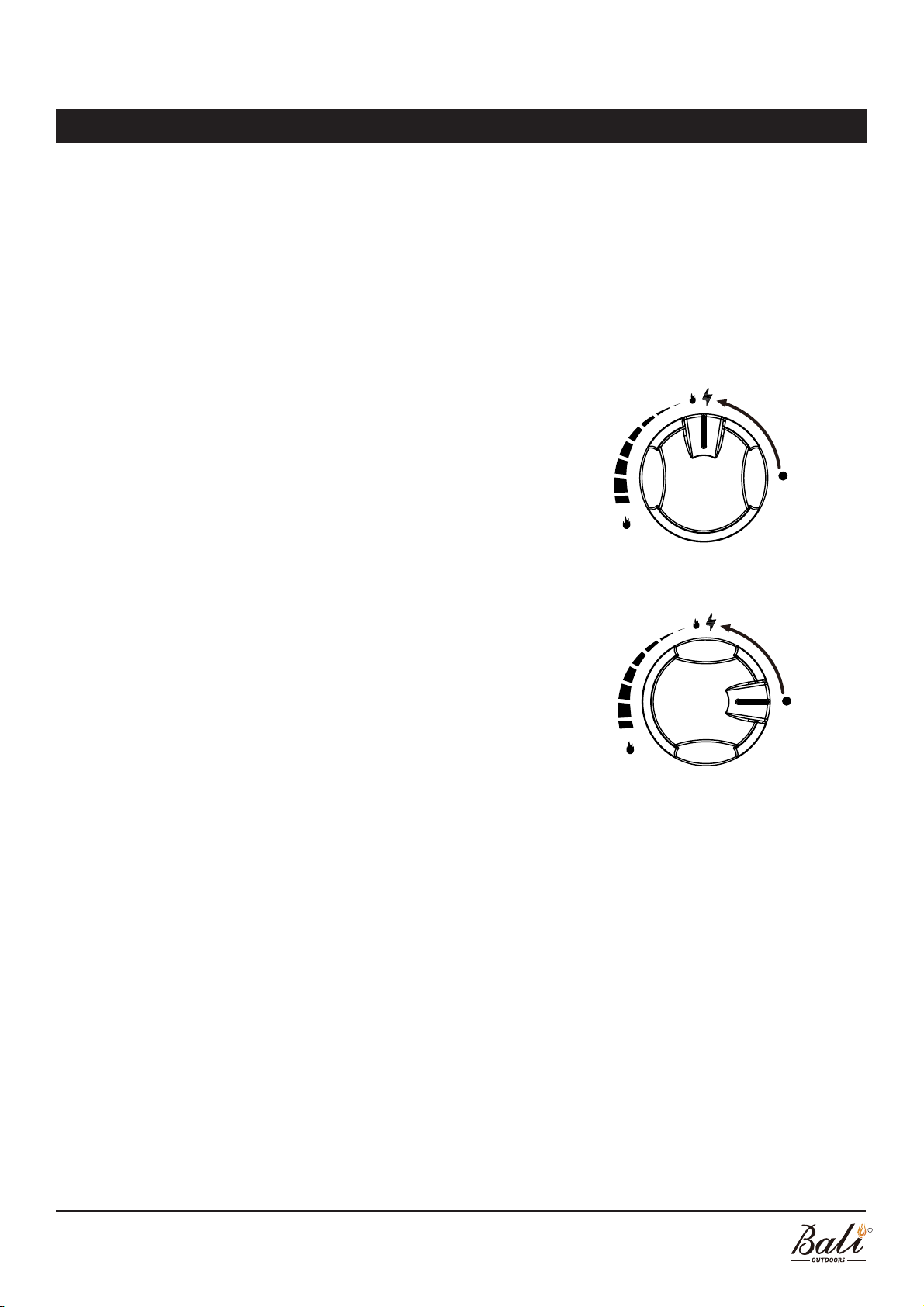

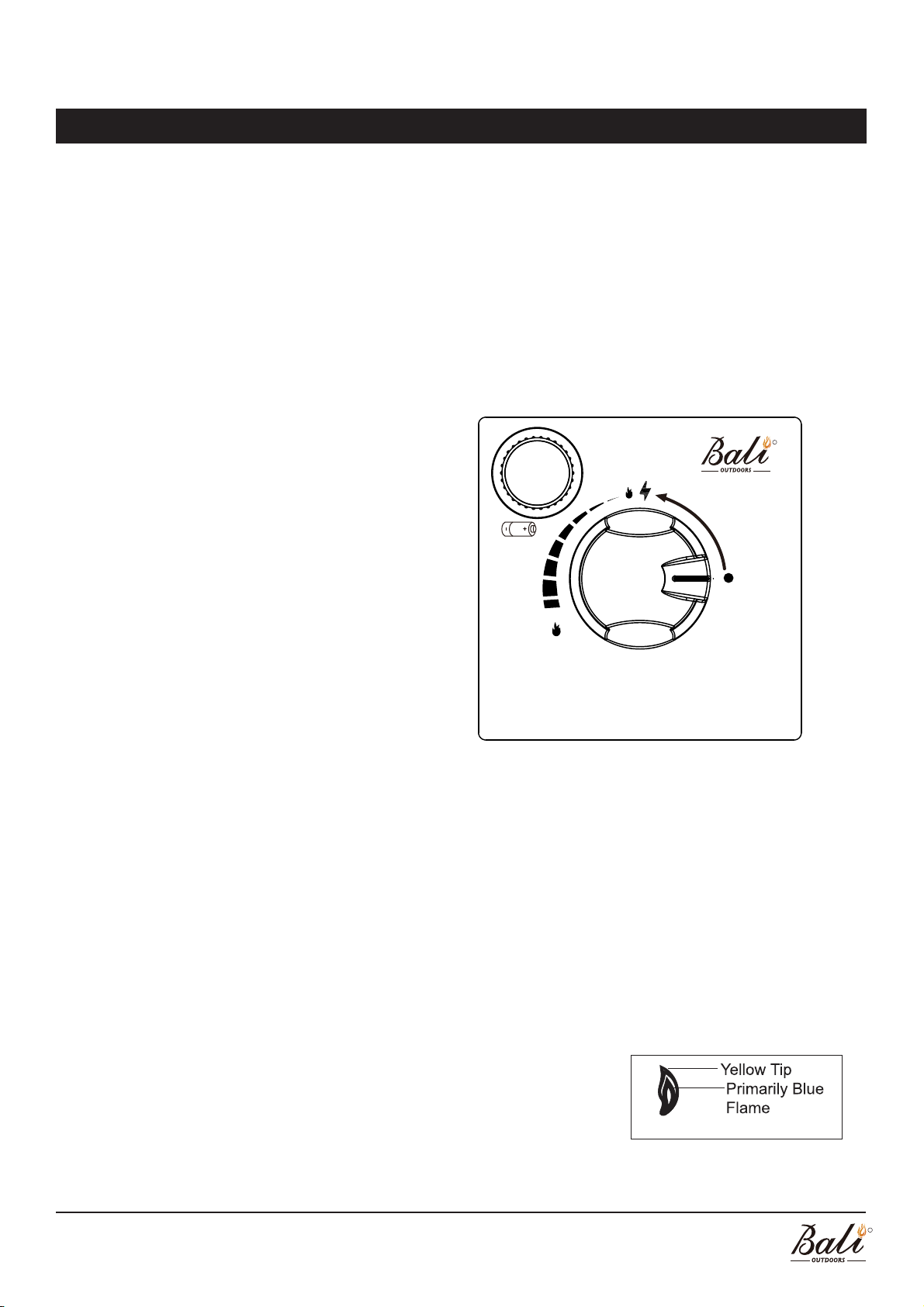

Lighting instructions
R
ATION
1. Make sure control knob is in the
"OFF" position.
2. Turn propane cylinder gas valve to fully
open position.
BATTERY COMPARTMENT
IGNITE/LOW
P
u
s
h
t
o
t
u
r
n
3. Press down control knob and turn it
counter clockwise to "IGNITE/LOW"
position, this will light the burner.
4. If the burner is lit, keep pressing down
HIGH
OFF
the control knob for 10 seconds before
releasing it.
5. If the burner is not lit, press down the
control knob and turn clockwise to "OFF"
position, repeat from step 3 after 5 minutes.
6. When burner is lit, turn the control knob to the desired heat output position between
"LOW" and "HIGH".
7. Press down and turn the control knob clockwise to "OFF" position to shut down the appliance.
Turn off cylinder gas valve.
Flame Characteristic
Normally the burner flame is yellow.
If the burner flame is blue and very small, please check the
gas cylinder, as it may be low gas pressure or empty. If there
is enough gas in the cylinder, please contact customer service
to change the burner of the gas fire pit.
If flames lift away from burner or backfire happens,or produce
thick black smoke, the fire pit should be turned off immediately.
The fire pit should not be operated again until the unit is serviced
and/or repaired by a qualified service technician.
9
R
Page 11
OPERATION
CAUTION:AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE.
SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL
APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30
MINUTES.THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE.
NOTE:
The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the control knob to the LOW
posion.Then,turn the knob to the level of heat desired.
Operation pressure checked:
If the flame is very small, this is because the supply pressure is
not enough. Please refill gas cylinder.
IGNITE/LOW
P
u
s
h
t
o
t
u
r
n
OFF
Re-light:
1) Turn the control knob to "OFF" position.
Wait five (5) minutes before attempting to relight appliance.
2)
3) Repeat steps beginning with step 3 of the lighting instruction.
Shut down instructions:
1) Push in and turn control knob clockwise to "OFF" position.
2)
Turn LP cylinder gas valve clockwise to OFF position when
appliance is not in use.
The Event of Gas Leakage:
1) Turn the control knob to "OFF" position.
2) Turn LP cylinder valve to "OFF" position.
3) Wait 5 minutes to allow gas to dissipate.
4) If odor continues, immediately call gas supplier.
WARNING : Gas appliance will be hot after use.
Handle with extreme care.
HIGH
HIGH
IGNITE/LOW
P
u
s
h
t
o
t
u
r
n
OFF
10
R
Page 12

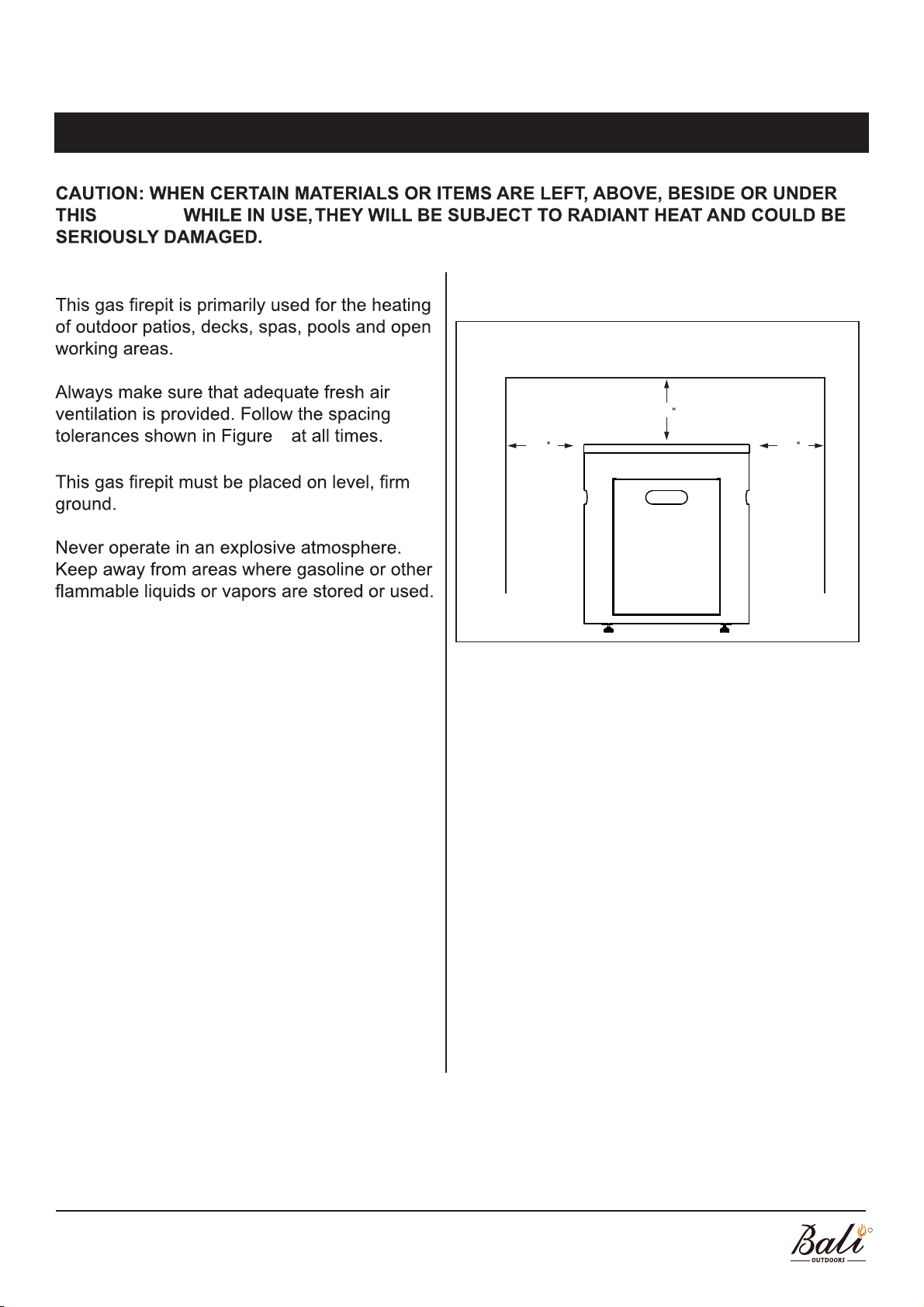

LOCATING HEATER FOR USE
FIRE PIT
58
7
36
36
Figure 7
11
R
Page 13
MAINTENANCE/STORAGE
CLEANING AND MAINTENANCE :
T
To enjoy years of outstanding performance from your
gas fire pit, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner dry at all times. If the gas control is
exposed to water in any way, do NOT try to use it. It
must be replaced.
Keep the appliance area free and clean from combustible
materials, gasoline and other flammable vapors and
liquids; not obstructing the flow of combustion and
ventilation air; keeping the ventilation opening(s) of the
cylinder enclosure free and clear from debris.
Check if there are cracks or worn sections on hose. If
yes, please call our customer service to replace hose.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
WARNING:
FOR YOUR SAFETY ;
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Allow all burner elements to cool
before touching.
NOTE:
In a salt-air environment (such as
near an ocean). corrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
Wait until gas appliance is cool before
covering.
Gas fire pit does NOT reach the desired temperature.
Gas fire pit glow is excessively uneven.
Gas fire pit makes popping noises.
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage gas fire pit and render
it unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away
smaller particles.
R
12
Page 14

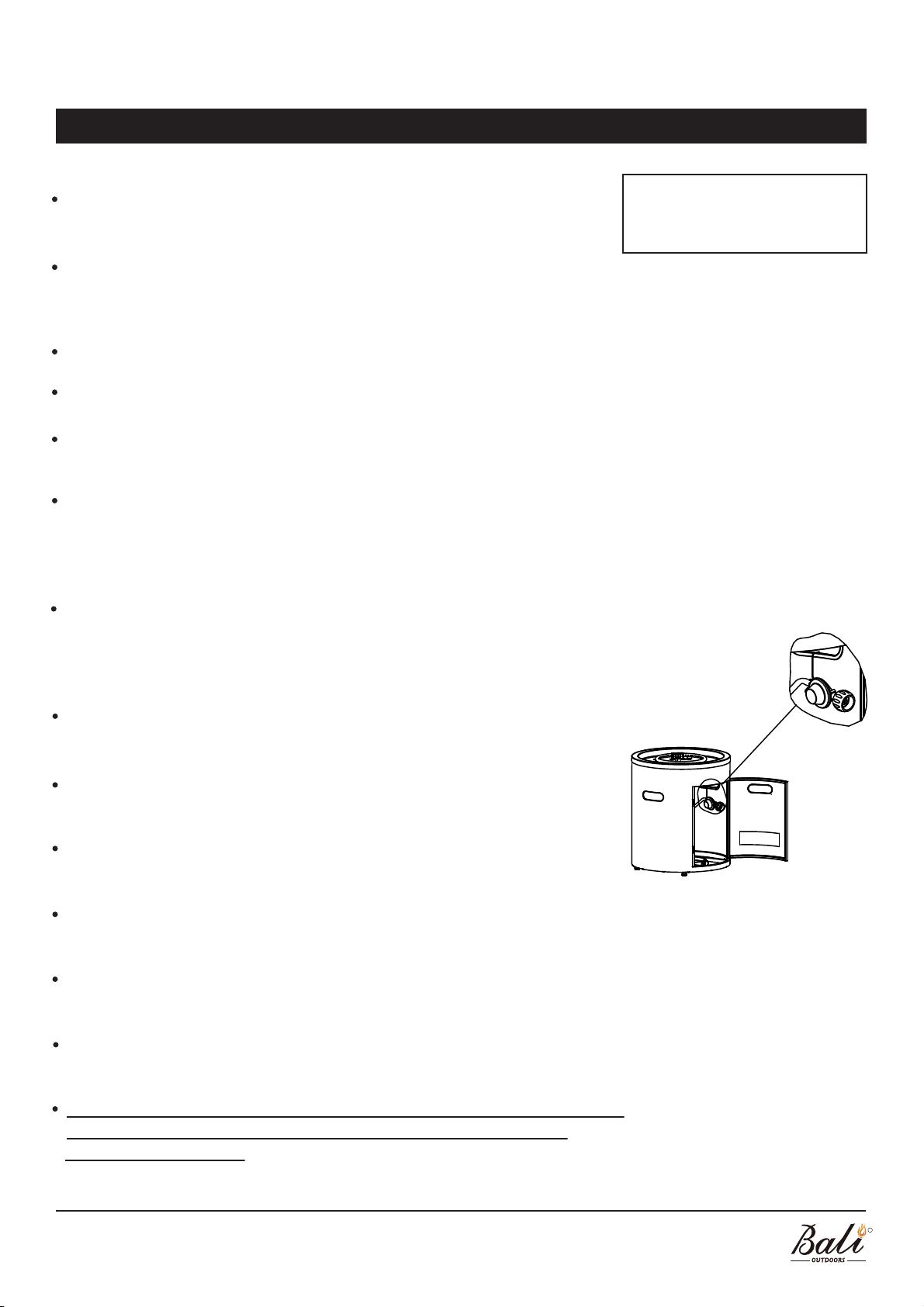

MAINTENANCE AND STORAGE
Store the fire pit indoors during the winter if it will be subjected to
freezing temperatures.
Disconnect and remove the cylinder from the appliance before the
appliance can be stored indoors.
STORAGE
Turn the control knob to "OFF" position.
Turn LP cylinder to OFF position.
Take out the battery from the battery compartment during
periods of extended inactivity or when transporting.
Allow at least 45 minutes for the tip erif to cool down after use,
and then turn regulator counterclockwise to disconnect the regulator
from cylinder, turn the cylinder clamp screw counterclockwise to
loose the cylinder and remove the cylinder.
Cylinder must be stored outdoors in a well-ventilated area out of
the reach of children. When the cylinder is disconnected, tightly
install the threaded valve plugs, and do not store it in a building,
garage or any other closed area.
NOTE:
Wait until the appliance is
cool before covering.
You may store product indoors ONLY if the cylinder is
disconnected and removed.
The regulator should be hung on the handle hole of gas fire pit
to prevent it from being damaged.
Keep the tip erif area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
If you are not using the tip erif cover it to protect exterior surfaces
and to help prevent build up in air passages.
Store gas fire pit in an area sheltered from direct contact with
A qualified service person should install and repair the fire pit and
inspect it annually.
It might be necessary to clean this fire pit freq
uently. You must
keep the control compartment, burner and circulating air
passageways clean.
.)sirbed dna tsud ,wons ,liah ,teels inclement weather (such as rai ,n
13
R
Page 15
TROUBLESHOOTING
14
PROBLEM
POSSIBLE CAUSE
CORRECTIVE MEASURES
OBSERVED
Gas odor
Delayed ignition
Gas leak
Low gas pressure
Clogged or dirty burner ports
Check all gas connections
Check gas supply pressure
Clean burner parts--see manual
"CLEANING AND MAINTENANCE" section
Incorrect burner
flame
Spent battery
Incorrect gas supply or pressure
Clogged or dirty burner ports
Change battery
Check gas supply pressure
Clean burner parts
WARRANTY INFORMATION
The appliance has been manufactured under the highest standards of quality and workmanship.
We warrant to the original consumer/purchaser that all aspects of this product will be free of defects
in material and workmanship for one (1) year from the date of purchase. A replacement for any
defective part will be supplied
caused by the use of other than
be effective from the date of
free of charge for installation by the consumer. Defects or damage
genuine parts are not covered by this warranty. This warranty shall
purchase as shown in the purchaser’s receipt.
This warranty is valid for the original consumer/purchaser only and excludes industrial, commercial
or business use of the product, product damage due to shipment or failure which results from alteration, product abuse, or product misuse, whether performed by a contractor, service company, or consumer. We will not be responsible for labor charges and/or damage incurred in installation, repair or
replacement, nor for incidental or consequential damage.
SHINERICH INDUSTRIAL LTD.
Addr.:8/F, Noble Center, 1006 Fuzhong 3rd. Rd,
Futian Distrct, Shenzhen, China
R
Page 16

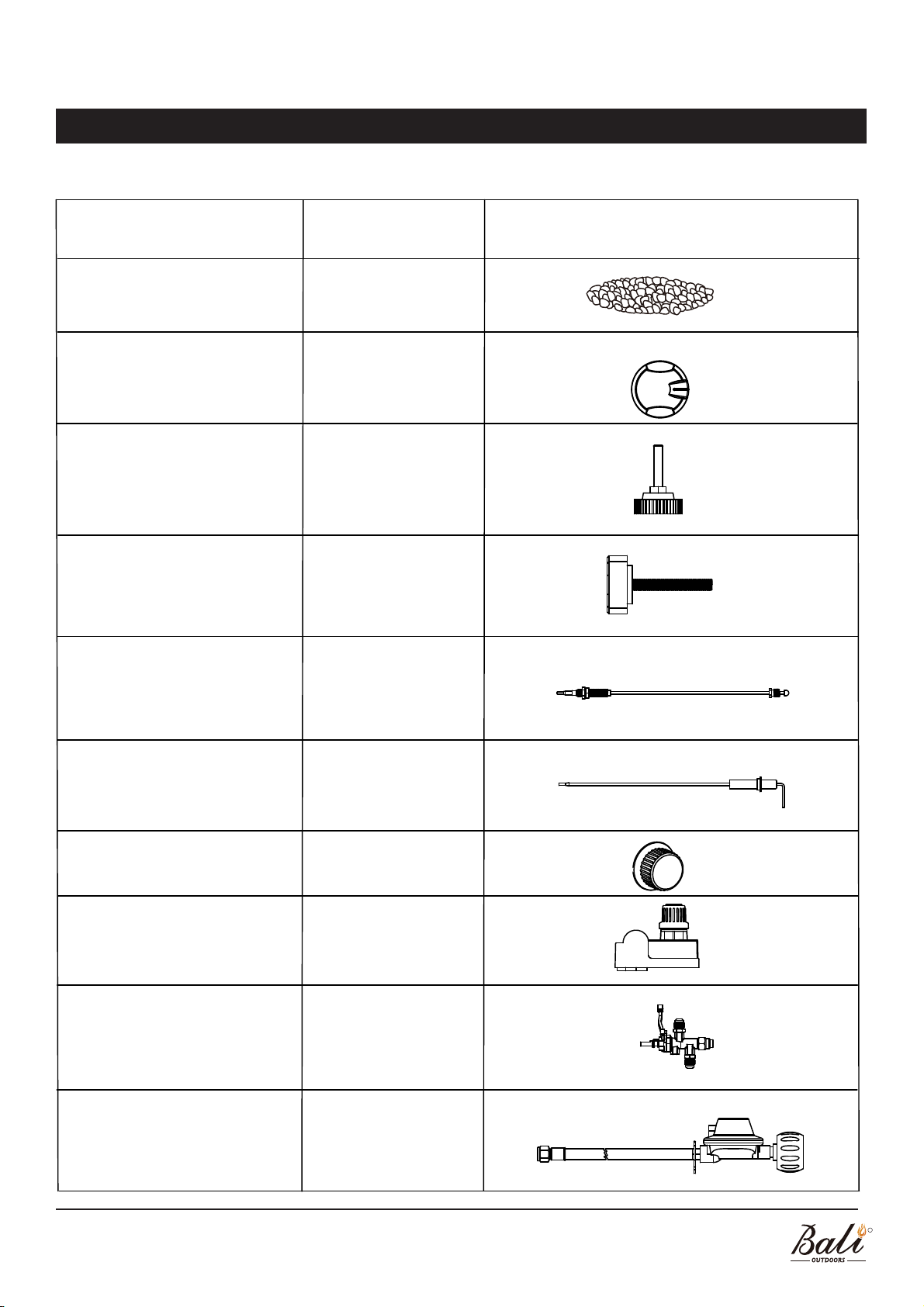

REPLACEMENT PARTS LIST
For replacement parts, please call our customer service department at
1-888-909-3888 or e-mail to [email protected].
PART DESCRIPTION QUANTITY
Glass Beads 1
Control Knob 1
Foot Stand
Cylinder Locking Bolt
4
1
Thermocouple
Ignition Pin
Battery Compartment Cap
Pulse Igniter
1
1
1
1
1Valve
Hose and Regulator
Asssembly
1
R
15
Loading...
