Product Information Packet
ZDBRPM18154C
15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
Part Detail
Revision: A Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: L3220A CD Diagram: 422927-001 Mfg Plant:
Mech. Spec: Layout: 617232-329 Poles: 04 Created Date: 04-10-2015
Base: Eff. Date: 08-27-2015 Leads:
Specs
Catalog Number: ZDBRPM18154C
Enclosure: TEBC
Frame: FL1844CZ
Frame Material: Aluminum
Output @ Frequency: 15.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
Agency Approvals: CCSA US
Auxillary Box: No Auxillary Box
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Current @ Voltage: 21.000 A @ 460.0 V
Duty Rating: CONT
Feedback Device: ENCODER
Frame Prefix: FL
Heater Indicator: No Heater
Insulation Class: H
Mounting Arrangement: F3
Page 2 of 15
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
Product Family: General Industrial
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Motor Standards: NEMA
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Page 3 of 15
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
Nameplate 000613006NS
DUTY HP RPM AMPS VOLTS HZ
CONT 15 1760 21 460 60
CONT 15 3660 19 460 125
CAT.NO. ZDBRPM18154C SPEC. NO. P18T0372
SER.NO FR FL 1844CZ INSUL H
PH. 3 MAX SAFE SPEED 7200 AMB. 40 MIN. AMB. -25
DESIGN NO. L3220A TYPE ENCL. TEAO-BC
S.F. 1.0 D.E. BRG. 45BC02JPP30A
ENCL MOD O.D.E. BRG. 35BC02JPP30A
Page 4 of 15
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
Parts List
Part Number Description Quantity
WS286779 WS P18T0372 1.000 EA
RA282987 RA P18T0372 1.000 EA
000613006NS RPM AC WITH CERTIFIED LOGO 1.000 EA
000692000FP NP, WARNING LIFT INSTRUCTIONS 1.000 EA
418057747A METAL FASTENER 8.000 EA
000692000NH LABEL DIRECTION AIR FL 1.000 EA
411716004A 219P039 - 219P039 - LA 1.000 EA
418056062A NP AC BLOWER DATA 1.000 EA
422927001 C/D LABEL 1.000 EA
032003168CB THRU BOLT 4.000 EA
033102012AG HXNUT LEAD CONN 4.000 EA
034017012AB LCKW 1/4 STD. PLATED 034017012AF 4.000 EA
036000050JB M8-1,25 X 50 MHHCS 2.000 EA
400638001D WAVEN ( Customer number 43699) 1.000 EA
411693051B LUG, LIFTING 2.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
807580002BAA BRKT,DE,FL181 807580-1WCC 1.000 EA
807580003AAB BRKT,ODE180AC 807580-1WCC 1.000 EA
032018010DK HHCS 1/2-13X1-1/4 PLATED 2.000 EA
036000012HB HHCS M6X12MM LONG PLATED 2.000 EA
036000012HB HHCS M6X12MM LONG PLATED 3.000 EA
036000045JB M8-1.25 X 45MM HXHCS 4.000 EA
036310010FB RHMS TERM/BLK MTG 2.000 EA
Page 5 of 15
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
Parts List (continued)
Part Number Description Quantity
036320008CB M2.5 SCREW 4.000 EA
036500006AB M4-0.7 METRIC HEX NUT 2.000 EA
036620009AB M8 EXTERNAL LK WASHER 1.000 EA
065530000B GASK 1.000 EA
075451000A COVER, CONDUIT BOX 1.000 EA
406673002C .75 CAP PLUG 2.000 EA
415000103G TLUG 1.000 EA
417733001A GSK C/ BOX BASE 2.000 EA
418010006A CAST,MPLATE,180-280,EX1,7BY 1.000 EA
418018074A GROUND LABEL G100 METRIC 160 D.C. 1.000 EA
418057169A LKNUT CAMER 1.000 EA
418057260A SCREW PHILLIPS PAN HD 4.000 EA
418057367A CLIP, BEI TACH 2.000 EA
418057373A SCREW SHEET METAL 3.000 EA
418057381A CONDUIT WASHER 1.000 EA
418057499A PLATE 1.000 EA
422962051BW STUB SHAFT 1.000 EA
607980192B RF,BEI,HS35,TWISTLOCK 1.000 EA
613450011A BLMTR SQ AC 210 1.000 EA
706320003A CONDUIT BOX 1.000 EA
807505050B SHROUD, FAN/BLOWER 1.000 EA
807505051A GRILL, FAN COVER 1.000 EA
418057243A GROOVE PIN 1.000 EA
807504052C FL180 FRAME 1.000 EA
Page 6 of 15
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
000640000P TAG WINDING THERMOST 1.000 EA
004824007K SPECIAL PAINT 0.100 EA
034180022FA KEY 3/8X3/8X2-3/4 L 1.000 EA
Page 7 of 15
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
L3220A
ISSUE DATE 2-13-20
AC MOTOR
PERFORMANCE
DATA
DATE:
APPROVED BY:
CHECKED BY:
DRAWN BY:
B. GRANT
B. GRANT
T. CUFR
3-7-06
TYPICAL DATA
REMARKS:
38.1
60
460
90
29.1
1706
0/L
20.7
60
460
45
15.0
1759
FULL LOAD
17.3
60
460
33
11.3
1770
3/4
14.4
60
460
22
7.50
1781
1/2
12.7
60
460
11
3.76
1791
1/4
11.7
60
460
0
0
1800
NO LOAD
AMPS
FREQ-HZ
FUND
VOLTS
TORQUE
LB-FT
HP
RPM
LOAD PERFORMANCE AT BASE SPEED
20.7
1.36
20.7
45
0
0
MIN SPEED
18.4
125
460
22
15.0
3657
MAX SPEED
20.7
60
460
45
15.0
1759
BASE SPEED
AMPS
FREQ-HZ
FUND
VOLTS
TORQUE
LB-FT
HP
RPM
RATED FULL LOAD DATA
22.9
XM
.645
WK² (Lb-Ft²)
40/H
AMB.°C / INSUL
3/60
PHASE/HZ
1.31
X2
.245
R2
.061/.776
P.F. @NL / FL
1.0
S.F.
1760
BASE SPEED
1.18
X1
.348
R1
12
IM (AMPS)
CONT
DUTY
15
HP
7200
MAX SAFE SPEED
21
AMPS
FL1844
FRAME
TEBC
ENCLOSURE
460
VOLTS
-
S/O
Printed on 02/13/2020 1:53 PM
USBAGRA
WYE CONN EQ CKT OHMS PER PHASE
(AT BASE RATING, 25°C)
Page 8 of 15
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
22.9
XM
.645
WK² (Lb-Ft²)
40/H
AMB.°C / INSUL
3/60
PHASE/HZ
1.31
X2
.245
R2
.061/.776
P.F. @NL / FL
1.0
S.F.
1760
BASE SPEED
1.18
X1
.348
R1
12
IM (AMPS)
CONT
DUTY
15
HP
7200
MAX SAFE SPEED
21
AMPS
FL1844
FRAME
TEBC
ENCLOSURE
460
VOLTS
-
S/O
0 400 800 1200 1600 2000 2400 2800 3200 3600 4000
MOTOR SHAFT SPEED IN RPM
0 40 80 120 160 200 240 280 320 360 400 440 480 520 560
FUNDAMENTAL VOLTS AT RATED LOAD (1)
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
RATED (2) & 1 MIN (3) TORQUE IN LB-FT
0 4 8 12 16 20 24 28 32 36 40 44 48 52 56
RATED (4) & 1 MIN (5) CURRENT IN AMPS
1
2
3
4
5
RATED SPEED AT 60 HZ

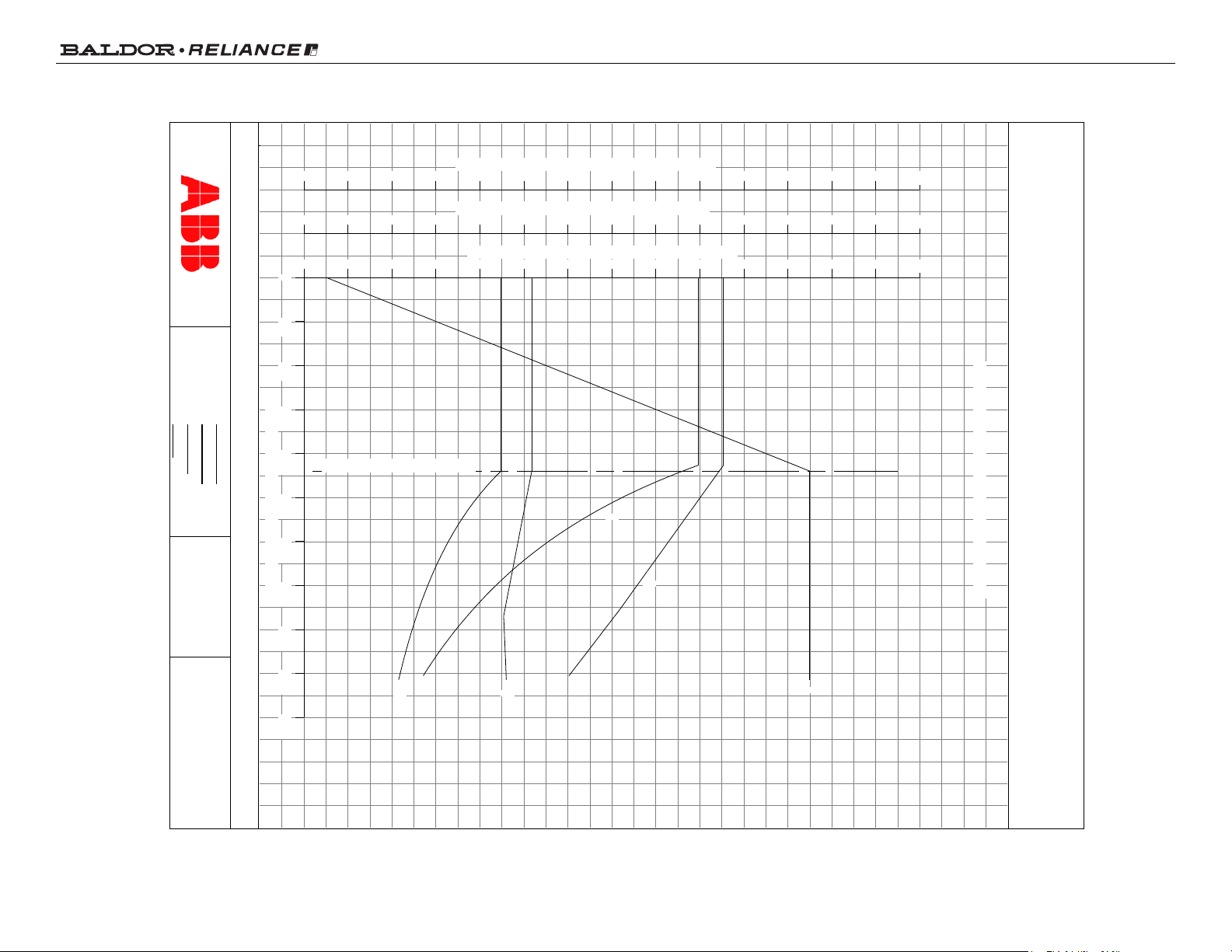

VARIABLE SPEED AC MOTOR CURVES
L3220A
ISSUE DATE: 2-13-20
AC MOTOR
PERFORMANCE
DATA
B. GRANT
B. GRANT
3-7-06
T. CUFR
DATE:
APPROVED BY:
CHECKED BY:
DRAWN BY:
TYPICAL DATA, DATA VALID FOR NAMEPLATE SPEED RANGE ONLY
Printed on 02/13/2020 1:53 PM
USBAGRA
WYE CONN EQ CKT OHMS PER PHASE
(AT BASE RATING, 25°C)
Page 9 of 15
Product Information Packet: ZDBRPM18154C - 15HP, 1750RPM,3PH,60HZ,1844C,TEBC,FOOT
22.9
XM
.645
WK² (Lb-Ft²)
40/H
AMB.°C / INSUL
3/60
PHASE/HZ
1.31
X2
.245
R2
.061/.776
P.F. @NL / FL
1.0
S.F.
1760
BASE SPEED
1.18
X1
.348
R1
12
IM (AMPS)
CONT
DUTY
15
HP
7200
MAX SAFE SPEED
21
AMPS
FL1844
FRAME
TEBC
ENCLOSURE
460
VOLTS
-
S/O
0 10 20 30 40 50 60 70 80 90 100 110 120
SHAFT TORQUE IN LB-FT
0 4 8 12 16 20 24 28 32 36 40 44 48 52 56
LINE AMPS (1)
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
SLIP RPM (2)
1
2
RATED
LOAD PERFORMANCE (CONSTANT V/HZ RANGE)
L3220A
ISSUE DATE: 2-13-20
AC MOTOR
PERFORMANCE
DATA
B. GRANT
B. GRANT
3-7-06
T. CUFR
DATE:
APPROVED BY:
CHECKED BY:
DRAWN BY:
TYPICAL DATA, DATA VALID FOR NAMEPLATE SPEED RANGE ONLY
Printed on 02/13/2020 1:53 PM
USBAGRA
