Product Information Packet
VM7044T-I
5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
Part Detail
Revision: R Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 36WGX864 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 36M654 Layout: 36LYM654 Poles: 04 Created Date: 12-03-2007 Base: N Eff. Date: 03-08-2016 Leads: 9#16
Specs
Catalog Number: VM7044T-I Enclosure: TEFC Frame: 184TC Frame Material: Steel Output @ Frequency: 3.000 HP @ 50 HZ
5.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1500 RPM @ 50 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: CSA
UL Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None
Heater Indicator: No Heater Insulation Class: F Inverter Code: Not Inverter KVA Code: K Lifting Lugs: No Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 16 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3638M Mounting Arrangement: F1 Power Factor: 80 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None
Base Indicator: N
RoHS Status: ROHS COMPLIANT
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 6.700 A @ 460.0 V
5.300 A @ 380.0 V
13.400 A @ 230.0 V
10.600 A @ 190.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None
Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
Nameplate NP0977XPSL
NO. CC 010A
SER. TEMP CODE T3C
SPEC. 36M654X864H1
CAT.NO. VM7044T-I
HP 5//3
VOLTS 230/460//190/380
AMPS 13.4/6.7//10.6/5.3
RPM 1750//1460 MOTOR WEIGHT 97 HERTZ 60//50 PH 3 CL F DE BRG 6206 SER.F. 1.15 DES B CODE K ODE BRG 6205
FRAME 184TC GREASE POLYREX EM
RATING 40C AMB-CONT
USABLE AT 208V NEMA-NOM-EFF 87.5 PF 80
NEMA MG-1 PT 5,IP55
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
Parts List
Part Number Description Quantity SA166506 SA 36M654X864H1 1.000 EA RA154882 RA 36M654X864H1 1.000 EA 37CB1005A02 CONDUIT BOX-MACH-EXPL.PROOF-GROUP "C"MTR 1.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA 06EP1709A19 FREP XPFC DRAIN,GROUP C (8.38 DIA. BC) 1.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA 36EP1703A17 PUEP - GROUP C & E, DRAIN (HW4506A02) 1.000 EA HA2009A81 SLINGER FOR GROUP E MTRS - 06 BRG. 1.000 EA 80XN0632J06 SET SCREW, 6-32 X 3/8", HEX SOCKET, AS 2.000 EA 51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA HW1001A10 WASHER, #10 SPLT LK, ZN X 2.000 EA HW4001A01 1/4 HX SOC PIPE PLG (F/S) ALLOY STEEL W/ 2.000 EA 60XN1032A07 10-32 X .4375 TRUSS HEAD, TORX SERRATED 2.000 EA 51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA 36FH3003 FAN COVER MACH 1.000 EA 51XW1032A08 10/32X1/2 HXWSHR HD, SL, SERATED 4.000 EA 37CB1502A01 CONDUIT BOX LID-MACH-EXPL.PROOF-GROUP "C 1.000 EA RM1020A42 O-RING, -154 BUNA-N, .103 CS X 3.737 ID 1.000 EA HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
Parts List (continued)
Part Number Description Quantity HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA LB1359F ALUM XP CAUTION LABEL 1.000 EA LB9002A50 CMC-5000 BRADY WIRE MARK 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB 36FN3000A01SP EXFN, PLASTIC, 7.00 OD, .912 ID 1.000 EA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA HA3105A09 THRUBOLT 3/8-16 X 12.000 4.000 EA LB1119N WARNING LABEL 1.000 EA LC0145B01 CONNECTION LABEL 1.000 EA NP0977XPSL SS XP UL CSA CC CL-I GP-C&D 1.000 EA G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA PK3082 STYROFOAM CRADLE 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
AC Induction Motor Performance Data
Record # 28859 - Typical performance - not guaranteed values
Winding: 36WGX864-R039 Type: 3638M Enclosure: XPFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection Rated Output (HP) 5//3 Full Load Torque 10.8 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 13.4/6.7//10.6/5.3 Breakdown Torque 49.5 LB-FT R.P.M. 1750//1460 Pull-up Torque 30 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 37.7 LB-FT NEMA Design Code B KVA Code K Starting Current 49.1 A Service Factor (S.F.) 1.15 No-load Current 3.13 A NEMA Nom. Eff. 87.5 Power Factor 80 LinelineRes.@25ºC 2.49Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 42°C S.F. Amps Temp. Rise @ S.F. Load 49°C
Locked-rotor Power Factor 46
Rotor inertia 0.356 LB-FT2
Load Characteristics 380 V, 50 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 34 54 67 74 79 81 77 Efficiency 77.4 85.2 87.2 87.3 86.4 85.3 86.8 Speed 1493 1484 1475 1465 1455 1442 1459 Line amperes 3.29 3.75 4.44 5.28 6.19 7.24 5.83
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC

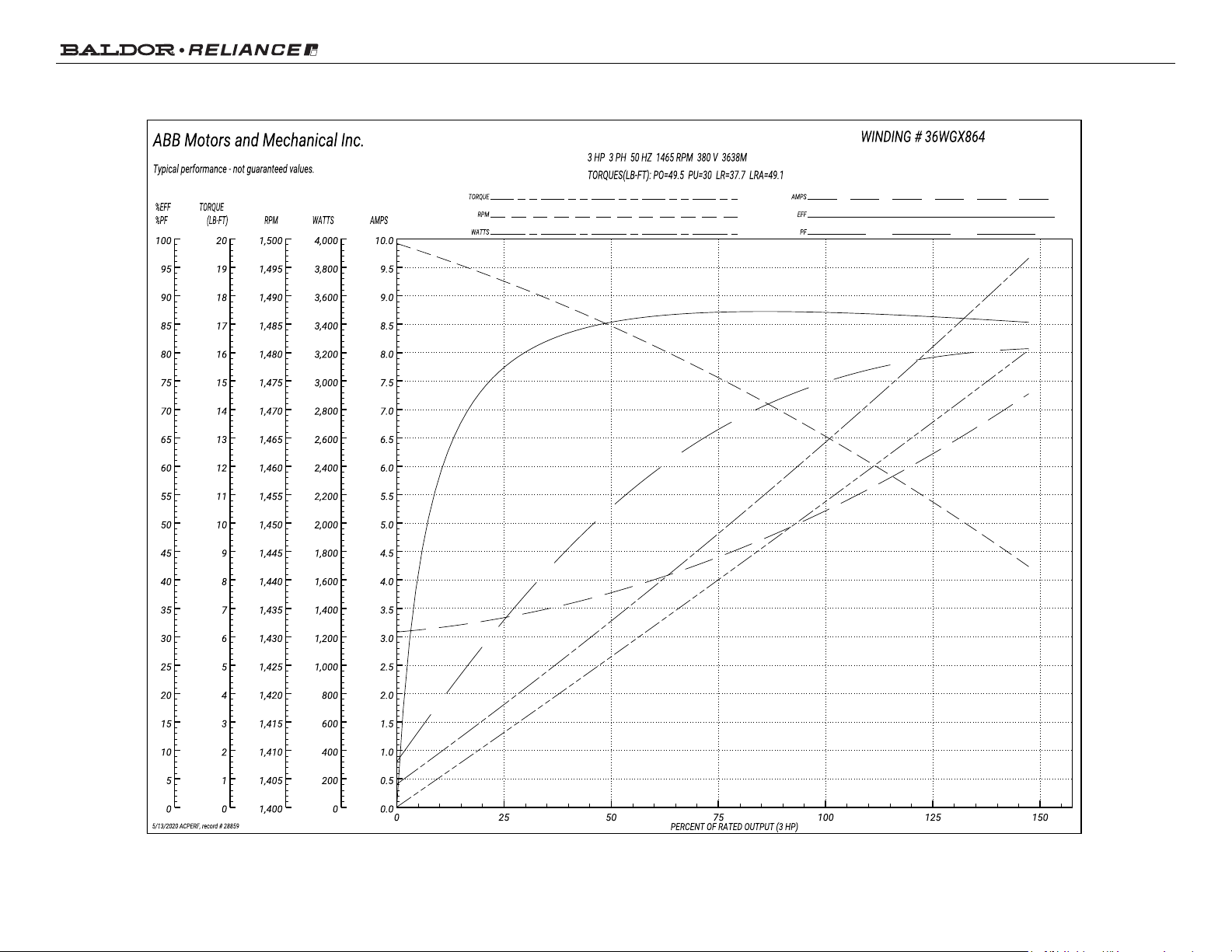

Performance Graph at 380V, 50Hz, 3.0HP Typical performance - Not guaranteed values
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
AC Induction Motor Performance Data
Record # 30559 - Typical performance - not guaranteed values
Winding: 36WGX864-R039 Type: 3638M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 5//3 Full Load Torque 15 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 13.4/6.7//10.6/5.3 Breakdown Torque 55.1 LB-FT R.P.M. 1750//1460 Pull-up Torque 20.7 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 39.3 LB-FT NEMA Design Code B KVA Code K Starting Current 53 A Service Factor (S.F.) 1.15 No-load Current 2.98 A NEMA Nom. Eff. 87.5 Power Factor 80 LinelineRes.@25ºC 2.49Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 64°C S.F. Amps Temp. Rise @ S.F. Load 78°C
Locked-rotor Power Factor 41
Rotor inertia 0.356 LB-FT2
Load Characteristics 460 V, 60 Hz, 5 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 43 66 77 82 85 86 84 Efficiency 80.8 87 88 87.5 86.3 84.6 86.8 Speed 1788 1777 1765 1751 1737 1722 1743 Line amperes 3.31 4.08 5.17 6.5 7.92 9.57 7.35
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC

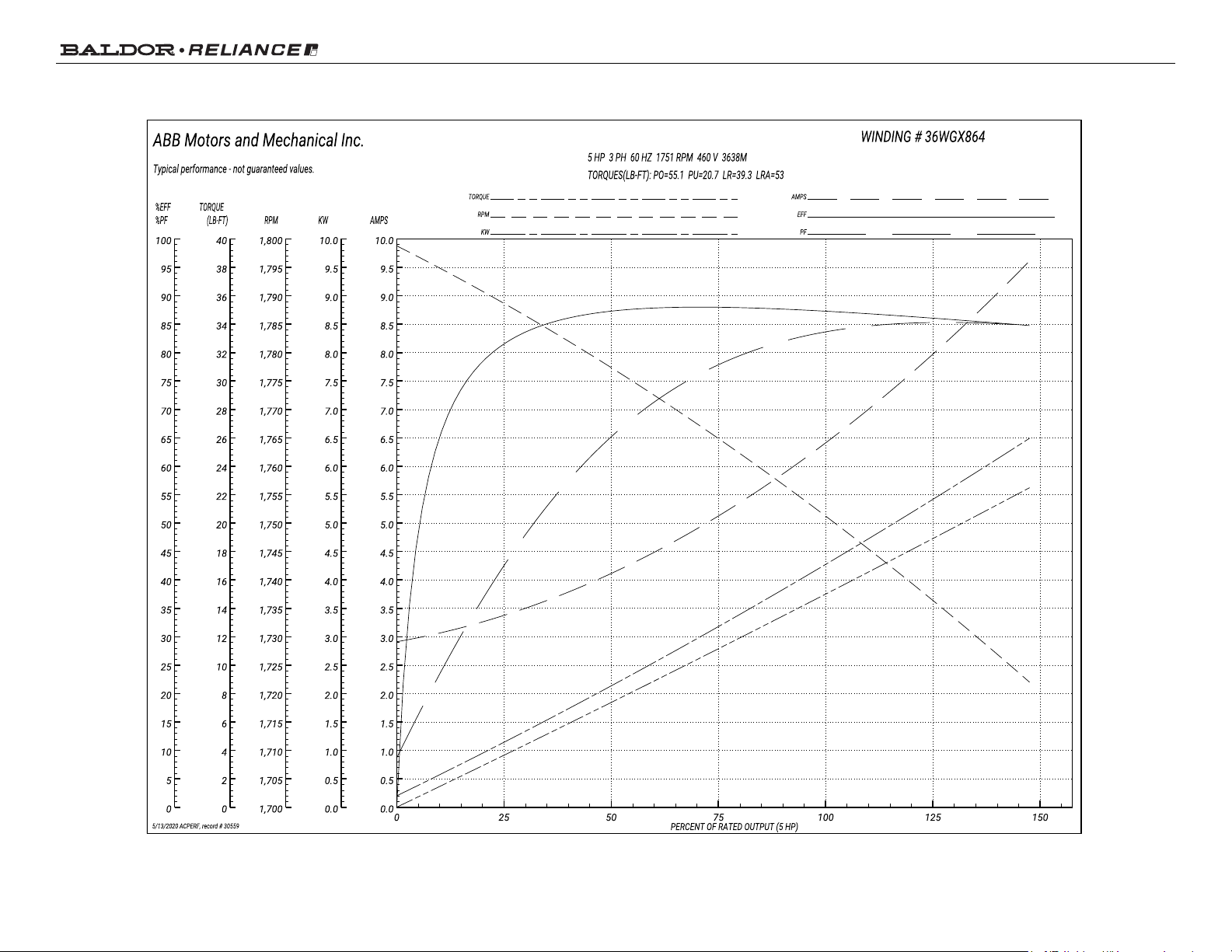

Performance Graph at 460V, 60Hz, 5.0HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
Page 11 of 12
Product Information Packet: VM7044T-I - 5//3HP,1750//1460RPM,3PH,60//50HZ,184TC
Page 12 of 12
