Product Information Packet
VLCP3661T
3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Part Detail
Revision: N Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 06WGW385 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 06F063 Layout: 06LYF063 Poles: 04 Created Date: 06-19-2010 Base: N Eff. Date: 03-08-2016 Leads: 9#16
Specs
Catalog Number: VLCP3661T Enclosure: TEFC Frame: 182LP Frame Material: Iron Output @ Frequency: 3.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: CSA
UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: N Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Insulation Class: F Inverter Code: Not Inverter KVA Code: K Lifting Lugs: Vertical Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 16 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0628M Mounting Arrangement: F1 Power Factor: 78 Product Family: Chemical Processing (Not DC) Pulley End Bearing Type: Thrust Pulley Face Code: P-Base Pulley Shaft Indicator: P-Base Groove & Key Rodent Screen: None Shaft Extension Location: Pulley End
Current @ Voltage: 4.100 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
8.200 A @ 230.0 V
8.500 A @ 208.0 V Design Code: B Drip Cover: Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Nameplate NP1258E
CAT.NO. VLCP3661T
SPEC. 06F063W385H1
HP 3
VOLTS 208-230/460
AMP 8.5-8.2/4.1 RPM 1750
FRAME 182LP HZ 60 PH 3
SER.F. 1.15 CODE K DES B CL F
NEMA-NOM-EFF 87.5 PF 78
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 8.5 DE QJ307 ODE 6206
ENCL TEFC SN
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Nameplate NP0090E
FRONT 6206
PULLEY QJ307
LUBRICATE WITH
GREASE POLYREX EM
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Parts List
Part Number Description Quantity SA199283 SA 06F063W385H1 1.000 EA RA186619 RA 06F063W385H1 1.000 EA 09CB1501A05G CONDUIT BOX, 1.00 NPT @6,(GRAY)(AQUA AER 1.000 EA RM1016 LEAD SEPARATOR GASKET - 305/306 C.P.MOTO 1.000 EA 51XW2520A12 SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75 2.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 2.000 EA 10XN2520G06 1/4 20X3/8 HX HD CAP, GREEN 2.000 EA HW1001S25 WASHER, 1/4 SPLT LK, STAINLESS STEEL 1.000 EA 36EP1100A25G FREP ENCL. 206 BRG.,GRSR,REL,#26 DRAIN(G 1.000 EA HW4500A32 FIT./EXT 1698-B (ALEMITE)GREASE FITTING 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA 36EP1505A02G SPL PU E.P. - ENCL.- 307 BRG - NEMA 182L 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA 12XN1032S22 10-32 X 1 3/8 SLOT HEX, STAINLESS STEEL 2.000 EA 10XN2520S48 1/4-20 X 3 HEX HEAD SS 2.000 EA HA3101S46 THRUBOLT- 1/4-20 X 10.00 SS 4.000 EA 51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA 10XN2520S26 1/4-20X 1 5/8 HEX HD SS 3.000 EA HW1001S25 WASHER, 1/4 SPLT LK, STAINLESS STEEL 3.000 EA 06FH1004A26G FAN HOUSING MACH, W/GREASER AND DRIP CVR 1.000 EA 39FH4500A03G DRIP COVER, STAMPED (GRAY EPOXY) 1.000 EA XY3816S12 3/8-16 HEX FINISHED NUT SS 2.000 EA
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Parts List (continued)
Part Number Description Quantity HW1001S38 WASHER, 3/8 SPLT LK, STAINLESS STEEL 2.000 EA HA3400S09 STUD-3/8-16 X 2.75 4.000 EA HW1001S38 WASHER, 3/8 SPLT LK, STAINLESS STEEL 4.000 EA HW3208S01 3/8-16 EYE NUT 2.000 EA HW1001S38 WASHER, 3/8 SPLT LK, STAINLESS STEEL 2.000 EA 09CB1504A01G LIPPED CONDUIT BOX LID, MACH GRAY EPOXY 1.000 EA 09GS1001A01 GASKET, BOX LID, 1/8 THICK BLACK NEOPREN 1.000 EA 10XN2520S12 BOLT 1/4 - 20X 3/4 HEX HEAD SS (F/S) 2.000 EA HW1001S25 WASHER, 1/4 SPLT LK, STAINLESS STEEL 2.000 EA HW4600B36SP V-RING SLINGER 1.188 X 1.690 X .24 VITON 1.000 EA HW4600B33 V-RING SLINGER 1.375 X 1.890 X .35 VITON 1.000 EA HW2502E16 #303 SS,SQ KEY 1/4 X 1.750 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1025N19 WILKOFAST, 778.50, RELIANCE BLUE-GREEN 0.028 GA 36FN3000A01SP EXFN, PLASTIC, 7.00 OD, .912 ID 1.000 EA LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA NP1258E SS CP UL CSA CC 1.000 EA NP0090E SS NO LOGO'S BEARING & GREASE DATA 1.000 EA G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA PK3082 STYROFOAM CRADLE 1.000 EA
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
PK6503 STRUCTURAL WOOD PSC 1X6X8 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
AC Induction Motor Performance Data
Record # 438 - Typical performance - not guaranteed values
Winding: 06WGW385-R005 Type: 0628M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 3 Full Load Torque 8.9 LB-FT Volts 208-230/460 Start Configuration direct on line Full Load Amps 8.5-8.2/4.1 Breakdown Torque 33 LB-FT R.P.M. 1750 Pull-up Torque 17.8 LB-FT Hz 60 Phase 3 Locked-rotor Torque 22 LB-FT NEMA Design Code B KVA Code K Starting Current 32.4 A Service Factor (S.F.) 1.15 No-load Current 2.2 A NEMA Nom. Eff. 87.5 Power Factor 78 LinelineRes.@25ºC 4.28Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 36°C S.F. Amps Temp. Rise @ S.F. Load 42°C
Locked-rotor Power Factor 44
Rotor inertia 0.263 LB-FT2
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 38 59 71 78 80 81 79 Efficiency 78.4 86.1 87.8 88.1 87.4 86.1 87.7 Speed 1793 1783 1774 1764 1752 1738 1757 Line amperes 2.4 2.8 3.4 4.1 5 5.9 4.6
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 10 of 14
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
AC Induction Motor Performance Data
Record # 20664 - Typical performance - not guaranteed values
Winding: 06WGW385-R005 Type: 0628M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 3 Full Load Torque 8.9 LB-FT Volts 208-230/460 Start Configuration direct on line Full Load Amps 8.5-8.2/4.1 Breakdown Torque 33 LB-FT R.P.M. 1750 Pull-up Torque 17.8 LB-FT Hz 60 Phase 3 Locked-rotor Torque 22 LB-FT NEMA Design Code B KVA Code K Starting Current 32.4 A Service Factor (S.F.) 1.15 No-load Current 2.2 A NEMA Nom. Eff. 87.5 Power Factor 78 LinelineRes.@25ºC 4.28Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 36°C S.F. Amps Temp. Rise @ S.F. Load 42°C
Locked-rotor Power Factor 44
Rotor inertia 0.263 LB-FT2
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 38 59 71 78 80 81 79 Efficiency 78.4 86.1 87.8 88.1 87.4 86.1 87.7 Speed 1793 1783 1774 1764 1752 1738 1757 Line amperes 2.4 2.8 3.4 4.1 5 5.9 4.6
Page 11 of 14
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 12 of 14

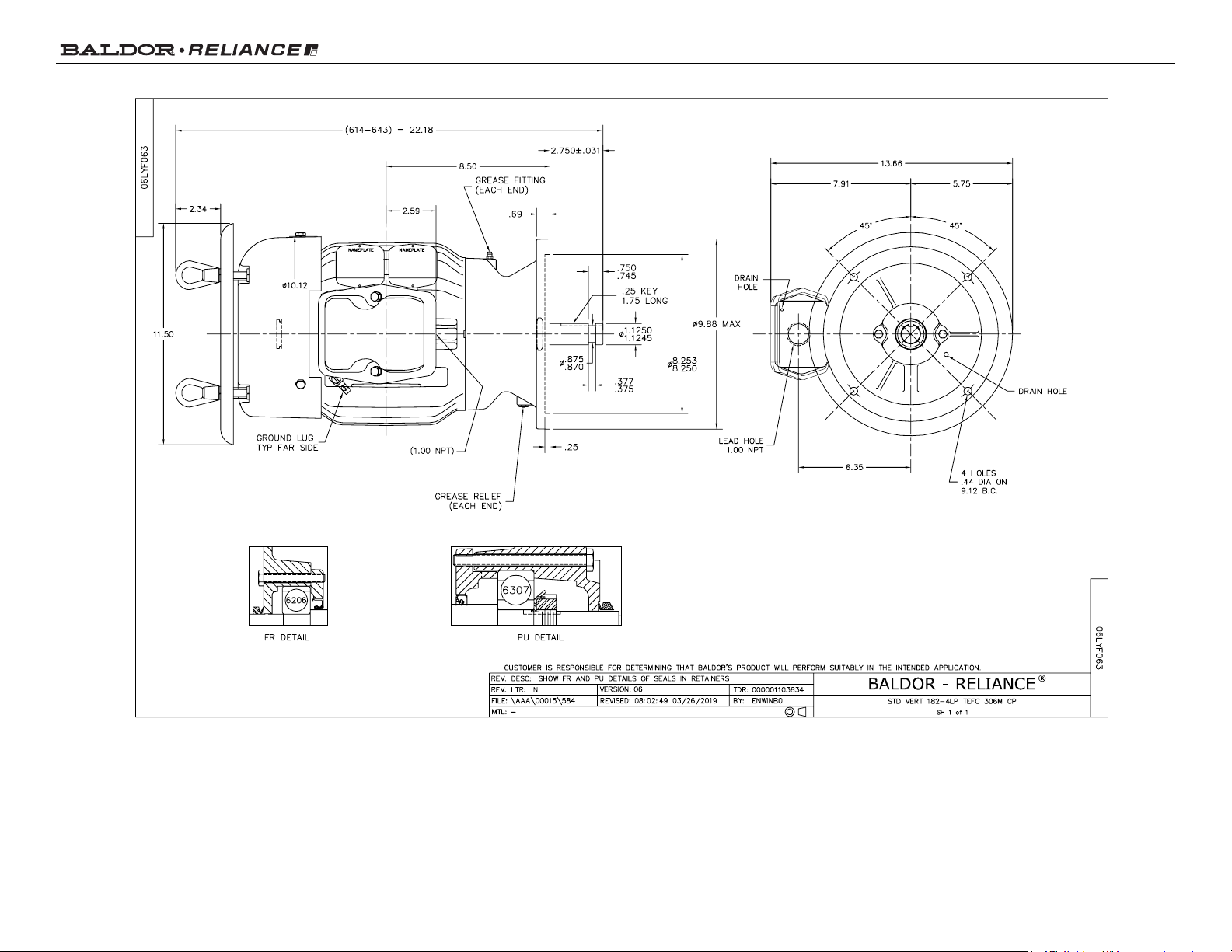

Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Page 13 of 14
Product Information Packet: VLCP3661T - 3HP,1750RPM,3PH,60HZ,182LP,0628M,TEFC,F1
Page 14 of 14
