Baldor VHM3313T Product Information Sheet

Download
Product Information Packet
VHM3313T
10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
Part Detail
Revision: N Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 07WGX761 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 07K218 Layout: 07LYK218 Poles: 04 Created Date: Base: N Eff. Date: 03-08-2016 Leads: 9#14
Specs
Catalog Number: VHM3313T Enclosure: ODP Frame: 215HP Frame Material: Iron Output @ Frequency: 10.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: N Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater Insulation Class: F Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Vertical Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 14 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0733M Mounting Arrangement: F1 Power Factor: 80 Product Family: Weather Proof Pulley End Bearing Type: Ball Pulley Face Code: P-Base Pulley Shaft Indicator: P-Base Groove & Key Rodent Screen: None
Blower: None
Shaft Extension Location: Pulley End
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
Current @ Voltage: 13.000 A @ 460.0 V
26.000 A @ 230.0 V
27.500 A @ 208.0 V Design Code: B Drip Cover: Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
Nameplate NP1261L
CAT.NO. VHM3313T
SPEC. 07K218X761H1
HP 10
VOLTS 208-230/460
AMP 27.5-26/13 RPM 1760
FRAME 215HP HZ 60 PH 3
SER.F. 1.15 CODE H DES B CLASS F
NEMA-NOM-EFF 89.5 PF 80
RATING 40C AMB-CONT
CC 010A USABLE AT 208V DE 6309 ODE 6206
ENCL ODP SN
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
Parts List
Part Number Description Quantity SA123945 SA 07K218X761H1 1.000 EA RA114399 RA 07K218X761H1 1.000 EA HW3201A05 3/8-16 EYEBOLT 1.000 EA 09CB3002A19 CB MACH - 1.50 N.P.T. LEAD HOLE 1.000 EA 09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA 10XN2520A12 1/4-20 X 3/4 HEX HEAD CAP 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA HW2501E17 .250 SQUARE X 1.875 LONG LOW CARBON STEE 1.000 EA 07EP1200A01 FRONT END PLATE,MACH 1.000 EA 07AD2000 AIR DEFLECTOR, 307 OPEN P-BASE 1.000 EA 51XT0832A08 8-32 X 1/2 TY23 HXWS SLDSR 3.000 EA HW1001A08 WASHER, #8 SPLT LK, ZN 3.000 EA 10XN3816A60 3/8-16 X 3-3/4 HEX HD CAPSCREW,GRADE 2,Z 2.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 2.000 EA 09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA 07EP1505A02 SPL PU E.P. MACH, W/6309 BRG. 1.000 EA HW4600B53 SEAL 1.688 X 2.275 X 0.312 SINGLE LIP DB 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
Parts List (continued)
Part Number Description Quantity HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA 10XN2520A56 1/4-20X 3 1/2 HEX HD CAP X 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA HW4600B44 V-RING SLINGER 1.500 X 1.810 X .28 VITON 1.000 EA 07FH1500A01 DRIP COVER 307 OPEN P-BASE MTRS 1.000 EA HW3201A10 .38-16 EYEBOLT W/4.50 SHANK 2.000 EA HW1000A38 WASHER, 3/8" FLAT, SAE Z/P 2.000 EA 10XN3816A44 3/8-16 X 2 3/4 HEX HD CAP SCREW 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1386 WARNING LABEL FOR MOTORS WITH EYENUTS 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1025N19 WILKOFAST, 778.50, RELIANCE BLUE-GREEN 0.036 GA LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA NP1261L SS, UL CSA CC, W/O THERMAL, LASER 1.000 EA 07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA 10XL3808A28 3/8 X 1 3/4" LAG SCREW 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
AC Induction Motor Performance Data
Record # 16600 - Typical performance - not guaranteed values
Winding: 07WGX761-R001 Type: 0736M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 10 Full Load Torque 29.79 LB-FT Volts 208-230/460 Start Configuration direct on line Full Load Amps 27.5-26/13 Breakdown Torque 120 LB-FT R.P.M. 1760 Pull-up Torque 46.79 LB-FT Hz 60 Phase 3 Locked-rotor Torque 65.51 LB-FT NEMA Design Code B KVA Code H Starting Current 88.79 A Service Factor (S.F.) 1.15 No-load Current 6.07 A NEMA Nom. Eff. 89.5 Power Factor 80 LinelineRes.@25ºC 1.22Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 73°C S.F. Amps Temp. Rise @ S.F. Load 87°C
Locked-rotor Power Factor 38.8
Rotor inertia 0.885 LB-FT2
Load Characteristics 460 V, 60 Hz, 10 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 42 64 75 81 83 84 81 Efficiency 84.1 89 89.9 89.5 88.5 86.6 88.8 Speed 1789 1779 1770 1760 1748 1734 1752 Line amperes 6.67 8.24 10.41 12.84 15.88 19.17 14.8
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1

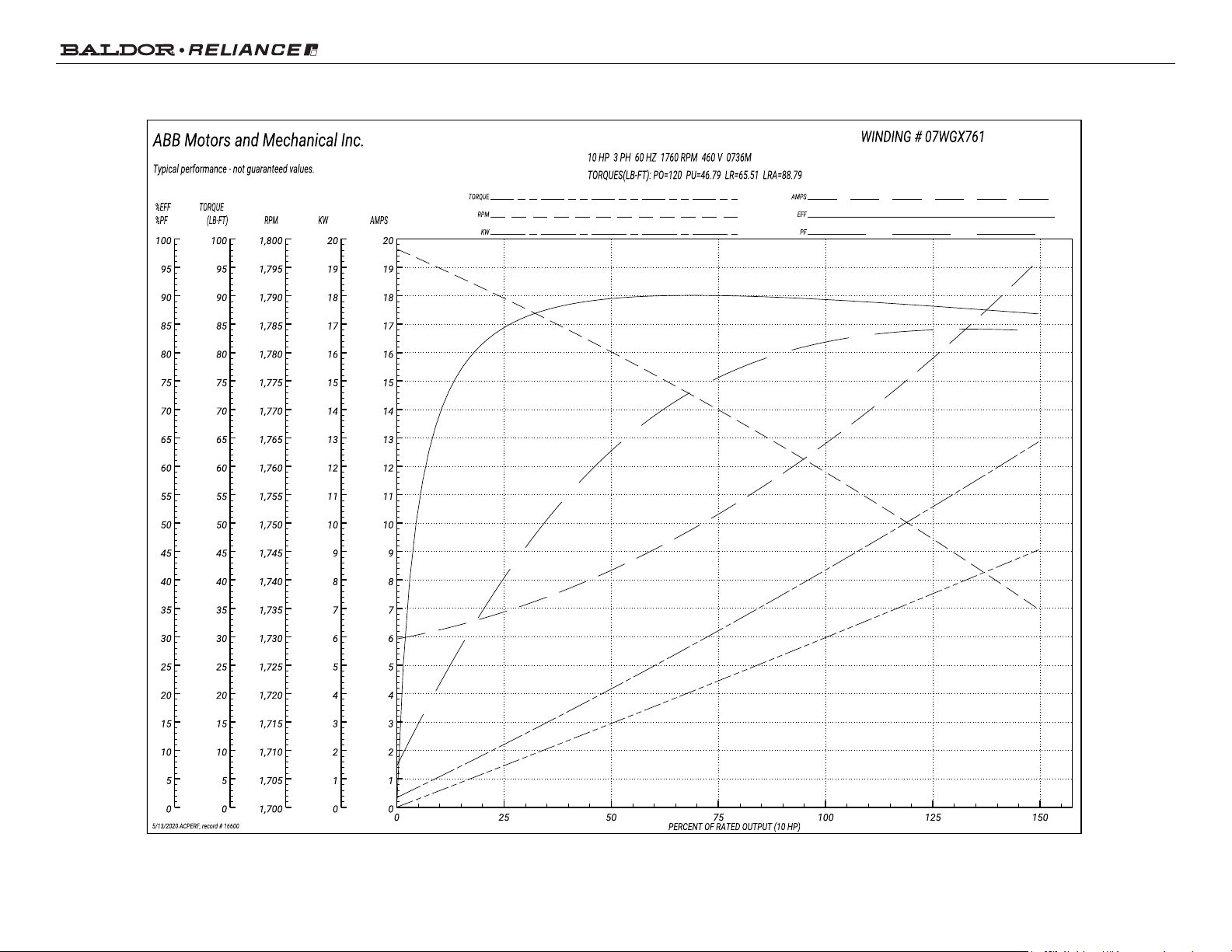

Performance Graph at 460V, 60Hz, 10.0HP Typical performance - Not guaranteed values
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
Product Information Packet: VHM3313T - 10HP,1760RPM,3PH,60HZ,215HP,0736M,ODP,F1
Page 10 of 10
