Baldor VHECP2334T Product Information Sheet

Download
Product Information Packet
VHECP2334T
20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
Part Detail
Revision: D Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 09WGT459 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 09G604 Layout: 09LYG604 Poles: 04 Created Date: 11-20-2017 Base: N Eff. Date: 03-10-2020 Leads: 9#10
Specs
Catalog Number: VHECP2334T Enclosure: TEFC Frame: 256HP Frame Material: Iron Output @ Frequency: 20.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
CSA EEV
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: No Mounting Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Ready KVA Code: J Lifting Lugs: Vertical Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 10 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0960M Mounting Arrangement: F1 Power Factor: 83 Product Family: Super-E Chemical Processing Pulley End Bearing Type: Ball Pulley Face Code: P-Base Pulley Shaft Indicator: P-Base Groove & Key Rodent Screen: None
Blower: None
Shaft Extension Location: Pulley End
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
Current @ Voltage: 24.000 A @ 460.0 V
48.000 A @ 230.0 V
52.000 A @ 208.0 V Design Code: A Drip Cover: Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
Nameplate NP1260E
CAT.NO. VHECP2334T
SPEC. 09G604T459
HP 20
VOLTS 230/460
AMP 48/24 RPM 1770
FRAME 256HP HZ 60 PH 3
SER.F. 1.15 CODE J DES A CL F
NEMA-NOM-EFF 93 PF 83
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 52 DE 6311 ODE 6208
ENCL TEFC SN
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
Parts List
Part Number Description Quantity SA348033 SA 09G604T459 1.000 EA RA336591 RA 09G604T459 1.000 EA 09FN3001D01SP EXTERNAL FAN, PLASTIC 1.000 EA 09CB1002A13P KOBX W/1.50 NPT LEAD HL,2.38 MTG HL PATT 1.000 EA 09GS1010 GASKET, DWG, LEADWIRE SEPERATOR 1.000 EA 10XN2520K12 1/4-20 X.75 GRD 5 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA HA3400A33 STUD- 3/8-16 X 4.82 HEX WELKER 4.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 10XN2520K12 1/4-20 X.75 GRD 5 1.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 1.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW4600B44 V-RING SLINGER 1.500 X 1.810 X .28 VITON 1.000 EA HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA 10XN2520K28 1/4-20 X 1.75" HX HD SCRWGRADE 5, ZINC P 2.000 EA 10XN3118K56 5/16-18 X 3.50" HEX HD, GRADE 5 4.000 EA 10XN3816K24 3/8-16 X 1.50 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW4600E45 CR#20599 DBL LIP VITON SEAL 2.063 I.D. 1.000 EA HW4600B40 V-RING SLINGER 2.000 X 2.680 X .28 VITON 1.000 EA 09FH1000A11P FAN COVER, MACH P-BASE W/EPOXY PRIMER 1.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA HA6387 SPL EYE BRACKET 309-10 FRCR. STEEL P-BAS 2.000 EA
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
Parts List (continued)
Part Number Description Quantity 10XN3816K20 3/8-16 X 1.25 HEX HD CAP GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA 09FH1500A01P DRIP COVER, MACH W/EPOXY PRIMER 1.000 EA 10XN2520K30 STD.25X20 THD HEX HD CAP SCREW, GRADE 5 4.000 EA HW1000A25 1/4 SAE FLAT WASHER (FS) 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA 12CB1503P CONDUIT BOX LID, CAST W/EPOXY PRIMER 1.000 EA 12GS1002 GASKET, CONDUIT BOX LID, NEOP 1.000 EA 10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 2.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 2.000 EA HW2501E18 KEY, 1/4 SQ X 2.000 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.031 QT MJ5001A14 DYNAPRO SEALANT, CP MTR VC#2508050 (603 0.023 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1002N LABEL,MARINE DUTY (ON ROLLS) 1.000 EA LB1182 WARNING LABEL FOR MOTORS WITH EYENUTS 2.000 EA PK6014 STEEL STRAP FOR 309-312 BASELESS MOTORS 3.000 EA 19XW3118A08 .31-18 X .50 HEX WASHER HEAD TAPTITE II 3.000 EA 09EP1100A28GP6 ENDPLATE,MACH,PRIMED, W/RELIANCE GREEN 1.000 EA HW4500A05 1669B ALEM/UNIV860 GR FTG X 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
09EP1505A11P PU ENDPLATE ENCL 213 BRG 309 254-256LP, 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1025N19 WILKOFAST, 778.50, RELIANCE BLUE-GREEN 0.050 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP1260E SS CP SUPER-E UL CSA CC 1.000 EA 40PA1014 PACKAGING GROUP, 09 NO BASE 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
AC Induction Motor Performance Data
Record # 67948 - Typical performance - not guaranteed values
Winding: 09WGT459-R001 Type: 0960M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 20 Full Load Torque 59.27 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 48/24 Breakdown Torque 232 LB-FT R.P.M. 1770 Pull-up Torque 126 LB-FT Hz 60 Phase 3 Locked-rotor Torque 141 LB-FT NEMA Design Code A KVA Code J Starting Current 198 A Service Factor (S.F.) 1.15 No-load Current 10.4 A NEMA Nom. Eff. 93 Power Factor 83 LinelineRes.@25ºC 0.33814Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 58°C S.F. Amps Temp. Rise @ S.F. Load 70°C
Locked-rotor Power Factor 26.9
Load Characteristics 460 V, 60 Hz, 20 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 45 67 78 83 86 87 85 Efficiency 89.2 93 93.7 93.6 93.1 92.4 93.3 Speed 1793.2 1786.4 1779.1 1771.9 1763.7 1755.3 1767 Line amperes 11.8 15 19.2 24 29.3 34.9 27.2
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F

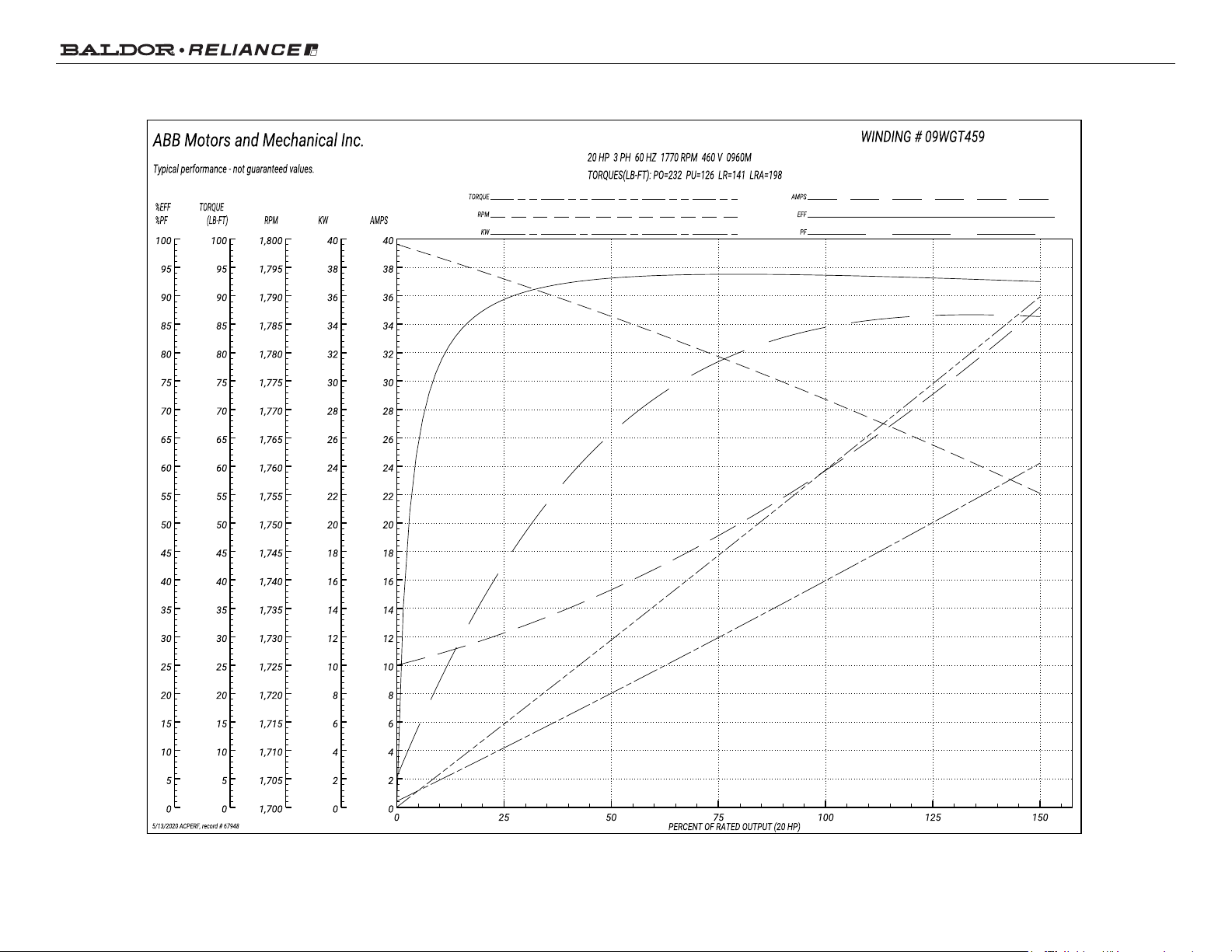

Performance Graph at 460V, 60Hz, 20.0HP Typical performance - Not guaranteed values
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
13 25
26 11
10 84
2 746± 031
68
750 745
377 375
1 1250 1 1245
875 870
8 253 8 250
9 87
(MAX)
25
2 74
GREASER &
RELIEF
(EA END)
31-18 TAP
GND LOC
250 KEY
2 00 LONG
(920 - 956 2 POLE)
(920 - 960 4 6 & 8 POLE)
SLINGER
NAMEPLATE
8 31
6 06
45° 45°
10 30 6 63
12 98
9 99
2 70
4 HOLES Ø 44 ON Ø9 12 B C
LEAD HOLE
1 50 N P T
DRAIN
HOLE
DRAIN
HOLE
PUEP SEAL DETAIL
HW4600E45
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
09LYG604
B
VERT TEFC 254-6HP ECP W/6311 PU BRG
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
09LYG604
LOAD DRAWING TO SOLIDWORKS
ENALEM0
J
07 47 24 02/12/2020
-
000001132140
09
09LYG604
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 10 of 12
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
Page 11 of 12
Product Information Packet: VHECP2334T - 20HP,1770RPM,3PH,60HZ,256HP,0960M,TEFC,F
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
Page 12 of 12
