Baldor VEM3774T Product Information Sheet

Product Information Packet

VEM3774T

10HP,1760RPM,3PH,60HZ,215TC,0748M,TEFC,F

Product Information Packet: VEM3774T - 10HP,1760RPM,3PH,60HZ,215TC,0748M,TEFC,F

Part Detail

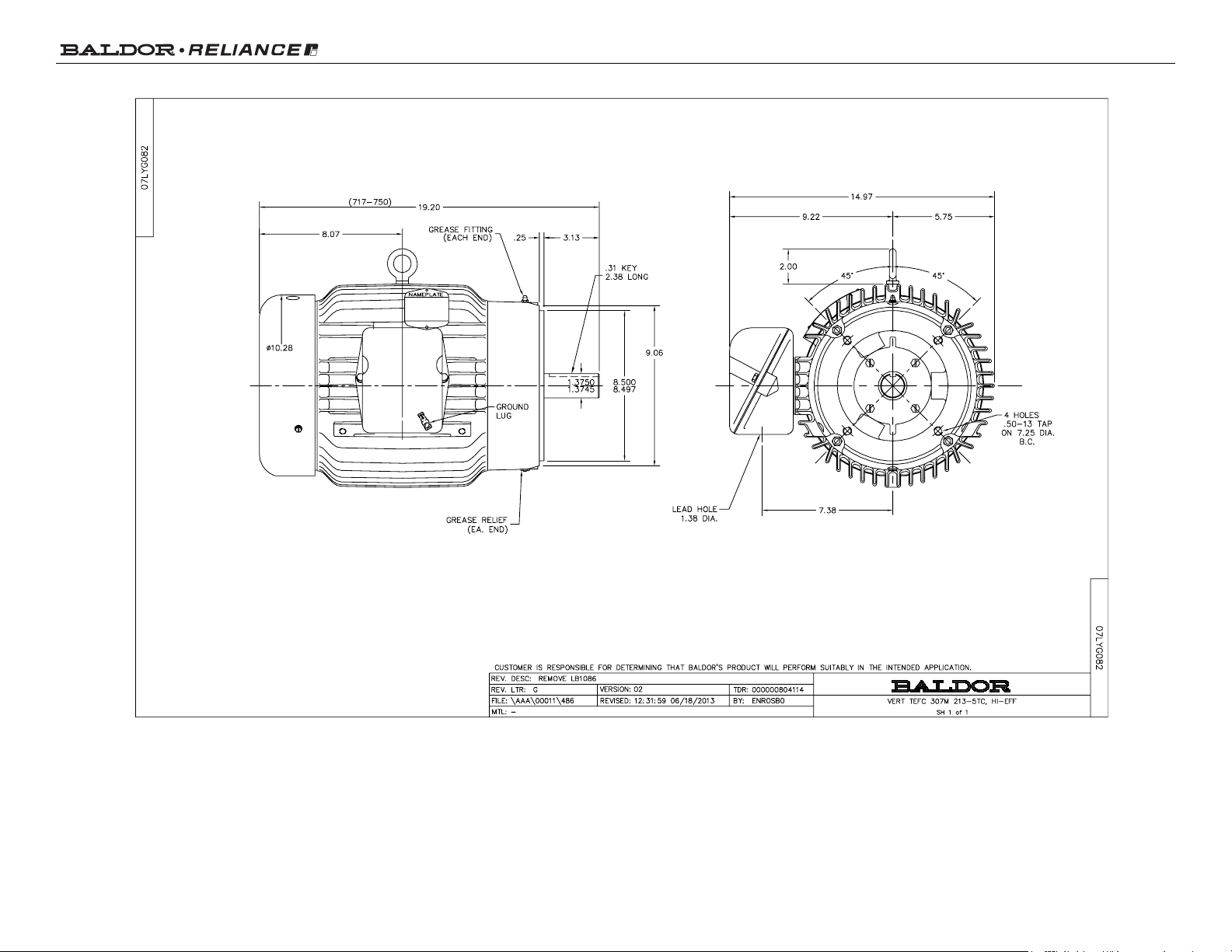

Revision: AH Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 07WGY179 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 07G082 Layout: 07LYG082 Poles: 04 Created Date: Base: N Eff. Date: 07-11-2019 Leads: 9#14

Specs

Catalog Number: VEM3774T Enclosure: TEFC Frame: 215TC Frame Material: Iron Output @ Frequency: 10.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR

CSA EEV

CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: No Mounting Bearing Grease Type: Polyrex EM (-20F +300F)

Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Ready KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 14 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0748M Mounting Arrangement: F1 Power Factor: 83 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None

Blower: None

Shaft Extension Location: Pulley End

Page 2 of 11

Product Information Packet: VEM3774T - 10HP,1760RPM,3PH,60HZ,215TC,0748M,TEFC,F

Current @ Voltage: 12.200 A @ 460.0 V

24.400 A @ 230.0 V

26.500 A @ 208.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None

Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None

Page 3 of 11

Product Information Packet: VEM3774T - 10HP,1760RPM,3PH,60HZ,215TC,0748M,TEFC,F

Nameplate NP3441LUA

CAT.NO. VEM3774T

SPEC 07G082Y179G1

HP 10

VOLTS 230/460

AMPS 24.4/12.2

RPM 1760

FRAME 215TC HZ 60 PH 3

SF 1.15 CODE H DES B CLASS F

NEMA NOM. EFF 91.7 PF 83

RATING 40C AMB-CONT

CC 010A USABLE AT 208V 26.5

ENCL TEFC SER

DE 6307 ODE 6206

VPWM INVERTER READY

CT6-60H(10:1)VT3-60H(20:1

Page 4 of 11

Product Information Packet: VEM3774T - 10HP,1760RPM,3PH,60HZ,215TC,0748M,TEFC,F

Parts List

Part Number Description Quantity SA194692 SA 07G082Y179G1 1.000 EA RA182278 RA 07G082Y179G1 1.000 EA 37FN3002C01 EXFN, PLASTIC, 6.00 OD, 1.155 ID 1.000 EA HW3201A05 3/8-16 EYEBOLT 1.000 EA 09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA 09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA 59XW2520G07 .25-20X.44,HEX SER WSHR,TAPTITE 2,GREEN 1.000 EA 37EP1100A41 FR ENDPLATE ASSEMBLY FOR ROUTING 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA 37PE1300A10 PUEP ASSEMBLY FOR ROUTING 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA 10XN2520A30 HEX HD CAP SCREW-STD THD-.25 X 20 THD PE 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA 07FH4007SP PRIMED 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA 09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA 09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA

Page 5 of 11

Product Information Packet: VEM3774T - 10HP,1760RPM,3PH,60HZ,215TC,0748M,TEFC,F

Parts List (continued)

Part Number Description Quantity 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB HA3104A32 THRUBOLT- 5/16-18 X12.750 4.000 EA MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.036 GA LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA NP3441LUA ALUM SUPER-E VPWM INV READY UL CSA-EEV C 1.000 EA 07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA 07PA1095 PKG GRP, VER 07 CAST IRON 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA

Page 6 of 11

Product Information Packet: VEM3774T - 10HP,1760RPM,3PH,60HZ,215TC,0748M,TEFC,F

AC Induction Motor Performance Data

Record # 32060 - Typical performance - not guaranteed values

Winding: 07WGY179-R005 Type: 0748M Enclosure: TEFC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection Rated Output (HP) 10 Full Load Torque 29.8 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 24.4/12.2 Breakdown Torque 80.9 LB-FT R.P.M. 1760 Pull-up Torque 40.2 LB-FT Hz 60 Phase 3 Locked-rotor Torque 52.6 LB-FT NEMA Design Code B KVA Code H Starting Current 81 A Service Factor (S.F.) 1.15 No-load Current 4.44 A NEMA Nom. Eff. 91.7 Power Factor 83 LinelineRes.@25ºC 1.08Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 64°C S.F. Amps Temp. Rise @ S.F. Load 80°C

Locked-rotor Power Factor 35

Rotor inertia 1.18 LB-FT2

Load Characteristics 460 V, 60 Hz, 10 HP

% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 50 71 80 83 85 85 84 Efficiency 90.4 92.5 92.9 92.3 90.9 89.1 91.5 Speed 1791 1782 1774 1763 1751 1737 1756 Line amperes 5.24 7.1 9.42 12.2 15.2 18.7 14
