Product Information Packet
VEM3156T
1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: VEM3156T - 1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM850 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35Z413 Layout: 35LYZ413 Poles: 06 Created Date: 04-24-2015
Base: N Eff. Date: 01-30-2018 Leads: 9#18
Specs
Catalog Number: VEM3156T
Enclosure: ODP
Frame: 145TC
Frame Material: Steel
Output @ Frequency: 1.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA EEV
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: No Mounting
Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3524M
Mounting Arrangement: F1
Power Factor: 64
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: VEM3156T - 1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1
Current @ Voltage: 1.800 A @ 460.0 V
3.600 A @ 208.0 V
3.600 A @ 230.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: VEM3156T - 1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1
Nameplate NP1259LUA
CAT.NO. VEM3156T
SPEC. 35Z413M850G1
HP 1
VOLTS 230/460
AMPS 3.6/1.8
R.P.M. 1155
FRAME 145TC HZ 60 PH 3
SER.F. 1.15 CODE J DES B CLASS F
NEMA NOM. EFF. 82.5 P.F. 64
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 3.6
DE 6205 ODE 6203
ENCL ODP SN
USABLE AT 50HZ 1HP 190/380V 4/2A SF1.0
Page 4 of 10
Product Information Packet: VEM3156T - 1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1
Parts List
Part Number Description Quantity
SA299829 SA 35Z413M850G1 1.000 EA
RA286862 RA 35Z413M850G1 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3009 35 CB W/1.09 DIA. LEAD HOLE @ 6: 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3209A02 A00 W/DRIP COVER 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3402B00 MASTER DE,205 BRG,OPEN,W/GREASER 1.000 EA
35AD2000 AIR BAFFLE - GALVANNEAL 1.000 EA
60XW0632A06 6-32 X 3/8 TORX HEAD SCREW TAPTITE II 4.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
35FH4006A09 DRIP COVER W/FLAT, W/ PRIMER 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 2.000 EA
35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.017 GA
HA3100A15 THRUBOLT 10-32 X 8.375 4.000 EA
Page 5 of 10
Product Information Packet: VEM3156T - 1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1
Parts List (continued)
Part Number Description Quantity
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1259LUA ALUM SUPER-E UL CSA-EEV CC NEMA PREMIUM 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
Page 6 of 10
Product Information Packet: VEM3156T - 1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1
AC Induction Motor Performance Data
Record # 53336 - Typical performance - not guaranteed values
Winding: 35WGM850-R015 Type: 3524M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1 Full Load Torque 4.5 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 3.6/1.8 Breakdown Torque 14 LB-FT
R.P.M. 1155 Pull-up Torque 9.71 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 10.2 LB-FT
NEMA Design Code B KVA Code J Starting Current 9.83 A
Service Factor (S.F.) 1.15 No-load Current 1.16 A
NEMA Nom. Eff. 82.5 Power Factor 64 LinelineRes.@25ºC 16.79Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 34°C
S.F. Amps Temp. Rise @ S.F. Load 42°C
Locked-rotor Power Factor 42
Rotor inertia 0.143 LB-FT2
Load Characteristics 460 V, 60 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 27 44 56 64 70 73 68
Efficiency 71.1 80.6 83 83 81.9 80.1 82.3
Speed 1189.4 1178.8 1169 1156.4 1141.6 1126.3 1148
Line amperes 1.21 1.33 1.51 1.76 2.04 2.38 1.93
Page 7 of 10
Product Information Packet: VEM3156T - 1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1

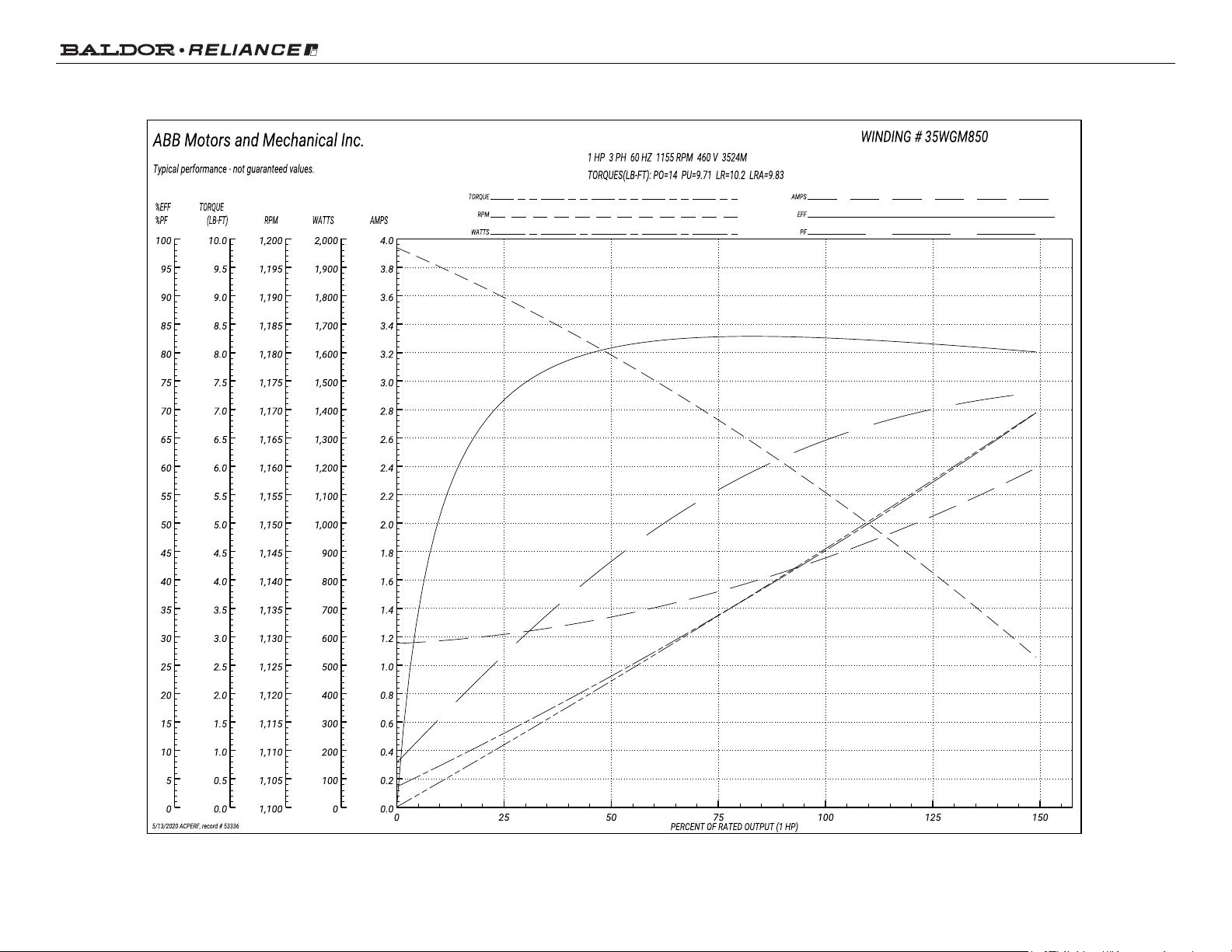

Performance Graph at 460V, 60Hz, 1.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: VEM3156T - 1HP,1155RPM,3PH,60HZ,145TC,3524M,ODP,F1
3 71
7 19
8750
8745
4 500
4 497
6 49
2 12
13
510-520 = 12 25
521-528 = 13 25
529-535 = 14 12
536-546 = 15 50
13
NAMEPLATE
GREASE FITTING
(EACH END)
19 KEY
1 38 LONG
4 56
45° 45°
5 62
6 49
LEAD HOLE
Ø1 09
4 HOLES
38-16 TAP ON
Ø5 88 B C
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYZ413
B
VERT 143-5TC OPEN 35M W/1.09 LEAD HOLE & DRIP COVER
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYZ413
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG12
ENALEM0
C
02 29 31 12/11/2018
-
000001093440
03
35LYZ413
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 OF 1
