Product Information Packet
VECP3584T
1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Part Detail
Revision: W Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 05WGX008 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 05F006 Layout: 05LYF006 Poles: 04 Created Date: 03-06-2008
Base: N Eff. Date: 02-12-2019 Leads: 9#18
Specs
Catalog Number: VECP3584T
Enclosure: TEFC
Frame: 145TC
Frame Material: Iron
Output @ Frequency: 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
208.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group: CLI GP A,B,C,D
XP Division: Division II
Agency Approvals: UR
CSA EEV
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: No Mounting
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: L
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0530M
Mounting Arrangement: F1
Power Factor: 76
Product Family: Chemical Processing (Not DC)
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Bearing Grease Type: Polyrex EM (-20F +300F)
Shaft Extension Location: Pulley End
Page 2 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Blower: None
Constant Torque Speed Range: 1.3
Current @ Voltage: 4.200 A @ 230.0 V
4.600 A @ 208.0 V
2.100 A @ 460.0 V
Design Code: B
Drip Cover: Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T4
Page 3 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Nameplate NP3258E
CAT.NO. VECP3584T
SPEC. 05F006X008G1
HP 1.5 TE
VOLTS 208-230/460
AMP 4.6-4.2/2.1
RPM 1760
FRAME 145TC HZ 60 PH 3
SER.F. 1.15 CODE L DES B CL F
RATING 40C AMB-CONT
SN
DE 6205 ODE 6205
NEMA-NOM-EFF 88.5 PF 76
G.MIN.EFF 86.5 CC 010A
T. CODE T4 T= 135
Page 4 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Nameplate NP3261E
SPEC. 05F006X008G1
D.E. BRG. 25BC02XP30X
O.D.E. BRG. 25BC02XP30X
GREASE POLYREX EM
RPM MAX 2700 MAX. KVAR N/A
BLANK
INV.TYPE PWM
T= 135
C HP FR 60 C HP TO 90
CT HZ FROM 1.3 CT HZ TO 60
VT HZ FROM 0- VT HZ TO 60
HTR-VOLTS HTR-AMPS
HTR-WATTS MAX. SPACE HEATER TEMP.
Page 5 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Parts List
Part Number Description Quantity
SA169125 SA 05F006X008G1 1.000 EA
RA157408 RA 05F006X008G1 1.000 EA
34FN3002B01 EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
HW3201A05 3/8-16 EYEBOLT 1.000 EA
06CB1000A02G CONDUIT BOX, MACH GRAY 1.000 EA
RM1016 LEAD SEPARATOR GASKET - 305/306 C.P.MOTO 1.000 EA
51XW2520A12 SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
10XN2520S06 1/4 20X3/8 HX HD CAP S.S. 2.000 EA
WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA
35EP1102B03G FREP TEFC 205 BRG,GRSR,RLF,.125 NPT DRAI 1.000 EA
HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
35EP1329A16G PUEP ENCL 143-5TC 205 BRG,GRSR,RLF,NPT D 1.000 EA
HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
06CB1502G LIPPED CONDUIT BOX LID CAST, GRAY EPOXY 1.000 EA
HA3100A28 THRUBOLT 10-32 X 8.187 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
Page 6 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Parts List (continued)
Part Number Description Quantity
35FH1000A04G FAN COVER 35FH1000 - (GRAY) 1.000 EA
10XN2520A18 1/4-20 X 1-1/8 HEX CAP SCREW. 3.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 3.000 EA
HW4600B32SP V-RING SLINGER 1.000 X 1.540 X .24 VITON 1.000 EA
WD4100A03 DE-750 HEYCO PLUG 62MP0750 MICRO PLASTIC 1.000 EA
35FH4500A01 DRIP COVER, STAMPED X - W/PRIMED 1.000 EA
HA2001A13 35-10103 SPACER WELKER 3.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 3.000 EA
06GS1003 GASKET, KOBX LID, 1/8" THICK BLACK NEOPR 1.000 EA
10XN2520A12 1/4-20 X 3/4 HEX HEAD CAP 2.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA
HA1005A03SP SLINGER, OD 1.750, ID .938, 205 BRG 1.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1002N LABEL,MARINE DUTY (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1025N19 WILKOFAST, 778.50, RELIANCE BLUE-GREEN 0.022 GA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
LB1449 DIV-2/NEC WARNING LABEL 1.000 EA
NP3258E SS CP SUPER-E DIV-2 UL CSA-C US EEV CC 1.000 EA
NP3261E SS CP SUPER-E AUX DATA INFORMATION 1.000 EA
Page 7 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
PK3082 STYROFOAM CRADLE 2.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 8 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
AC Induction Motor Performance Data
Record # 47108 - Typical performance - not guaranteed values
Winding: 05WGX008-R032 Type: 0530M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5 Full Load Torque 4.49 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 4.6-4.2/2.1 Breakdown Torque 18.9 LB-FT
R.P.M. 1760 Pull-up Torque 10.1 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 13.8 LB-FT
NEMA Design Code B KVA Code L Starting Current 18 A
Service Factor (S.F.) 1.15 No-load Current 1.21 A
NEMA Nom. Eff. 88.5 Power Factor 76 LinelineRes.@25ºC 9.69Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 30°C
S.F. Amps Temp. Rise @ S.F. Load 37°C
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 33 54 67 75 80 83 78
Efficiency 78.6 86.5 88.3 89 87.9 86.7 88.3
Speed 1791 1782 1773 1761 1751 1738 1755
Line amperes 1.29 1.49 1.76 2.1 2.49 2.91 2.33
Page 9 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC

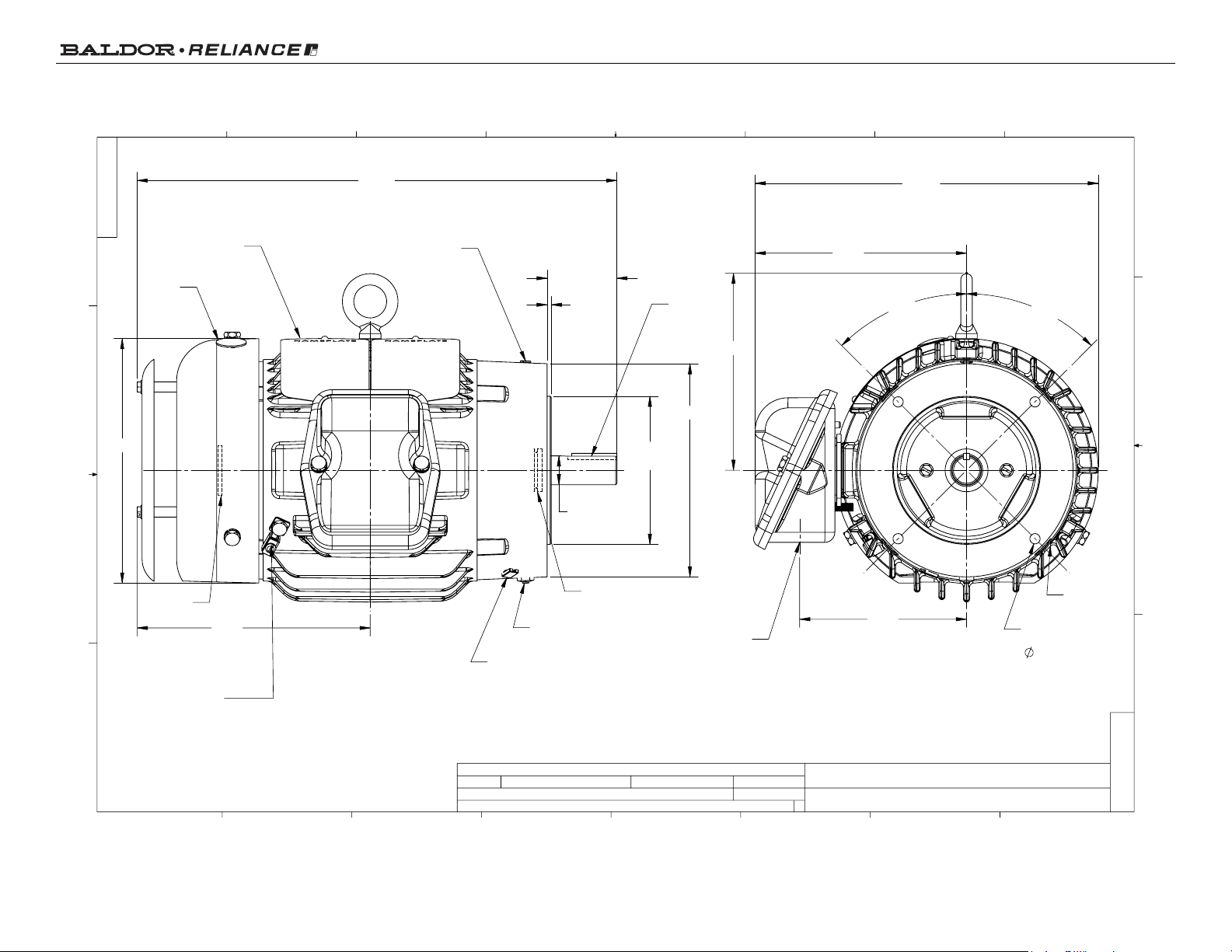

2.12
.13
7.43
6.48
4.500
4.497
.8750
.8745
14.57
7.08
GREASE PLUG
(EACH END)
DRAIN FITTING
(EACH END)
GREASE RELIEF
(EACH END)
PLUG
.19 KEY
1.38 LONG
FORSHEDA
SLINGER
SLINGER
AUX. NP
(WHEN REQ'D)
GROUND LUG
(F1 SIDE)
10.42
5.07
45°
45°
6.42
5.99
LEAD HOLE
.75 N.P.T.
4 HOLES
.38-16 TAP ON
5.88 B.C.
.25-20 TAP
W/BOLT
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
05LYF006
B
BALDOR ELECTRIC Co.
VER 143-5TC TEFC M CP W/6205 BRG EA.END, LIPPED LID, DRP CVR
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
05LYF006
05SF1101A54 WAS A04
ENBILT0
E
12 23 41 02/01/2019
000001096286
05
05LYF006
Page 11 of 12
Product Information Packet: VECP3584T - 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Page 12 of 12
