Product Information Packet
VCP2276T
7.5HP,1175RPM,3PH,60HZ,254TC,0940M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: VCP2276T - 7.5HP,1175RPM,3PH,60HZ,254TC,0940M,TEFC
Part Detail
Revision: P Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 09WGY281 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 09T04 Layout: 09LYT004 Poles: 06 Created Date:
Base: N Eff. Date: 01-19-2012 Leads: 9#12
Specs
Catalog Number: VCP2276T
Enclosure: TEFC
Frame: 254TC
Frame Material: Iron
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: No Mounting
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 10.800 A @ 460.0 V
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: H
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 12 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0940M
Mounting Arrangement: F1
Power Factor: 73
Product Family: Chemical Processing (Not DC)
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
21.600 A @ 230.0 V
Shaft Extension Location: Pulley End
Page 2 of 7
Product Information Packet: VCP2276T - 7.5HP,1175RPM,3PH,60HZ,254TC,0940M,TEFC
28.000 A @ 208.0 V
Design Code: B
Drip Cover: Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: BRG
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Page 3 of 7
Product Information Packet: VCP2276T - 7.5HP,1175RPM,3PH,60HZ,254TC,0940M,TEFC
AC Induction Motor Performance Data
Record # 1940 - Typical performance - not guaranteed values
Winding: 09WGY281-R001 Type: 0940M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 7.5 Full Load Torque 33.5 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 21.6/10.8 Breakdown Torque 85.7 LB-FT
R.P.M. 1175 Pull-up Torque 37.7 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 52.1 LB-FT
NEMA Design Code B KVA Code H Starting Current 59.7 A
Service Factor (S.F.) 1.15 No-load Current 5.15 A
NEMA Nom. Eff. 89.5 Power Factor 73 LinelineRes.@25ºC 1.19Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 42°C
S.F. Amps Temp. Rise @ S.F. Load 56°C
Locked-rotor Power Factor 26
Rotor inertia 3.21 LB-FT2
Load Characteristics 460 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 37 57 67 73 75 74 74
Efficiency 82.4 88.6 89.7 89.5 88.6 87.1 89
Speed 1195 1190 1184 1177 1170 1161 1173
Line amperes 5.76 6.97 8.75 10.8 13.3 16.27 12.3
Page 4 of 7
Product Information Packet: VCP2276T - 7.5HP,1175RPM,3PH,60HZ,254TC,0940M,TEFC
Performance Graph at 460V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 5 of 7

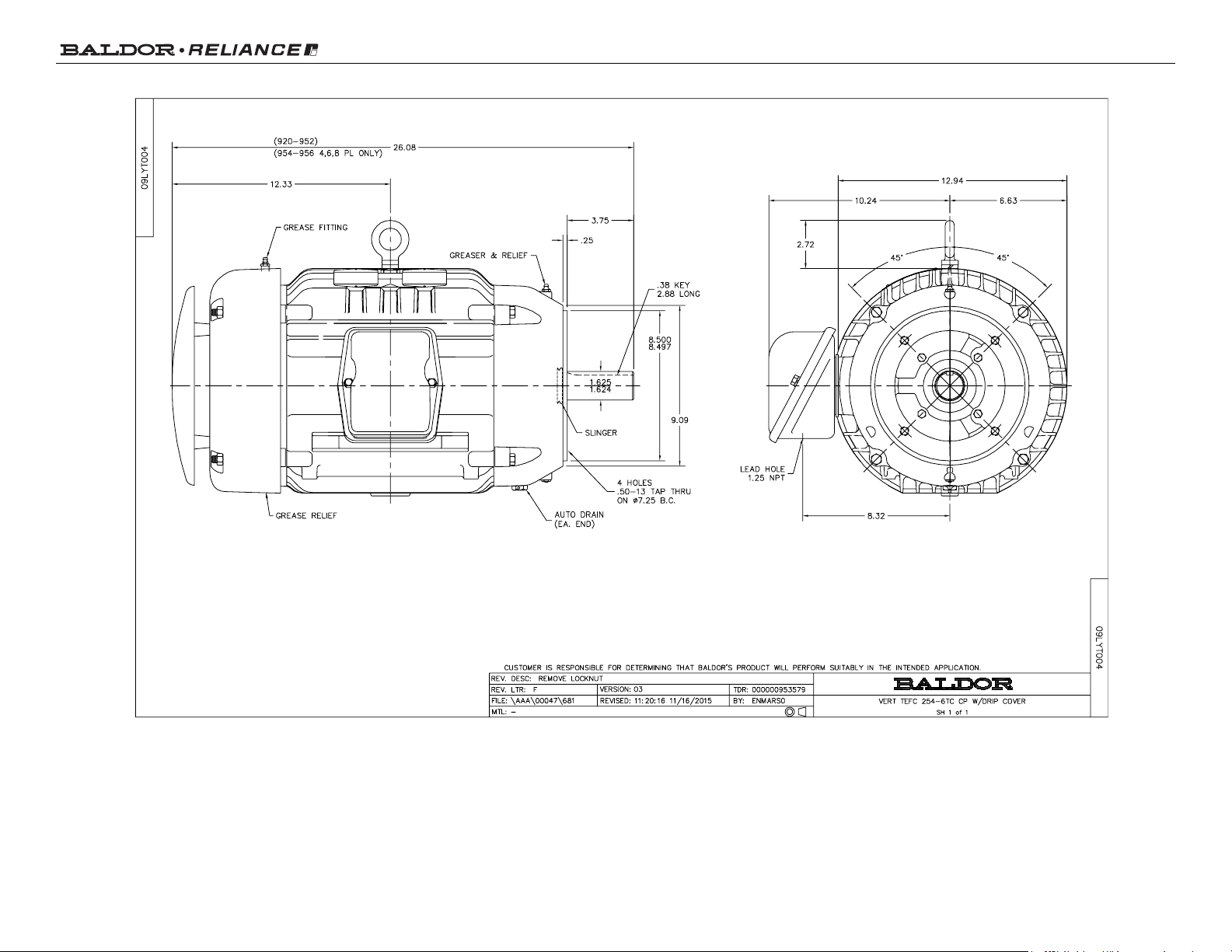

Product Information Packet: VCP2276T - 7.5HP,1175RPM,3PH,60HZ,254TC,0940M,TEFC
Page 6 of 7
Product Information Packet: VCP2276T - 7.5HP,1175RPM,3PH,60HZ,254TC,0940M,TEFC
Page 7 of 7
