Product Information Packet
RL1306A
.75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
Part Detail
Revision: Y Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 34WG0192 CD Diagram: CD0052 Mfg Plant:
Mech. Spec: 34K018 Layout: 34LYK018 Poles: 02 Created Date:
Base: RS Eff. Date: 03-07-2017 Leads: 6#18,1#14 #1TH
Specs
Catalog Number: RL1306A
Enclosure: OPEN
Frame: 56
Frame Material: Steel
Output @ Frequency: .750 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Resilient
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 18 AWG
Motor Lead Exit: Terminal Panel
Motor Lead Termination: Flying Leads
Motor Type: 3420L
Mounting Arrangement: F1
Power Factor: 68
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Resilient Mount
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 11.000 A @ 115.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
5.500 A @ 230.0 V
5.600 A @ 208.0 V
Design Code: N
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Resilient Mount
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible: Connected Standard
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: Automatic Thermal Overload
Winding Thermal 1 Location: SB
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
Nameplate NP1257L
CAT.NO. RL1306A
SPEC. 34K18-192
HP .75
VOLTS 115/230
AMP 11/5.5
RPM 3450
FRAME 56 HZ 60 PH 1
SER.F. 1.25 CODE J DES N CL B
NEMA-NOM-EFF 71 PF 68
RATING 40C AMB-CONT
CC USABLE AT 208V 5.6
DE 6203 ODE 6203
ENCL OPEN SN
SFA 12/6
Page 4 of 10
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
Parts List
Part Number Description Quantity
SA008103 SA 34K18-192 1.000 EA
RA004550 RA 34K18-192 1.000 EA
EC1130A02SP ELEC CAP, 130-156 MFD, 125V, 1.48D X 3.3 1.000 EA
34CB4501SP TERMINAL BOX LID, STAMPED X (PLATED) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
11XW0832G06 8-32 X 3/8 TY 23 TAPPING 1.000 EA
LD5000A52 LEAD ASSY W/INTERNAL STAR RING TERMINALS 1.000 EA
11XT1032A06 10-32 X 3/8 HX WSHR HD SLTD TYPE 23 2.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 3.000 EA
34EP3202A01 FR ENDPLATE, MACH 1.000 EA
RM1000A03 CUSHION RING, MDL 17-33-34 1.000 EA
HA6004A01A CLAMP CUSHION RING ASSY 1.000 EA
WD4100A01 DP-875 HEYCO PLUG OR 62MP0875 MICRO PLAS 1.000 EA
RM1000A03 CUSHION RING, MDL 17-33-34 1.000 EA
HA6004A01A CLAMP CUSHION RING ASSY 1.000 EA
NS2500A01 INSULATOR, AUTO THER PROT 1.000 EA
34CB4800SP CAPACITOR COVER, STAMPED PRIMED 1.000 EA
51XB1016A05 10-16X5/16HX WA SL SR TYB (F/S) 2.000 EA
WD1000A16 2-520128-2 AMP FLAG TERMINAL(4M/RL) 6.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
34EP3203A01 PU ENDPLATE, MACH 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA
Page 5 of 10
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
Parts List (continued)
Part Number Description Quantity
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.014 GA
10XF0440S02 04-40 X 1/8 TYPE F HEX HD STAINLESS STIC 2.000 EA
SP5068A01 34L TERM PANEL STAT SWITCH #E-6" 1.000 EA
HA3100A44 THRUBOLT 10-32 X 8.000 4.000 EA
34BA4003J01 RESILIENT BASE, MODEL 34 NEMA 56 1.000 EA
LB1118 LABEL,WARNING (ROLL LABEL) 1.000 EA
LC0052 CONNECTION LABEL 1.000 EA
NP1257L ALUM UL CSA CC THERMAL REV MTG 1.000 EA
34PA1002 PKG GRP, PRINT PK1001A01 1.000 EA
Page 6 of 10
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
AC Induction Motor Performance Data
Record # 6555 - Typical performance - not guaranteed values
Winding: 34WG0192-R001 Type: 3420L Enclosure: OPEN
Nameplate Data
230 V, 60 Hz:
High Voltage Connection
Rated Output (HP) .75 Full Load Torque 1.2 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 11/5.5 Breakdown Torque 2.88 LB-FT
R.P.M. 3450 Pull-up Torque 2.25 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 3.25 LB-FT
NEMA Design Code N KVA Code J Starting Current 25 A
Service Factor (S.F.) 1.25 No-load Current 4.1 A
NEMA Nom. Eff. 71 Power Factor 68 LinelineRes.@25ºC
3.18ΩAPh
2.53ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load
S.F. Amps 12/6 Temp. Rise @ S.F. Load 104°C
Load Characteristics 230 V, 60 Hz, 0.75 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 35 49 61 70 75 80 0
Efficiency 42 58 64 66 65 63 0
Speed 3557 3522 3485 3440 3399 3320 0
Line amperes 4.2 4.3 4.7 5.4 5.9 7 5.9
Page 7 of 10
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1

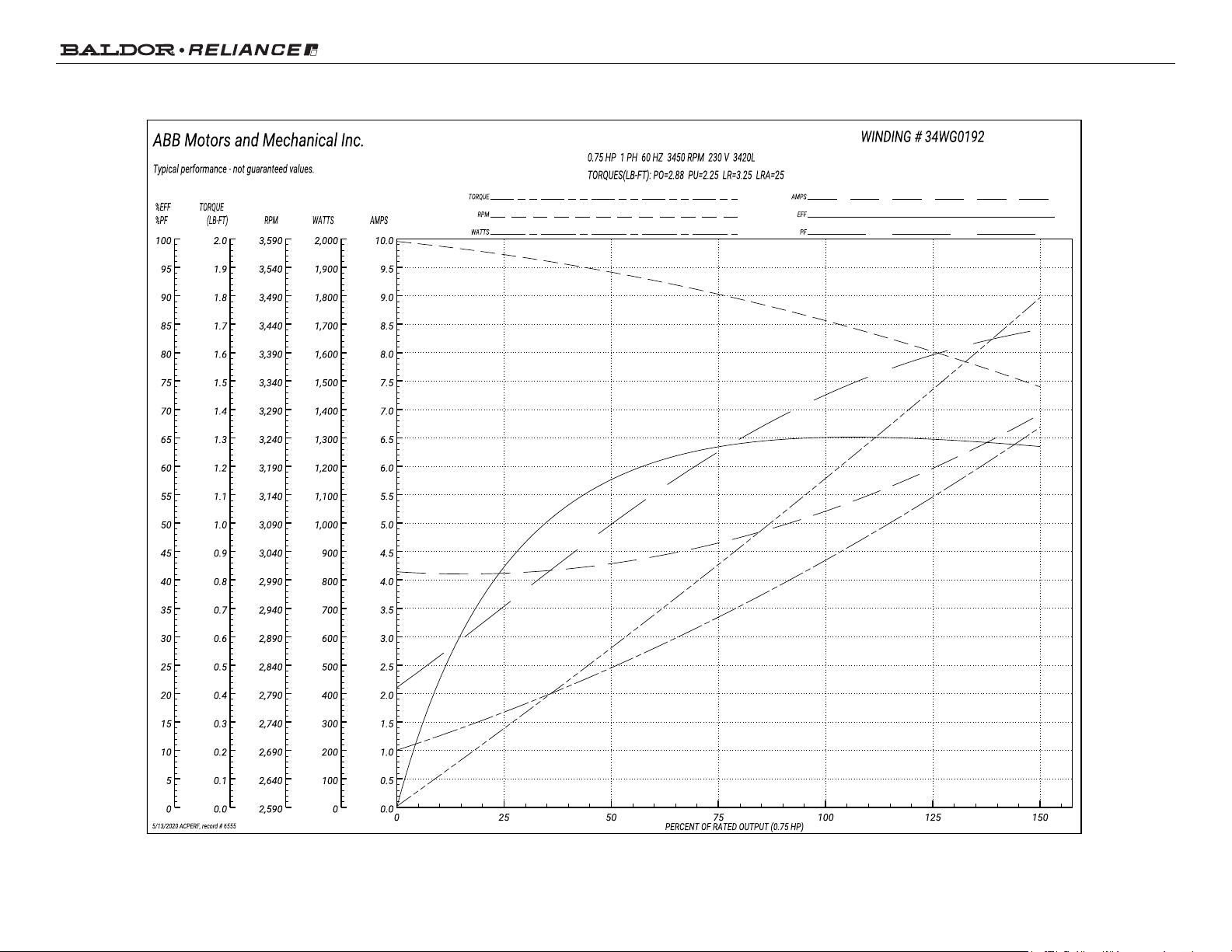

Performance Graph at 230V, 60Hz, 0.75HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
Page 9 of 10
Product Information Packet: RL1306A - .75HP,3450RPM,1PH,60HZ,56,3420L,OPEN,F1
Page 10 of 10
