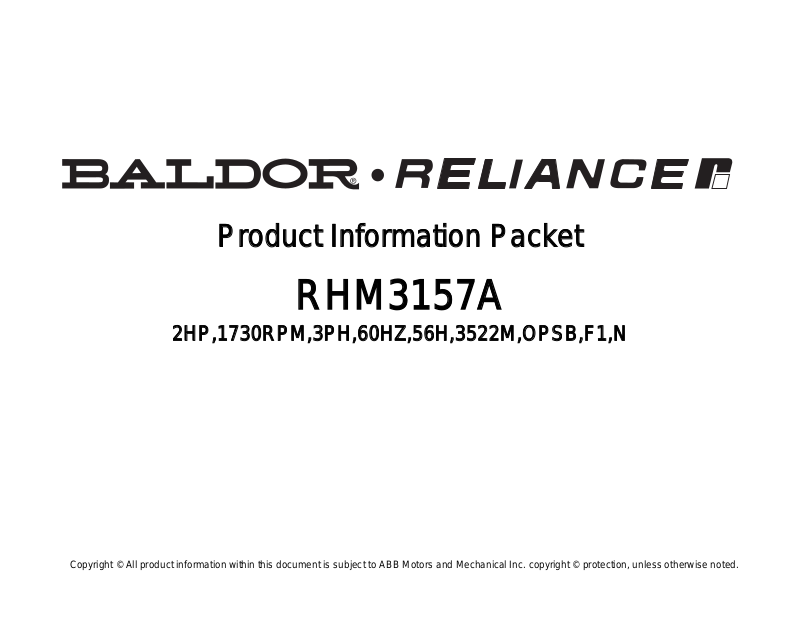

Product Information Packet
RHM3157A
2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: RHM3157A - 2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
Part Detail
Revision: D Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM582 CD Diagram: CD0007 Mfg Plant:
Mech. Spec: 35M914 Layout: 35LYM914 Poles: 04 Created Date: 11-12-2010
Base: RS Eff. Date: 04-16-2012 Leads: 12#18
Specs
Catalog Number: RHM3157A
Frame: 56H
Frame Material: Steel
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Resilient
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 6.100 A @ 208.0 V
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 12 @ 18 AWG
Motor Lead Exit: Terminal Panel
Motor Lead Termination: Flying Leads
Motor Type: 3522M
Mounting Arrangement: F1
Power Factor: 76
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Resilient Mount
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
6.000 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 9
Product Information Packet: RHM3157A - 2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
3.100 A @ 208.0 V
3.000 A @ 460.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Terminal Panel
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Do Not Use Eve-Not Valiid
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: Automatic Thermal Overload
Winding Thermal 1 Location: SB
Winding Thermal 2: None
Page 3 of 9
Product Information Packet: RHM3157A - 2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
Nameplate NP1257L
CAT.NO.
SPEC. 35M914M582H1
HP 2
VOLTS 208-230/460
AMP 6.1-6/3
RPM 1730
FRAME 56H HZ 60 PH 3
SER.F. 1.15 CODE K DES B CL B
NEMA-NOM-EFF 81.5 PF 76
RATING 40C AMB-CONT
CC USABLE AT 208V 3.1
DE 6205 ODE 6203
ENCL OPSB SN
Page 4 of 9
Product Information Packet: RHM3157A - 2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
Parts List
Part Number Description Quantity
SA210679 SA 35M914M582H1 1.000 EA
RA197917 RA 35M914M582H1 1.000 EA
TPCYJ49KX THERMAL 3PH 1.00 AUT 120C 1.000 EA
S/P101-000-000 EPACT PROCEDURES-FS PLANT-POLYREX EM, NO 1.000 EA
53XT0832G07 8-32X7/16 PN STD SR TY23G X 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
35EP3202A01 STD OPEN FR EP - RESILIENT MTD 1.000 EA
RM1000A02 CUSHION RING, MODEL 35 SAME AS A07 1.000 EA
HA6005A01 CLAMP, BASE 2.000 EA
51XN1032A18 10-32 X 1 1/8 HX WS SL SR (ESKAY) 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 1.000 EA
LD5000A01 LEAD ASSY, ML1400DF14 7" RING TRM EA END 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 2.000 EA
HW1003A10 WASHER, #10 EX TH LK, ZN X 2.000 EA
SP1003A06 TERM. BOARD, MODE 35 SW X H-23655 SPL CU 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
WD4100A01 DP-875 HEYCO PLUG OR 62MP0875 MICRO PLAS 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP1209A01 PU ENDPLATE, MACH 1.000 EA
RM1000A02 CUSHION RING, MODEL 35 SAME AS A07 1.000 EA
HA6005A01 CLAMP, BASE 2.000 EA
51XN1032A18 10-32 X 1 1/8 HX WS SL SR (ESKAY) 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
Page 5 of 9
Product Information Packet: RHM3157A - 2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
Parts List (continued)
Part Number Description Quantity
35CB4500SP TERMINAL BOX LID STAMPED 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
HA6015A02 THERMAL RETAINER (PLATED) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA
HA3100A18 THRUBOLT 10-32 X 9.250 4.000 EA
35BA4002B01 RESILIENT BASE, STAMPED 1.000 EA
35AD2005A01 BAFFLE PLATE,MOD 35-SLTD BAND MTRS GL.F. 1.000 EA
35AD2008A01 AIR DEFLECTOR FOR SL BANDW/THERMAL IN FR 1.000 EA
LB1118 LABEL,WARNING (ROLL LABEL) 1.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
LC0007 CONNECTION LABEL 1.000 EA
NP1257L ALUM UL CSA CC THERMAL REV MTG 1.000 EA
34PA1005 PACK GROUP 35 SHORT W OSB BASE 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Page 6 of 9
Product Information Packet: RHM3157A - 2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
No performance data has been
assigned to this product.
Page 7 of 9
Product Information Packet: RHM3157A - 2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
.6250
.6245
1.88
2.04
510-528 = 12.42
530-535 = 13.30
540-546 = 14.67
.50 .50
3.00 2.75
5.00
NAMEPLATE
.19 KEY
1.38 LONG
LEAD HOLE
Ø.88
(W/PLUG)
3.50
3.44
6.81
2.44 2.44
2.75 2.75
3.25
6.50
6.62
GROUND LEAD
6 HOLES
Ø.34
6 SLOTS
.34 WIDE
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYM914
B
RESIL MTD 56/56H OPSB 35M W/ATO IN FR EP
REV. DESC:
REV:
BY:
REVISED:
MODEL NO.
VERSION:
TDR:
REF:
35LYM914
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG16
ENSTEK0
D
09:29:49 02/04/2019
35LYM914
000001098202
01
35LYM914
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 OF 1
Page 8 of 9
Product Information Packet: RHM3157A - 2HP,1730RPM,3PH,60HZ,56H,3522M,OPSB,F1,N
