Product Information Packet
OF2276T
7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Part Detail
Revision: AF Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 09WGY655 CD Diagram: CD0321 Mfg Plant: Mech. Spec: 09F945 Layout: 09LYF945 Poles: 06 Created Date: Base: RG Eff. Date: 03-09-2020 Leads: 12#12 ML4400B12 Y
Specs
Catalog Number: OF2276T Enclosure: TEFC Frame: 254T Frame Material: Iron Output @ Frequency: 7.500 HP @ 60 HZ Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ
796.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater Insulation Class: F Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 12 @ 12 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0932M Mounting Arrangement: F2 Power Factor: 67 Product Family: Chemical Processing (Not DC) Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None
Blower: None
Shaft Extension Location: Pulley End
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Current @ Voltage: 12.900 A @ 460.0 V
25.800 A @ 230.0 V
7.500 A @ 796.0 V Design Code: D Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: NONE (OLD) Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Nameplate NP2960E
CAT.NO.
SPEC. 09F945Y655
HP 7.5
VOLTS 230/460/796
AMP 25.8/12.9/7.5 RPM 1125
FRAME 254T HZ 60 PH 3
SER.F. 1.15 CODE H DES D CL F
NEMA-NOM-EFF 84 PF 67
RATING 40C AMB-CONT
CC USABLE AT 208V DE 6309 ODE 6208
ENCL TEFC SN
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Nameplate NP0090E
FRONT 6208
PULLEY 6309
LUBRICATE WITH
GREASE POLYREX EM
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Parts List
Part Number Description Quantity SA095328 SA 09F945Y655 1.000 EA RA087793 RA 09F945Y655 1.000 EA HW1002A63 0ASHER, 5/8 HI-COLLAR SPRLCKWASHER 1.000 EA 09CB1002A12P KOBX W/1.25 NPT LEAD HOLE & 2.38 MTG HOL 1.000 EA 09GS1010 GASKET, DWG, LEADWIRE SEPERATOR 1.000 EA 10XN2520K12 1/4-20 X.75 GRD 5 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 10XN2520K06 1/4-20 X 3/8" HX HD SCREWGRADE 5, ZINC P 1.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 1.000 EA 09EP1100A14PP5 ENDPLATE, MACH W/EPOXY PRIMER & PAINT 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HA3400A33 STUD- 3/8-16 X 4.82 HEX WELKER 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW4600B44 V-RING SLINGER 1.500 X 1.810 X .28 VITON 1.000 EA 09FH1000P FAN COVER, CAST W/EPOXY PRIMER 1.000 EA HW4600B44 V-RING SLINGER 1.500 X 1.810 X .28 VITON 1.000 EA HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA 10XN2520K28 1/4-20 X 1.75" HX HD SCRWGRADE 5, ZINC P 2.000 EA 10XN2520K36 1/4-20 X 2.25" HX HD SCRWGRADE 5, ZINC P 4.000 EA 09EP1101A21P SPL PU EP,MODEL 309 - 309 BRG, W/EPOXY P 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 10XN3816K24 3/8-16 X 1.50 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Parts List (continued)
Part Number Description Quantity HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA 12CB1503P CONDUIT BOX LID, CAST W/EPOXY PRIMER 1.000 EA 12GS1002 GASKET, CONDUIT BOX LID, NEOP 1.000 EA 10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 2.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 2.000 EA HW2501G25 KEY, 3/8 SQ X 2.875 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.031 QT LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1002N LABEL,MARINE DUTY (ON ROLLS) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4500A05 1669B ALEM/UNIV860 GR FTG X 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA 09FN3001A01SP EXTERNAL FAN, PLASTIC 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1025G03 WILKOFAST, 789.901, OIL RIG SILVER 0.050 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
MJ5001A14 DYNAPRO SEALANT, CP MTR VC#2508050 (603 0.023 EA LB1119N WARNING LABEL 1.000 EA LC0321 CONNECTION LABEL 1.000 EA NP2960E SS CP CSA CC 1.000 EA NP0090E SS NO LOGO'S BEARING & GREASE DATA 1.000 EA 09PA1000 PACKAGING GROUP COMBINED PRINT 1.000 EA
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Accessories
Part Number Description Multiplier 09-1309 C FACE KIT A8
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
AC Induction Motor Performance Data
Record # 26092 - Typical performance - not guaranteed values
Winding: 09WGY655-R001 Type: 0932M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
2nd Voltage Connection Rated Output (HP) 7.5 Full Load Torque 34.6 LB-FT Volts 230/460/796 Start Configuration direct on line Full Load Amps 25/12.5/7.4 Breakdown Torque 148 LB-FT R.P.M. 1125 Pull-up Torque 101 LB-FT Hz 60 Phase 3 Locked-rotor Torque 114 LB-FT NEMA Design Code D KVA Code H Starting Current 66 A Service Factor (S.F.) 1.15 No-load Current 8.67 A NEMA Nom. Eff. 84 Power Factor 67 LinelineRes.@25ºC 1.11Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 70°C S.F. Amps Temp. Rise @ S.F. Load 85°C
Load Characteristics 460 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 29 45 57 65 71 74 69 Efficiency 70.7 79.9 82.6 82.8 81.7 79.8 82.1 Speed 1185 1171 1154 1135 1114 1089 1122 Line amperes 8.83 9.74 11.1 12.9 15.2 17.8 14.3
Page 10 of 14
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Performance Graph at 460V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 11 of 14
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC

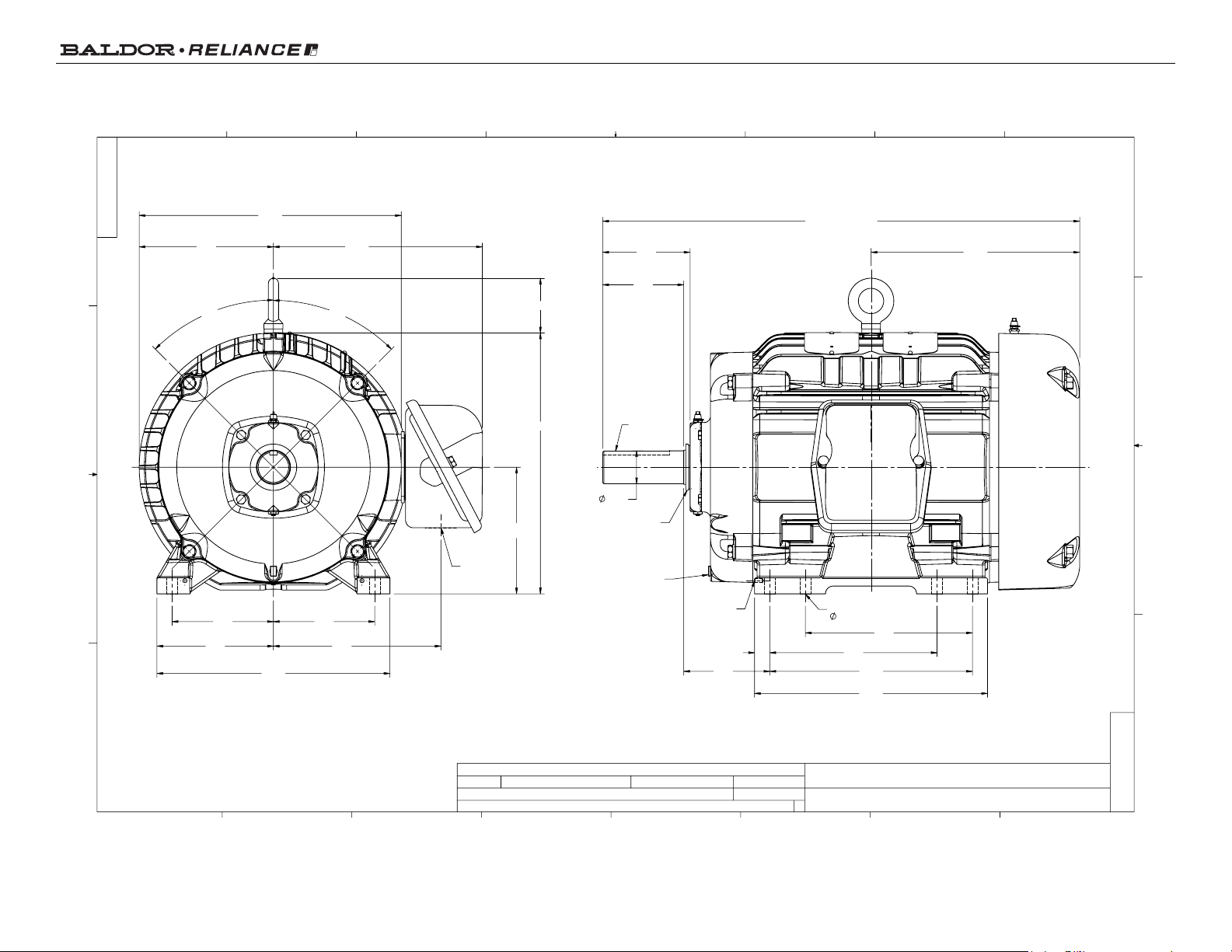

10 31
12 88
11 50
5 75 8 27
5 00 5 00
45°
45°
6 25 6 19
12 94
6 63
2 70
LEAD HOLE 1 25 N P T
(920 - 956) = 23 55
10 30 4 32
4 00
11 50
10 00
8 25
8 25
4 26
76
1 625 1 624
38 KEY
2 88 LONG
SLINGER
(EA END)
DRAIN FITTING
(EA END)
8 HOLES
53
25 - 20 TAP GND LOC
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
09LYF945
B
HORZ TEFC 254-6T CP F2 OIL FIELD PUMP
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
09LYF945
LOAD DRAWING TO SOLIDWORKS
ENALEM0
G
07 23 16 02/12/2020
-
000001132140
07
09LYF945
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 12 of 14
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Page 13 of 14
Product Information Packet: OF2276T - 7.5HP,1125RPM,3PH,60HZ,254T,0932M,TEFC
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
Page 14 of 14
