Product Information Packet
M7134T
1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M7134T - 1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F
Part Detail
Revision: C Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 05WGX007 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 05E346 Layout: 05LYE346 Poles: 04 Created Date: 12-13-2006
Base: RG Eff. Date: 03-02-2010 Leads: 9#18
Specs
Catalog Number: M7134T
Enclosure: TEFC
Frame: 145T
Frame Material: Iron
Output @ Frequency: 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UL
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: M
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0521M
Mounting Arrangement: F1
Power Factor: 70
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 2.400 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: M7134T - 1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F
4.800 A @ 230.0 V
5.100 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Page 3 of 10
Product Information Packet: M7134T - 1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F
Nameplate NP1426XP
NO. CC 010A
SER.
SPEC. 05E346X007H1
CAT.NO. M7134T
HP 1.5 T. CODE T3C
VOLTS 208-230/460
AMPS 5-4.6/2.3
RPM 1755
HZ 60 PH 3 CL B
SER.F. 1.00 DES B CODE M
RATING 40C AMB-CONT
FRAME 145T NEMA-NOM-EFF 84 PF 72
USABLE AT 208V
Page 4 of 10
Product Information Packet: M7134T - 1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F
Parts List
Part Number Description Quantity
SA152326 SA 05E346X007H1 1.000 EA
RA141112 RA 05E346X007H1 1.000 EA
34FN3002B01 EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
HW4002A18 1"HEX STEEL PIPE NIPPLE FOR 305XP MTRS 1.000 EA
HW3021F12 SPRING PIN, .156 X 1.25 1.000 EA
35CB1000A01 CONDUIT BOX NEMA 182-215T - 36X & 37X 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
35EP1715A01 FR ENDPLATE, TEFC, 35M, X-PROOF MTR 1.000 EA
84XN3118J20 5/16-18 X 1 1/4" SOC HD CAP SCREW 4.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
05EP1700A02 EP PU EXPL PROOF 205 BRG 1.000 EA
84XN3118J20 5/16-18 X 1 1/4" SOC HD CAP SCREW 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH1000A02 35FH1000A02 1.000 EA
10XN2520A18 1/4-20 X 1-1/8 HEX CAP SCREW. 3.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 3.000 EA
35CB1500A02 BOX LID FOR 35CB1000, X-PROOF CONDUIT BO 1.000 EA
10XN2520A16 1/4-20 X 1 HEX HEAD CAP SCR, ZINC PLATED 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
Page 5 of 10
Product Information Packet: M7134T - 1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F
Parts List (continued)
Part Number Description Quantity
NP0018F ALUM UL XP CONDUIT BOX NAMEPLATE 1.000 EA
HW3201A05 3/8-16 EYEBOLT 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.017 GA
LB1119N WARNING LABEL 1.000 EA
LC0145B01 CONNECTION LABEL 1.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
NP1426XP SS UL CSA CLI GP-D CLII GP-F&G CC 1.000 EA
36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: M7134T - 1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F
AC Induction Motor Performance Data
Record # 30823 - Typical performance - not guaranteed values
Winding: 05WGX007-R002 Type: 0522M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5 Full Load Torque 4.47 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 5.1-4.8/2.4 Breakdown Torque 19.86 LB-FT
R.P.M. 1755 Pull-up Torque 10.13 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 14.35 LB-FT
NEMA Design Code B KVA Code M Starting Current 19.54 A
Service Factor (S.F.) 1 No-load Current 1.68 A
NEMA Nom. Eff. 84 Power Factor 70 LinelineRes.@25ºC 9.65Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 43°C
Locked-rotor Power Factor 53.8
Rotor inertia 0.13 LB-FT2
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 29 47 60 69 76 80
Efficiency 66.8 79.1 82.7 84.5 84.1 83.3
Speed 1791 1783 1773 1763 1753 1742
Line amperes 1.72 1.87 2.1 2.41 2.74 3.14
Page 7 of 10
Product Information Packet: M7134T - 1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F
Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: M7134T - 1.5HP,1755RPM,3PH,60HZ,145T,0521M,XPFC,F

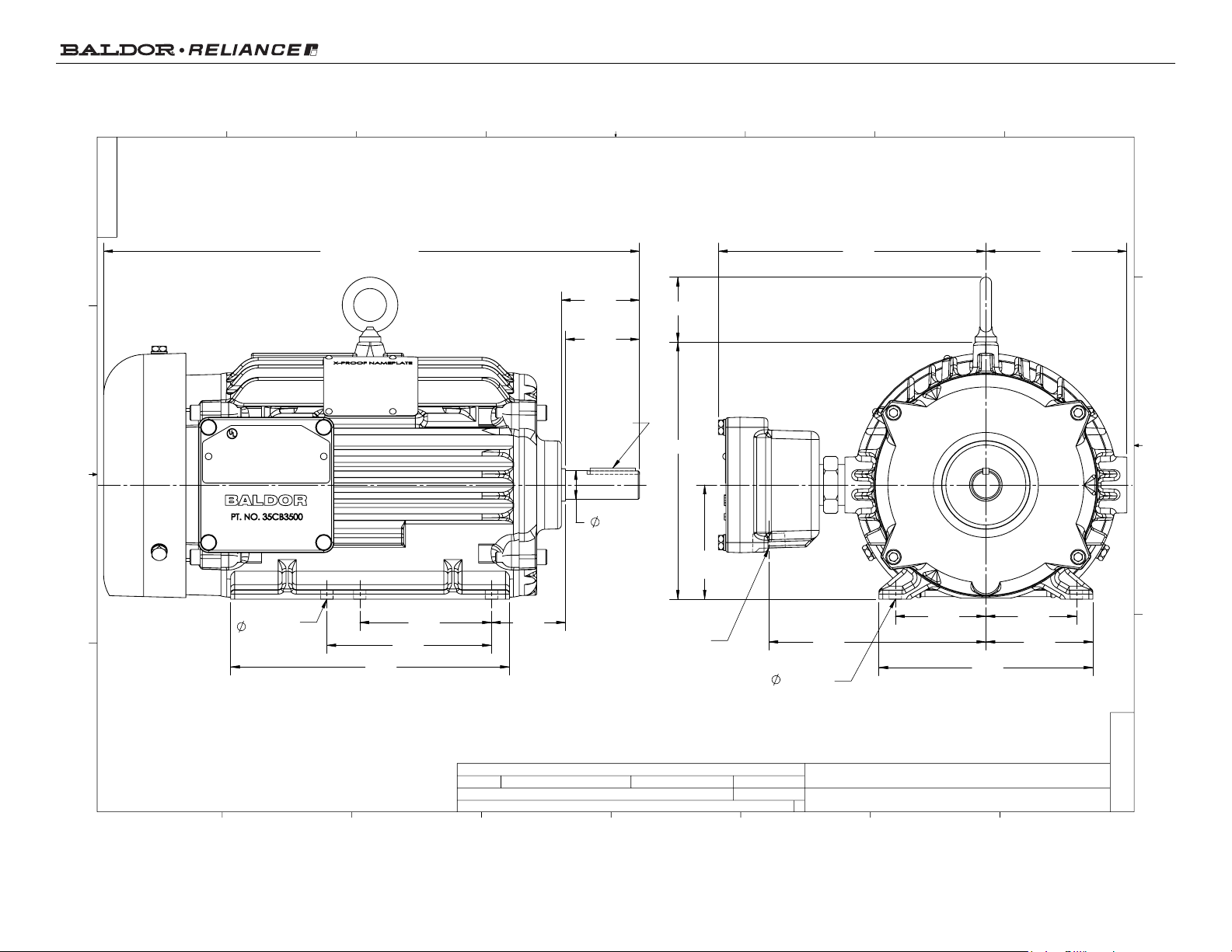

(510-535)=
16.28
2.37
2.25
.8750
.8745
8.47
2.254.00
5.00
.19 KEY
1.38 LONG
6X
.375-.385
6.50
7.81
3.50
3.44
2.75 2.75
3.256.59
8.12 4.28
1.97
6X
.375-.385
(REF)
LEAD HOLE
.75 N.P.T.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
05LYE346
B
BALDOR ELECTRIC Co.
HORZ 143-5T XPFC X35M CLI GP D,CLII GP F&G
REV. DESC:
REV:
BY:
REVISED:
MODEL NO.
VERSION:
TDR:
REF:
05LYE346
LOAD TO SOLIDWORKS
ENDAND0
B
08:50:23 08/05/2008
000000471788
01
Page 9 of 10
