Product Information Packet
M7087T
75HP,1185RPM,3PH,60HZ,405T,X1670M,XPFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M7087T - 75HP,1185RPM,3PH,60HZ,405T,X1670M,XPFC
Part Detail
Revision: L Status: INA/A Change #: Proprietary: No

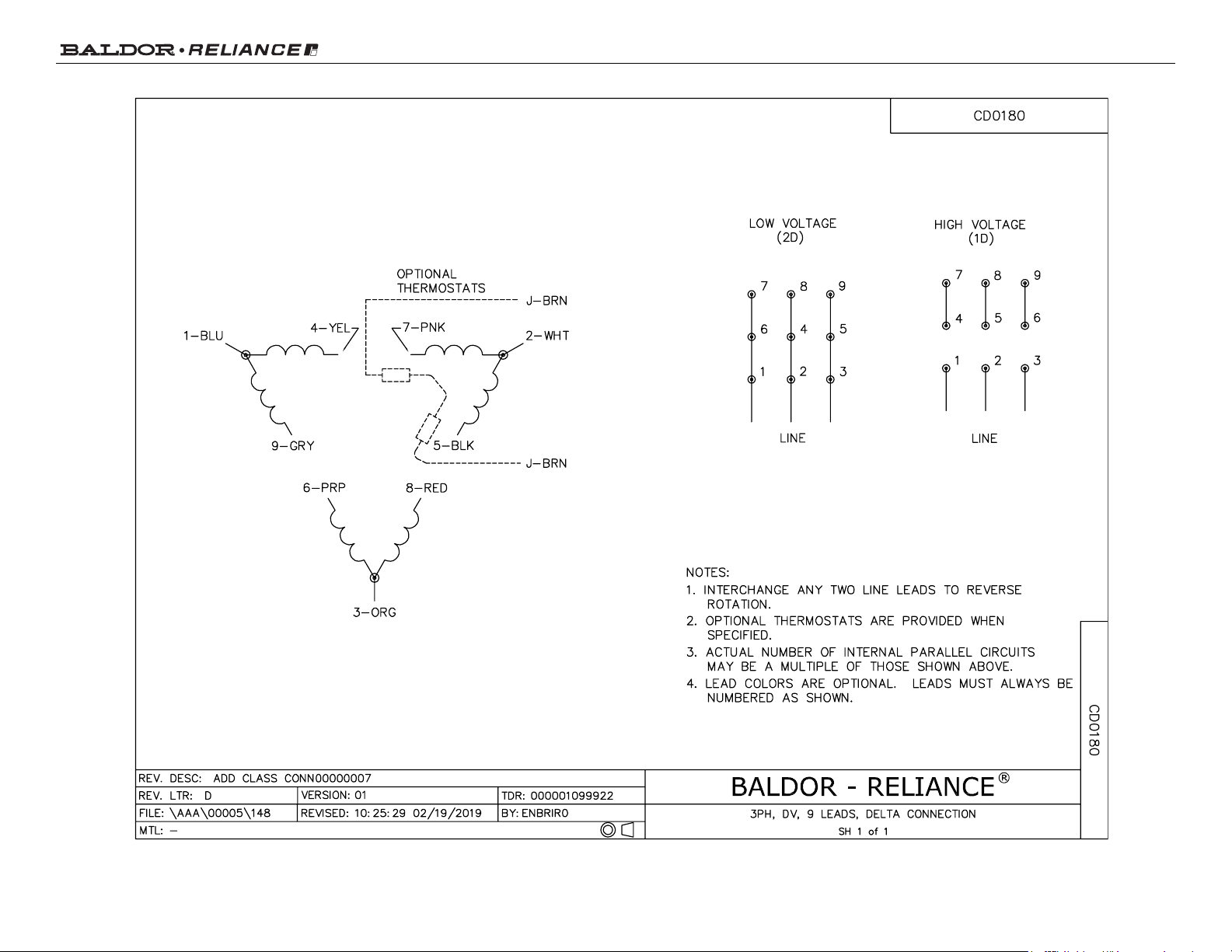

Type: AC Elec. Spec: 16WGW383 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 16E25 Layout: 16LYE025 Poles: 06 Created Date:
Base: RG Eff. Date: 12-03-2010 Leads: 9#6
Specs
Catalog Number: M7087T
Enclosure: TEFC
Frame: 405T
Frame Material: Iron
Output @ Frequency: 60.000 HP @ 50 HZ
75.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
1000 RPM @ 50 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
190.0 V @ 50 HZ
460.0 V @ 60 HZ
380.0 V @ 50 HZ
XP Division: Not Applicable
Agency Approvals: UL
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 6 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 1670M
Mounting Arrangement: F1
Power Factor: 85
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Base Indicator: Rigid
Pulley Shaft Indicator: Standard
Page 2 of 7
Product Information Packet: M7087T - 75HP,1185RPM,3PH,60HZ,405T,X1670M,XPFC
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 88.000 A @ 460.0 V
85.000 A @ 380.0 V
176.000 A @ 230.0 V
170.000 A @ 190.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
XP Temp Code: T4
Page 3 of 7
Product Information Packet: M7087T - 75HP,1185RPM,3PH,60HZ,405T,X1670M,XPFC
AC Induction Motor Performance Data
Record # 20770 - Typical performance - not guaranteed values
Winding: 16WGW383-R005 Type: 1670M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 75//60 Full Load Torque 332 LB-FT
Volts 230/460//190/380 Start Configuration direct on line
Full Load Amps 176/88//170/85 Breakdown Torque 944 LB-FT
R.P.M. 1185//985 Pull-up Torque 388 LB-FT
Hz 60//50 Phase 3 Locked-rotor Torque 471 LB-FT
NEMA Design Code B KVA Code G Starting Current 575 A
Service Factor (S.F.) 1 No-load Current 28.4 A
NEMA Nom. Eff. 93.6 Power Factor 85 LinelineRes.@25ºC 0.0947Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 61°C
Locked-rotor Power Factor 31
Rotor inertia 34 LB-FT2
Load Characteristics 460 V, 60 Hz, 75 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 54 75 83 85 86 86 86
Efficiency 90.9 93.8 94.2 94 93.4 92.6 93.7
Speed 1196 1193 1190 1187 1183 1179 1185
Line amperes 35.5 49.8 67.8 87.7 109.3 132.8 100.7
Page 4 of 7
Product Information Packet: M7087T - 75HP,1185RPM,3PH,60HZ,405T,X1670M,XPFC

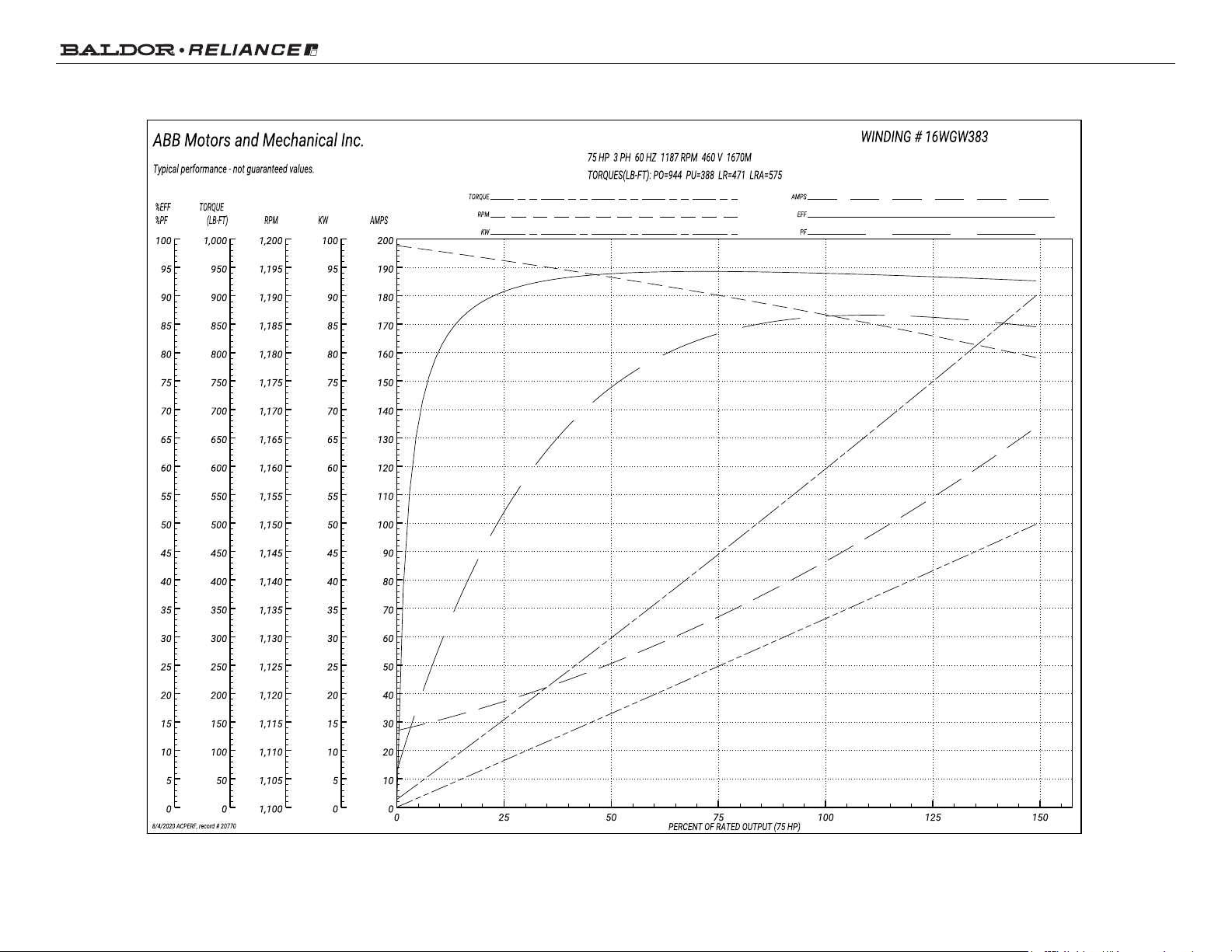

Performance Graph at 460V, 60Hz, 75.0HP Typical performance - Not guaranteed values
Page 5 of 7

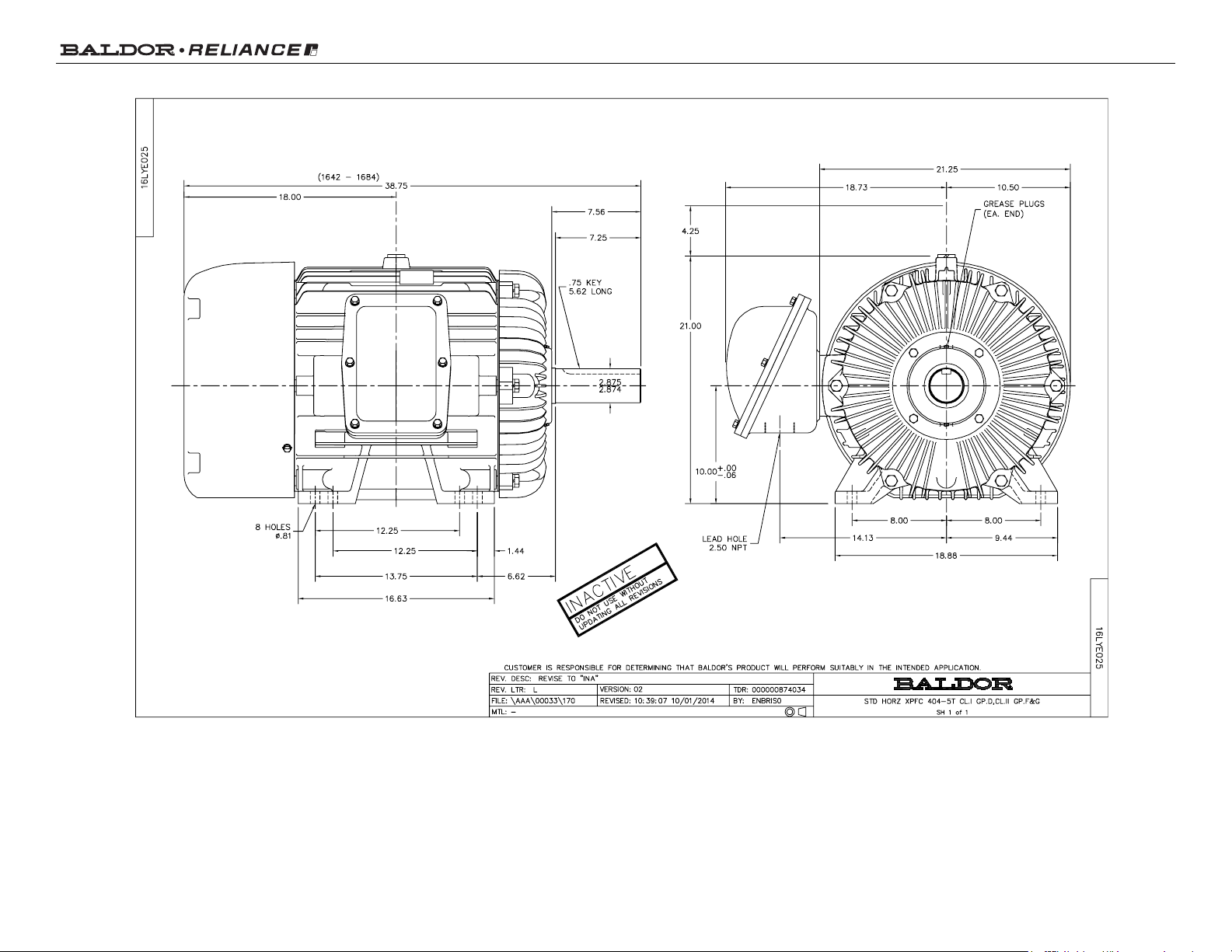

Product Information Packet: M7087T - 75HP,1185RPM,3PH,60HZ,405T,X1670M,XPFC
Page 6 of 7
Product Information Packet: M7087T - 75HP,1185RPM,3PH,60HZ,405T,X1670M,XPFC
Page 7 of 7
