Product Information Packet
M7068T-I-5
75HP,1780RPM,3PH,60HZ,365T,X1472M,XPFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M7068T-I-5 - 75HP,1780RPM,3PH,60HZ,365T,X1472M,XPFC
Part Detail
Revision: T Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 14WGX281 CD Diagram: CD0006 Mfg Plant:

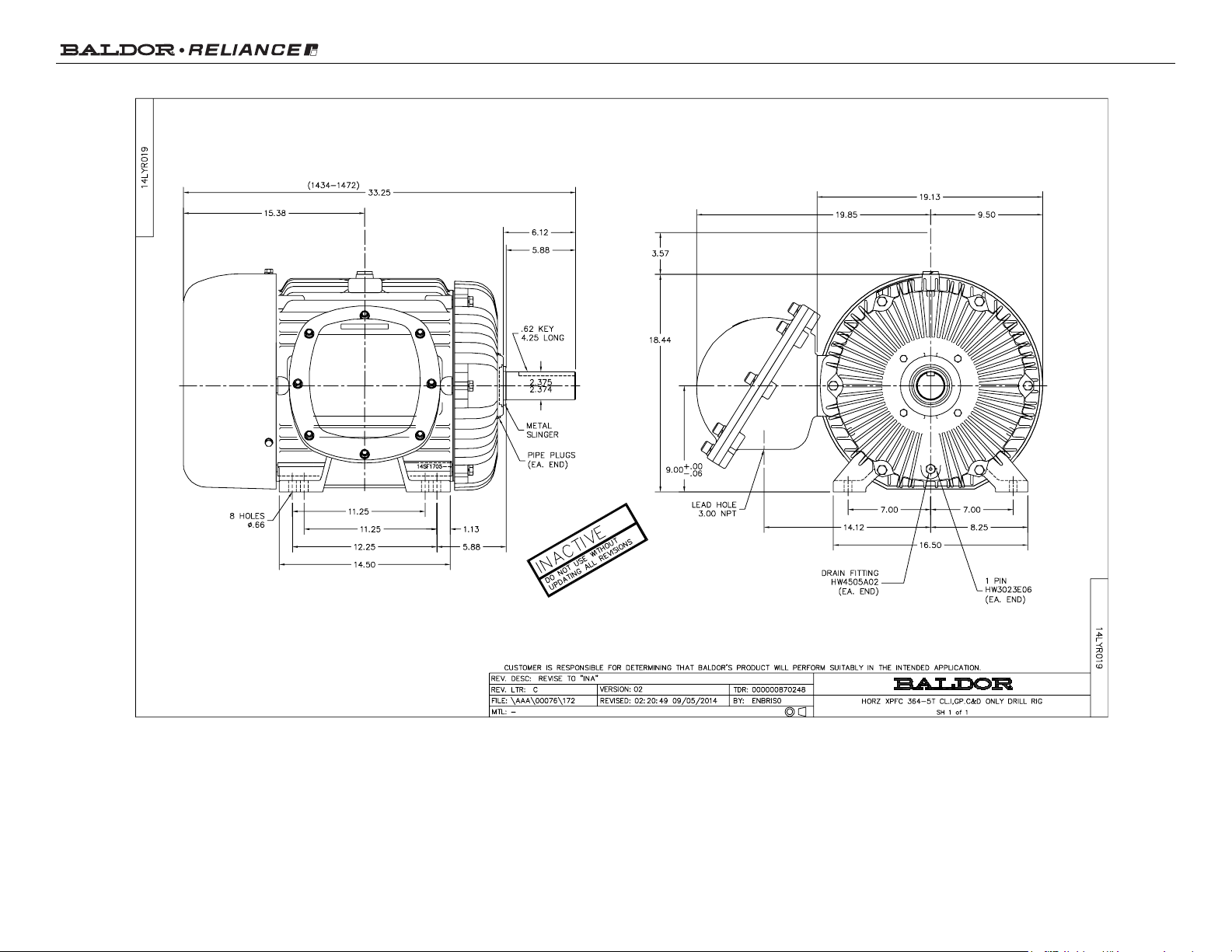

Mech. Spec: 14R019 Layout: 14LYR019 Poles: 04 Created Date:
Base: RG Eff. Date: 06-28-2013 Leads: 3#6
Specs
Catalog Number: M7068T-I-5
Frame: 365T
Frame Material: Iron
Output @ Frequency: 75.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Class and Group: CLI GP C,D
XP Division: Division I
Agency Approvals: UL
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 69.000 A @ 575.0 V
Design Code: A
Inverter Code: Not Inverter
KVA Code: H
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 6 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 1472M
Mounting Arrangement: F1
Power Factor: 88
Product Family: General Purpose
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Drip Cover: No Drip Cover
Shaft Rotation: Reversible
Page 2 of 7
Product Information Packet: M7068T-I-5 - 75HP,1780RPM,3PH,60HZ,365T,X1472M,XPFC
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
XP Temp Code: T3C
Page 3 of 7
Product Information Packet: M7068T-I-5 - 75HP,1780RPM,3PH,60HZ,365T,X1472M,XPFC
AC Induction Motor Performance Data
Record # 4137 - Typical performance - not guaranteed values
Winding: 14WGX281-R001 Type: 1472M Enclosure: XPFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 75 Full Load Torque 222 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 69 Breakdown Torque 615 LB-FT
R.P.M. 1780 Pull-up Torque 266 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 356 LB-FT
NEMA Design Code A KVA Code H Starting Current 506 A
Service Factor (S.F.) 1.15 No-load Current 23.6 A
NEMA Nom. Eff. 94.1 Power Factor 88 LinelineRes.@25ºC 0.0958Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 63°C
S.F. Amps Temp. Rise @ S.F. Load 75°C
Locked-rotor Power Factor 26
Rotor inertia 13.6 LB-FT2
Load Characteristics 575 V, 60 Hz, 75 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 57 78 85 88 89 88 89
Efficiency 89.7 93.6 94.5 94.6 94.3 93.8 94.4
Speed 1795 1791 1786 1780 1775 1767 1777
Line amperes 32 42 55.1 69 85 101 78.6
Page 4 of 7
Product Information Packet: M7068T-I-5 - 75HP,1780RPM,3PH,60HZ,365T,X1472M,XPFC
Performance Graph at 575V, 60Hz, 75.0HP Typical performance - Not guaranteed values
Page 5 of 7
Product Information Packet: M7068T-I-5 - 75HP,1780RPM,3PH,60HZ,365T,X1472M,XPFC
Page 6 of 7
Product Information Packet: M7068T-I-5 - 75HP,1780RPM,3PH,60HZ,365T,X1472M,XPFC
Page 7 of 7
