Product Information Packet
M7053T-I
15//10HP,3510//2925RPM,3PH,60//50HZ,254T
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M7053T-I - 15//10HP,3510//2925RPM,3PH,60//50HZ,254T
Part Detail
Revision: C Status: NLA/A Change #: Proprietary: No
Type: AC Elec. Spec: 09WGZ371 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 09F369 Layout: 09LYF369 Poles: 02 Created Date: 12-07-2007
Base: RG Eff. Date: 05-03-2018 Leads: 9#12
Specs
Catalog Number: M7053T-I
Enclosure: TEFC
Frame: 254T
Frame Material: Iron
Output @ Frequency: 15.000 HP @ 60 HZ
10.000 HP @ 50 HZ
Synchronous Speed @ Frequency: 3000 RPM @ 50 HZ
3600 RPM @ 60 HZ
Voltage @ Frequency: 380.0 V @ 50 HZ
460.0 V @ 60 HZ
190.0 V @ 50 HZ
230.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: UL
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 12 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0932M
Mounting Arrangement: F1
Power Factor: 91
Product Family: General Purpose
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Base Indicator: Rigid
Rodent Screen: None
Page 2 of 10
Product Information Packet: M7053T-I - 15//10HP,3510//2925RPM,3PH,60//50HZ,254T
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 14.500 A @ 380.0 V
17.000 A @ 460.0 V
29.000 A @ 190.0 V
34.000 A @ 230.0 V
38.000 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Page 3 of 10
Product Information Packet: M7053T-I - 15//10HP,3510//2925RPM,3PH,60//50HZ,254T
Nameplate NP0977XP
NO. TEMP CODE T3C
SPEC. 09F369Z371H2 DE BRG 6309
CAT.NO. M7053T-I ODE BRG 6208
HP 15//10 GREASE POLYREX EM
VOLTS 230/460//190/380 MOTOR WEIGHT
AMPS 34/17//29/14.5 NEMA-NOM-EFF 90.2
RPM 3510//2925 FL PF 91
CYCLE 60//50 PH 3 CL F FRAME 254T
SER.F. 1.15 DES B CODE G CC 010A
SER.
RATING 40C AMB-CONT
USABLE AT 208V 38
Page 4 of 10
Product Information Packet: M7053T-I - 15//10HP,3510//2925RPM,3PH,60//50HZ,254T
Parts List
Part Number Description Quantity
SA165765 SA 09F369Z371H2 1.000 EA
RA154159 RA 09F369Z371H2 1.000 EA
37FN3002C02 EXFN, PLASTIC, 6.00 OD, 1.503 ID 1.000 EA
MJ5000A09 SEALANT, CHICO A COMPOUND 0.050 LB
09CB1003A01P KOBX, MACH 1.25 NPT GROUP C MTRS PRIMED 1.000 EA
10XN3118K24 5/16-18 X 1.50" HEX HD, GRADE 5 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA
10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 1.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA
09EP1700A33P FR ENDPLATE, MACH, XPFC W/DRN HW4505A02 1.000 EA
HW3023E06 .125 X .625 SPIRAL SPRING PIN 1.000 EA
10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
09FH1004A03P FAN COVER, MACH PRIMED 1.000 EA
HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA
10XN2520K36 1/4-20 X 2.25" HX HD SCRWGRADE 5, ZINC P 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
HA2066A01 SLINGER, ALUM (AUTO) 1.000 EA
09EP1707A16P PU E.P., MACH. W/DRAIN HW4505A02 W/PRIME 1.000 EA
HW3023E06 .125 X .625 SPIRAL SPRING PIN 1.000 EA
10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
10XN2520K12 1/4-20 X.75 GRD 5 3.000 EA
Page 5 of 10
Product Information Packet: M7053T-I - 15//10HP,3510//2925RPM,3PH,60//50HZ,254T
Parts List (continued)
Part Number Description Quantity
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 3.000 EA
80XN1032A07 SET SCREW, HEX XOCK, ZN 1.000 EA
09CB1502A01P CONDUIT BOX LID MACH. GROUP C MTRS W/EP 1.000 EA
84XN5013J24 1/2-13 X 1-1/2 HEX SOCKET HD CAP SCREW 6.000 EA
HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 6.000 EA
HW2501G25 KEY, 3/8 SQ X 2.875 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
LB1081Z ALUM XP CAUTION LABEL (ZK PLANT ONLY- 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1119N WARNING LABEL 1.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA
HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB
HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA
HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA
HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
MG1025G05 WILKOFAST, 789.227, MED. GRAY CHAR. MET. 0.050 GA
85XU0407A04 #4-7 X 1/4 DRIVE PIN 6.000 EA
LB1081Z ALUM XP CAUTION LABEL (ZK PLANT ONLY- 1.000 EA
LC0145B01 CONNECTION LABEL 1.000 EA
NP0977XP BR XP UL CSA CC CL-I GP-C&D 1.000 EA
40PA1005 PACKAGING GROUP, 09 STD 1.000 EA
Page 6 of 10
Product Information Packet: M7053T-I - 15//10HP,3510//2925RPM,3PH,60//50HZ,254T
No performance data has been
assigned to this product.
Page 7 of 10

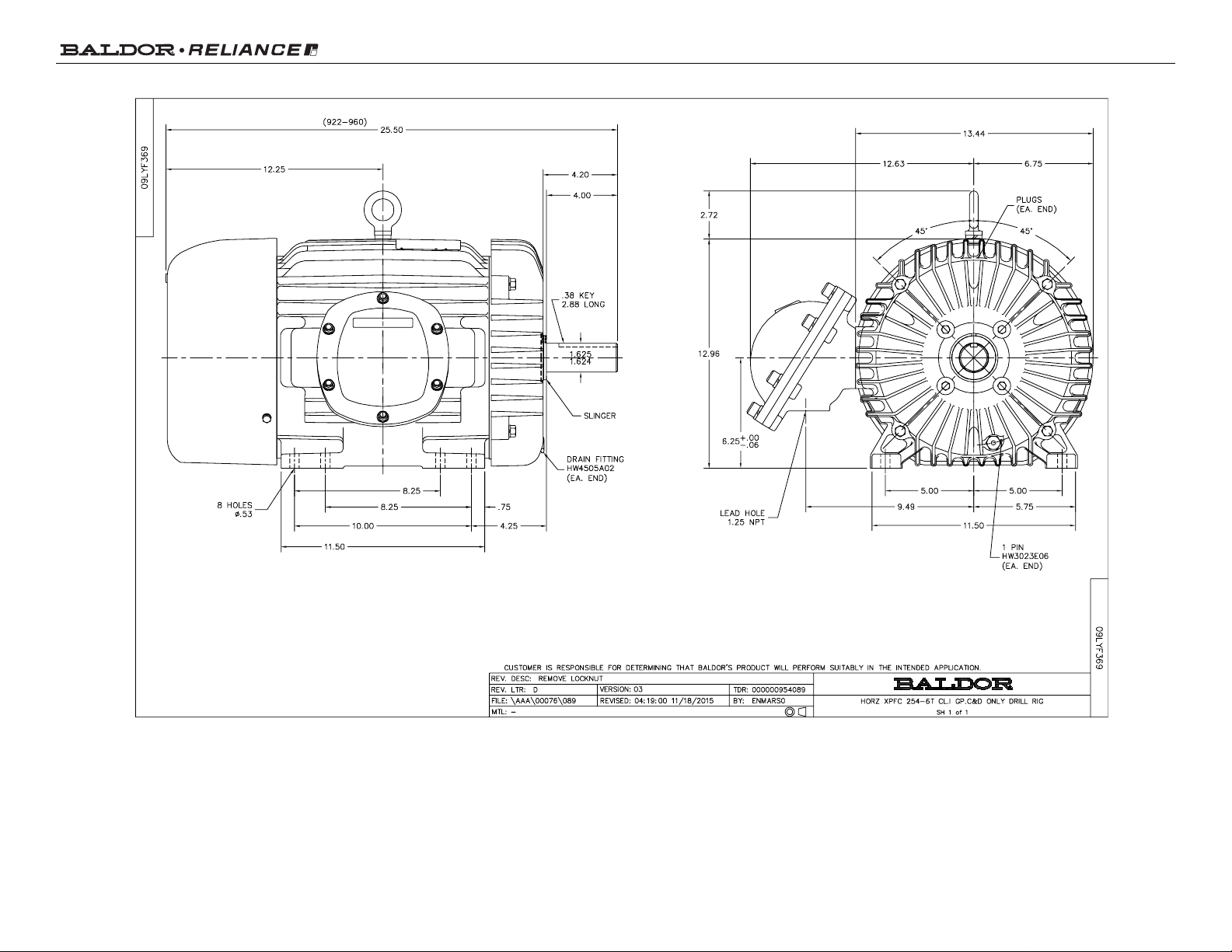

Product Information Packet: M7053T-I - 15//10HP,3510//2925RPM,3PH,60//50HZ,254T
Page 8 of 10
Product Information Packet: M7053T-I - 15//10HP,3510//2925RPM,3PH,60//50HZ,254T
Page 9 of 10
