Product Information Packet
M7047T-5
7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Part Detail
Revision: L Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 37WGS346 CD Diagram: CD0006 Mfg Plant:

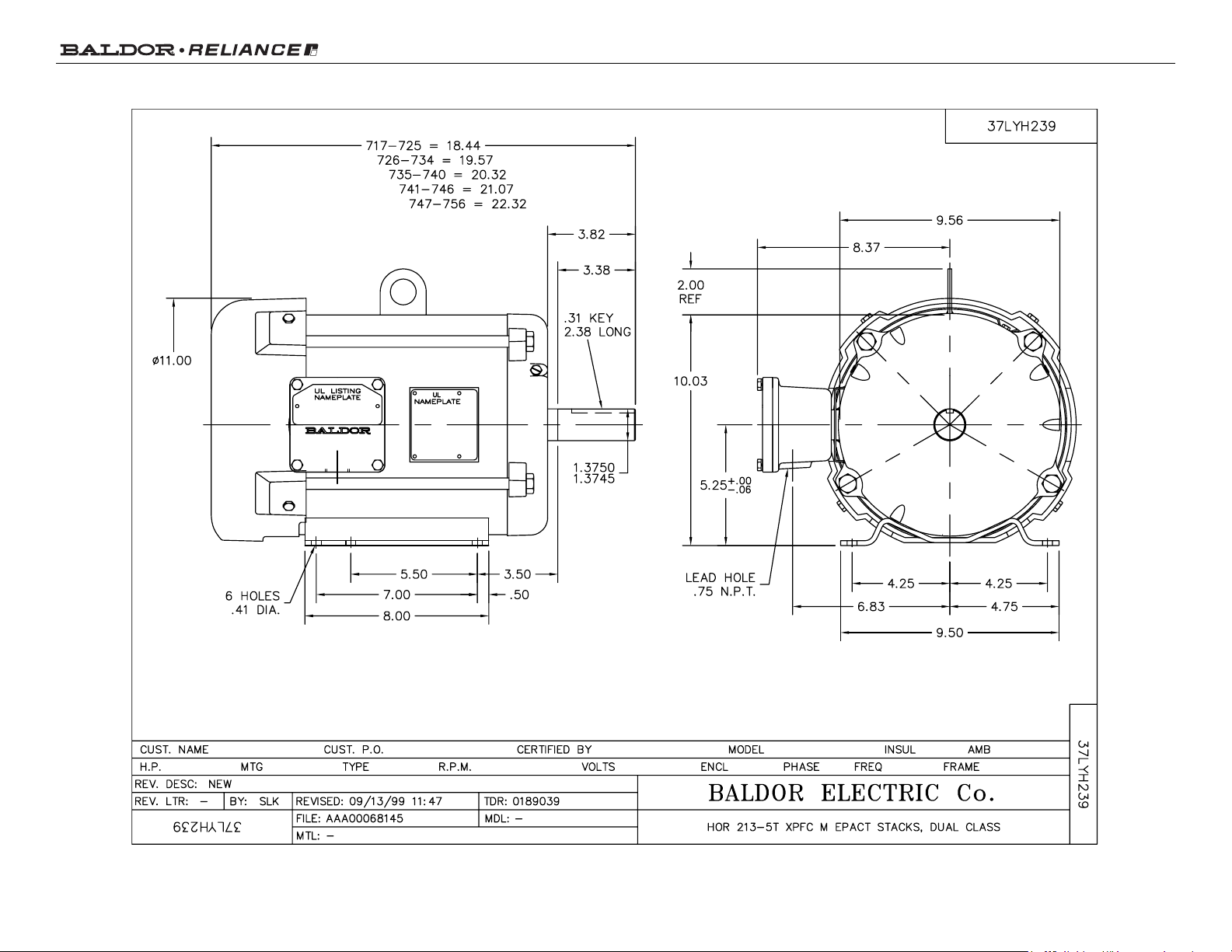

Mech. Spec: 37H239 Layout: 37LYH239 Poles: 04 Created Date: 03-23-2009
Base: RG Eff. Date: 03-08-2016 Leads: 3#14
Specs
Catalog Number: M7047T-5
Frame: 213T
Frame Material: Steel
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Class and Group: CLI GP D; CLII GP F,G
XP Division: Division I
Agency Approvals: UL
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 8.100 A @ 575.0 V
Design Code: A
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3731M
Mounting Arrangement: F1
Power Factor: 77
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Drip Cover: No Drip Cover
Shaft Slinger Indicator: No Slinger
Page 2 of 10
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Page 3 of 10
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Nameplate NP1426XPSLEV
NO. CC 010A
SER.
SPEC. 37H239S346H1
CAT.NO. M7047T-5
HP 7.5 T. CODE T3C
VOLTS 575
AMPS 8.1
RPM 1770
HZ 60 PH 3 CL B
SER.F. 1.00 DES A CODE K
RATING 40C AMB-CONT
FRAME 213T NEMA-NOM-EFF 89.5
USABLE AT 208V PF 77
BLANK
Page 4 of 10
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Parts List
Part Number Description Quantity
SA180794 SA 37H239S346H1 1.000 EA
RA168746 RA 37H239S346H1 1.000 EA
35CB3001A02SP EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
37EP1102A01 STD FR EP, XPFC 1.000 EA
HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP1701A02 PU ENDPLATE,TEFC, 1 FAN, W/GREASER, MACH 1.000 EA
HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA
XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 4.000 EA
37FH2000A01SP STD XPROOF FAN COVER 1.000 EA
10XN2520A12 1/4-20 X 3/4 HEX HEAD CAP 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
35CB3500A01SP CONDUIT BOX LID, MACH 1.000 EA
51XN2520A16 SCREW, HEX WS SLT, ZN, 1/4-20 X 1.00 4.000 EA
HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
NP0018F ALUM UL XP CONDUIT BOX NAMEPLATE 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
37FN3002A01SP EXFN, PLASTIC, 9.00 OD, 1.155 ID 1.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
Page 5 of 10
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Parts List (continued)
Part Number Description Quantity
XY2520A12 1/4-20 HEX NUT, DIRECTIONAL SERRATIONS 1.000 EA
MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.028 GA
HA3106A03 THRUBOLT- 1/2-13 X 11.875 X 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0006 CONNECTION LABEL 1.000 EA
NP1426XPSLEV SS XP UL CSA-EEV CC CL-I GP-D 1.000 EA
37PA1074 PALLET PACK GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
AC Induction Motor Performance Data
Record # 37127 - Typical performance - not guaranteed values
Winding: 37WGS346-R002 Type: 3732M Enclosure: XPFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 7.5 Full Load Torque 22.23 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 8.1 Breakdown Torque 79.06 LB-FT
R.P.M. 1770 Pull-up Torque 35.41 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 48.59 LB-FT
NEMA Design Code A KVA Code K Starting Current 63.82 A
Service Factor (S.F.) 1 No-load Current 4.31 A
NEMA Nom. Eff. 89.5 Power Factor 77 LinelineRes.@25ºC 2.16Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 71°C
Locked-rotor Power Factor 39
Rotor inertia 0.787 LB-FT2
Load Characteristics 575 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 38 58 70 77 81 83
Efficiency 81.1 88.1 89.4 90 88.7 87.9
Speed 1792 1787 1779 1771 1763 1753
Line amperes 4.68 5.51 6.74 8.15 9.8 11.52
Page 7 of 10
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Performance Graph at 575V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Page 9 of 10
Product Information Packet: M7047T-5 - 7.5HP,1770RPM,3PH,60HZ,213T,3732M,XPFC,F
Page 10 of 10
