Product Information Packet
M4316T-5
75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Part Detail
Revision: F Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 12WGX931 CD Diagram: CD0006 Mfg Plant: Mech. Spec: 12E279 Layout: 12LYE279 Poles: 04 Created Date: 04-19-2007 Base: RG Eff. Date: 03-08-2016 Leads: 3#6
Specs
Catalog Number: M4316T-5 Enclosure: TEFC Frame: 365T Frame Material: Iron Output @ Frequency: 75.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 575.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: CSA
UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 68.000 A @ 575.0 V Design Code: B
KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 3 @ 6 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1286M Mounting Arrangement: F1 Power Factor: 86 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible
Drip Cover: No Drip Cover
Shaft Slinger Indicator: Shaft Slinger
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F Inverter Code: Not Inverter
Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Nameplate NP1256L
CAT.NO. M4316T-5
SPEC. 12E279X931
HP 75
VOLTS 575
AMP 68 RPM 1770
FRAME 365T HZ 60 PH 3
SER.F. 1.15 CODE H DES B CLASS F
NEMA-NOM-EFF 94.1 PF 86
RATING 40C AMB-CONT
CC 010A USABLE AT 208V DE 6313 ODE 6311
ENCL TEFC SN
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Parts List
Part Number Description Quantity SA156966 SA 12E279X931 1.000 EA RA145668 RA 12E279X931 1.000 EA 10FN3001A02 310 FAN, PLASTIC 2.000 DIA. BORE 1.000 EA 10CB3002A01 CB 309 3.62 LD HOLE, .44 MTG HOLE & 3.50 1.000 EA 14GS1000SP GASKET, CONDUIT BOX 1.000 EA 10XN3816K12 3/8-16 X 3/4 HEX HD CAP GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA 12EP1107A05 FR ENDPLATE, MACH 324-6T 1.000 EA HA3400A13 STUD, 1/2-13 X 7" WELKER 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA 12FH1002SP FAN COVER, CAST 1.000 EA HW5100A13 W4627-047 WVY WSHER 1.000 EA 10XN3118K36 5/16-18 X 2.25" HEX HD, GRADE 5 2.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 2.000 EA 10XN3816K48 3/8-16 X 3 HEX HD CAP SCREW,Z/P 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 12EP1110A01 PULLEY ENDPLATE-313 BRG-MACH 1.000 EA 10XN5013K28 1/2-13 X 1.75 HEX HEAD MACH SCREW,GRAD 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 4.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Parts List (continued)
Part Number Description Quantity 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA HA1005A08SP 314-34 NEOPRENE SLINGER 1.000 EA HW2501J36 KEY, 5/8 SQ X 4.250 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.200 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA HA6390A01 HOSE CLAMP FOR 3.12 DIA S.S. OR PLATED 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.080 GA 85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0006 CONNECTION LABEL 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 14PA1000 PACKAGING 314 GROUP COMBINED PRINT 1.000 EA
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Accessories
Part Number Description Multiplier 12-1300 C-FACE KIT P1
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
AC Induction Motor Performance Data
Record # 24036 - Typical performance - not guaranteed values
Winding: 12WGX931-R001 Type: 1286M Enclosure: TEFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor Rated Output (HP) 75 Full Load Torque 221 LB-FT Volts 575 Start Configuration direct on line Full Load Amps 68 Breakdown Torque 645 LB-FT R.P.M. 1770 Pull-up Torque 332 LB-FT Hz 60 Phase 3 Locked-rotor Torque 394 LB-FT NEMA Design Code B KVA Code H Starting Current 457 A Service Factor (S.F.) 1.15 No-load Current 21.9 A NEMA Nom. Eff. 94.1 Power Factor 86 LinelineRes.@25ºC 0.114Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 68°C S.F. Amps Temp. Rise @ S.F. Load 81°C
Locked-rotor Power Factor 26
Rotor inertia 11.5 LB-FT2
Load Characteristics 575 V, 60 Hz, 75 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 57 78 85 88 88 89 88 Efficiency 91.7 93.6 93.9 94.1 93.4 92.5 93.7 Speed 1792 1784 1779 1771 1764 1756 1767 Line amperes 26.9 38.3 52.5 67.8 85.1 103 78.2
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Performance Graph at 575V, 60Hz, 75.0HP Typical performance - Not guaranteed values

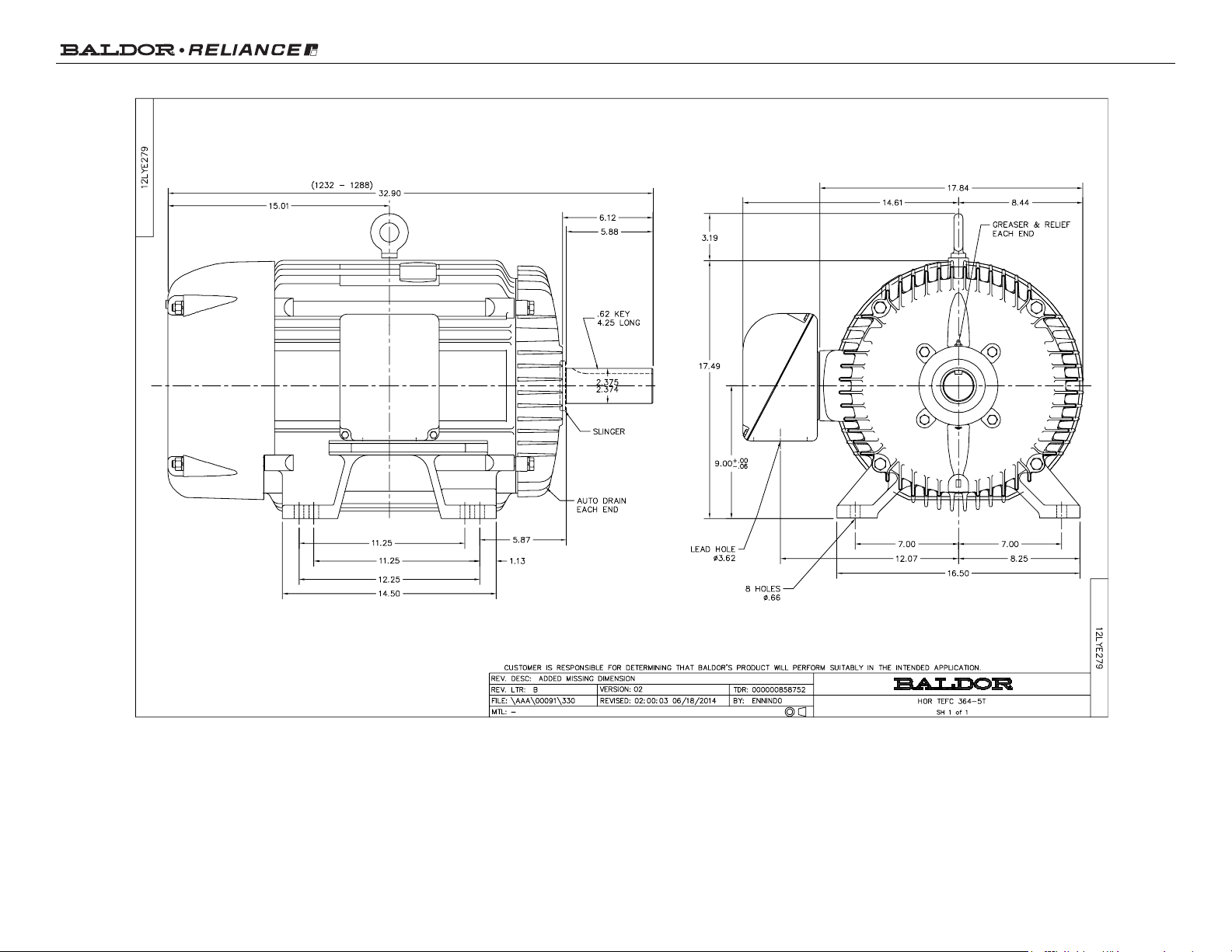

Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Page 10 of 11
Product Information Packet: M4316T-5 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Page 11 of 11
