M4316T-12
Product Information Sheet
11 pgs223.95 Kb0

Baldor M4316T-12 Product Information Sheet

Download
Product Information Packet
M4316T-12
75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Part Detail

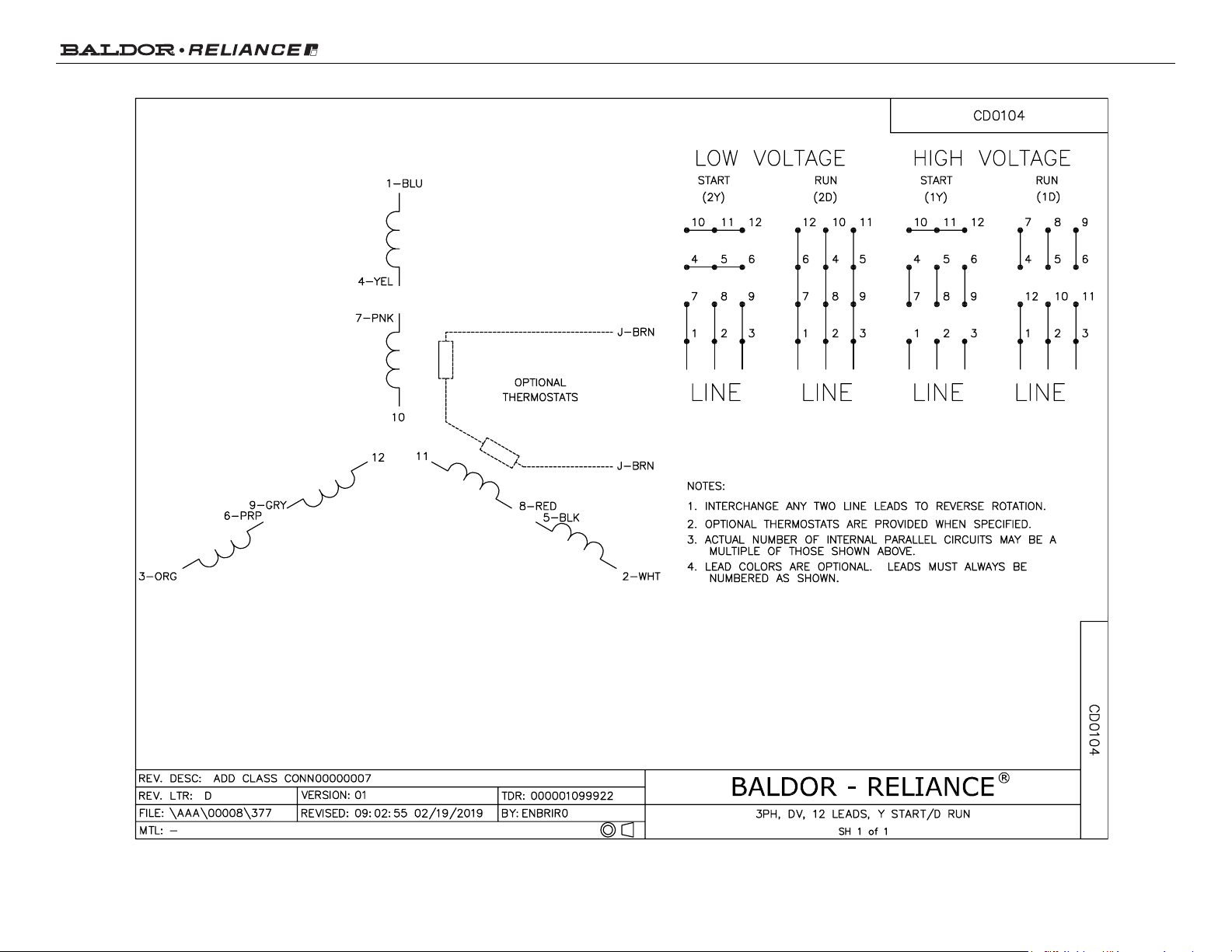

Revision: B Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 12WGX930 CD Diagram: CD0104 Mfg Plant: Mech. Spec: 12E279 Layout: 12LYE279 Poles: 04 Created Date: 04-19-2007 Base: RG Eff. Date: 02-24-2010 Leads: 12#8
Specs
Catalog Number: M4316T-12 Enclosure: TEFC Frame: 365T Frame Material: Iron Output @ Frequency: 75.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: CSA
UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Insulation Class: F Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 12 @ 8 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1286M Mounting Arrangement: F1 Power Factor: 86 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End
Current @ Voltage: 172.000 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
186.000 A @ 208.0 V
86.000 A @ 460.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Wye Start - Delta Run Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Nameplate NP1256L
CAT.NO. M4316T-12
SPEC. 12E279X930H1
HP 75
VOLTS 208-230/460
AMP 186-172/86 RPM 1770
FRAME 365T HZ 60 PH 3
SER.F. 1.15 CODE H DES B CLASS F
NEMA-NOM-EFF 94.1 PF 86
RATING 40C AMB-CONT
CC 010A USABLE AT 208V DE 6313 ODE 6311
ENCL TEFC SN
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Parts List
Part Number Description Quantity SA156965 SA 12E279X930H1 1.000 EA RA145667 RA 12E279X930H1 1.000 EA 10FN3001A02 310 FAN, PLASTIC 2.000 DIA. BORE 1.000 EA S/P101-000-004 EPACT PROC-CL, 280FR & UP,LARGE BOX,POLY 1.000 EA 10CB3002A01 CB 309 3.62 LD HOLE, .44 MTG HOLE & 3.50 1.000 EA 14GS1000SP GASKET, CONDUIT BOX 1.000 EA 10XN3816K12 3/8-16 X 3/4 HEX HD CAP GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA 12EP1107A05 FR ENDPLATE, MACH 324-6T 1.000 EA HA3400A13 STUD, 1/2-13 X 7" WELKER 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA 12FH1002SP FAN COVER, CAST 1.000 EA HW5100A13 W4627-047 WVY WSHER 1.000 EA 10XN3118K36 5/16-18 X 2.25" HEX HD, GRADE 5 2.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 2.000 EA 10XN3816K48 3/8-16 X 3 HEX HD CAP SCREW,Z/P 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 12EP1110A01 PULLEY ENDPLATE-313 BRG-MACH 1.000 EA 10XN5013K28 1/2-13 X 1.75 HEX HEAD MACH SCREW,GRAD 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 4.000 EA
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Parts List (continued)
Part Number Description Quantity 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA 51XW2520A12 1/4-20X3/4 TY23 HX WS SLTZN 4.000 EA HA1005A08SP 314-34 NEOPRENE SLINGER 1.000 EA HW2501J36 KEY, 5/8 SQ X 4.250 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.200 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA HA6390A01 HOSE CLAMP FOR 3.12 DIA S.S. OR PLATED 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.080 GA 85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1119N WARNING LABEL 1.000 EA LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA LC0104A01 CONNECTION DIAGRAM 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 14PA1000 PACKAGING 314 GROUP COMBINED PRINT 1.000 EA
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Accessories
Part Number Description Multiplier 12-1300 C-FACE KIT P1
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
AC Induction Motor Performance Data
Record # 36413 - Typical performance - not guaranteed values
Winding: 12WGX930-R002 Type: 1286M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 75 Full Load Torque 221 LB-FT Volts 208-230/460 Start Configuration direct on line Full Load Amps 186-172/86 Breakdown Torque 700 LB-FT R.P.M. 1770 Pull-up Torque 361 LB-FT Hz 60 Phase 3 Locked-rotor Torque 429 LB-FT NEMA Design Code B KVA Code H Starting Current 621 A Service Factor (S.F.) 1.15 No-load Current 30.4 A NEMA Nom. Eff. 94.1 Power Factor 86 LinelineRes.@25ºC 0.0688Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 69°C S.F. Amps Temp. Rise @ S.F. Load 82°C
Locked-rotor Power Factor 26
Rotor inertia 11.5 LB-FT2
Load Characteristics 460 V, 60 Hz, 75 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 54 75 83 86 88 88 87 Efficiency 90.9 93.5 93.9 94.1 93.5 92.6 93.7 Speed 1792 1785 1780 1773 1766 1759 1769 Line amperes 36.2 49.8 67.1 85.9 107 129 98.6
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Performance Graph at 460V, 60Hz, 75.0HP Typical performance - Not guaranteed values
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Page 10 of 12
Product Information Packet: M4316T-12 - 75HP,1770RPM,3PH,60HZ,365T,1286M,TEFC,F1
Page 11 of 12
