Product Information Packet
M4106T
20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
Part Detail
Revision: M Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 07WGX144 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 07H281 Layout: 07LYH281 Poles: 02 Created Date:
Base: RG Eff. Date: 01-15-2010 Leads: 9#12
Specs
Catalog Number: M4106T
Enclosure: TEFC
Frame: 256T
Frame Material: Iron
Output @ Frequency: 20.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 12 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0750M
Mounting Arrangement: F1
Power Factor: 90
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 23.000 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
46.000 A @ 230.0 V
47.000 A @ 208.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
Nameplate NP1256L
CAT.NO. M4106T
SPEC. 07H281X144H1
HP 20
VOLTS 208-230/460
AMP 47-46/23
RPM 3450
FRAME 256T HZ 60 PH 3
SER.F. 1.15 CODE K DES A CLASS F
NEMA-NOM-EFF 90.2 PF 90
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 47
DE 6309 ODE 6307
ENCL TEFC SN
Page 4 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
Parts List
Part Number Description Quantity
SA068709 SA 07H281X144H1 1.000 EA
RA062684 RA 07H281X144H1 1.000 EA
36FN3000C02SP EXFN, PLASTIC, 5.25 OD, 1.175 ID 1.000 EA
S/P101-000-000 EPACT PROCEDURES-FS PLANT-POLYREX EM, NO 1.000 EA
HW3201A01 1/2-13 EYEBOLT 1.000 EA
09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 1.000 EA
37EP1101A03 FR/PU ENDPLATE, MACH 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA
07EP1116A01 ENDPLATE, MACH 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
07FH4007SP PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA
09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
HW2501G25 KEY, 3/8 SQ X 2.875 1.000 EA
HA7000A03 KEY RETAINER RING 1.62 & 1.88 DIA. SH 1.000 EA
Page 5 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
HA3104A42 THRUBOLT, .31-18 X 16.375 4.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.036 GA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
Accessories
Part Number Description Multiplier
37-1302 C FACE KIT A8
Page 7 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
AC Induction Motor Performance Data
Record # 1105 - Typical performance - not guaranteed values
Winding: 07WGX144-R001 Type: 0750M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 20 Full Load Torque 30 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 47-46/23 Breakdown Torque 135 LB-FT
R.P.M. 3450 Pull-up Torque 71 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 94 LB-FT
NEMA Design Code A KVA Code K Starting Current 206 A
Service Factor (S.F.) 1.15 No-load Current 6.2 A
NEMA Nom. Eff. 90.2 Power Factor 90 LinelineRes.@25ºC 0.42Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 80°C
S.F. Amps Temp. Rise @ S.F. Load 112°C
Locked-rotor Power Factor 34
Rotor inertia 0.457 LB-FT2
Load Characteristics 460 V, 60 Hz, 20 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 65 81 87 90 91 91 91
Efficiency 85.4 90 90.7 90.3 89.4 88 89.8
Speed 3571 3544 3515 3485 3453 3416 3466
Line amperes 8.5 12.7 17.7 23 28.5 34.7 26.3
Page 8 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1

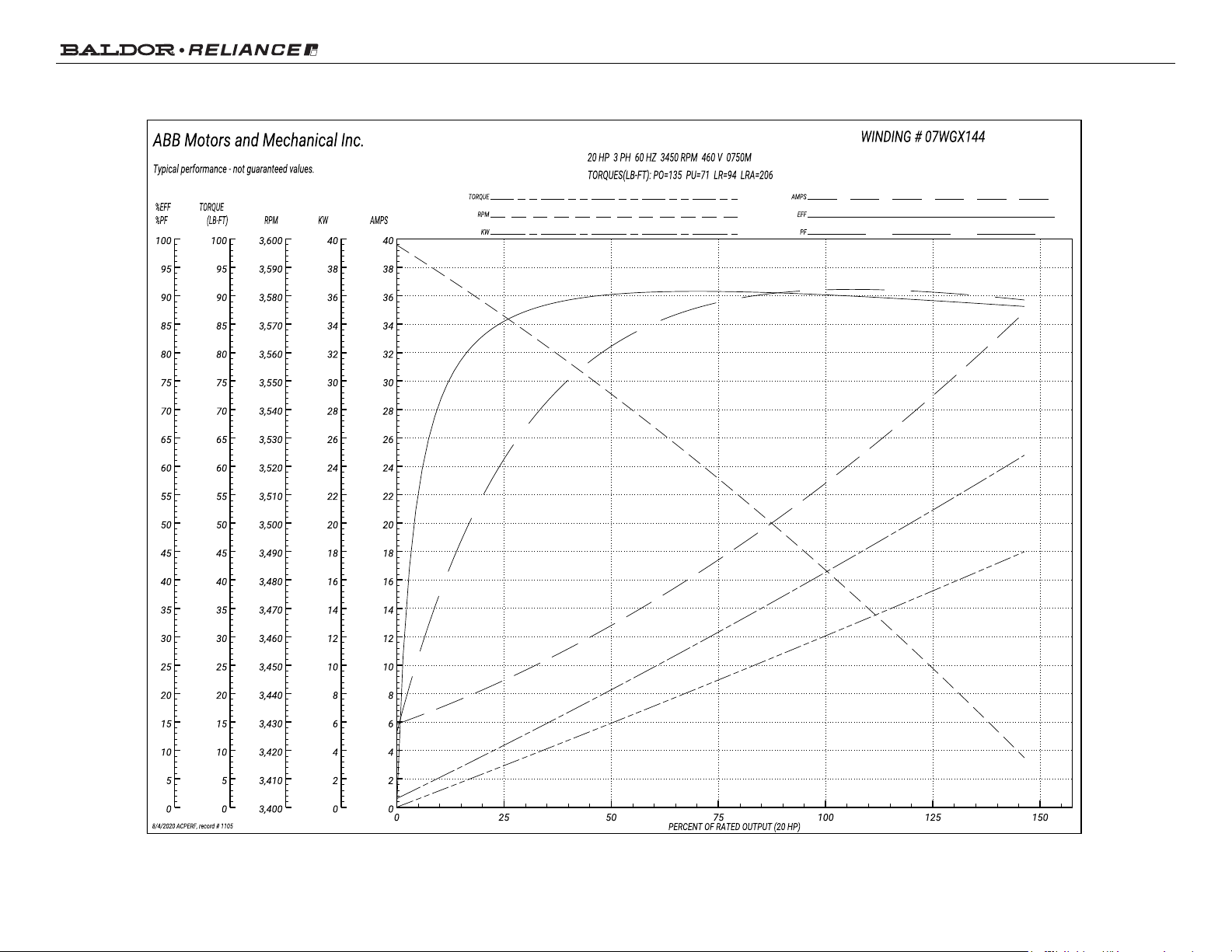

Performance Graph at 460V, 60Hz, 20.0HP Typical performance - Not guaranteed values
Page 9 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
Page 10 of 11
Product Information Packet: M4106T - 20HP,3450RPM,3PH,60HZ,256T,0750M,TEFC,F1
Page 11 of 11
