Product Information Packet
M4100T
15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Part Detail

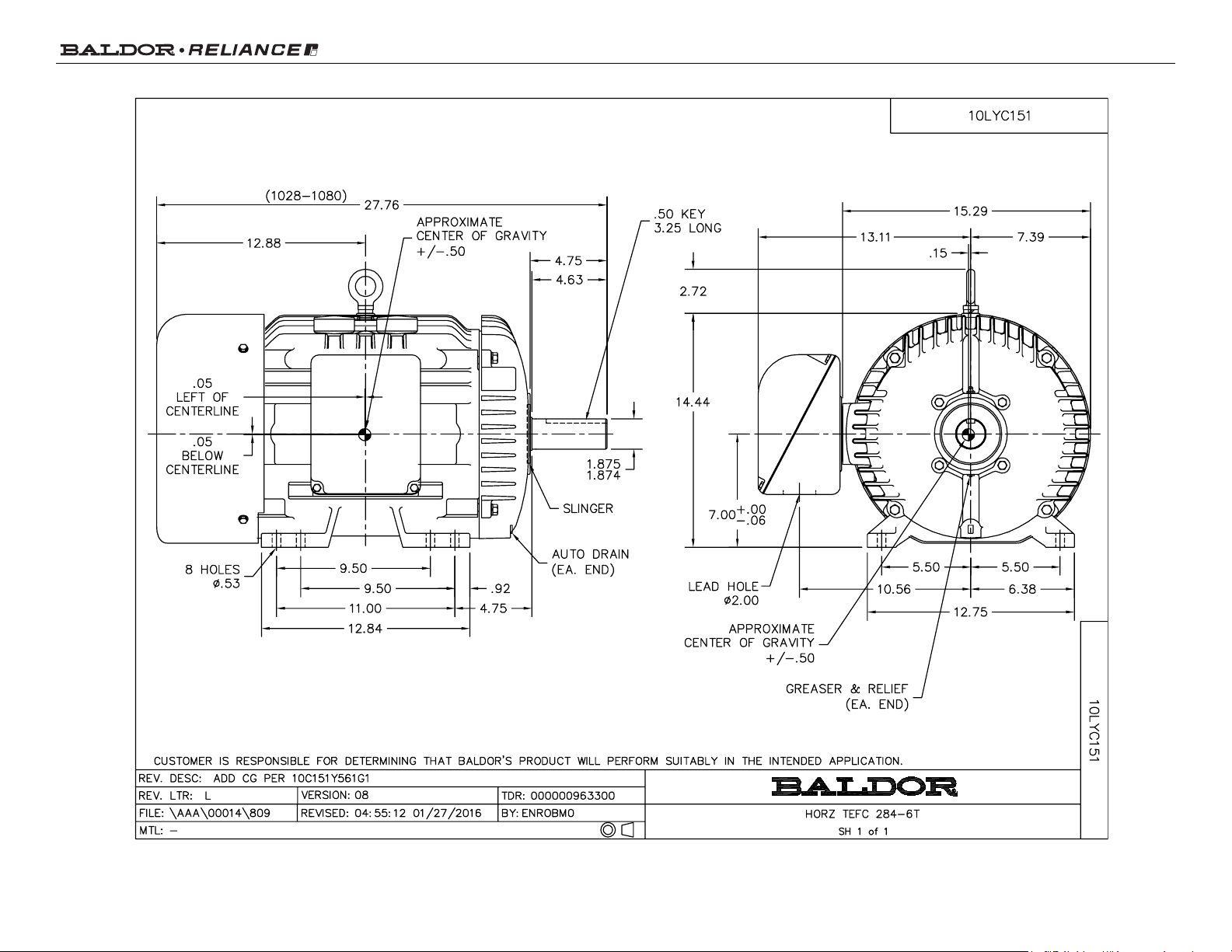

Revision: F Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 10WGX910 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 10C151 Layout: 10LYC151 Poles: 06 Created Date: 02-06-2006 Base: RG Eff. Date: 06-09-2010 Leads: 9#10
Specs
Catalog Number: M4100T Enclosure: TEFC Frame: 284T Frame Material: Iron Output @ Frequency: 15.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 21.000 A @ 460.0 V
Insulation Class: F Inverter Code: Not Inverter KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 10 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1034M Mounting Arrangement: F1 Power Factor: 77 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End
42.000 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
46.000 A @ 208.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Nameplate NP1256L
CAT.NO.
SPEC. 10C151X910H3
HP 15
VOLTS 230/460
AMP 42/21 RPM 1175
FRAME 284T HZ 60 PH 3
SER.F. 1.15 CODE G DES B CLASS F
NEMA-NOM-EFF 90.2 PF 77
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 46 DE 6311 ODE 6309
ENCL TEFC SN
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Parts List
Part Number Description Quantity SA138404 SA 10C151X910H3 1.000 EA RA127952 RA 10C151X910H3 1.000 EA 09FN3001B02 EXTERNAL FAN, PLASTIC 1.000 EA S/P101-000-004 EPACT PROC-CL, 280FR & UP,LARGE BOX,POLY 1.000 EA 10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA 12GS1000 GASKET 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA 10EP1106A01 FR ENDPLATE, MACH 1.000 EA 10XN3816K32 BOLT, 3/8-16X2 HH YZ(5) 4.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW5100A11 W3917-042 WVY WSHR (WB) 1.000 EA 10XN2520K32 1/4-20 X 2.00 HX HD SCRW GRADE 5, ZINC P 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 10EP1105A01 PU ENDPLATE 1.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 10FH4000 310 FAN HOUSING STAMPED 1.000 EA 10XN2520K08 1/4-20 X .50 GRADE #5, STL, ZINC PLATE 4.000 EA
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Parts List (continued)
Part Number Description Quantity HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA HW4600B40 V-RING SLINGER 2.000 X 2.680 X .28 VITON 1.000 EA HW2501H28 KEY, 1/2 SQ X 3.250 1.000 EA LB5040 INSTRUCTION TAG, AC & DC 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.130 LB HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.070 GA 85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA LB1119N WARNING LABEL 1.000 EA LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA LC0181 CONNECTION LABEL 1.000 EA
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 10PA1000 PACKAGING GROUP COMBINED PRINT PK1023A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Accessories
Part Number Description Multiplier 10-1305 C FACE KIT A8 10EP1502A01SP D-FLANGE KIT A8
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
AC Induction Motor Performance Data
Record # 30022 - Typical performance - not guaranteed values
Winding: 10WGX910-R002 Type: 1034M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 15 Full Load Torque 66.9 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 42/21 Breakdown Torque 214 LB-FT R.P.M. 1175 Pull-up Torque 74.6 LB-FT Hz 60 Phase 3 Locked-rotor Torque 101 LB-FT NEMA Design Code B KVA Code G Starting Current 118 A Service Factor (S.F.) 1.15 No-load Current 11.1 A NEMA Nom. Eff. 90.2 Power Factor 77 LinelineRes.@25ºC 0.607Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 58°C S.F. Amps Temp. Rise @ S.F. Load 69°C
Locked-rotor Power Factor 34
Rotor inertia 4.16 LB-FT2
Load Characteristics 460 V, 60 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 36 56 68 74 77 79 76 Efficiency 80.9 87.9 89.7 90.2 89.4 88.4 89.6 Speed 1195 1190 1186 1181 1174 1167 1177 Line amperes 11.9 14.1 17.2 21 25.3 30.3 23.6
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Performance Graph at 460V, 60Hz, 15.0HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Page 11 of 12
Product Information Packet: M4100T - 15HP,1175RPM,3PH,60HZ,284T,1034M,TEFC,F1
Page 12 of 12
