Baldor M3770T Product Information Sheet
Product Information Packet
M3770T
7.5HP,1765RPM,3PH,60HZ,213T,0729M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3770T - 7.5HP,1765RPM,3PH,60HZ,213T,0729M,TEFC,F
Part Detail
Revision: B Status: INA/A Change #: Proprietary: No

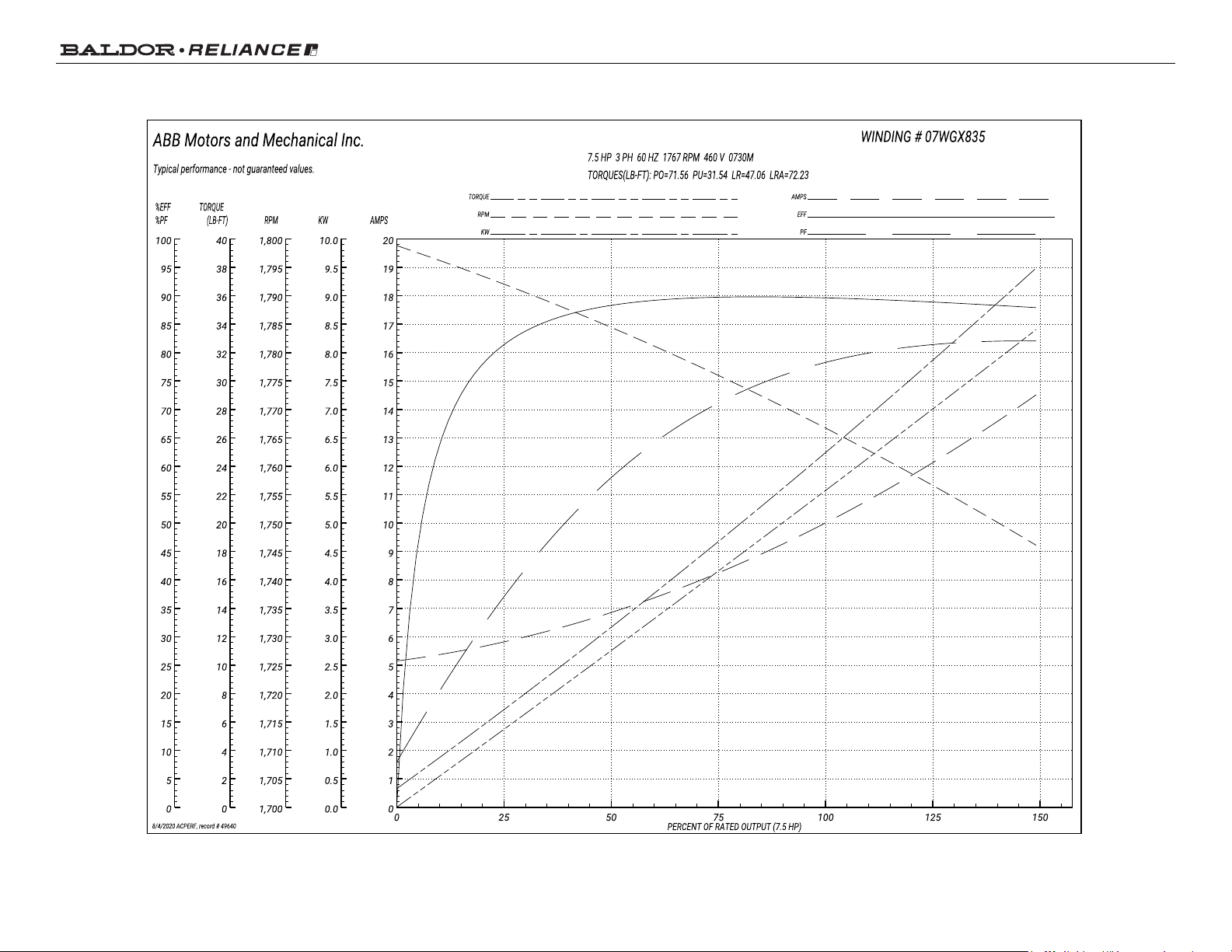

Type: AC Elec. Spec: 07WGX835 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 07C151 Layout: 07LYC151 Poles: 04 Created Date: 08-09-2006
Base: RG Eff. Date: 11-04-2009 Leads: 9#14
Specs
Catalog Number: M3770T
Enclosure: TEFC
Frame: 213T
Frame Material: Iron
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0729M
Mounting Arrangement: F1
Power Factor: 76
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 10.300 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 11
Product Information Packet: M3770T - 7.5HP,1765RPM,3PH,60HZ,213T,0729M,TEFC,F
20.600 A @ 230.0 V
22.300 A @ 208.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: M3770T - 7.5HP,1765RPM,3PH,60HZ,213T,0729M,TEFC,F
Nameplate NP1256L
CAT.NO. M3770T
SPEC. 07C151X835H1
HP 7.5
VOLTS 208-230/460
AMP 22.3-20.6/10.3
RPM 1765
FRAME 213T HZ 60 PH 3
SER.F. 1.15 CODE J DES A CLASS F
NEMA-NOM-EFF 89.5 PF 76
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6307 ODE 6206
ENCL TEFC SN
