Product Information Packet
M3764T
3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
Part Detail
Revision: B Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 07WGX821 CD Diagram: CD0005 Mfg Plant:

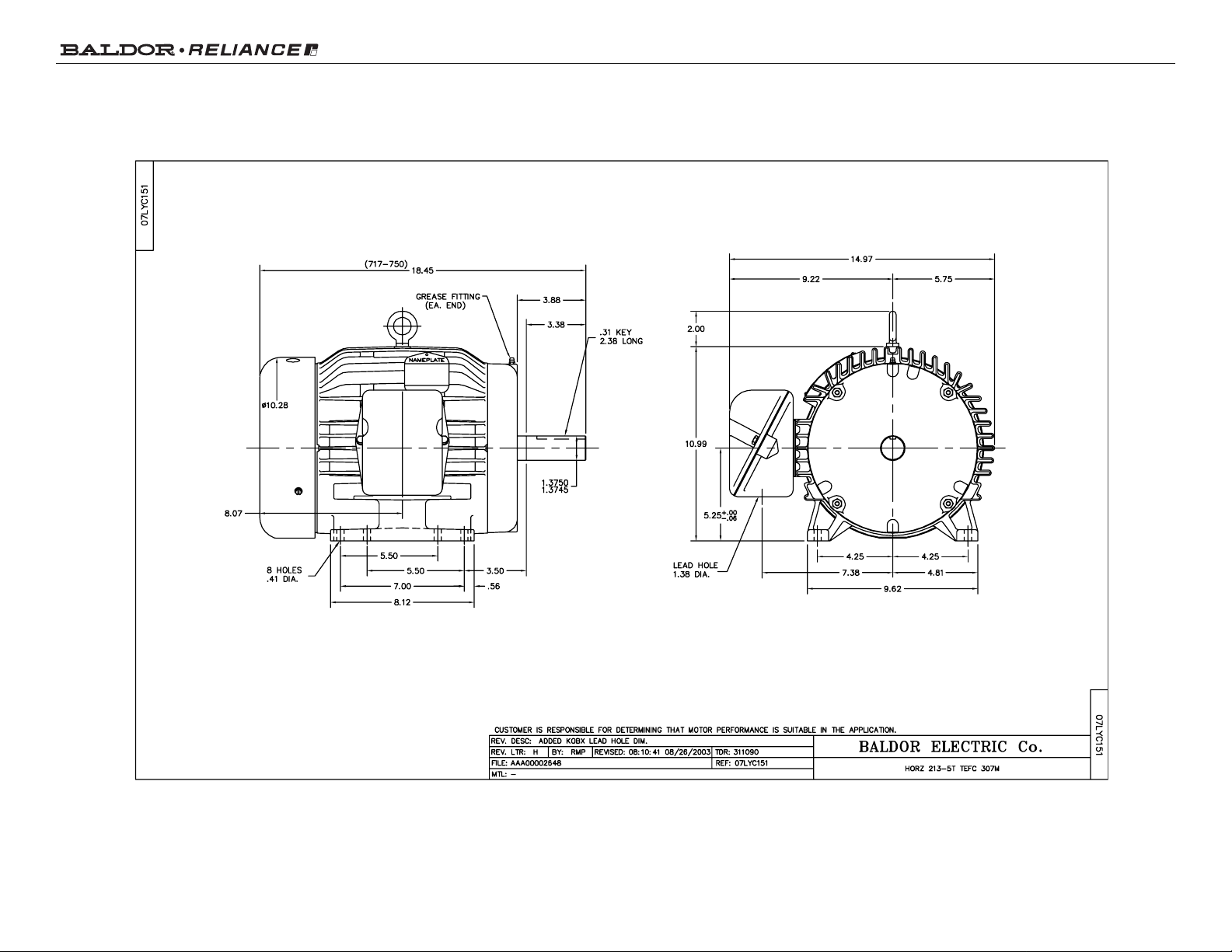

Mech. Spec: 07C151 Layout: 07LYC151 Poles: 06 Created Date: 09-06-2005
Base: RG Eff. Date: 11-04-2009 Leads: 9#14
Specs
Catalog Number: M3764T
Enclosure: TEFC
Frame: 213T
Frame Material: Iron
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0727M
Mounting Arrangement: F1
Power Factor: 70
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 10.000 A @ 208.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
4.600 A @ 460.0 V
9.200 A @ 230.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
Nameplate NP1256L
CAT.NO. M3764T
SPEC. 07C151X821H1
HP 3
VOLTS 208-230/460
AMP 10-9.2/4.6
RPM 1165
FRAME 213T HZ 60 PH 3
SER.F. 1.15 CODE K DES B CLASS F
NEMA-NOM-EFF 87.5 PF 70
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6307 ODE 6206
ENCL TEFC SN
Page 4 of 10
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
Parts List
Part Number Description Quantity
SA132971 SA 07C151X821H1 1.000 EA
RA122869 RA 07C151X821H1 1.000 EA
37FN3002B01 EXFN, PLASTIC, 7.50 OD, 1.155 ID 1.000 EA
S/P101-000-000 EPACT PROCEDURES-FS PLANT-POLYREX EM, NO 1.000 EA
HW3201A05 3/8-16 EYEBOLT 1.000 EA
09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
37EP1100A01 FR ENDPLATE MACH 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP1101A01 PU ENDPLATE MACH 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
07FH4007SP PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA
09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
Page 5 of 10
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
HA3104A32 THRUBOLT- 5/16-18 X12.750 4.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.036 GA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA
10XL3808A28 3/8 X 1 3/4" LAG SCREW 2.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
Accessories
Part Number Description Multiplier
37-1304 C FACE KIT A8
Page 7 of 10
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
No performance data has been
assigned to this product.
Page 8 of 10
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
Page 9 of 10
Product Information Packet: M3764T - 3HP,1165RPM,3PH,60HZ,213T,0727M,TEFC,F1
Page 10 of 10
