Product Information Packet
M3710T-8
7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Part Detail
Revision: J Status: NLA/A Change #: Proprietary: No

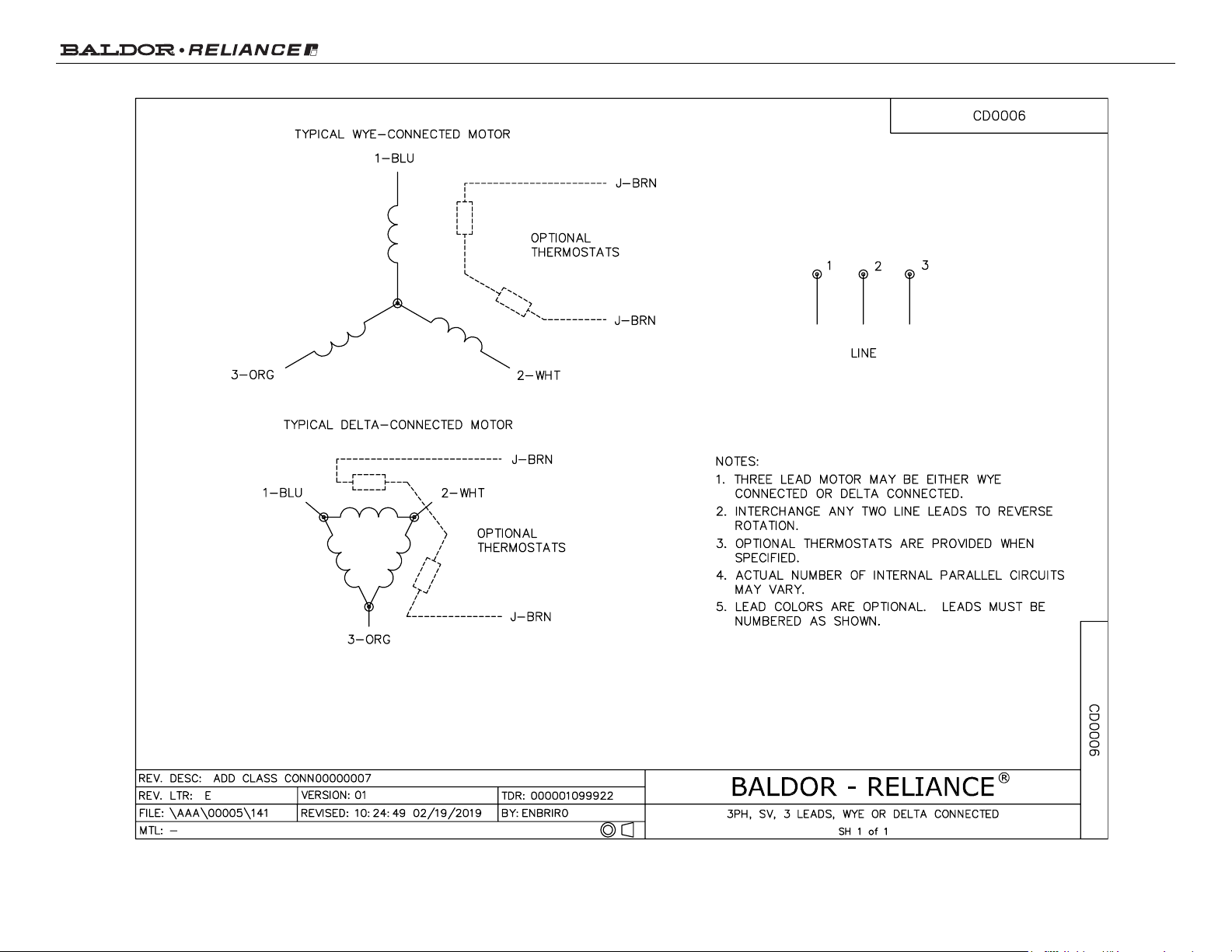

Type: AC Elec. Spec: 37WGS193 CD Diagram: CD0006 Mfg Plant:

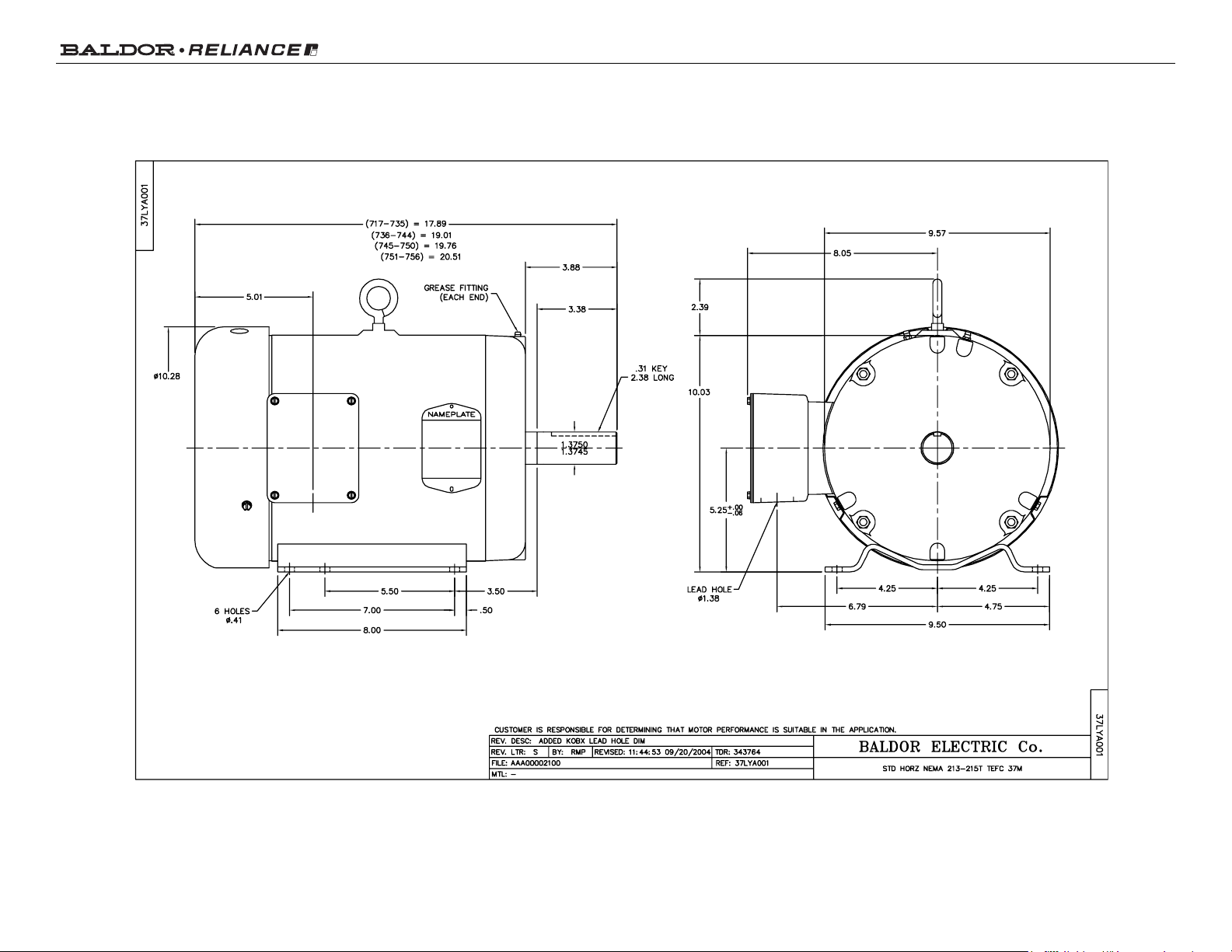

Mech. Spec: 37A001 Layout: 37LYA001 Poles: 04 Created Date: 10-03-2006
Base: RG Eff. Date: 03-08-2016 Leads: 3#12
Specs
Catalog Number: M3710T-8
Enclosure: TEFC
Frame: 213T
Frame Material: Steel
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 200.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: RG
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 23.200 A @ 200.0 V
Design Code: A
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 12 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3731M
Mounting Arrangement: F1
Power Factor: 77
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Drip Cover: No Drip Cover
Shaft Slinger Indicator: No Slinger
Page 2 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Nameplate NP1256L
CAT.NO. M3710T-8
SPEC. 37A001S193
HP 7.5
VOLTS 200
AMP 23.2
RPM 1770
FRAME 213T HZ 60 PH 3
SER.F. 1.15 CODE K DES A CLASS F
NEMA-NOM-EFF 89.5 PF 77
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6307 ODE 6206
ENCL TEFC SN
Page 4 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Parts List
Part Number Description Quantity
SA148896 SA 37A001S193 1.000 EA
RA137846 RA 37A001S193 1.000 EA
37FN3002A01SP EXFN, PLASTIC, 9.00 OD, 1.155 ID 1.000 EA
HW3200A01 3/8-16X3/4 I-BLT WELDED F/S 1.000 EA
37CB3006 37 CB CASTING W/1.38 LEAD HOLE @ 6:00 1.000 EA
37GS1000SP GASKET, CONDUIT BOX STD., .06 THICK LEXI 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
37EP3101A01 FR ENDPLATE, FOR ROUTING PURPOSES 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37PE3100A01 PUEP ASSEMBLY - ROUTING PUPROSES 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
07FH4007SP PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
37CB4516 LIPPED LID FOR 37 FRAME NEC KOBX 1.000 EA
37GS1008 37 GS FOR CB LID - LEXIDE 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
Page 5 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Parts List (continued)
Part Number Description Quantity
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.028 GA
HA3104A14 THRUBOLT- 5/16-18 X12.125(OHIO) 4.000 EA
LC0006 CONNECTION LABEL 1.000 EA
LB1119N WARNING LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Accessories
Part Number Description Multiplier
37-3301 C FACE KIT P1
Page 7 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
AC Induction Motor Performance Data
Record # 22850 - Typical performance - not guaranteed values
Winding: 37WGS193-R001 Type: 3732M Enclosure: TEFC
Nameplate Data
200 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 7.5 Full Load Torque 22.15 LB-FT
Volts 200 Start Configuration direct on line
Full Load Amps 23.2 Breakdown Torque 78.7 LB-FT
R.P.M. 1770 Pull-up Torque 35.09 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 48.32 LB-FT
NEMA Design Code A KVA Code K Starting Current 181 A
Service Factor (S.F.) 1.15 No-load Current 12.06 A
NEMA Nom. Eff. 89.5 Power Factor 77 LinelineRes.@25ºC 0.253Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 69°C
S.F. Amps Temp. Rise @ S.F. Load 82°C
Locked-rotor Power Factor 38.3
Rotor inertia 0.787 LB-FT2
Load Characteristics 200 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 38 58 71 77 81 83 79
Efficiency 81.6 88.2 90 90 89.2 88.2 89.5
Speed 1792 1786 1779 1771 1762 1752 1765
Line amperes 13.15 15.62 19.15 23.23 28.04 33.1 26.1
Page 8 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F

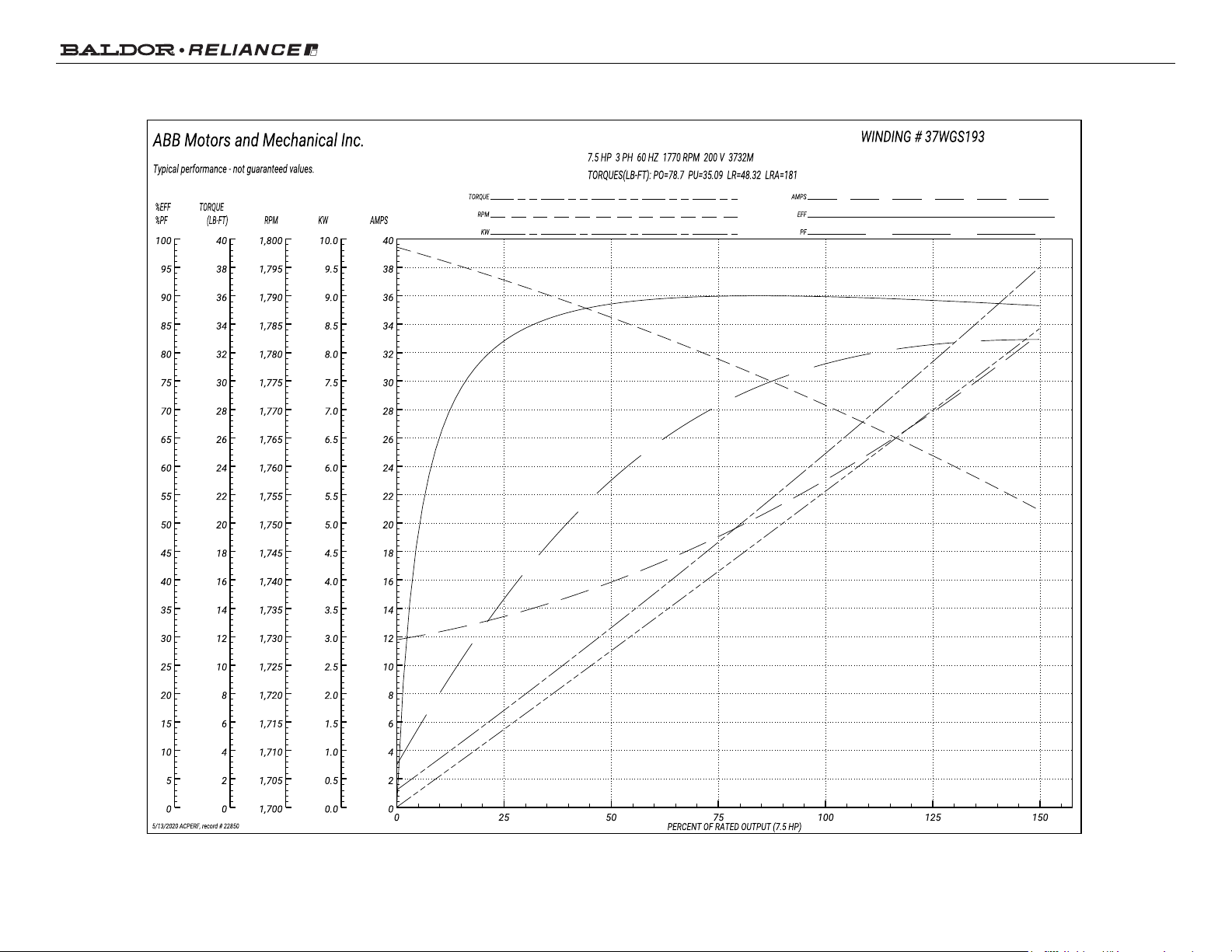

Performance Graph at 200V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 9 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Page 10 of 11
Product Information Packet: M3710T-8 - 7.5HP,1770RPM,3PH,60HZ,213T,3731M,TEFC,F
Page 11 of 11
