Product Information Packet
M3616T
7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
Part Detail
Revision: Q Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WGX875 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 36A001 Layout: 36LYA001 Poles: 02 Created Date:
Base: RG Eff. Date: 05-06-2009 Leads: 9#16
Specs
Catalog Number: M3616T
Enclosure: TEFC
Frame: 184T
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: M
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3640M
Mounting Arrangement: F1
Power Factor: 93
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 17.400 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
18.500 A @ 208.0 V
8.700 A @ 460.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
Nameplate NP1256L
CAT.NO. M3616T
SPEC. 36A001X875H1
HP 7.5
VOLTS 208-230/460
AMP 18.5-17.4/8.7
RPM 3450
FRAME 184T HZ 60 PH 3
SER.F. 1.15 CODE M DES A CLASS F
NEMA-NOM-EFF 88.5 PF 93
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 18.5
DE 6206 ODE 6205
ENCL TEFC SN
Page 4 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
Parts List
Part Number Description Quantity
SA033625 SA 36A001X875H1 1.000 EA
RA029655 RA 36A001X875H1 1.000 EA
S/P101-000-000 EPACT PROCEDURES-FS PLANT-POLYREX EM, NO 1.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP3104A01 FREP MACH ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36EP3100A01SP PUEP ASSEMBLY FOR ROUTING PURPOSES 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY2520A12 1/4-20 HEX NUT, DIRECTIONAL SERRATIONS 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
36FH4009A102 IEC FH GREASER PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
37GS1001SP GASKET, CONDUIT BOX LID, .06 THICK LEXID 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
HW3200A01 3/8-16X3/4 I-BLT WELDED F/S 1.000 EA
Page 5 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
Parts List (continued)
Part Number Description Quantity
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.022 GA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
HA3101A28 THRUBOLT 1/4-20 X 12.500 OHIO ROD 4.000 EA
36FN3000C01SP EXFN, PLASTIC, 5.25 OD, .912 ID 1.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
Accessories
Part Number Description Multiplier
36-3301 C FACE KIT A8
36EP1304A62SP FLANGE MTD ENDPLATE 182-4TD -ENCL (LESS A8
Page 7 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
AC Induction Motor Performance Data
Record # 11137 - Typical performance - not guaranteed values
Winding: 36WGX875-R001 Type: 3640M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 7.5 Full Load Torque 11.5 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 18.5-17.4/8.7 Breakdown Torque 66.8 LB-FT
R.P.M. 3450 Pull-up Torque 37.1 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 53.5 LB-FT
NEMA Design Code A KVA Code M Starting Current 98.8 A
Service Factor (S.F.) 1.15 No-load Current 2.78 A
NEMA Nom. Eff. 88.5 Power Factor 93 LinelineRes.@25ºC 1.45Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 74°C
S.F. Amps Temp. Rise @ S.F. Load 91°C
Locked-rotor Power Factor 48
Rotor inertia 0.178 LB-FT2
Load Characteristics 460 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 63 83 91 94 95 96 95
Efficiency 83.3 88.4 89.3 88.7 87.6 86.1 88
Speed 3564 3535 3506 3468 3432 3391 3446
Line amperes 3.51 4.89 6.61 8.52 10.7 12.9 9.83
Page 8 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC

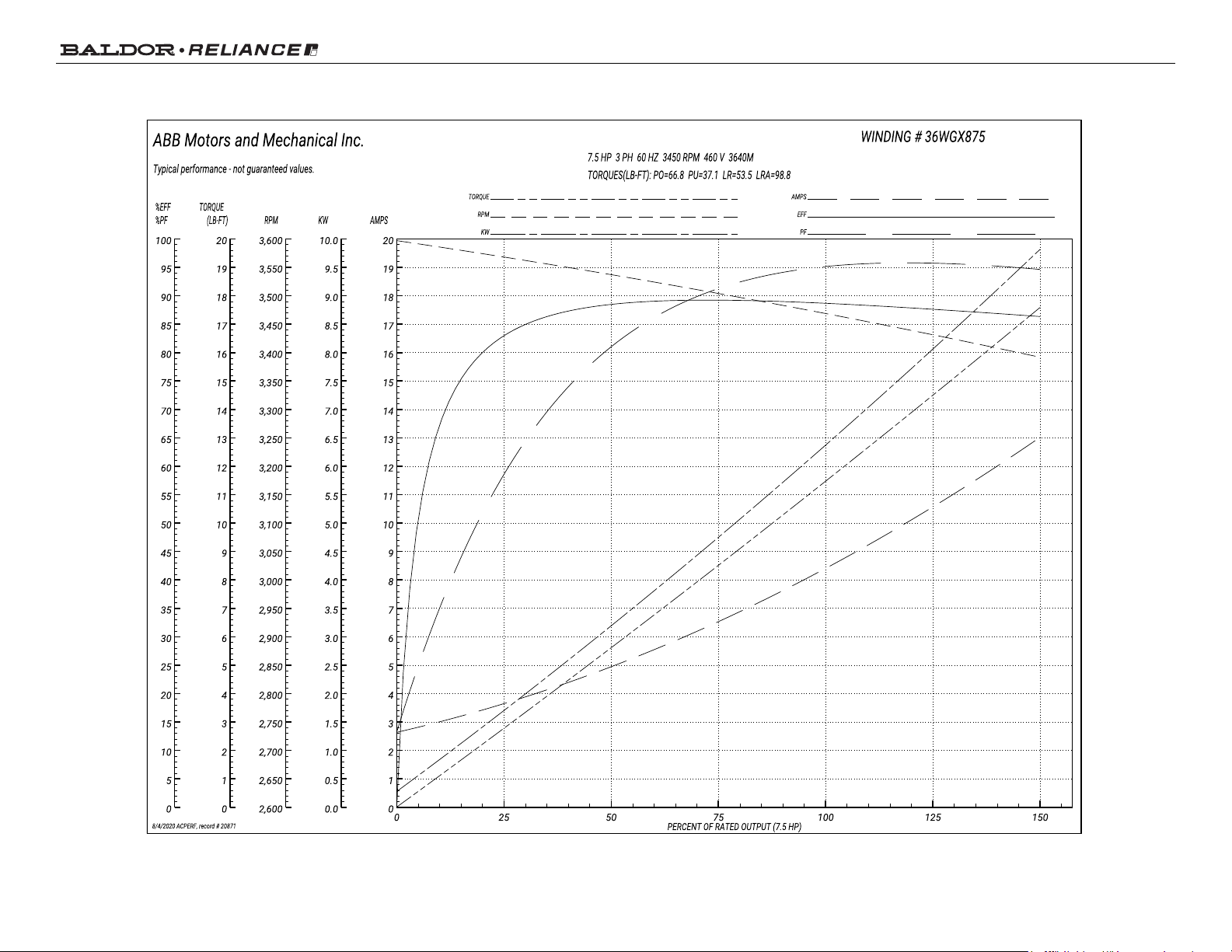

Performance Graph at 460V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 9 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
AC Induction Motor Performance Data
Record # 20871 - Typical performance - not guaranteed values
Winding: 36WGX875-R004 Type: 3640M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 7.5 Full Load Torque 11.5 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 18.5-17.4/8.7 Breakdown Torque 66.8 LB-FT
R.P.M. 3450 Pull-up Torque 37.1 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 53.5 LB-FT
NEMA Design Code A KVA Code M Starting Current 98.8 A
Service Factor (S.F.) 1.15 No-load Current 2.78 A
NEMA Nom. Eff. 88.5 Power Factor 93 LinelineRes.@25ºC 1.45Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 74°C
S.F. Amps Temp. Rise @ S.F. Load 91°C
Locked-rotor Power Factor 48
Rotor inertia 0.178 LB-FT2
Load Characteristics 460 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 63 83 91 94 95 96 95
Efficiency 83.3 88.4 89.3 88.7 87.6 86.1 88
Speed 3564 3535 3506 3468 3432 3391 3446
Line amperes 3.51 4.89 6.61 8.52 10.7 12.9 9.83
Page 10 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
Performance Graph at 460V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 11 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
4.50
5.50
6.50
2.75
.50
8.60
4.27
3.56
2.75
614-623 = 15.17
624-634 = 16.54
635-646 = 18.04
1.1250
1.1245
NAMEPLATE
GREASE FITTING
(EACH END)
6 HOLES
Ø.44
.25 KEY
1.75 LONG
635-646 ONLY
3.75 3.75
5.76 4.31
8.63
4.50
4.44
8.43
6.90
7.87
2.24
LEAD HOLE
Ø1.09
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
36LYA001
B
STD HORZ 182-4T TEFC 36M
REV. DESC:
REV:
BY:
REVISED:
MODEL NO.
VERSION:
TDR:
REF:
36LYA001
LOAD INOPC CREATED SWD DRG INTO BUS - PACKAGE 37
ENSTEK0
W
04:35:25 09/18/2019
-
000001120280
06
36LYA001
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 12 of 13
Product Information Packet: M3616T - 7.5HP,3450RPM,3PH,60HZ,184T,3640M,TEFC
