Baldor M3546T-5 Product Information Sheet

Product Information Packet

M3546T-5

1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

Part Detail

Revision: AB Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGT094 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 35A001 Layout: 35LYA001 Poles: 04 Created Date:
Base: RG Eff. Date: 10-28-2015 Leads: 3#18

Specs

Catalog Number: M3546T-5
Enclosure: TEFC
Frame: 143T
Frame Material: Steel
Output @ Frequency: 1.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA

UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 1.200 A @ 575.0 V
Design Code: B

KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3518M
Mounting Arrangement: F1
Power Factor: 80
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible

Drip Cover: No Drip Cover

Shaft Slinger Indicator: No Slinger

Page 2 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter

Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None

Page 3 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

Nameplate NP1256L

CAT.NO. M3546T-5

SPEC. 35A001T094H1

HP 1

VOLTS 575

AMP 1.2
RPM 1740

FRAME 143T HZ 60 PH 3

SER.F. 1.15 CODE J DES B CLASS B

NEMA-NOM-EFF 82.5 PF 80

RATING 40C AMB-CONT

CC USABLE AT 208V
DE 6205 ODE 6203

ENCL TEFC SN

Page 4 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

Parts List

Part Number Description Quantity
SA022280 SA 35A001T094H1 1.000 EA
RA018331 RA 35A001T094H1 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3007 35 CB CASTING W/.88 DIA. LEAD HOLE 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122A00 FREP TEFC ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3123F00 PUEP ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A84SP IEC FH W/GRSR, NO DIMPLES PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB4521GX CONDUIT BOX LID KIT **ORDER INDIV PARTS 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA

Page 5 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

Parts List (continued)

Part Number Description Quantity
HA3100A15 THRUBOLT 10-32 X 8.375 4.000 EA
LB1119N WARNING LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
LC0006 CONNECTION LABEL 1.000 EA
35PA1066 PKG GRP, PRINT PK1008A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA

Page 6 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

Accessories

Part Number Description Multiplier
35-8762 C FACE KIT A8
35EP1506A01SP D-FLANGE KIT A8

Page 7 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

AC Induction Motor Performance Data

Record # 9252 - Typical performance - not guaranteed values

Winding: 35WGT094-R001 Type: 3518M Enclosure: TEFC

Nameplate Data

575 V, 60 Hz:

Single Voltage Motor
Rated Output (HP) 1 Full Load Torque 3 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 1.2 Breakdown Torque 10 LB-FT
R.P.M. 1740 Pull-up Torque 7 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 8 LB-FT
NEMA Design Code B KVA Code J Starting Current 7.8 A
Service Factor (S.F.) 1.15 No-load Current 0.56 A
NEMA Nom. Eff. 82.5 Power Factor 80 LinelineRes.@25ºC 34.1Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 43°C
S.F. Amps Temp. Rise @ S.F. Load 58°C

Locked-rotor Power Factor 54

Rotor inertia 0.107 LB-FT2

Load Characteristics 575 V, 60 Hz, 1 HP

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 42 63 74 80 84 86 0
Efficiency 72.4 81.2 82.9 82.6 81.1 79 0
Speed 1783 1765 1748 1730 1706 1682 0
Line amperes 0.64 0.8 0.96 1.12 1.44 1.68 1.28

Page 8 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

Performance Graph at 575V, 60Hz, 1.0HP Typical performance - Not guaranteed values

Page 9 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

AC Induction Motor Performance Data

Record # 27910 - Typical performance - not guaranteed values

Winding: 35WGT094-R001 Type: 3518M Enclosure: TEFC

Nameplate Data

575 V, 60 Hz:

Single Voltage Motor
Rated Output (HP) 1 Full Load Torque 2.98 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 1.2 Breakdown Torque 11.7 LB-FT
R.P.M. 1740 Pull-up Torque 5.83 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 9.36 LB-FT
NEMA Design Code B KVA Code J Starting Current 9.11 A
Service Factor (S.F.) 1.15 No-load Current 0.711 A
NEMA Nom. Eff. 82.5 Power Factor 80 LinelineRes.@25ºC 27Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 45°C
S.F. Amps Temp. Rise @ S.F. Load 52°C

Locked-rotor Power Factor 54

Rotor inertia 0.107 LB-FT2

Load Characteristics 575 V, 60 Hz, 1 HP

% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 39 57 68 76 80 84 78
Efficiency 72.4 81.2 82.9 82.6 81.1 79 81.7
Speed 1786 1774 1760 1747 1731 1714 1737
Line amperes 0.777 0.882 1.04 1.21 1.43 1.72 1.34

Page 10 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

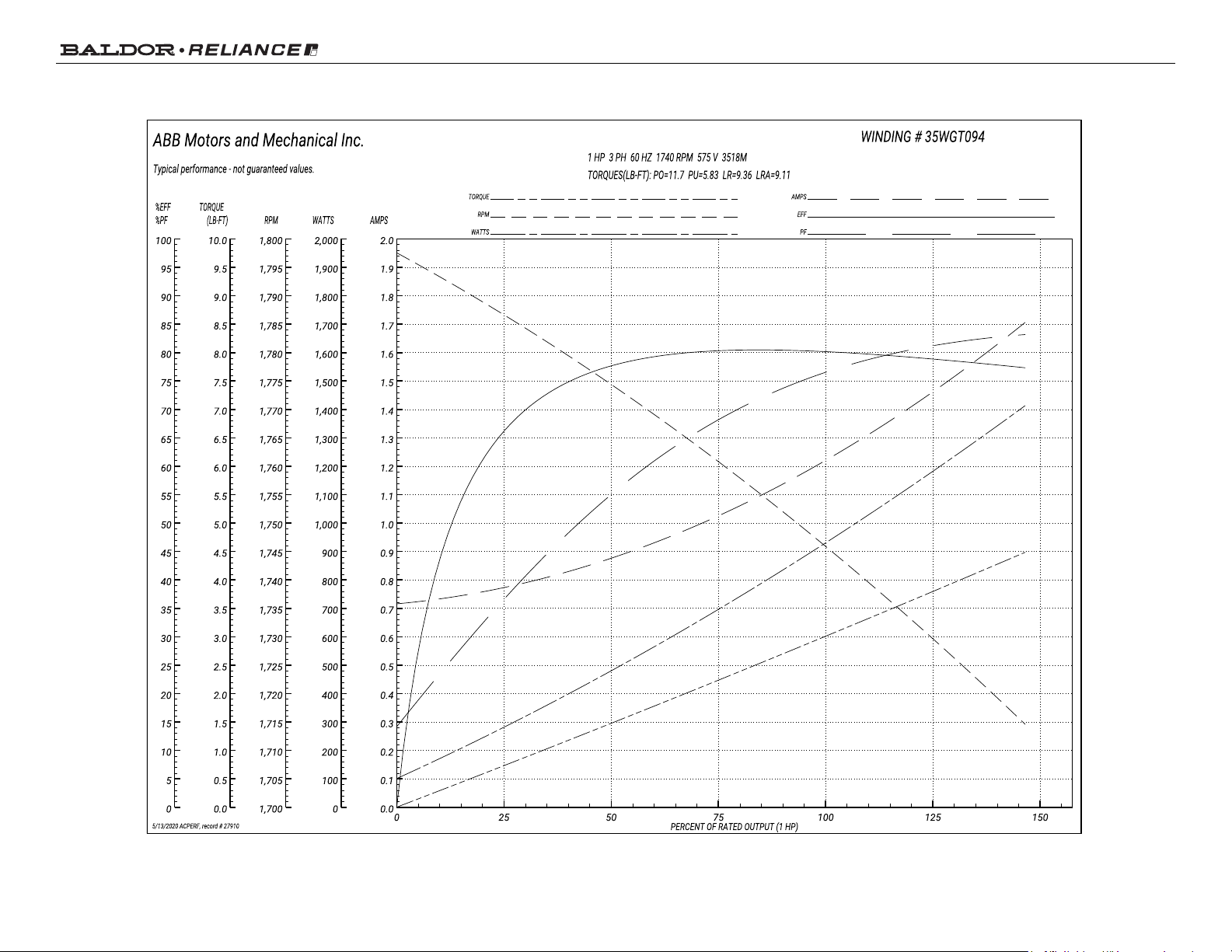

Performance Graph at 575V, 60Hz, 1.0HP Typical performance - Not guaranteed values

Page 11 of 13

Product Information Packet: M3546T-5 - 1HP,1740RPM,3PH,60HZ,143T,3518M,TEFC,F1

510-520 = 12 29
521-528 = 13 29
529-535 = 14 17
536-546 = 15 54

2 50

2 25

3 75

5 94

4 00

5 00 50

2 25

8750
8745

7 19

NAMEPLATE

19 KEY

1 38 LONG

6 HOLES

38

GREASE FITTINGS

EACH END

5 75

6 61

6 81

3 50
3 44

2 75 2 75

4 63 3 25

6 50

LEAD HOLE

88

D

C

B

A

A

B

C

D

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

35LYA001

B

STD HORZ 143-5T TEFC 35M

SH 1 of 1

REV. DESC

REV

BY

REVISED

MODEL NO.

VERSION

TDR

REF

35LYA001

LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG13

ENSTEK0

Y

02 58 56 12/19/2018

-

000001094435

07

35LYA001

CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION

BALDOR - RELIANCE

®

Page 12 of 13
