M3545-50
Product Information Sheet
13 pgs346.61 Kb0

Baldor M3545-50 Product Information Sheet

Download
Product Information Packet
M3545-50
1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Part Detail

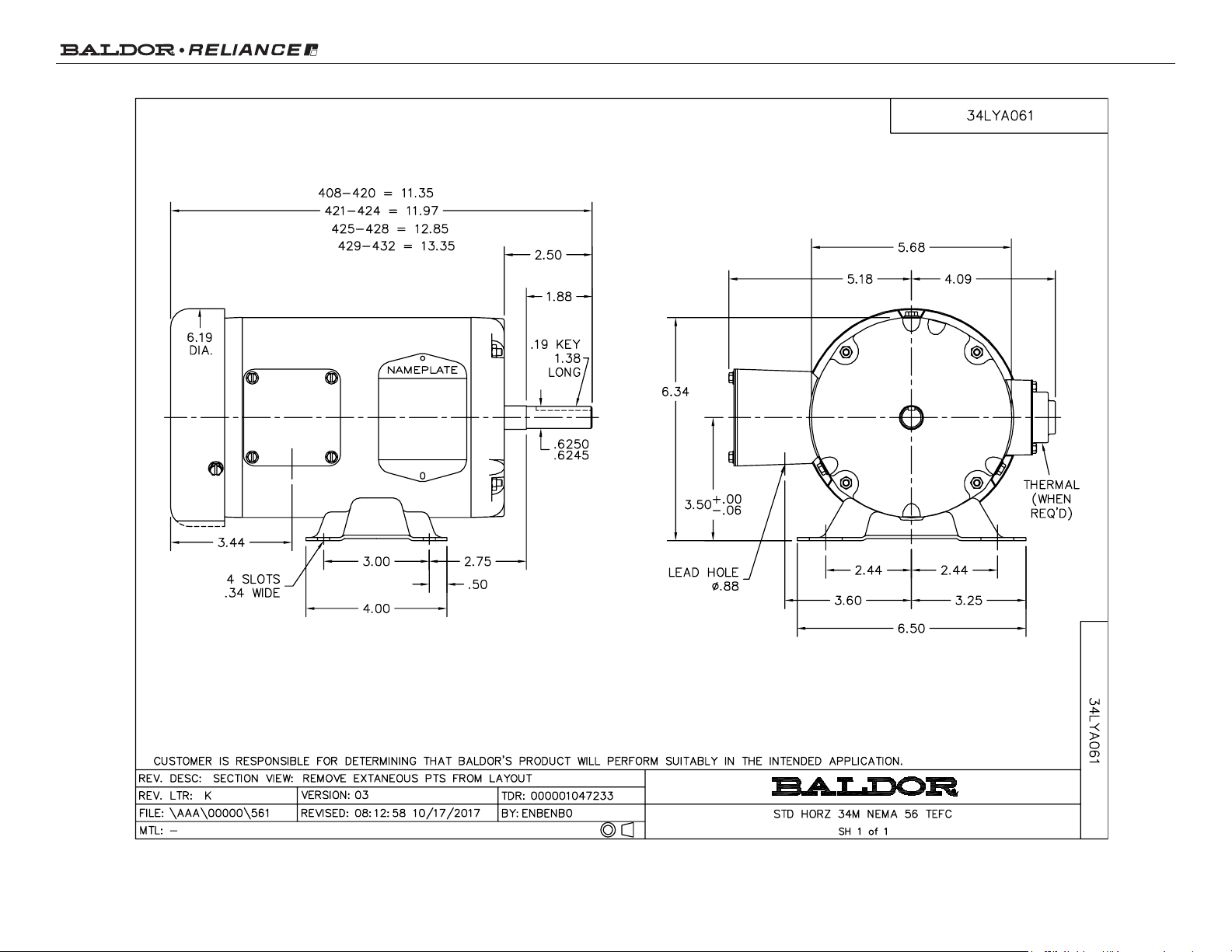

Revision: T Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 34WGW637 CD Diagram: CD0044 Mfg Plant: Mech. Spec: 34A061 Layout: 34LYA061 Poles: 02 Created Date: Base: RG Eff. Date: 03-29-2012 Leads: 12#18
Specs
Catalog Number: M3545-50 Enclosure: TEFC Frame: 56 Output @ Frequency: 1.000 HP @ 50 HZ Synchronous Speed @ Frequency: 3000 RPM @ 50 HZ Voltage @ Frequency: 440.0 V @ 50 HZ
380.0 V @ 50 HZ
220.0 V @ 50 HZ XP Division: Not Applicable Agency Approvals: UR
CSA
CE Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Insulation Class: B Inverter Code: Not Inverter KVA Code: L Lifting Lugs: No Lifting Lugs Locked Bearing Indicator: No Locked Bearing Motor Lead Quantity/Wire Size: 12 @ 18 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3420M Mounting Arrangement: F1 Power Factor: 74 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None RoHS Status: ROHS COMPLIANT
Current @ Voltage: 1.700 A @ 440.0 V
Shaft Extension Location: Pulley End
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
2.000 A @ 380.0 V
3.400 A @ 220.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Nameplate NP1372L
CAT.NO.
SPEC. 34A61W637
HP 1
VOLTS 220/380/440
AMP 3.4/2/1.7 RPM 2850 IP44
FRAME 56 HZ 50 PH 3
SER.F. 1.25 CODE L DES B CL B
NEMA-NOM-EFF 80 PF 74
RATING 40C AMB-CONT
CC USABLE AT 208V DE 6203 ODE 6203
ENCL TEFC SN
SFA 3.8/2.2/1.9
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Parts List
Part Number Description Quantity SA009807 SA 34A61W637 1.000 EA RA006252 RA 34A61W637 1.000 EA NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA 34CB3002A CB CAST W/.88 DIA HOLE 1.000 EA 34GS1029A01 GASKET, CONDUIT BOX 1.000 EA 51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 34EP3102A01SP FR ENDPLATE, MACH 1.000 EA HW5100A03 WAVY WASHER (W1543-017) 1.000 EA 34EP3102A02SP FR/PU ENDPLATE, MACH 1.000 EA XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA 34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA 34FH4002A01SP IEC FH NO GREASER PRIMED 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA 34CB4517 CB LID 4 MTG HOLES .22 DIA STAMPED, FOR 1.000 EA 34GS1031A01 GASKET, FLAT CONDUIT BOX LID (LEXIDE) 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.014 GA 10XF0440S02 04-40 X 1/8 TYPE F HEX HD STAINLESS STIC 2.000 EA HA3100A12 THRUBOLT 10-32 X 7.375 4.000 EA LB1119N WARNING LABEL 1.000 EA LB1125C01 STD (STOCK) CARTON LABEL BALDOR WITH FLA 1.000 EA
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Parts List (continued)
Part Number Description Quantity MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LC0044 CONNECTION DIAGRAM 1.000 EA NP1372L ALUM UL CSA CE CC 1.000 EA 35PA1066 PKG GRP, PRINT PK1001A01 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Accessories
Part Number Description Multiplier 34-171 C FACE KIT A8
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
AC Induction Motor Performance Data
Record # 7041 - Typical performance - not guaranteed values
Winding: 34WGW637-R001 Type: 3420M Enclosure: TEFC
Nameplate Data
440 V, 50 Hz:
High Voltage Connection Rated Output (HP) 1 Full Load Torque 1.8 LB-FT Volts 220/380/440 Start Configuration direct on line Full Load Amps 3.4/2/1.7 Breakdown Torque 9 LB-FT R.P.M. 2850 Pull-up Torque 9 LB-FT Hz 50 Phase 3 Locked-rotor Torque 9 LB-FT NEMA Design Code B KVA Code L Starting Current 12.2 A Service Factor (S.F.) 1.25 No-load Current 1.1 A NEMA Nom. Eff. 80 Power Factor 74 LinelineRes.@25ºC 12.1Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 51°C S.F. Amps 3.8/2.2/1.9 Temp. Rise @ S.F. Load 73°C
Locked-rotor Power Factor 72
Rotor inertia 0.0186 LB-FT2
Load Characteristics 440 V, 50 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 36 53 65 74 80 84 0 Efficiency 58.4 71.9 77 79.1 79.8 79.5 0 Speed 2965 2937 2907 2875 2841 2804 0 Line amperes 1.2 1.3 1.5 1.7 1.9 2.2 1.9
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Performance Graph at 440V, 50Hz, 1.0HP Typical performance - Not guaranteed values
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
AC Induction Motor Performance Data
Record # 27358 - Typical performance - not guaranteed values
Winding: 34WGW637-R001 Type: 3420M Enclosure: TEFC
Nameplate Data
440 V, 50 Hz:
High Voltage Connection Rated Output (HP) 1 Full Load Torque 1.9 LB-FT Volts 220/380/440 Start Configuration direct on line Full Load Amps 3.4/2/1.7 Breakdown Torque 9.6 LB-FT R.P.M. 2850 Pull-up Torque 8.31 LB-FT Hz 50 Phase 3 Locked-rotor Torque 10 LB-FT NEMA Design Code B KVA Code L Starting Current 13.5 A Service Factor (S.F.) 1.25 No-load Current 1.19 A NEMA Nom. Eff. 80 Power Factor 74 LinelineRes.@25ºC 12Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 70°C S.F. Amps 3.8/2.2/1.9 Temp. Rise @ S.F. Load 88°C
Locked-rotor Power Factor 72
Rotor inertia 0.0186 LB-FT2
Load Characteristics 440 V, 50 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 36 54 68 77 84 87 84 Efficiency 62.7 73.7 78.1 79.2 79.1 78 79.1 Speed 2959 2925 2886 2850 2806 2761 2806 Line amperes 1.21 1.3 1.46 1.66 1.91 2.21 1.91
Page 10 of 13
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Performance Graph at 440V, 50Hz, 1.0HP Typical performance - Not guaranteed values
Page 11 of 13
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Page 12 of 13
Product Information Packet: M3545-50 - 1HP,2850RPM,3PH,50HZ,56,3420M,TEFC,F1
Page 13 of 13
