Product Information Packet
M3538-57
.5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Part Detail
Revision: L Status: PRD/A Change #: Proprietary: No

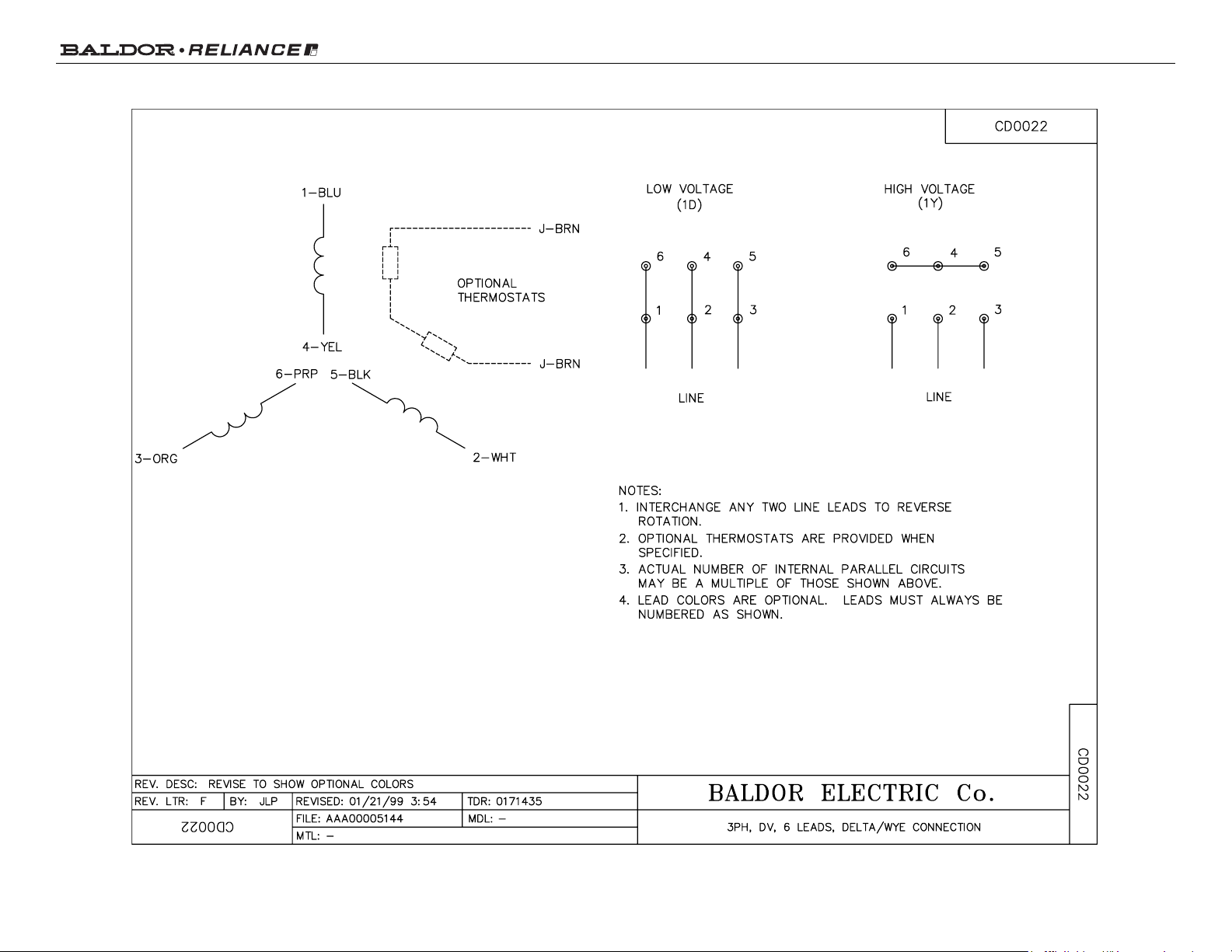

Type: AC Elec. Spec: 34WGX268 CD Diagram: CD0022 Mfg Plant:
Mech. Spec: 34A061 Layout: 34LYA061 Poles: 04 Created Date: 09-07-2011
Base: RG Eff. Date: 04-03-2020 Leads: 6#18
Specs
Catalog Number: M3538-57
Enclosure: TEFC
Frame: 56
Frame Material: Steel
Output @ Frequency: .500 HP @ 50 HZ
Synchronous Speed @ Frequency: 1500 RPM @ 50 HZ
Voltage @ Frequency: 400.0 V @ 50 HZ
230.0 V @ 50 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
WEEE
CSA
CE
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3420M
Mounting Arrangement: F1
Power Factor: 67
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Bearing Grease Type: Polyrex EM (-20F +300F)
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Blower: None
Current @ Voltage: 1.000 A @ 400.0 V
1.700 A @ 230.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Nameplate NP1372L
CAT.NO. M3538-57
SPEC. 34A061X268G1
HP .5 /KW .37
VOLTS 230/400
AMP 1.7/1
RPM 1425 IP54 12KG
FRAME 56 HZ 50 PH 3
SER.F. 1.25 CODE K DES B CL B
NEMA-NOM-EFF 73 PF 67
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6203 ODE 6203
ENCL TEFC SN
SFA 2/1.2
Page 4 of 10
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Parts List
Part Number Description Quantity
SA230351 SA 34A061X268G1 1.000 EA
RA217381 RA 34A061X268G1 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
34CB3002A CB CAST W/.88 DIA HOLE 1.000 EA
34GS1029A01 GASKET, CONDUIT BOX 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
34EP3102A01SP FR ENDPLATE, MACH 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
34EP3102A02SP FR/PU ENDPLATE, MACH 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
34FH4002A01SP IEC FH NO GREASER PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
34CB4517 CB LID 4 MTG HOLES .22 DIA STAMPED, FOR 1.000 EA
34GS1031A01 GASKET, FLAT CONDUIT BOX LID (LEXIDE) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.014 GA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
HA4067A01 PUSH IN DRAIN FITTING (BLACK) 1.000 EA
HA4067A01 PUSH IN DRAIN FITTING (BLACK) 1.000 EA
HA3100A12 THRUBOLT 10-32 X 7.375 4.000 EA
Page 5 of 10
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Parts List (continued)
Part Number Description Quantity
LB1119N WARNING LABEL 1.000 EA
LC0034 CONNECTION LABEL 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
NP1372L ALUM UL CSA CE CC 1.000 EA
35PA1000 PKG GRP, PRINT PK1008A06 1.000 EA
Page 6 of 10
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
AC Induction Motor Performance Data
Record # 35147 - Typical performance - not guaranteed values
Winding: 34WGX268-R008 Type: 3420M Enclosure: TEFC
Nameplate Data
400 V, 50 Hz:
High Voltage Connection
Rated Output (HP) .5 Full Load Torque 1.8 LB-FT
Volts 230/400 Start Configuration direct on line
Full Load Amps 1.7/1 Breakdown Torque 6.97 LB-FT
R.P.M. 1425 Pull-up Torque 5.9 LB-FT
Hz 50 Phase 3 Locked-rotor Torque 6.96 LB-FT
NEMA Design Code B KVA Code K Starting Current 6.31 A
Service Factor (S.F.) 1.25 No-load Current 0.704 A
NEMA Nom. Eff. 73 Power Factor 67 LinelineRes.@25ºC 27.1Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 44°C
S.F. Amps 2/1.2 Temp. Rise @ S.F. Load 55°C
Locked-rotor Power Factor 64
Rotor inertia 0.0476 LB-FT2
Load Characteristics 400 V, 50 Hz, 0.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 35 50 62 69 77 80 77
Efficiency 52.4 66.3 71.8 73.3 73.9 73.1 73.9
Speed 1479 1465 1448 1418 1406 1374 1406
Line amperes 0.749 0.819 0.901 1.04 1.15 1.31 1.15
Page 7 of 10
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Performance Graph at 400V, 50Hz, 0.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Page 9 of 10
Product Information Packet: M3538-57 - .5HP,1425RPM,3PH,50HZ,56,3420M,TEFC,F1,N
Page 10 of 10
