Product Information Packet
M3311T-5
7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Part Detail
Revision: M Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WGT843 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 36B103 Layout: 36LYB103 Poles: 04 Created Date:
Base: RG Eff. Date: 01-20-2017 Leads: 3#16
Specs
Catalog Number: M3311T-5
Enclosure: ODP
Frame: 213T
Frame Material: Steel
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 7.700 A @ 575.0 V
Design Code: A
KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3646M
Mounting Arrangement: F1
Power Factor: 81
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Drip Cover: No Drip Cover
Shaft Slinger Indicator: No Slinger
Page 2 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Nameplate NP1256L
CAT.NO. M3311T-5
SPEC. 36B103T843H1
HP 7.5
VOLTS 575
AMP 7.7
RPM 1750
FRAME 213T HZ 60 PH 3
SER.F. 1.15 CODE J DES A CLASS B
NEMA-NOM-EFF 88.5 PF 81
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6207 ODE 6205
ENCL OPSB SN
Page 4 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Parts List
Part Number Description Quantity
SA112988 SA 36B103T843H1 1.000 EA
RA104209 RA 36B103T843H1 1.000 EA
HA6362ZP LIFTING LUG FOR 36 FRAME MOTORS. 2.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP3204B00 FR ENDPLATE, ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36EP3203A01 PULLEY ENDPLATE 36 FRAME OPEN 207 BRGW/G 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HA3101A40 THRUBOLT 1/4-20 X 12.687 4.000 EA
XY2520A12 1/4-20 HEX NUT, DIRECTIONAL SERRATIONS 4.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.022 GA
36AD2004A01 BAFFLE PLATE,MOD 36-SLTD BAND MTRS DELTA 2.000 EA
LB1119N WARNING LABEL 1.000 EA
Page 5 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Parts List (continued)
Part Number Description Quantity
LC0006 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
G7PA1000 PKG GRP, PRINT PK1034A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Accessories
Part Number Description Multiplier
37-1404 C FACE KIT A8
Page 7 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
AC Induction Motor Performance Data
Record # 15622 - Typical performance - not guaranteed values
Winding: 36WGT843-R001 Type: 3646M Enclosure: OPSB
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 7.5 Full Load Torque 22.3 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 7.7 Breakdown Torque 74.9 LB-FT
R.P.M. 1750 Pull-up Torque 42.9 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 56.6 LB-FT
NEMA Design Code A KVA Code J Starting Current 58.8 A
Service Factor (S.F.) 1.15 No-load Current 3.76 A
NEMA Nom. Eff. 88.5 Power Factor 81 LinelineRes.@25ºC 2.73Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 58°C
S.F. Amps Temp. Rise @ S.F. Load 72°C
Locked-rotor Power Factor 53
Rotor inertia 0.427 LB-FT2
Load Characteristics 575 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 39 63 75 81 84 86 83
Efficiency 83.8 89.1 89.7 89 87.7 86 88.2
Speed 1791 1779 1766 1752 1737 1720 1743
Line amperes 4.11 5.02 6.28 7.74 9.48 11.4 8.78
Page 8 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB

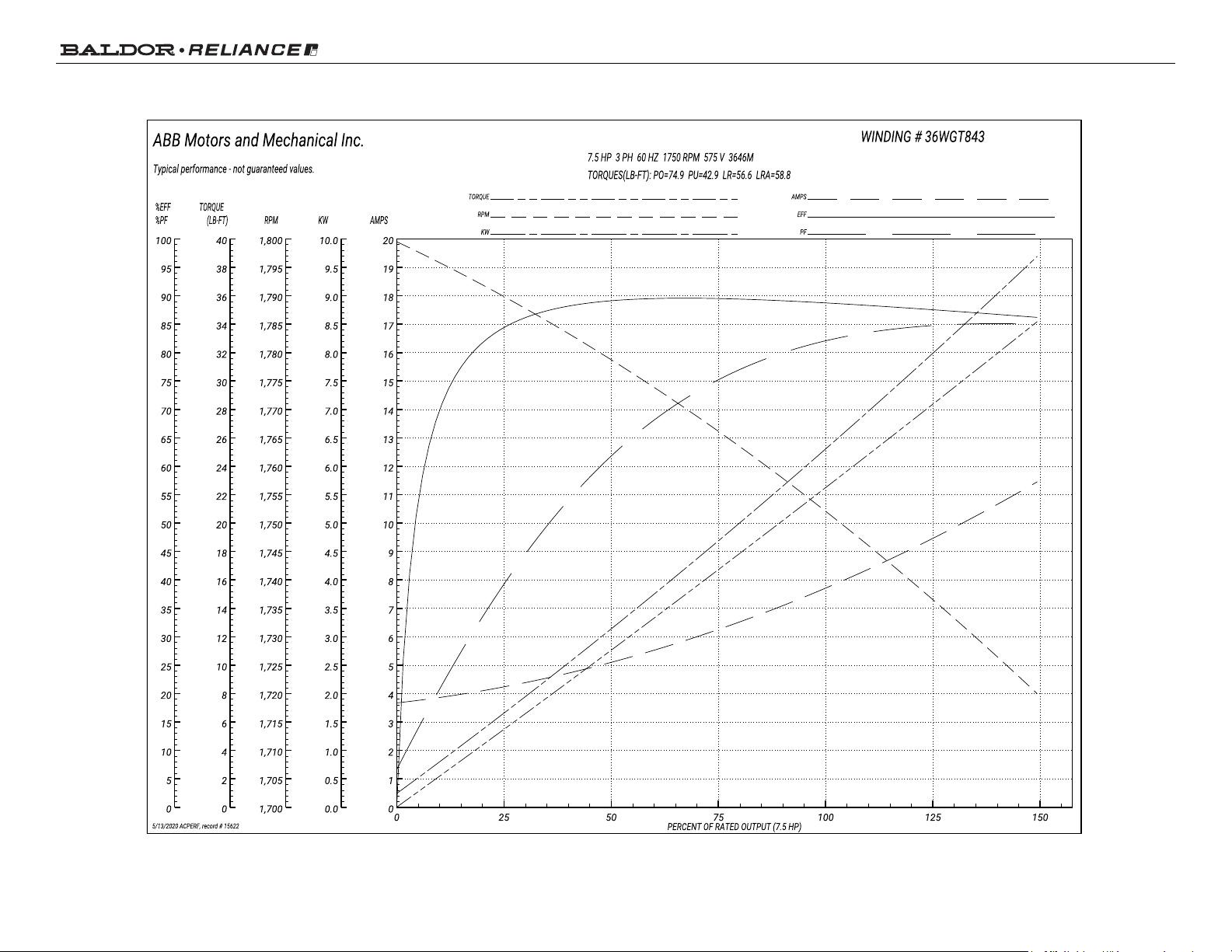

Performance Graph at 575V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 9 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Page 10 of 11
Product Information Packet: M3311T-5 - 7.5HP,1750RPM,3PH,60HZ,213T,3646M,OPSB
Page 11 of 11
