Product Information Packet
M3220T
1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Part Detail
Revision: D Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WGS621 CD Diagram: CD0005 Mfg Plant:

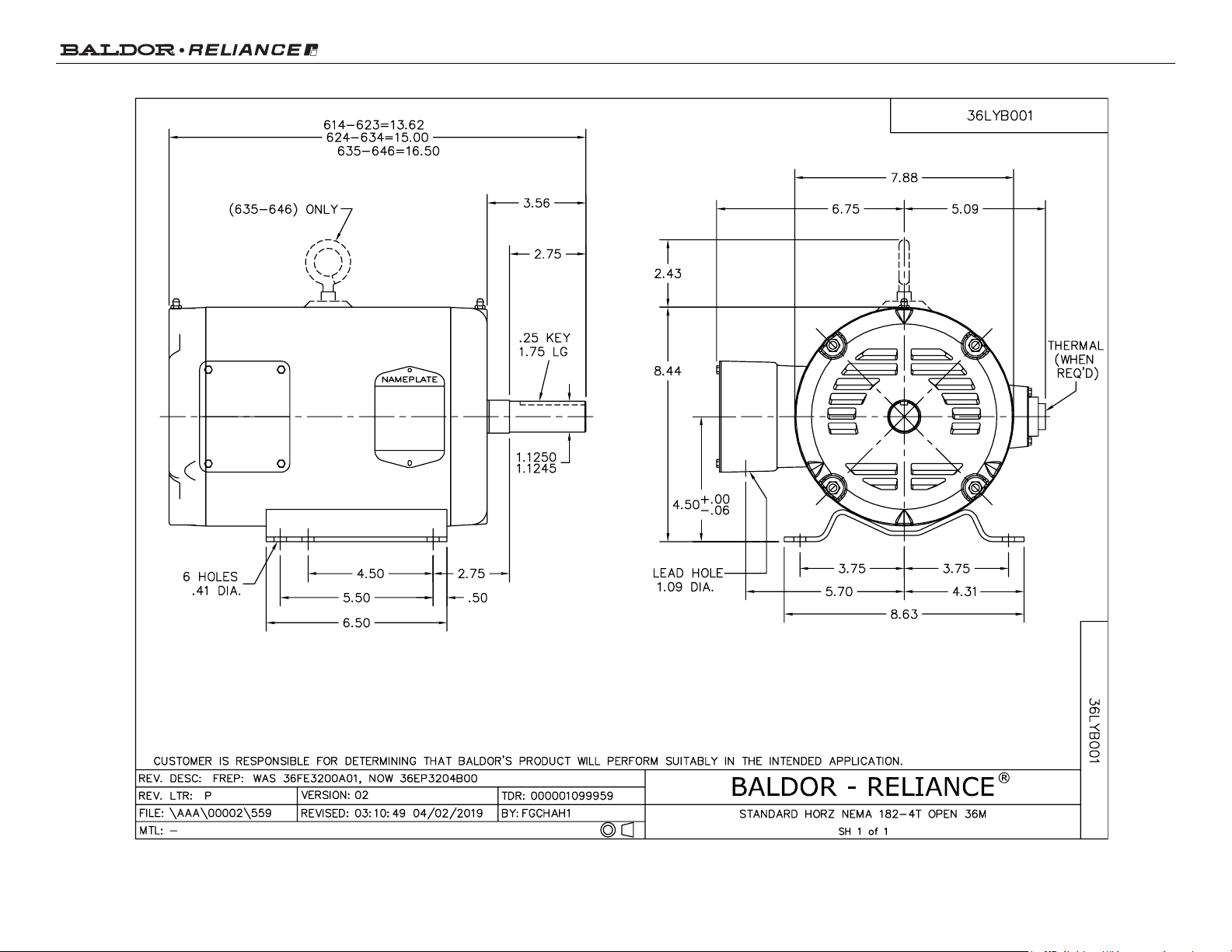

Mech. Spec: 36B001 Layout: 36LYB001 Poles: 08 Created Date: 03-22-2011
Base: RG Eff. Date: 03-08-2016 Leads: 9#16
Specs
Catalog Number: M3220T
Enclosure: ODP
Frame: 184T
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 900 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: RG
Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: H
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3631M
Mounting Arrangement: F1
Power Factor: 62
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 11
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Current @ Voltage: 3.000 A @ 460.0 V
6.000 A @ 208.0 V
6.000 A @ 230.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Nameplate NP1256L
CAT.NO. M3220T
SPEC. 36B001S621H2
HP 1.5
VOLTS 208-230/460
AMP 6/3
RPM 845
FRAME 184T HZ 60 PH 3
SER.F. 1.15 CODE H DES B CLASS F
NEMA-NOM-EFF 75.5 PF 62
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6206 ODE 6205
ENCL OPEN SN
Page 4 of 11
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Parts List
Part Number Description Quantity
SA219928 SA 36B001S621H2 1.000 EA
RA207084 RA 36B001S621H2 1.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP3204B00 FR ENDPLATE, ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36EP3205D00 PU ENDPLATE, ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY2520A12 1/4-20 HEX NUT, DIRECTIONAL SERRATIONS 4.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.022 GA
HA3101A25 THRUBOLT 1/4-20 X 11.000 OHIO ROD 4.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 5 of 11
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Accessories
Part Number Description Multiplier
36-3403 C FACE KIT A8
36EP1405A09SP D-FLANGE KIT A8
Page 6 of 11
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
AC Induction Motor Performance Data
Record # 33854 - Typical performance - not guaranteed values
Winding: 36WGS621-R001 Type: 3631M Enclosure: OPEN
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5 Full Load Torque 9.33 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 6/3 Breakdown Torque 23.5 LB-FT
R.P.M. 845 Pull-up Torque 16.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 19.1 LB-FT
NEMA Design Code B KVA Code H Starting Current 12.3 A
Service Factor (S.F.) 1.15 No-load Current 2.09 A
NEMA Nom. Eff. 75.5 Power Factor 62 LinelineRes.@25ºC 12.266Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 54°C
S.F. Amps Temp. Rise @ S.F. Load 67°C
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 28 42 54 62 68 73 66
Efficiency 63.8 73.8 76.4 76.1 73.9 70.4 74.8
Speed 887.4 875.9 863 847.9 828.3 803.5 836
Line amperes 2.15 2.33 2.61 3.01 3.52 4.15 3.32
Page 7 of 11
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 8 of 11
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Page 9 of 11
Product Information Packet: M3220T - 1.5HP,845RPM,3PH,60HZ,184T,3631M,OPEN,F1
Page 10 of 11
