M3212T
Product Information Sheet
13 pgs326.29 Kb0

Baldor M3212T Product Information Sheet

Download
Product Information Packet
M3212T
5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1

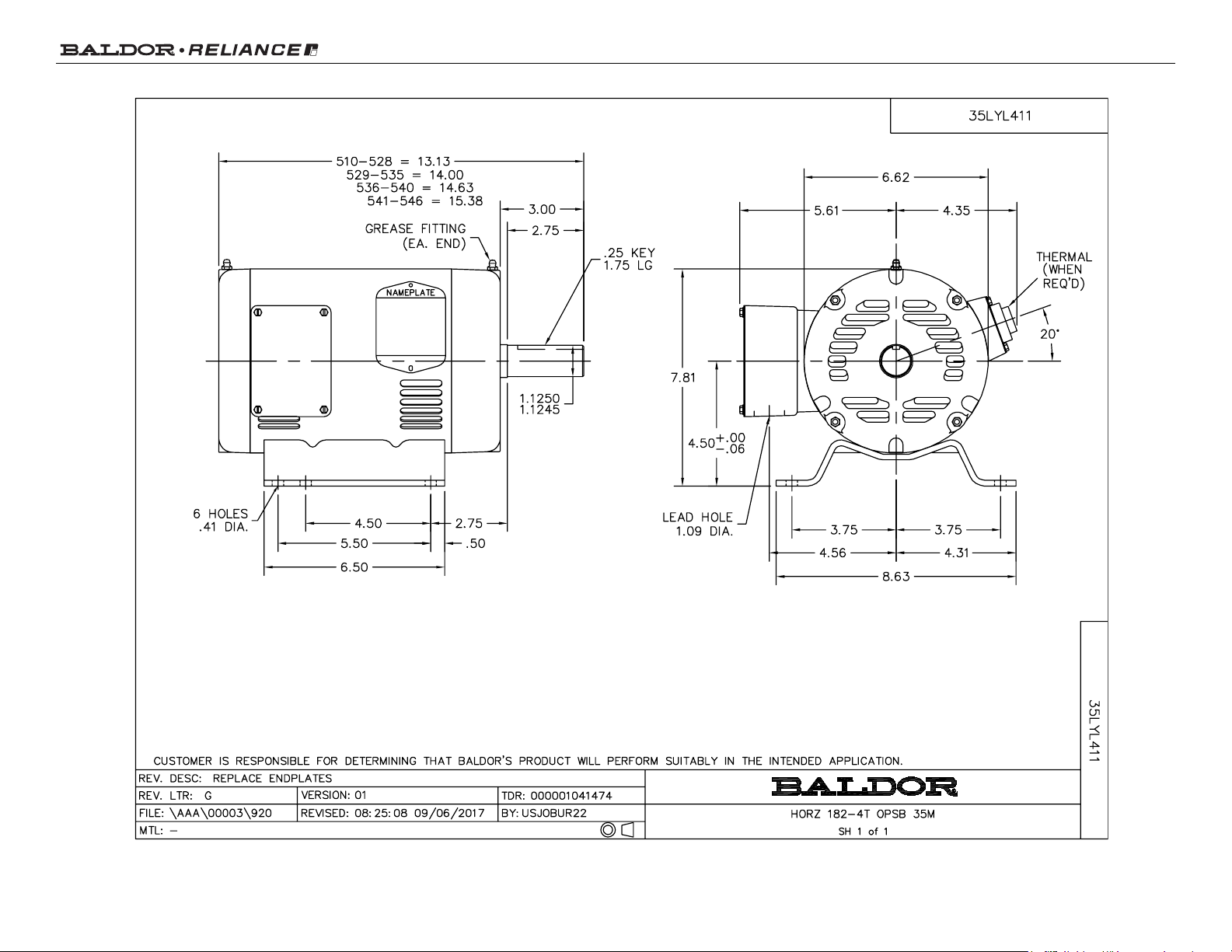

Part Detail
Revision: X Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 35WGT481 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 35L411 Layout: 35LYL411 Poles: 02 Created Date: 06-22-2007 Base: RG Eff. Date: 11-22-2010 Leads: 9#18
Specs
Catalog Number: M3212T Enclosure: ODP Frame: 182T Frame Material: Steel Output @ Frequency: 5.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: CSA
UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Insulation Class: B Inverter Code: Not Inverter KVA Code: J Lifting Lugs: No Lifting Lugs Locked Bearing Indicator: No Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 18 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3535M Mounting Arrangement: F1 Power Factor: 89 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End
Current @ Voltage: 12.200 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
13.000 A @ 208.0 V
6.100 A @ 460.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
Nameplate NP1256L
CAT.NO. M3212T
SPEC. 35L411T481H1
HP 5
VOLTS 208-230/460
AMP 13-12.2/6.1 RPM 3450
FRAME 182T HZ 60 PH 3
SER.F. 1.15 CODE J DES B CLASS B
NEMA-NOM-EFF 85.5 PF 89
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 13 DE 6206 ODE 6203
ENCL OPSB SN
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
Parts List
Part Number Description Quantity SA027032 SA 35L411T481H1 1.000 EA RA023081 RA 35L411T481H1 1.000 EA S/P101-000-000 EPACT PROCEDURES-FS PLANT-POLYREX EM, NO 1.000 EA NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA 35CB3009 35 CB W/1.09 DIA. LEAD HOLE @ 6: 1.000 EA 51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA 35EP3209A00 FREP ASSEMBLY FOR ROUTING 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW5100A03 WAVY WASHER (W1543-017) 1.000 EA 35EP3207A01 PU ENDPLATE, MACH 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA 35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA HA3100A24 THRUBOLT 10-32 X 10.625 4.000 EA 35AD2005A01 BAFFLE PLATE,MOD 35-SLTD BAND MTRS GL.F. 2.000 EA LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
Parts List (continued)
Part Number Description Quantity LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
Accessories
Part Number Description Multiplier 35-1409 C FACE KIT A8
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
AC Induction Motor Performance Data
Record # 9422 - Typical performance - not guaranteed values
Winding: 35WGT481-R001 Type: 3534M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 5 Full Load Torque 7.81 LB-FT Volts 208-230/460 Start Configuration direct on line Full Load Amps 13-12.2/6.1 Breakdown Torque 30.89 LB-FT R.P.M. 3450 Pull-up Torque 23.14 LB-FT Hz 60 Phase 3 Locked-rotor Torque 27.15 LB-FT NEMA Design Code B KVA Code J Starting Current 51.63 A Service Factor (S.F.) 1.15 No-load Current 2.41 A NEMA Nom. Eff. 85.5 Power Factor 89 LinelineRes.@25ºC 3.08Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 55°C S.F. Amps Temp. Rise @ S.F. Load 67°C
Locked-rotor Power Factor 52.2
Rotor inertia 0.0931 LB-FT2
Load Characteristics 460 V, 60 Hz, 5 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 56 77 86 91 93 93 92 Efficiency 80.9 86.1 86.8 86 84.4 82.3 85.2 Speed 3560 3524 3485 3443 3395 3344 3420 Line amperes 2.81 3.69 4.9 6.13 7.62 9.26 7.03
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1

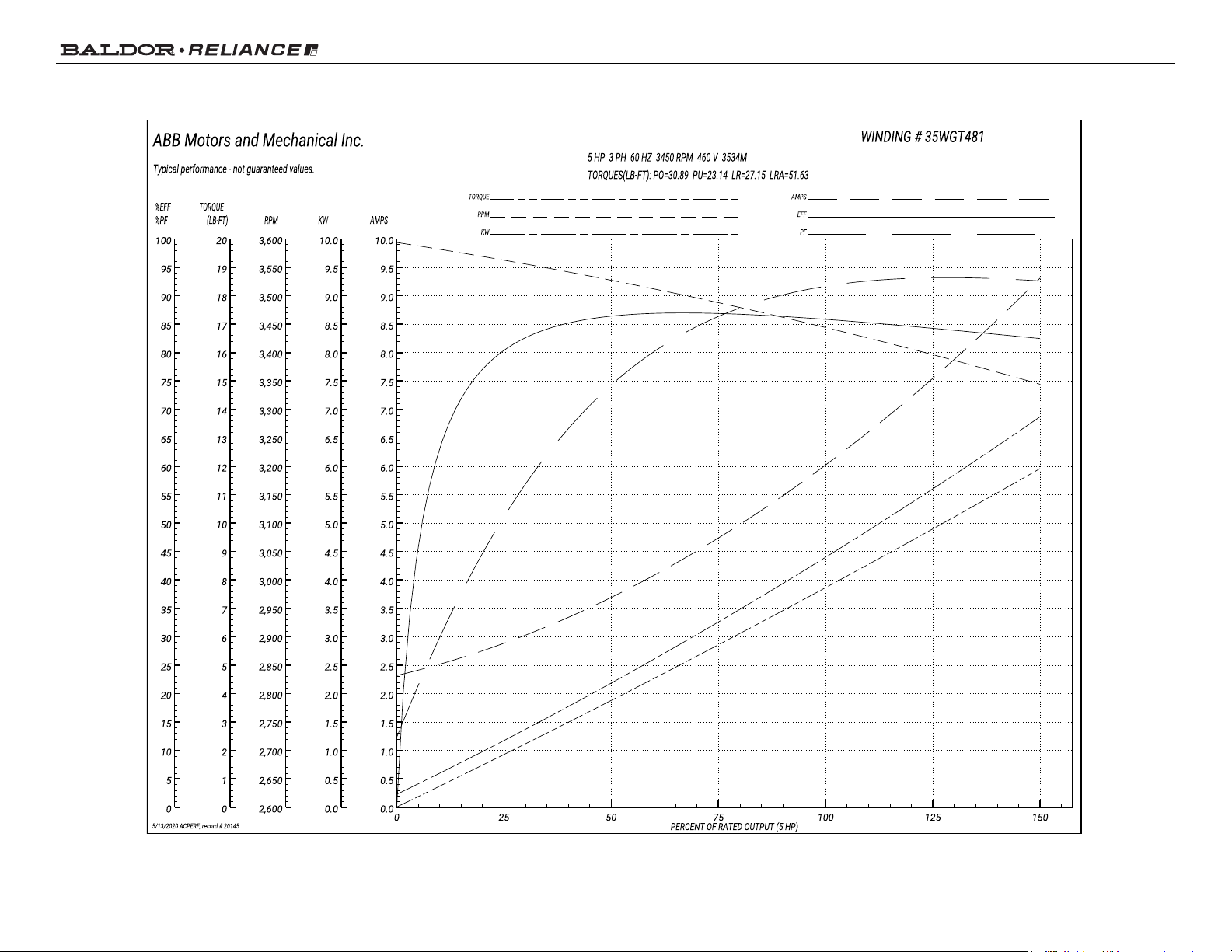

Performance Graph at 460V, 60Hz, 5.0HP Typical performance - Not guaranteed values
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
AC Induction Motor Performance Data
Record # 20145 - Typical performance - not guaranteed values
Winding: 35WGT481-R002 Type: 3534M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 5 Full Load Torque 7.81 LB-FT Volts 208-230/460 Start Configuration direct on line Full Load Amps 13-12.2/6.1 Breakdown Torque 30.89 LB-FT R.P.M. 3450 Pull-up Torque 23.14 LB-FT Hz 60 Phase 3 Locked-rotor Torque 27.15 LB-FT NEMA Design Code B KVA Code J Starting Current 51.63 A Service Factor (S.F.) 1.15 No-load Current 2.41 A NEMA Nom. Eff. 85.5 Power Factor 89 LinelineRes.@25ºC 3.08Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 55°C S.F. Amps Temp. Rise @ S.F. Load 67°C
Locked-rotor Power Factor 52.2
Rotor inertia 0.0931 LB-FT2
Load Characteristics 460 V, 60 Hz, 5 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 56 77 86 91 93 93 92 Efficiency 80.9 86.1 86.8 86 84.4 82.3 85.2 Speed 3560 3524 3485 3443 3395 3344 3420 Line amperes 2.81 3.69 4.9 6.13 7.62 9.26 7.03
Page 10 of 13
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
Performance Graph at 460V, 60Hz, 5.0HP Typical performance - Not guaranteed values
Page 11 of 13
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
Page 12 of 13
Product Information Packet: M3212T - 5HP,3450RPM,3PH,60HZ,182T,3535M,OPSB,F1
Page 13 of 13
