Product Information Packet
M3157T-5
2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Part Detail
Revision: X Status: INA/A Change #: Proprietary: No

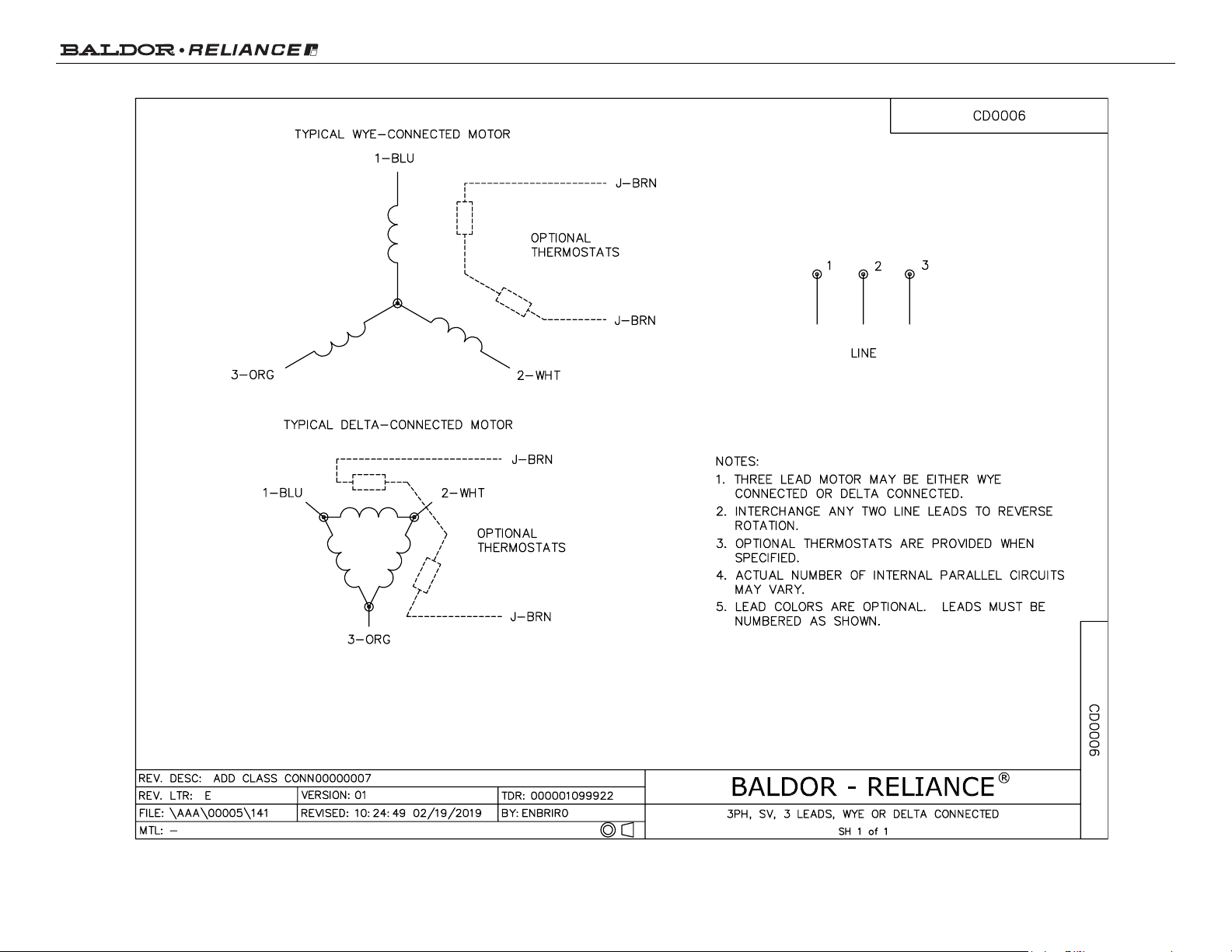

Type: AC Elec. Spec: 35WGS003 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 35B101 Layout: 35LYB101 Poles: 04 Created Date:
Base: RG Eff. Date: 03-08-2016 Leads: 3#18
Specs
Catalog Number: M3157T-5
Enclosure: ODP
Frame: 145T
Frame Material: Steel
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 2.200 A @ 575.0 V
Design Code: B
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3528M
Mounting Arrangement: F1
Power Factor: 79
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Drip Cover: No Drip Cover
Shaft Slinger Indicator: No Slinger
Page 2 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Nameplate NP1256L
CAT.NO. M3157T-5
SPEC. 35B101S003H1
HP 2
VOLTS 575
AMP 2.2
RPM 1740
FRAME 145T HZ 60 PH 3
SER.F. 1.15 CODE K DES B CLASS B
NEMA-NOM-EFF 84 PF 79
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6205 ODE 6203
ENCL OPSB SN
Page 4 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Parts List
Part Number Description Quantity
SA023420 SA 35B101S003H1 1.000 EA
RA019470 RA 35B101S003H1 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3007 35 CB CASTING W/.88 DIA. LEAD HOLE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3209A00 FREP ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3210A00 PUEP ASSEMBLY FOR ROUTING PURPOSES 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA
35AD2005A01 BAFFLE PLATE,MOD 35-SLTD BAND MTRS GL.F. 2.000 EA
HA3100A38 THRUBOLT 10-32 X 9.375 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0006 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
Page 5 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Parts List (continued)
Part Number Description Quantity
35PA1066 PKG GRP, PRINT PK1008A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Accessories
Part Number Description Multiplier
35-8764 C FACE KIT A8
35EP1604A01SP D-FLANGE KIT
Page 7 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
AC Induction Motor Performance Data
Record # 20338 - Typical performance - not guaranteed values
Winding: 35WGS003-R002 Type: 3528M Enclosure: TEFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 2 Full Load Torque 6 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 2.2 Breakdown Torque 22.5 LB-FT
R.P.M. 1740 Pull-up Torque 15.5 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 16.5 LB-FT
NEMA Design Code B KVA Code K Starting Current 16.8 A
Service Factor (S.F.) 1.15 No-load Current 1.1 A
NEMA Nom. Eff. 84 Power Factor 79 LinelineRes.@25ºC 12.3Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 65°C
S.F. Amps Temp. Rise @ S.F. Load 87°C
Locked-rotor Power Factor 50
Rotor inertia 0.166 LB-FT2
Load Characteristics 575 V, 60 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 41 61 73 79 83 85 0
Efficiency 77 83.8 85.2 84.6 83.2 80.9 0
Speed 1782 1766 1748 1727 1706 1679 0
Line amperes 1.2 1.5 1.8 2.2 2.7 3.3 2.6
Page 8 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Performance Graph at 575V, 60Hz, 2.0HP Typical performance - Not guaranteed values
Page 9 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
8750
8745
2 25
2 50
4 00 2 25
5 00 50
5 94
2 60
510-520 = 11 13
521-524 = 11 63
525-528 = 12 13
529-535 = 13 00
536-546 = 14 38
NAMEPLATE
19 KEY
1 38 LONG
GREASE FITTING
(EACH END)
6 HOLES
Ø 38
2 75 2 75
4 56 3 25
6 50
3 50
3 44
6 78
5 61
6 62
LEAD HOLE
Ø 88
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYB101
B
STD HORZ 143-5T OPSB 35M
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYB101
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG17
ENSTEK0
K
04 08 35 02/07/2019
-
000001098865
07
35LYB101
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 OF 1
Page 10 of 11
Product Information Packet: M3157T-5 - 2HP,1740RPM,3PH,60HZ,145T,3528M,OPSB,F1
Page 11 of 11
