Product Information Packet
M2559T-5
125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Part Detail
Revision: T Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 44WGW122 CD Diagram: CD0382 Mfg Plant:
Mech. Spec: 44E057 Layout: 44LYE057 Poles: 04 Created Date:
Base: RG Eff. Date: 03-08-2016 Leads: 6#6
Specs
Catalog Number: M2559T-5
Frame: 405T
Frame Material: Steel
Output @ Frequency: 125.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 115.000 A @ 575.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 6 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 4486M
Mounting Arrangement: F1
Power Factor: 85
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Electrically Isolated Bearing: Not Electrically Isolated
Shaft Slinger Indicator: No Slinger
Page 2 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Wye Start - Delta Run
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Page 3 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Nameplate NP1256L
CAT.NO. M2559T-5
SPEC. 44E057W122H1
HP 125
VOLTS 575
AMP 115
RPM 1775
FRAME 405T HZ 60 PH 3
SER.F. 1.15 CODE G DES B CLASS B
NEMA-NOM-EFF 94.5 PF 85
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6316 ODE 6312
ENCL OPSB SN
Page 4 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Parts List
Part Number Description Quantity
SA080902 SA 44E057W122H1 1.000 EA
RA074288 RA 44E057W122H1 1.000 EA
HA6731 LIFTING LUG FOR 44 FRAME MOTORS. 2.000 EA
HA6648A01 CAST ADAPTER, 44 FRAME - NEMA 404-5 - MA 1.000 EA
19XW3816A12 .38-16 X .75 HEX WASHER HEAD TAPTITE II 2.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 2.000 EA
18CB1006A04 CB 318 3.62 LD HOLE, .38 MTG HOLE & 3.88 1.000 EA
19XW3118A16 .31-18 HEX WASHER HEAD TAPTITE II 1.00 L 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA
10XN3118K08 5/16-18 X .50 GRADE #5, STL, ZINC PLATE 1.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA
44EP1203A02 FREP, MACH 1.000 EA
HW5100A15 W4997-050 WVY WSHR (WB) 1.000 EA
10XN3816K48 3/8-16 X 3 HEX HD CAP SCREW,Z/P 4.000 EA
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
44EP1202A01 PU ENDPLATE, MACH. 1.000 EA
XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 8.000 EA
18CB1506A01 CB LID 318 FOR 18CB1006 1.000 EA
10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
HW2501K66 KEY, 3/4 SQ X 5.625 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
Page 5 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Parts List (continued)
Part Number Description Quantity
44AD2003A01 BAFFLE PLATE 44 OPSB, "X" = -.470, "Y" = 1.000 EA
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.030 LB
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
44AD2003A01 BAFFLE PLATE 44 OPSB, "X" = -.470, "Y" = 1.000 EA
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
HA3175A03 THRUBOLT STUD 1/2-13 X 24.250 - GRADE 2 4.000 EA
85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.080 GA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0382 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
44PA1000 PK GP COMB PRINT 39-3/8X31X23-7/8 1.000 EA
Page 6 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Accessories
Part Number Description Multiplier
44-1402 C FACE KIT 44/404-5UC TC 6316 BRG A8
Page 7 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
AC Induction Motor Performance Data
Record # 13930 - Typical performance - not guaranteed values
Winding: 44WGW122-R001 Type: 4486M Enclosure: OPSB
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 125 Full Load Torque 370 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 115 Breakdown Torque 1005 LB-FT
R.P.M. 1775 Pull-up Torque 419 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 524 LB-FT
NEMA Design Code B KVA Code G Starting Current 700 A
Service Factor (S.F.) 1.15 No-load Current 34 A
NEMA Nom. Eff. 94.5 Power Factor 85 LinelineRes.@25ºC 0.0634Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 66°C
S.F. Amps Temp. Rise @ S.F. Load 87°C
Locked-rotor Power Factor 25
Rotor inertia 16.3 LB-FT2
Load Characteristics 575 V, 60 Hz, 125 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 58 79 85 86 89 89 88
Efficiency 92.4 94.8 95 94.6 94 93.1 94.2
Speed 1794 1788 1782 1775 1768 1761 1771
Line amperes 44 63 87 115 139 169 129.4
Page 8 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB

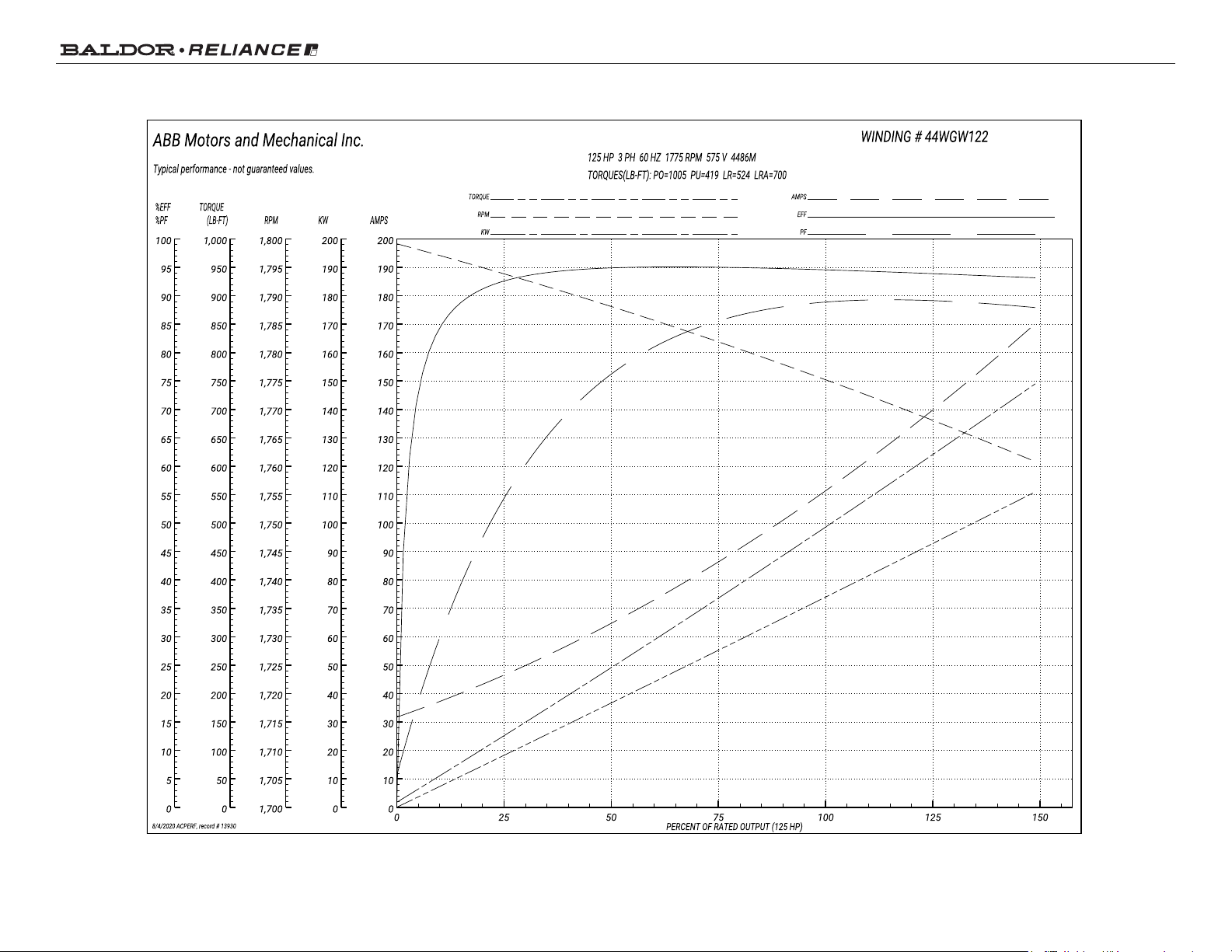

Performance Graph at 575V, 60Hz, 125.0HP Typical performance - Not guaranteed values
Page 9 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Page 10 of 11
Product Information Packet: M2559T-5 - 125HP,1775RPM,3PH,60HZ,405T,4486M,OPSB
Page 11 of 11
