Product Information Packet
M2548T
60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Part Detail

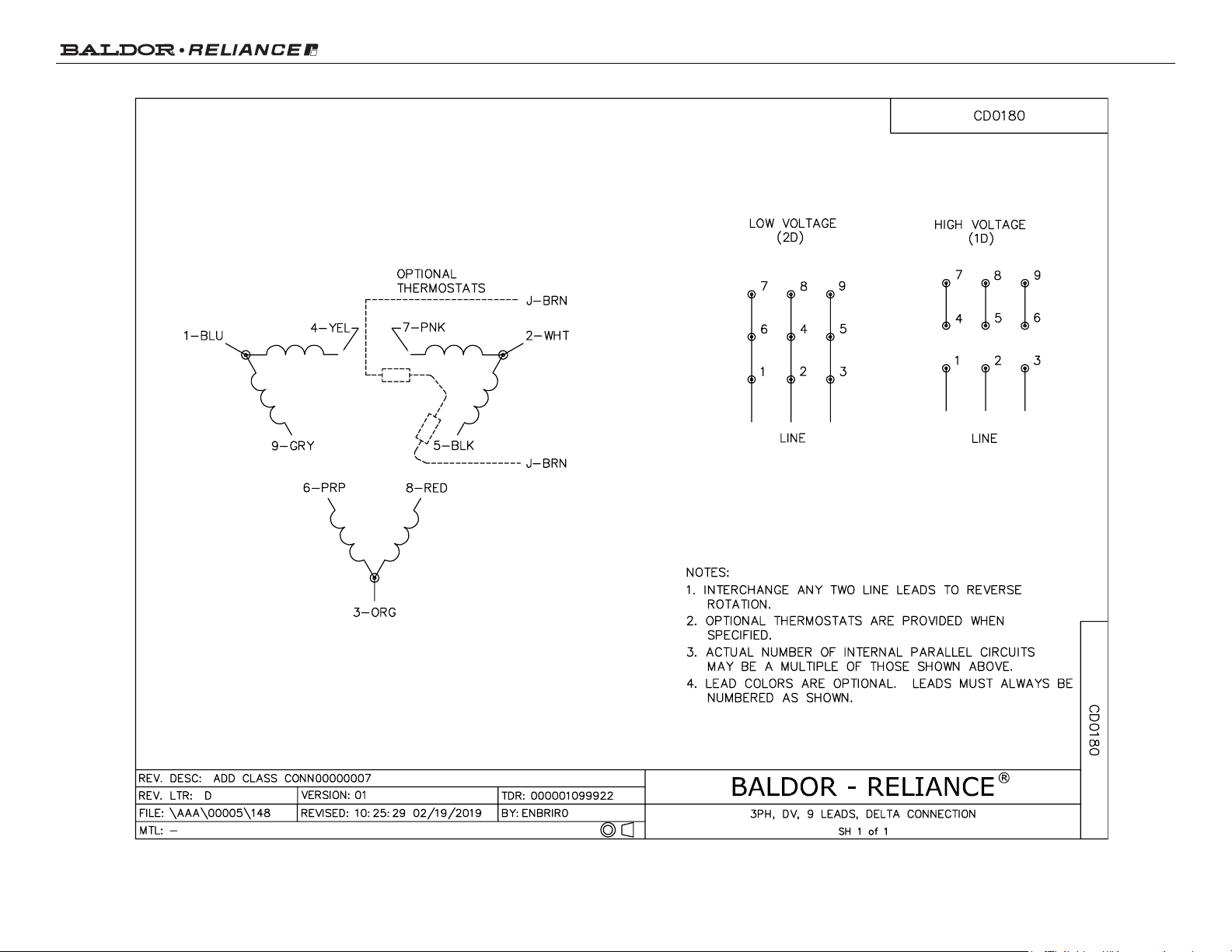

Revision: K Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 44WGW109 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 44E057 Layout: 44LYE057 Poles: 06 Created Date: Base: RG Eff. Date: 05-09-2007 Leads: 9#6
Specs
Catalog Number: M2548T Enclosure: ODP Frame: 404T Frame Material: Steel Output @ Frequency: 60.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals: CSA
UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 150.000 A @ 230.0 V
173.000 A @ 208.0 V
Insulation Class: B Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 6 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 4466M Mounting Arrangement: F1 Power Factor: 81 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End
75.000 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Nameplate NP1256L
CAT.NO. M2548T
SPEC. 44E057W109H1
HP 60
VOLTS 230/460
AMP 150/75 RPM 1185
FRAME 404T HZ 60 PH 3
SER.F. 1.15 CODE H DES B CLASS B
NEMA-NOM-EFF 93.6 PF 81
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 173 DE 6316 ODE 6312
ENCL OPSB SN
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Parts List
Part Number Description Quantity SA076769 SA 44E057W109H1 1.000 EA RA070353 RA 44E057W109H1 1.000 EA S/P101-000-004 EPACT PROC-CL, 280FR & UP,LARGE BOX,POLY 1.000 EA HA6731 LIFTING LUG FOR 44 FRAME MOTORS. 2.000 EA HA6648A01 CAST ADAPTER, 44 FRAME - NEMA 404-5 - MA 1.000 EA 19XW3816A12 .38-16 X .75 HEX WASHER HEAD TAPTITE II 2.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 2.000 EA 18CB1006A04 CB 318 3.62 LD HOLE, .38 MTG HOLE & 3.88 1.000 EA 19XW3118A16 .31-18 HEX WASHER HEAD TAPTITE II 1.00 L 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 10XN3118K08 5/16-18 X .50 GRADE #5, STL, ZINC PLATE 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA 44EP1203A02 FREP, MACH 1.000 EA HW5100A15 W4997-050 WVY WSHR (WB) 1.000 EA 10XN3816K48 3/8-16 X 3 HEX HD CAP SCREW,Z/P 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 44EP1202A01 PU ENDPLATE, MACH. 1.000 EA XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 8.000 EA 18CB1506A01 CB LID 318 FOR 18CB1006 1.000 EA 10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HW2501K66 KEY, 3/4 SQ X 5.625 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Parts List (continued)
Part Number Description Quantity HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 44AD2003B01 BAFFLE PLATE 44 OPSB, "X" = .030. "Y" = 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.030 LB HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 44AD2003B01 BAFFLE PLATE 44 OPSB, "X" = .030. "Y" = 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA HA3175A01 THRUBOLT STUD 1/2-13 X 22.500 - GRADE 2 4.000 EA 85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.080 GA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1119N WARNING LABEL 1.000 EA LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA LC0181 CONNECTION LABEL 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 44PA1000 PK GP COMB PRINT 39-3/8X31X23-7/8 1.000 EA
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Accessories
Part Number Description Multiplier 44-1402 C FACE KIT 44/404-5UC TC 6316 BRG A8
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
AC Induction Motor Performance Data
Record # 13923 - Typical performance - not guaranteed values
Winding: 44WGW109-R001 Type: 4466M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 60 Full Load Torque 266 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 150/75 Breakdown Torque 848 LB-FT R.P.M. 1185 Pull-up Torque 344 LB-FT Hz 60 Phase 3 Locked-rotor Torque 481 LB-FT NEMA Design Code B KVA Code H Starting Current 509 A Service Factor (S.F.) 1.15 No-load Current 29.6 A NEMA Nom. Eff. 93.6 Power Factor 81 LinelineRes.@25ºC 0.111Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 43°C S.F. Amps Temp. Rise @ S.F. Load 57°C
Locked-rotor Power Factor 29
Rotor inertia 18.8 LB-FT2
Load Characteristics 460 V, 60 Hz, 60 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 45 67 76 81 83 83 82 Efficiency 89.3 93.1 93.9 93.7 93.2 92.5 93.4 Speed 1196 1193 1189 1185 1181 1176 1183 Line amperes 34.9 45 58.9 74.5 91.2 109.4 84.5
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Performance Graph at 460V, 60Hz, 60.0HP Typical performance - Not guaranteed values
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Page 10 of 11
Product Information Packet: M2548T - 60HP,1185RPM,3PH,60HZ,404T,4466M,OPSB,F1
Page 11 of 11
