Product Information Packet
M2542T
50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
Part Detail
Revision: M Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 40WGX109 CD Diagram: CD0180 Mfg Plant:
Mech. Spec: 40H07 Layout: 40LYH007 Poles: 02 Created Date:
Base: RG Eff. Date: 06-09-2010 Leads: 9#8
Specs
Catalog Number: M2542T
Enclosure: ODP
Frame: 324TS
Frame Material: Steel
Output @ Frequency: 50.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 116.000 A @ 230.0 V
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 8 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 4044M
Mounting Arrangement: F1
Power Factor: 87
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
123.000 A @ 208.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
58.000 A @ 460.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
Nameplate NP1256L
CAT.NO. M2542T
SPEC. 40H007X109H2
HP 50
VOLTS 208-230/460
AMP 123-116/58
RPM 3520
FRAME 324TS HZ 60 PH 3
SER.F. 1.15 CODE G DES B CLASS B
NEMA-NOM-EFF 92.4 PF 87
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6312 ODE 6309
ENCL OPSB SN
Page 4 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
Parts List
Part Number Description Quantity
SA119583 SA 40H007X109H2 1.000 EA
RA110355 RA 40H007X109H2 1.000 EA
S/P101-000-004 EPACT PROC-CL, 280FR & UP,LARGE BOX,POLY 1.000 EA
HA6361A01 LIFTING LUG FOR 37, 39 & 40 FRAME ZINC 2.000 EA
HA6017A01 CAST ADAPTOR 1.000 EA
19XW3118A12 .31-18 X .75 HEX WASHER HEAD TAPTITE II 2.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 2.000 EA
10CB3001 CONDUIT BOX CAST W/2.500 LEAD HOLE 1.000 EA
19XW3118A12 .31-18 X .75 HEX WASHER HEAD TAPTITE II 4.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA
51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA
40EP3200A02 STD FREP OPEN 309 BRG 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
HW5100A11 W3917-042 WVY WSHR (WB) 1.000 EA
40EP3201A01 PU ENDPLATE, MACH - OPEN - FOR 312 BRG 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
XY3816A12 3/8-16 FINISHED NUT 8.000 EA
10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA
HW2501H18 KEY, 1/2 SQ X 2.000 1.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
Page 5 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
Parts List (continued)
Part Number Description Quantity
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA
HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
HA3154A04 THRUBOLT STUD 3/8-16 X 18.750 4.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.070 GA
85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA
40AD2002C01 LEXAN BAFFLE 40 FR OPEN 1.000 EA
40AD2002C01 LEXAN BAFFLE 40 FR OPEN 1.000 EA
LB1119N WARNING LABEL 1.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA
LC0181 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
40PA1000 PACKAGING GROUP 1.000 EA
Page 6 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
Accessories
Part Number Description Multiplier
40-1401 C FACE KIT 40/324-6UC TC 6312 BRG A8
Page 7 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
AC Induction Motor Performance Data
Record # 16963 - Typical performance - not guaranteed values
Winding: 40WGX109-R001 Type: 4044M Enclosure: OPSB
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 50 Full Load Torque 74.2 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 123-116/58 Breakdown Torque 236.2 LB-FT
R.P.M. 3520 Pull-up Torque 86.9 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 126.3 LB-FT
NEMA Design Code B KVA Code G Starting Current 353 A
Service Factor (S.F.) 1.15 No-load Current 16.1 A
NEMA Nom. Eff. 92.4 Power Factor 87 LinelineRes.@25ºC 0.157Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 44°C
S.F. Amps Temp. Rise @ S.F. Load 59°C
Locked-rotor Power Factor 24
Rotor inertia 1.89 LB-FT2
Load Characteristics 460 V, 60 Hz, 50 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 62 79 85 87 88 88 88
Efficiency 89.4 92.6 93 92.5 91.6 90.4 92
Speed 3583 3565 3547 3527 3505 3479 3514
Line amperes 21.8 32 44.3 57.9 72.6 88.2 66.7
Page 8 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB

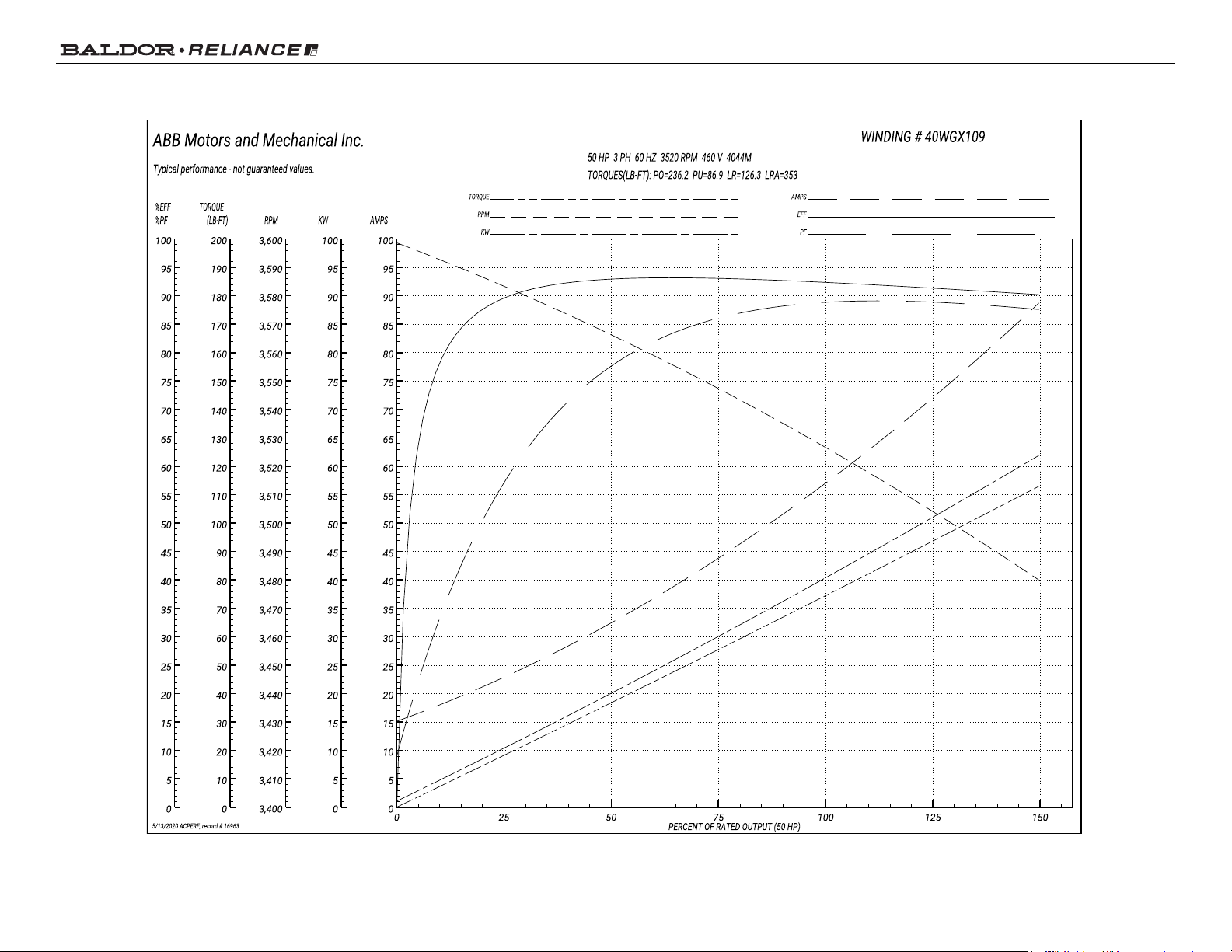

Performance Graph at 460V, 60Hz, 50.0HP Typical performance - Not guaranteed values
Page 9 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
Page 10 of 11
Product Information Packet: M2542T - 50HP,3520RPM,3PH,60HZ,324TS,4044M,OPSB
Page 11 of 11
