Baldor M1763T Product Information Sheet

Product Information Packet

M1763T

25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

Part Detail

Revision: X Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 10WGW442 CD Diagram: CD0032 Mfg Plant: Mech. Spec: 10C151 Layout: 10LYC151 Poles: 04/08 Created Date: Base: RG Eff. Date: 09-13-2019 Leads: 6#10

Specs

Catalog Number: M1763T Enclosure: TEFC Frame: 286T Frame Material: Iron Output @ Frequency: 6.300 HP @ 60 HZ

25.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR

CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None

Insulation Class: F Inverter Code: Not Inverter KVA Code: F Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 6 @ 10 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1040M Mounting Arrangement: F1 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding

Current @ Voltage: 32.000 A @ 460.0 V

Shaft Rotation: Reversible

Page 2 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater

Shaft Slinger Indicator: Shaft Slinger Speed Code: 2S-1W-VT Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None

Page 3 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

Nameplate NP1256L

CAT.NO. M1763T

SPEC. 10C151W442

HP 25/6.3

VOLTS 460

AMP 32/12 RPM 1760/870

FRAME 286T HZ 60 PH 3

SER.F. 1.15 CODE F DES B CLASS F

NEMA-NOM-EFF PF

RATING 40C AMB-CONT

CC USABLE AT 208V DE 6311 ODE 6309

ENCL TEFC SN

Page 4 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

Parts List

Part Number Description Quantity SA013449 SA 10C151W442 1.000 EA RA009646 RA 10C151W442 1.000 EA 10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA 09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 19XW3118G08 .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN 1.000 EA 10EP1106A01 FR ENDPLATE, MACH 1.000 EA 10XN3816K32 BOLT, 3/8-16X2 HH YZ(5) 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW5100A11 W3917-042 WVY WSHR (WB) 1.000 EA 10XN2520K32 1/4-20 X 2.00 HX HD SCRW GRADE 5, ZINC P 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 10EP1105A01 PU ENDPLATE 1.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 10FH4000 310 FAN HOUSING STAMPED 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 4.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA HW4600B40 V-RING SLINGER 2.000 X 2.680 X .28 VITON 1.000 EA

Page 5 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

Parts List (continued)

Part Number Description Quantity HW2501H28 KEY, 1/2 SQ X 3.250 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.130 LB HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA 10FN3001A01 EXTERNAL FAN 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA HA6390A01 HOSE CLAMP FOR 3.12 DIA S.S. OR PLATED 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.125 GA LB1119N WARNING LABEL 1.000 EA LC0032 CONNECTION LABEL 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 10PA1000 PACKAGING GROUP COMBINED PRINT PK1023A06 1.000 EA FE-0000022 ZRTG FE ASSEMBLY 1.000 EA

Page 6 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

PE-0000013 ZRTG PE ASSEMBLY 1.000 EA

Page 7 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

Accessories

Part Number Description Multiplier 10-1305 C FACE KIT A8 10EP1502A01SP D-FLANGE KIT A8

Page 8 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

AC Induction Motor Performance Data

Record # 36424 - Typical performance - not guaranteed values

Winding: 10WGW442-R003 Type: 1040M Enclosure: TEFC

Nameplate Data

460 V, 60 Hz:

High Speed Connection Rated Output (HP) 25/6.3 Full Load Torque 73.6 LB-FT Volts 460 Start Configuration direct on line Full Load Amps 32/12 Breakdown Torque 164 LB-FT R.P.M. 1760/870 Pull-up Torque 98 LB-FT Hz 60 Phase 3 Locked-rotor Torque 132 LB-FT NEMA Design Code B KVA Code F Starting Current 175 A Service Factor (S.F.) 1.15 No-load Current 14.6 A NEMA Nom. Eff. 0 Power Factor 0 LinelineRes.@25ºC 0.436Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 89°C S.F. Amps Temp. Rise @ S.F. Load 108°C

Load Characteristics 460 V, 60 Hz, 25 HP

% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 45 64 74 80 81 81 81 Efficiency 77 85 87 88 87 86 87.4 Speed 1793 1787 1780 1772 1762 1750 1766 Line amperes 16.7 21.2 26.7 32.6 41.1 50 37.7

Page 9 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

Performance Graph at 460V, 60Hz, 25.0HP Typical performance - Not guaranteed values

Page 10 of 15

Product Information Packet: M1763T - 25/6.3HP,1760/870RPM,3PH,60HZ,286T,1040M

AC Induction Motor Performance Data

Record # 36425 - Typical performance - not guaranteed values

Winding: 10WGW442-R003 Type: 1040M Enclosure: TEFC

Nameplate Data

460 V, 60 Hz:

Low Speed Connection Rated Output (HP) 25/6.3 Full Load Torque 37.6 LB-FT Volts 460 Start Configuration direct on line Full Load Amps 32/12 Breakdown Torque 72 LB-FT R.P.M. 1760/870 Pull-up Torque 41 LB-FT Hz 60 Phase 3 Locked-rotor Torque 55 LB-FT NEMA Design Code B KVA Code F Starting Current 45 A Service Factor (S.F.) 1.15 No-load Current 7.7 A NEMA Nom. Eff. 0 Power Factor 0 LinelineRes.@25ºC 1.73Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 40°C S.F. Amps Temp. Rise @ S.F. Load 48°C

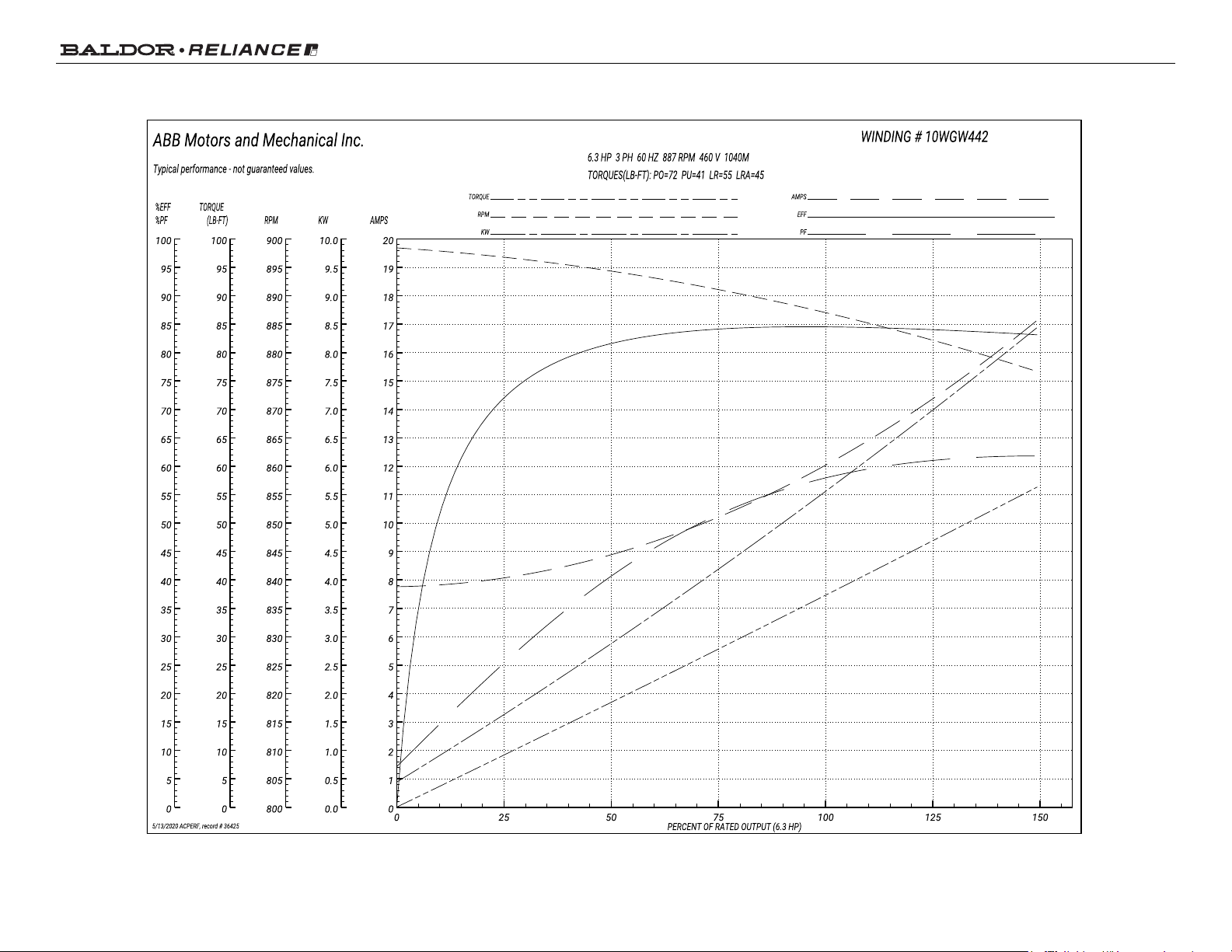

Load Characteristics 460 V, 60 Hz, 6.3 HP

% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 26 41 50 57 62 63 60 Efficiency 72 81 84 85.2 84 83 84.5 Speed 896 894 891 887 883 876 885 Line amperes 8.1 9 10.4 12 14.2 17.3 13.3

Page 11 of 15
