Baldor M1759T Product Information Sheet

Download
Product Information Packet
M1759T
7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Part Detail

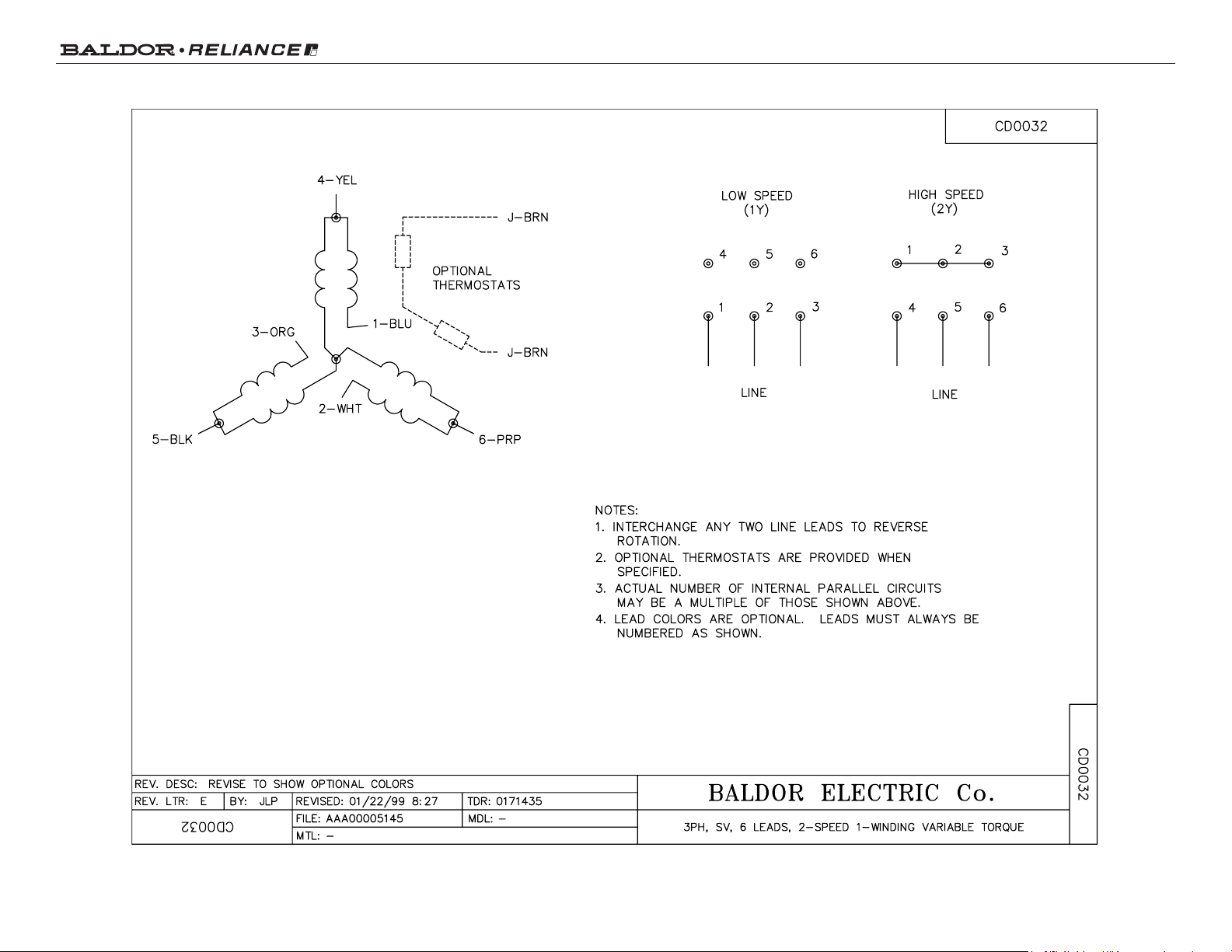

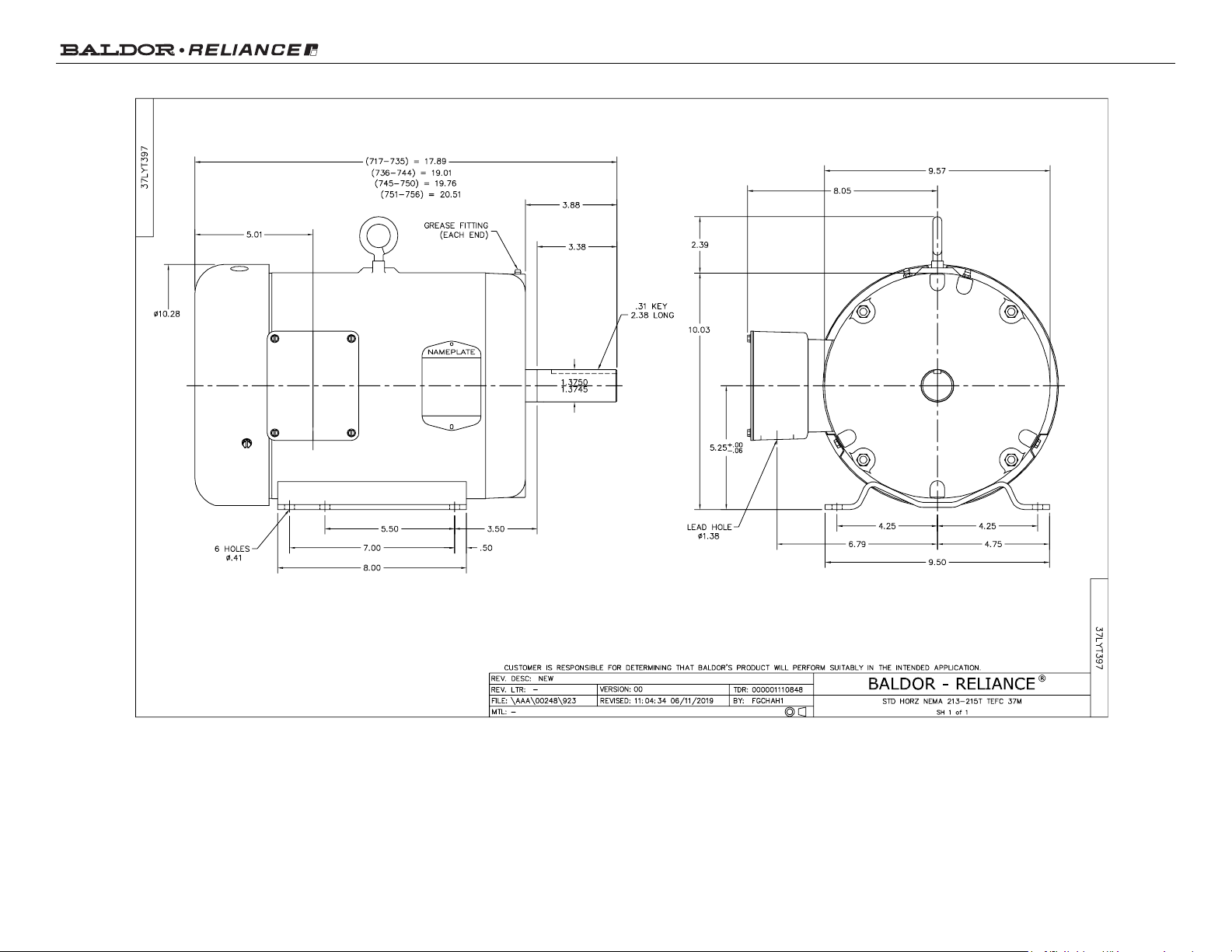

Revision: A Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 37WGS198 CD Diagram: CD0032 Mfg Plant: Mech. Spec: 37T397 Layout: 37LYT397 Poles: 04/08 Created Date: 06-11-2019 Base: RG Eff. Date: 07-18-2019 Leads: 6#14
Specs
Catalog Number: M1759T Enclosure: TEFC Frame: 215T Frame Material: Steel Output @ Frequency: 7.500 HP @ 60 HZ
1.900 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Insulation Class: F Inverter Code: Not Inverter KVA Code: K Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: No Locked Bearing Motor Lead Quantity/Wire Size: 6 @ 14 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3744M Mounting Arrangement: F1 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding
Current @ Voltage: 9.300 A @ 460.0 V
Shaft Rotation: Reversible
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Slinger Indicator: No Slinger Speed Code: 2S-1W-VT Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Nameplate NP1256L
CAT.NO. M1759T
SPEC. 37T397S198
HP 7.5/1.9
VOLTS 460
AMP 9.3/3.4 RPM 1740/870
FRAME 215T HZ 60 PH 3
SER.F. 1.15 CODE K DES A CLASS F
NEMA-NOM-EFF PF
RATING 40C AMB-CONT
CC USABLE AT 208V DE 6307 ODE 6206
ENCL TEFC SN
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Parts List
Part Number Description Quantity SA370537 SA 37T397S198 1.000 EA RA360196 RA 37T397S198 1.000 EA HW3200A01 3/8-16X3/4 I-BLT WELDED F/S 1.000 EA 37CB3006 37 CB CASTING W/1.38 LEAD HOLE @ 6:00 1.000 EA 37GS1000SP GASKET, CONDUIT BOX STD., .06 THICK LEXI 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 37EP3101A01 FR ENDPLATE, FOR ROUTING PURPOSES 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA 37PE3100A01 PUEP ASSEMBLY - ROUTING PUPROSES 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA 07FH4007SP PRIMED 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA 37CB4516 LIPPED LID FOR 37 FRAME NEC KOBX 1.000 EA 37GS1008 37 GS FOR CB LID - LEXIDE 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Parts List (continued)
Part Number Description Quantity 37FN3002A01SP EXFN, PLASTIC, 9.00 OD, 1.155 ID 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.028 GA HA3104A17 5/16-18X13.250 T-BLT/OHIO 4.000 EA LB1119N WARNING LABEL 1.000 EA LC0032 CONNECTION LABEL 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Accessories
Part Number Description Multiplier 37-3301 C FACE KIT P1
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
AC Induction Motor Performance Data
Record # 22857 - Typical performance - not guaranteed values
Winding: 37WGS198-R001 Type: 3744M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Speed Connection Rated Output (HP) 7.5/1.9 Full Load Torque 22.3 LB-FT Volts 460 Start Configuration direct on line Full Load Amps 9.3/3.4 Breakdown Torque 79.1 LB-FT R.P.M. 1740/870 Pull-up Torque 34.8 LB-FT Hz 60 Phase 3 Locked-rotor Torque 43.5 LB-FT NEMA Design Code A KVA Code K Starting Current 92.6 A Service Factor (S.F.) 1.15 No-load Current 3.32 A NEMA Nom. Eff. 0 Power Factor 0 LinelineRes.@25ºC 1.63Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 60°C S.F. Amps Temp. Rise @ S.F. Load 71°C
Load Characteristics 460 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 55 75 84 88 89 91 89 Efficiency 80.2 86.3 87 87 85.9 84.5 86.3 Speed 1790 1781 1770 1760 1749 1736 1753 Line amperes 3.96 5.39 7.14 9.16 11.4 13.8 10.5
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Performance Graph at 460V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
AC Induction Motor Performance Data
Record # 22858 - Typical performance - not guaranteed values
Winding: 37WGS198-R001 Type: 3744M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
Low Speed Connection Rated Output (HP) 7.5/1.9 Full Load Torque 11.5 LB-FT Volts 460 Start Configuration direct on line Full Load Amps 9.3/3.4 Breakdown Torque 36.6 LB-FT R.P.M. 1740/870 Pull-up Torque 14.9 LB-FT Hz 60 Phase 3 Locked-rotor Torque 17.6 LB-FT NEMA Design Code A KVA Code K Starting Current 16.9 A Service Factor (S.F.) 1.15 No-load Current 2.15 A NEMA Nom. Eff. 0 Power Factor 0 LinelineRes.@25ºC 6.66Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 42°C S.F. Amps Temp. Rise @ S.F. Load 48°C
Load Characteristics 460 V, 60 Hz, 1.9 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 30 45 57 64 69 72 67 Efficiency 70.7 78.8 81.6 81.3 80.1 78.2 80.6 Speed 899 886 880 872 861 848 865 Line amperes 2.26 2.54 2.93 3.41 4.03 4.79 3.78
Page 10 of 13
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Performance Graph at 460V, 60Hz, 1.9HP Typical performance - Not guaranteed values
Page 11 of 13
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Page 12 of 13
Product Information Packet: M1759T - 7.5/1.9HP,1740/870RPM,3PH,60HZ,215T,3744
Page 13 of 13
