Product Information Packet
M1756T
2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
Part Detail
Revision: L Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGP582 CD Diagram: CD0032 Mfg Plant:
Mech. Spec: 35AA001 Layout: 35LYAA001 Poles: 04/08 Created Date: 12-21-2009
Base: RG Eff. Date: 03-13-2018 Leads: 6#18
Specs
Catalog Number: M1756T
Enclosure: TEFC
Frame: 145T
Frame Material: Steel
Output @ Frequency: .500 HP @ 60 HZ
2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Not Inverter
IP Rating: NONE
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3531M
Mounting Arrangement: F1
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Current @ Voltage: 2.950 A @ 460.0 V
Shaft Rotation: Reversible
Page 2 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
Design Code: Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Shaft Slinger Indicator: No Slinger
Speed Code: 2S-1W-VT
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
Nameplate NP1256L
CAT.NO. M1756T
SPEC. 35AA001P582
HP 2/.5
VOLTS 460
AMP 2.95/1.32
RPM 1730/860
FRAME 145T HZ 60 PH 3
SER.F. 1.15 CODE L DES - CLASS F
NEMA-NOM-EFF PF
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6205 ODE 6203
ENCL TEFC SN
Page 4 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
Parts List
Part Number Description Quantity
SA189000 SA 35AA001P582 1.000 EA
RA176719 RA 35AA001P582 1.000 EA
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3009 35 CB W/1.09 DIA. LEAD HOLE @ 6: 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122A00 MASTER ODE,203 BRG,.683SH,#26 DRN,GRSR,F 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3123F00 MASTER DE,205 BRG,.998SH,#26 DRN,GRSR 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A84SP IEC FH W/GRSR, NO DIMPLES PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB4521GX CONDUIT BOX LID KIT **ORDER INDIV PARTS 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA
Page 5 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
Parts List (continued)
Part Number Description Quantity
HA3100A22 THRUBOLT 10-32 X 10.125 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0032 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
Page 6 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
Accessories
Part Number Description Multiplier
35-8762 C FACE KIT A8
35EP1506A01SP D-FLANGE KIT A8
Page 7 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
AC Induction Motor Performance Data
Record # 27973 - Typical performance - not guaranteed values
Winding: 35WGP582-R001 Type: 3531M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Speed Connection
Rated Output (HP) 2/.5 Full Load Torque 6.02 LB-FT
Volts 460 Start Configuration direct on line
Full Load Amps 2.95/1.32 Breakdown Torque 23.4 LB-FT
R.P.M. 1730/860 Pull-up Torque 12.1 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 17.4 LB-FT
NEMA Design Code - KVA Code L Starting Current 24.4 A
Service Factor (S.F.) 1.15 No-load Current 1.86 A
NEMA Nom. Eff. 0 Power Factor 0 LinelineRes.@25ºC 9.97Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 75°C
S.F. Amps Temp. Rise @ S.F. Load 91°C
Load Characteristics 460 V, 60 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 35 55 69 78 84 88 82
Efficiency 69 78.9 81.3 81.1 79.8 77.2 80.3
Speed 1783.5 1768.2 1752 1733.7 1712.7 1682.7 1721
Line amperes 1.92 2.14 2.49 2.95 3.49 4.26 3.27
Page 8 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
Performance Graph at 460V, 60Hz, 2.0HP Typical performance - Not guaranteed values
Page 9 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
AC Induction Motor Performance Data
Record # 27975 - Typical performance - not guaranteed values
Winding: 35WGP582-R001 Type: 3531M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
Low Speed Connection
Rated Output (HP) 2/.5 Full Load Torque 3.03 LB-FT
Volts 460 Start Configuration direct on line
Full Load Amps 2.95/1.32 Breakdown Torque 11.1 LB-FT
R.P.M. 1730/860 Pull-up Torque 7.09 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 7.6 LB-FT
NEMA Design Code - KVA Code L Starting Current 5.73 A
Service Factor (S.F.) 1.15 No-load Current 1.15 A
NEMA Nom. Eff. 0 Power Factor 0 LinelineRes.@25ºC 39.7Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 59°C
S.F. Amps Temp. Rise @ S.F. Load 66°C
Load Characteristics 460 V, 60 Hz, 0.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 25 35 45 53 61 68 58
Efficiency 40.3 56.4 63.5 66.3 67.3 66.3 66.9
Speed 891 882.4 872.5 861.8 849.5 831.6 854
Line amperes 1.15 1.18 1.24 1.32 1.43 1.6 1.39
Page 10 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T

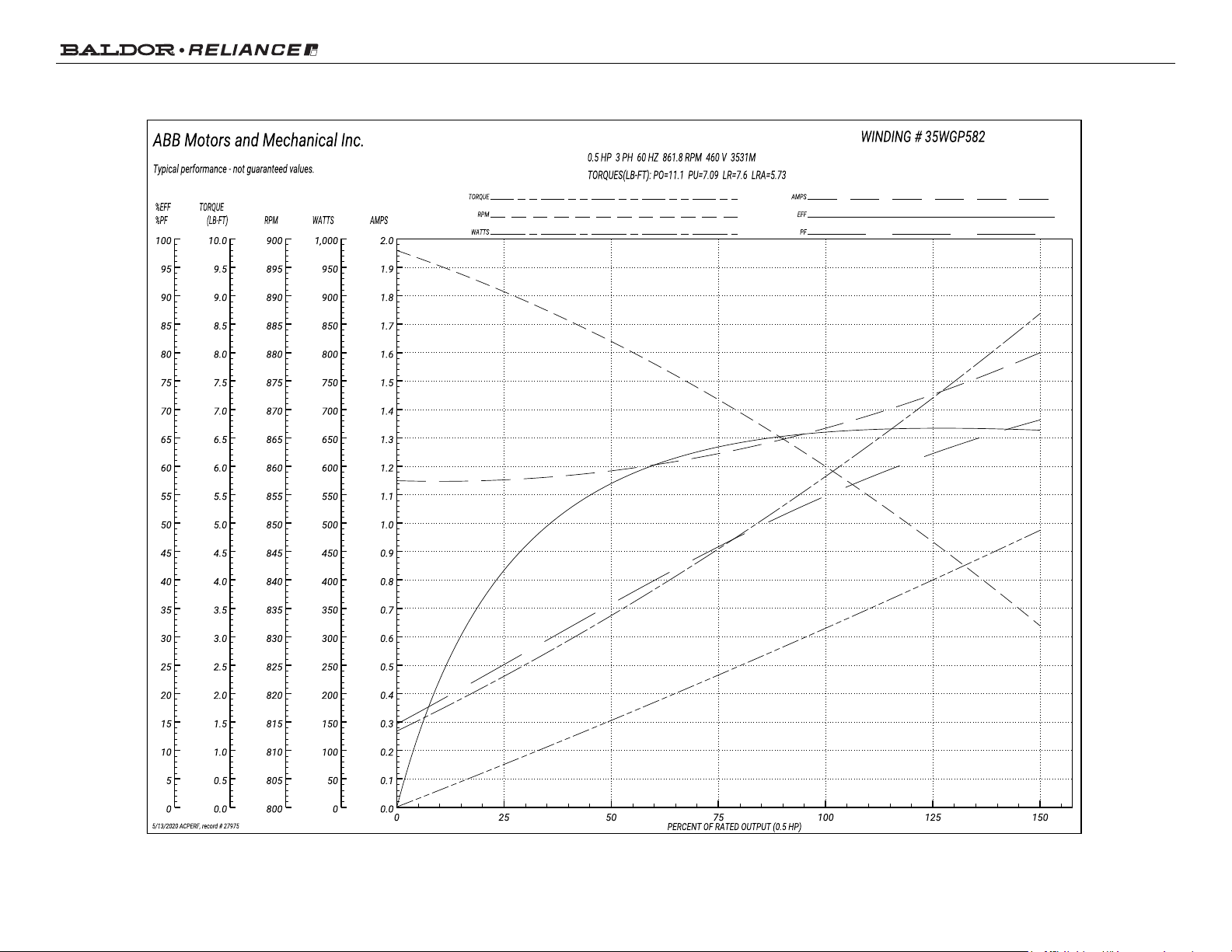

Performance Graph at 460V, 60Hz, 0.5HP Typical performance - Not guaranteed values
Page 11 of 13
Product Information Packet: M1756T - 2/.5HP,1730/860RPM,3PH,60HZ,145T,3531M,T
510-520 = 12 28
521-528 = 13 28
529-535 = 14 16
536-546 = 15 53
2 50
2 25
3 75
5 94
5 00
4 00
50
2 25
8750
8745
7 19
GREASE FITTING
(EACH END)
6 HOLES
38 DIA
19 KEY
1 38 LONG
NAME PLATE
2 75 2 75
6 50
6 79
5 71
3 25 4 59
3 50
+-00
06
6 61
LEAD HOLE
1 09 DIA
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT BALDOR'S PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYAA001
B
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYAA001
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION
ENALEM0
D
09 34 44 10/31/2018
-
000001089746
04
35LYAA001
Material
-
BALDOR - RELIANCE
®
STD HORZ 143-5T TEFC 35M W/1.09 LEAD HOLE
SH 1 of 1
Page 12 of 13
