Product Information Packet
M1721T
1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
Part Detail
Revision: N Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGP586 CD Diagram: CD0013 Mfg Plant:
Mech. Spec: 35L100 Layout: 35LYL100 Poles: 04/06 Created Date: 05-01-2007
Base: RG Eff. Date: 03-20-2018 Leads: 6#18
Specs
Catalog Number: M1721T
Enclosure: TEFC
Frame: 182T
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 60 HZ
.670 HP @ 60 HZ
Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3528M
Mounting Arrangement: F1
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Current @ Voltage: 2.200 A @ 460.0 V
Shaft Rotation: Reversible
Page 2 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
Design Code: Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Slinger Indicator: No Slinger
Speed Code: 2S-2W-VT
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
Nameplate NP1256L
CAT.NO. M1721T
SPEC. 35L100P586
HP 1.5/.67
VOLTS 460
AMP 2.2/1.36
RPM 1740/1165
FRAME 182T HZ 60 PH 3
SER.F. 1.15 CODE K DES - CLASS F
NEMA-NOM-EFF PF
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6206 ODE 6203
ENCL TEFC SN
Page 4 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
Parts List
Part Number Description Quantity
SA156939 SA 35L100P586 1.000 EA
RA145641 RA 35L100P586 1.000 EA
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3009 35 CB W/1.09 DIA. LEAD HOLE @ 6: 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122A00 MASTER ODE,203 BRG,.683SH,#26 DRN,GRSR,F 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3113A01 PU ENDPLATE, MACH W/206 BRG 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA
35FH4005A84SP IEC FH W/GRSR, NO DIMPLES PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB4521GX CONDUIT BOX LID KIT **ORDER INDIV PARTS 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA
Page 5 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
Parts List (continued)
Part Number Description Quantity
HA3100A20 THRUBOLT 10-32 X 9.812 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0013 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
Page 6 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
Accessories
Part Number Description Multiplier
36-3301 C FACE KIT A8
36EP1304A62SP FLANGE MTD ENDPLATE 182-4TD -ENCL (LESS A8
Page 7 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
AC Induction Motor Performance Data
Record # 27561 - Typical performance - not guaranteed values
Winding: 35WGP586-R001 Type: 3528M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Speed Connection
Rated Output (HP) 1.5/.67 Full Load Torque 4.52 LB-FT
Volts 460 Start Configuration direct on line
Full Load Amps 2.20/1.36 Breakdown Torque 16.2 LB-FT
R.P.M. 1740/1165 Pull-up Torque 7.46 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 10.6 LB-FT
NEMA Design Code - KVA Code K Starting Current 16 A
Service Factor (S.F.) 1.15 No-load Current 1.35 A
NEMA Nom. Eff. 0 Power Factor 0 LinelineRes.@25ºC 16.1Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 68°C
S.F. Amps Temp. Rise @ S.F. Load 85°C
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 37 57 70 79 85 88 83
Efficiency 66.8 77.3 80.1 80.3 79.2 77 79.6
Speed 1786 1772 1758 1741 1722 1700 1730
Line amperes 1.41 1.59 1.84 2.2 2.61 3.11 2.45
Page 8 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352

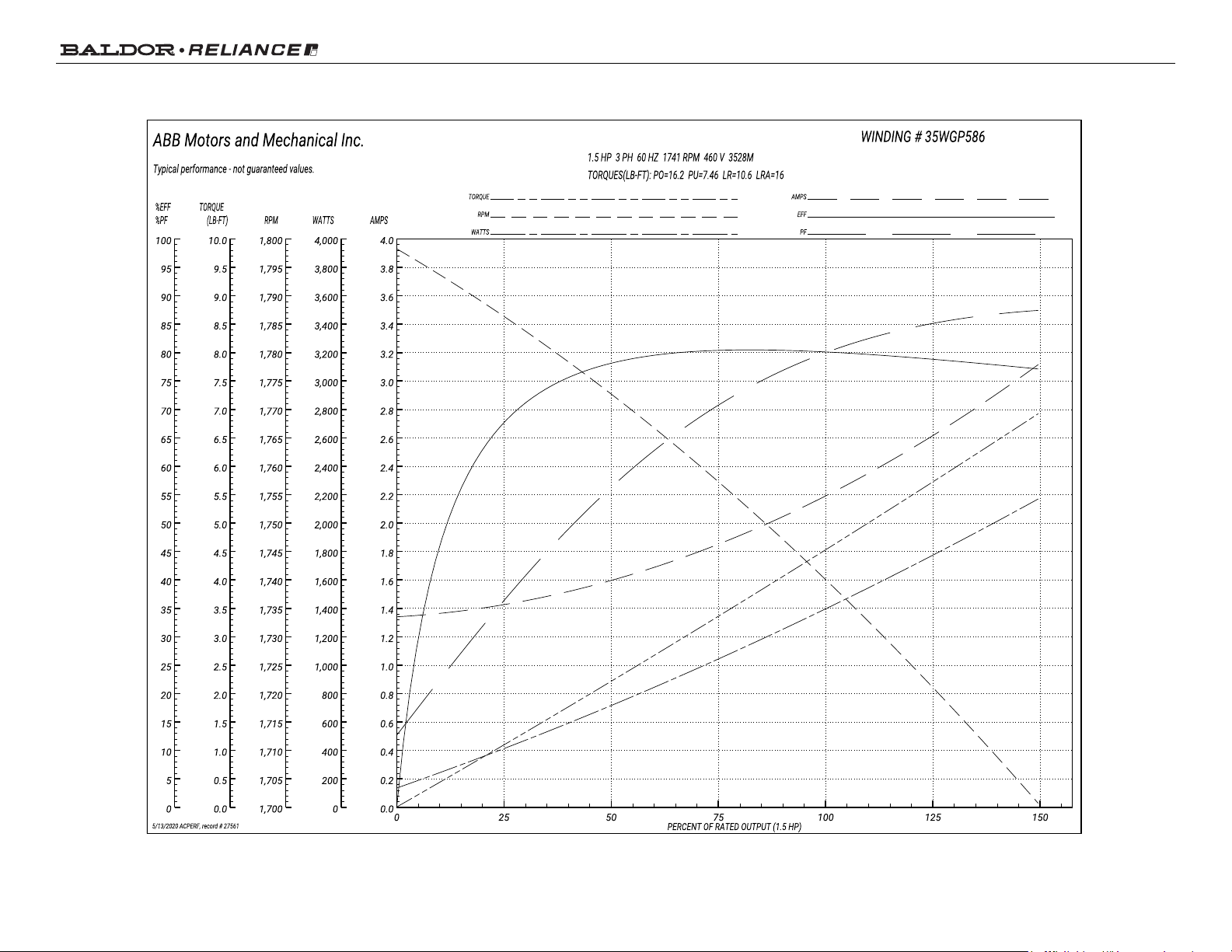

Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 9 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
AC Induction Motor Performance Data
Record # 27562 - Typical performance - not guaranteed values
Winding: 35WGP586-R001 Type: 3528M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
Low Speed Connection
Rated Output (HP) 1.5/.67 Full Load Torque 2.99 LB-FT
Volts 460 Start Configuration direct on line
Full Load Amps 2.20/1.36 Breakdown Torque 10.1 LB-FT
R.P.M. 1740/1165 Pull-up Torque 4.56 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 6.09 LB-FT
NEMA Design Code - KVA Code K Starting Current 7.02 A
Service Factor (S.F.) 1.15 No-load Current 1.11 A
NEMA Nom. Eff. 0 Power Factor 0 LinelineRes.@25ºC 42.4Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 64°C
S.F. Amps Temp. Rise @ S.F. Load 76°C
Load Characteristics 460 V, 60 Hz, 0.67 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 29 43 55 65 73 79 70
Efficiency 45.9 62 68.1 70.7 71.2 70.2 71
Speed 1192 1183 1175 1165 1152 1139 1157
Line amperes 1.12 1.17 1.24 1.36 1.51 1.69 1.45
Page 10 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
Performance Graph at 460V, 60Hz, 0.67HP Typical performance - Not guaranteed values
Page 11 of 13
Product Information Packet: M1721T - 1.5/.67HP,1740/1165RPM,3PH,60HZ,182T,352
510-528 = 14 29
529-535 = 15 16
536-546 = 16 54
3 00
2 75
1 1250
1 1245
2 75 4 50
5 50
6 50
50
3 76
7 19
NAMEPLATE
GREASE FITTING
(EA END)
25 KEY
1 75 LONG
6 HOLES
41
5 71
6 61
4 50
4 44
7 79
4 59
3 75 3 75
4 31
8 62
LEAD HOLE
1 09
1 12
FAN SHOVE
PULLEY END DETAIL
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYL100
B
STD HORZ 182-4T TEFC 35M
SH 1 of 1
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYL100
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG16
ENSTEK0
M
11 35 37 02/01/2019
-
000001098202
03
35LYL100
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 12 of 13
