Baldor M1008T Product Information Sheet
Product Information Packet
M1008T
5/1.3HP,1725/850RPM,3PH,60HZ,184T,3634M
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: M1008T - 5/1.3HP,1725/850RPM,3PH,60HZ,184T,3634M
Part Detail
Revision: W Status: PRD/A Change #: Proprietary: No

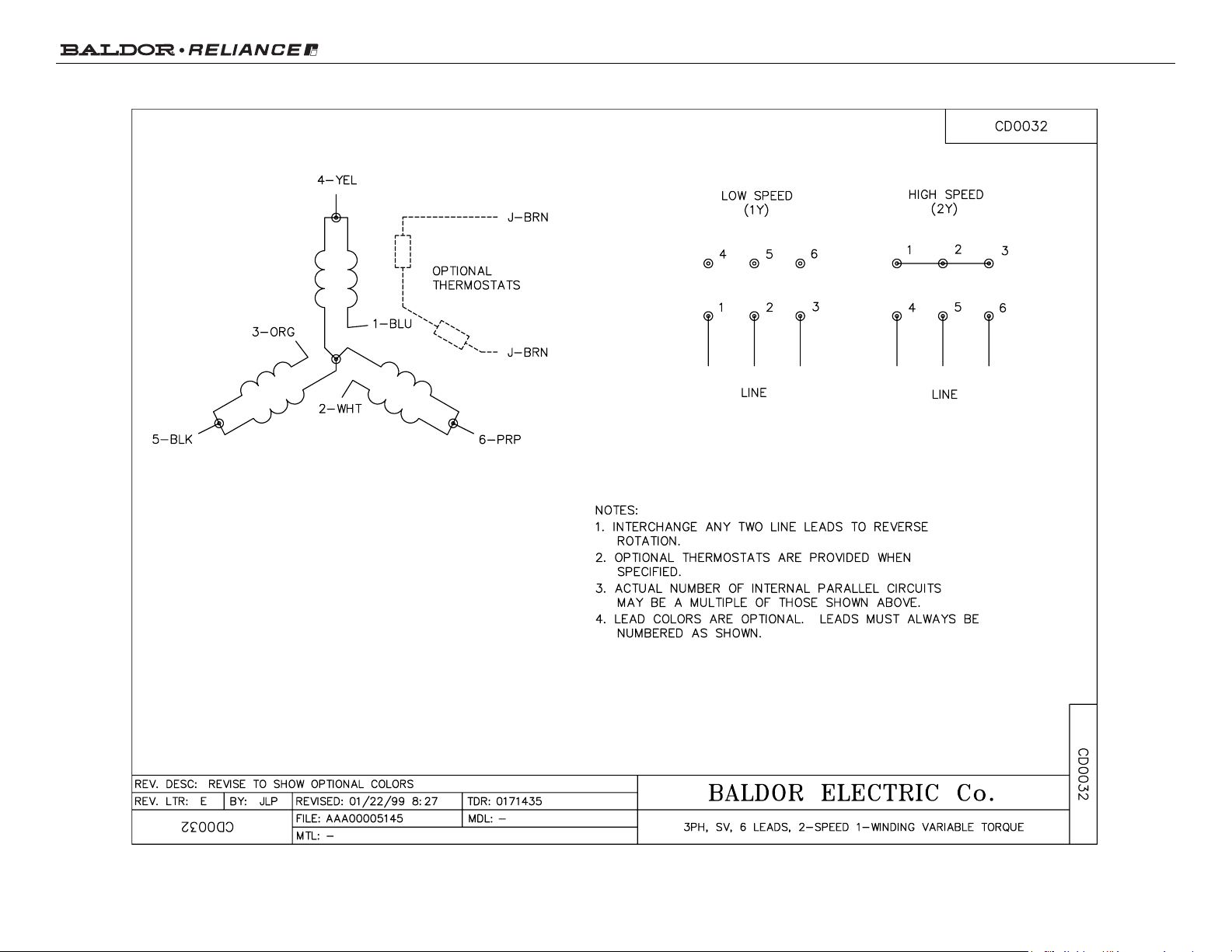

Type: AC Elec. Spec: 36WGW605 CD Diagram: CD0032 Mfg Plant:

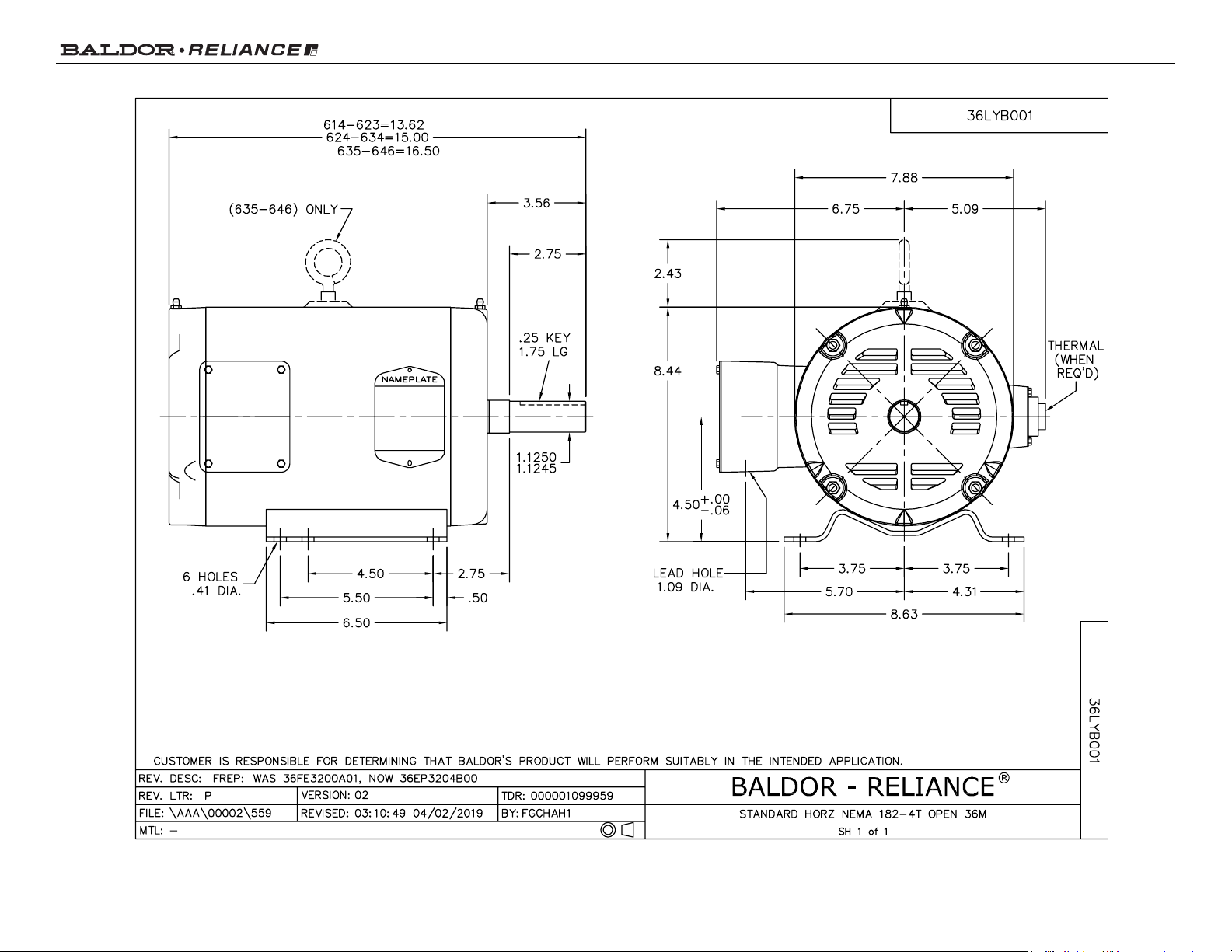

Mech. Spec: 36B001 Layout: 36LYB001 Poles: 04/08 Created Date:
Base: RG Eff. Date: 01-30-2020 Leads: 6#14
Specs
Catalog Number: M1008T
Enclosure: OPEN
Frame: 184T
Frame Material: Steel
Output @ Frequency: 5.000 HP @ 60 HZ
1.300 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3634M
Mounting Arrangement: F1
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Current @ Voltage: 13.200 A @ 230.0 V
Shaft Rotation: Reversible
Page 2 of 13
Product Information Packet: M1008T - 5/1.3HP,1725/850RPM,3PH,60HZ,184T,3634M
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Slinger Indicator: No Slinger
Speed Code: 2S-1W-VT
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 13
Product Information Packet: M1008T - 5/1.3HP,1725/850RPM,3PH,60HZ,184T,3634M
Nameplate NP1256L
CAT.NO. M1008T
SPEC. 36B01W605
HP 5/1.3
VOLTS 230
AMP 13.2/5
RPM 1725/850
FRAME 184T HZ 60 PH 3
SER.F. 1.15 CODE J DES B CLASS F
NEMA-NOM-EFF PF
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6206 ODE 6205
ENCL OPEN SN
