Product Information Packet
L5028T
3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Part Detail
Revision: AJ Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 36WG0201 CD Diagram: CD0001 Mfg Plant: Mech. Spec: 36N001 Layout: 36LYN001 Poles: 02 Created Date: Base: RG Eff. Date: 01-06-2020 Leads: 4#14 A PH,2#16 B PH
Specs
Catalog Number: L5028T Enclosure: XPFC Frame: 184T Frame Material: Steel Output @ Frequency: 3.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 115.0 V @ 60 HZ
230.0 V @ 60 HZ XP Class and Group: CLI GP D XP Division: Division I Agency Approvals: UL
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Inverter Code: Not Inverter KVA Code: G Lifting Lugs: No Lifting Lugs Locked Bearing Indicator: No Locked Bearing Motor Lead Quantity/Wire Size: 4 @ 14 AWG, A PH Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: X3634L Mounting Arrangement: F1 Power Factor: 87 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding
Current @ Voltage: 14.500 A @ 230.0 V
Shaft Rotation: Reversible
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
29.000 A @ 115.0 V Design Code: L Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: B
Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T2C
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Nameplate NP0015XPSL
NO. CC
SER. #
SPEC 36N01-201
CAT.NO. L5028T
H.P. 3 T. CODE T2C
VOLTS 115/230
AMPS 29/14.5
R.P.M. 3450
HZ 60 PH 1 CLASS B
SER.F. 1.00 DES L CODE G
RATING 40C AMB-CONT
FRAME 184T NEMA NOM. EFF 76
USABLE AT 208V PF 87
BLANK
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Parts List
Part Number Description Quantity SA037276 SA 36N01-201 1.000 EA RA033301 RA 36N01-201 1.000 EA EC1400A03 ELEC CAP, 400-480 MFD, 125V, 1.81D X 3. 1.000 EA EC1460A03 ELEC CAP 115V 1.8 X 3.3 CK - WESTVILLE 1.000 EA 35CB3001A02SP EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA 1.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA 36EP3700A01 FR ENDPLATE, MACH 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA 13XF0832A08 8-32 X.50 PAN HD,SLTD, TYPE F SCREW, ZIN 2.000 EA HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA 36EP3701A01 PU ENDPLATE, MACH 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 2.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA 36FH4009A02 FAN COVER FOR VM7042T,PRIMER 1.000 EA 51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA 35CB3500A01SP CONDUIT BOX LID, MACH 1.000 EA 51XN2520A16 SCREW, HEX WS SLT, ZN, 1/4-20 X 1.00 4.000 EA HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA NP0018F ALUM UL XP CONDUIT BOX NAMEPLATE 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA HA6003A52 CLAMP, CAPACITOR, WHITE ZINC PLATED 2.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Parts List (continued)
Part Number Description Quantity MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB 51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA HA3105A06 THRUBOLT- 3/8-16 X 10.500 X 4.000 EA 35FN3002A04SP EXFN, PLASTIC, 6.376 OD, .906 ID W/KEY 1.000 EA SP5172A39 37 TYPE L TORQ STAT SWITCH LEAD ASSEMBLY 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0081 CONNECTION LABEL X 1.000 EA NP0015XPSL SS XP UL CSA CC CL-I GP-D 1.000 EA 36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
AC Induction Motor Performance Data
Record # 20849 - Typical performance - not guaranteed values
Winding: 36WG0201-R002 Type: 3634L Enclosure: XPFC
Nameplate Data
230 V, 60 Hz:
High Voltage Connection Rated Output (HP) 3 Full Load Torque 4.5 LB-FT Volts 115/230 Start Configuration direct on line Full Load Amps 29/14.5 Breakdown Torque 14 LB-FT R.P.M. 3450 Pull-up Torque 8 LB-FT Hz 60 Phase 1 Locked-rotor Torque 10 LB-FT NEMA Design Code L KVA Code G Starting Current 86 A Service Factor (S.F.) 1 No-load Current 5.5 A
NEMA Nom. Eff. 76 Power Factor 87 LinelineRes.@25ºC
0.588ΩAPh
0.896ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 80°C
Load Characteristics 230 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 70 83 88 91 92 92 92 Efficiency 61 71 73.5 76 75 73 75.4 Speed 3558 3526 3496 3457 3407 3356 3427 Line amperes 7 9 11.5 14.5 18 21.8 16.6
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Performance Graph at 230V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
AC Induction Motor Performance Data
Record # 64041 - Typical performance - not guaranteed values
Winding: 36WG0201-R002 Type: 3634L Enclosure: XPFC
Nameplate Data
115 V, 60 Hz:
Low Voltage Connection Rated Output (HP) 3 Full Load Torque 4.5 LB-FT Volts 115/230 Start Configuration direct on line Full Load Amps 29/14.5 Breakdown Torque 14 LB-FT R.P.M. 3450 Pull-up Torque 8 LB-FT Hz 60 Phase 1 Locked-rotor Torque 10 LB-FT NEMA Design Code L KVA Code G Starting Current 172 A Service Factor (S.F.) 1 No-load Current 11 A
NEMA Nom. Eff. 76 Power Factor 87 LinelineRes.@25ºC
0.149ΩAPh
0.89ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 80°C
Locked-rotor Power Factor 75.6
Rotor inertia 0.153 LB-FT2
Load Characteristics 115 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 58 77 86 87 88 88 Efficiency 61.3 71 73.6 76 75 73 Speed 3558 3526 3496 3457 3407 3356 Line amperes 14 18 23 29 36 43.6
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Performance Graph at 115V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 10 of 12

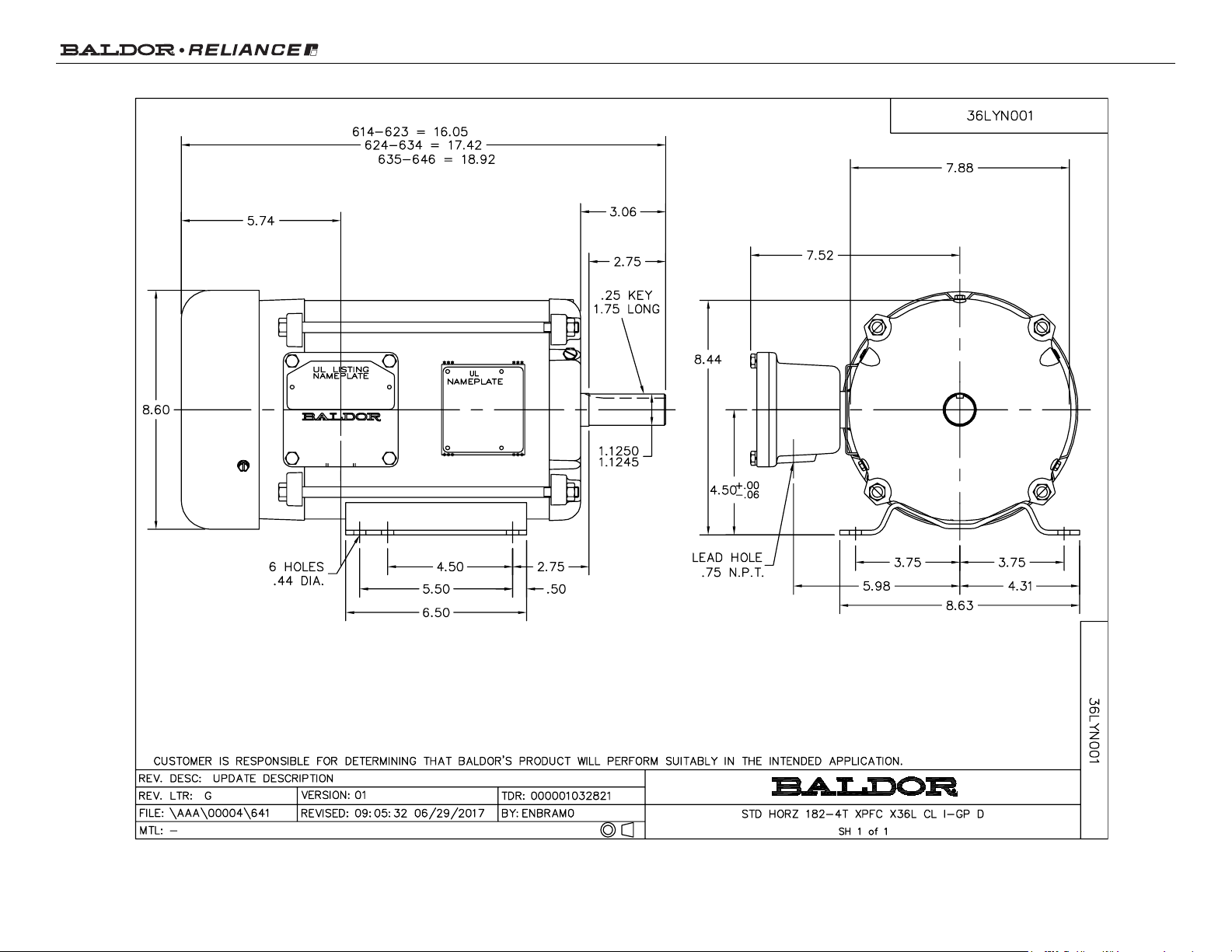

Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Page 11 of 12
Product Information Packet: L5028T - 3HP,3450RPM,1PH,60HZ,184T,X3634L,XPFC,F1
Page 12 of 12
