Product Information Packet
KBL3409
.5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
Part Detail
Revision: AU Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 34WG5422 CD Diagram: CD0001 Mfg Plant:
Mech. Spec: 34K027 Layout: 34LYK027 Poles: 04 Created Date:
Base: N Eff. Date: 10-12-2019 Leads: 6#18
Specs
Catalog Number: KBL3409
Enclosure: TEFC
Frame: 56C
Frame Material: Steel
Output @ Frequency: .500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: No Mounting
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Not Inverter
KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 6 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3421L
Mounting Arrangement: F1
Power Factor: 66
Product Family: General Purpose
Product Type: BRAKE MOTOR
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Current @ Voltage: 3.700 A @ 230.0 V
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
4.300 A @ 208.0 V
7.400 A @ 115.0 V
Design Code: N
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Brake Mounting
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
Nameplate NP1256L
CAT.NO. KBL3409
SPEC. 34K27-5422-B
HP .5
VOLTS 115/230
AMP 7.4/3.7
RPM 1725
FRAME 56C HZ 60 PH 1
SER.F. 1.25 CODE J DES N CLASS B
NEMA-NOM-EFF 68 PF 66
RATING 40C AMB-CONT
CC USABLE AT 208V 4.3
DE 6203 ODE 6203
ENCL TEFC SN
SFA 8.2/4.1
Page 4 of 10
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
Parts List
Part Number Description Quantity
SA008127 SA 34K27-5422-B 1.000 EA
RA004574 RA 34K27-5422-B 1.000 EA
EC1270A02SP ELEC CAP, 270-324 MFD, 125V, 1.48D X 3. 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
34CB3002A CB CAST W/.88 DIA HOLE 1.000 EA
34GS1029A01 GASKET, CONDUIT BOX 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HA2001A01 SPACER, .218 ID X .250 LG 2.000 EA
11XT0832A12 8-32 X 3/4 HX WSHD SLTD, TY23 2.000 EA
NS2500A01 INSULATOR, AUTO THER PROT 1.000 EA
34CB4800SP CAPACITOR COVER, STAMPED PRIMED 1.000 EA
34GS3000SP GASKET, CAPACITOR BOX 1.000 EA
51XB1016A05 10-16X5/16HX WA SL SR TYB (F/S) 2.000 EA
WD1000A03 41531 AMP FLG.TERM,4M/REEL(2.5MIL) 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
34EP3300A24SP PU ENDPLATE, MACH 1.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
34FN3002A03 EXTERNAL FAN, PLASTIC, .500 HUB I.D. W/5 1.000 EA
HW2500A13 KEY, USA #605, WOODRUFF 1.000 EA
18XN2520A08 1/4-20X1/2 FLAT HD SLTD X 2.000 EA
34FH4002A05 IEC FH W/DEEPER DIMPLES FOR BRAKE COVER, 1.000 EA
51XB1016A06 10-16X3/8 HXWSSLD SERTYB 3.000 EA
34CB4517 CB LID 4 MTG HOLES .22 DIA STAMPED, FOR 1.000 EA
Page 5 of 10
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
Parts List (continued)
Part Number Description Quantity
34GS1031A01 GASKET, FLAT CONDUIT BOX LID (LEXIDE) 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A04 KEY RETAINER 0.625 DIA SHAFTS 1.000 EA
34EP3900T09 FR ENDPLATE, MACH 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.014 GA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1185 LABEL,BRAKE CONNECTION (ON ROLLS) 1.000 EA
SP5051B16 MDL 34 TORQ STAT SW,TYPE L , STD F1 & F2 1.000 EA
HA3100A44 THRUBOLT 10-32 X 8.000 4.000 EA
48BK6101BP-D BRAKE, DRILL FOR COVER 1.000 EA
LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
27PA1001 PKG GRP, PRINT PK1027A06 1.000 EA
PK3083 STYROFOAM PACKING CRADLE 1.000 EA
PK3088 MICROFOAM, 8"X"8 PERF. SHEETS 5,400/RL 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
AC Induction Motor Performance Data
Record # 6767 - Typical performance - not guaranteed values
Winding: 34WG5422-R001 Type: 3421L Enclosure: TEFC
Nameplate Data
230 V, 60 Hz:
High Voltage Connection
Rated Output (HP) .5 Full Load Torque 1.5 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 7.4/3.7 Breakdown Torque 4.13 LB-FT
R.P.M. 1725 Pull-up Torque 3.6 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 4.65 LB-FT
NEMA Design Code N KVA Code J Starting Current 16.5 A
Service Factor (S.F.) 1.25 No-load Current 2.8 A
NEMA Nom. Eff. 68 Power Factor 66 LinelineRes.@25ºC
4.44ΩAPh
3.19ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 63°C
S.F. Amps 8.2/4.1 Temp. Rise @ S.F. Load 77°C
Load Characteristics 230 V, 60 Hz, 0.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 32 46 59 66 72 80 72
Efficiency 42 58 65 68 69 68 69
Speed 1783 1765 1750 1730 1710 1680 1710
Line amperes 2.8 3 3.3 3.7 4.1 4.8 4.1
Page 7 of 10
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L

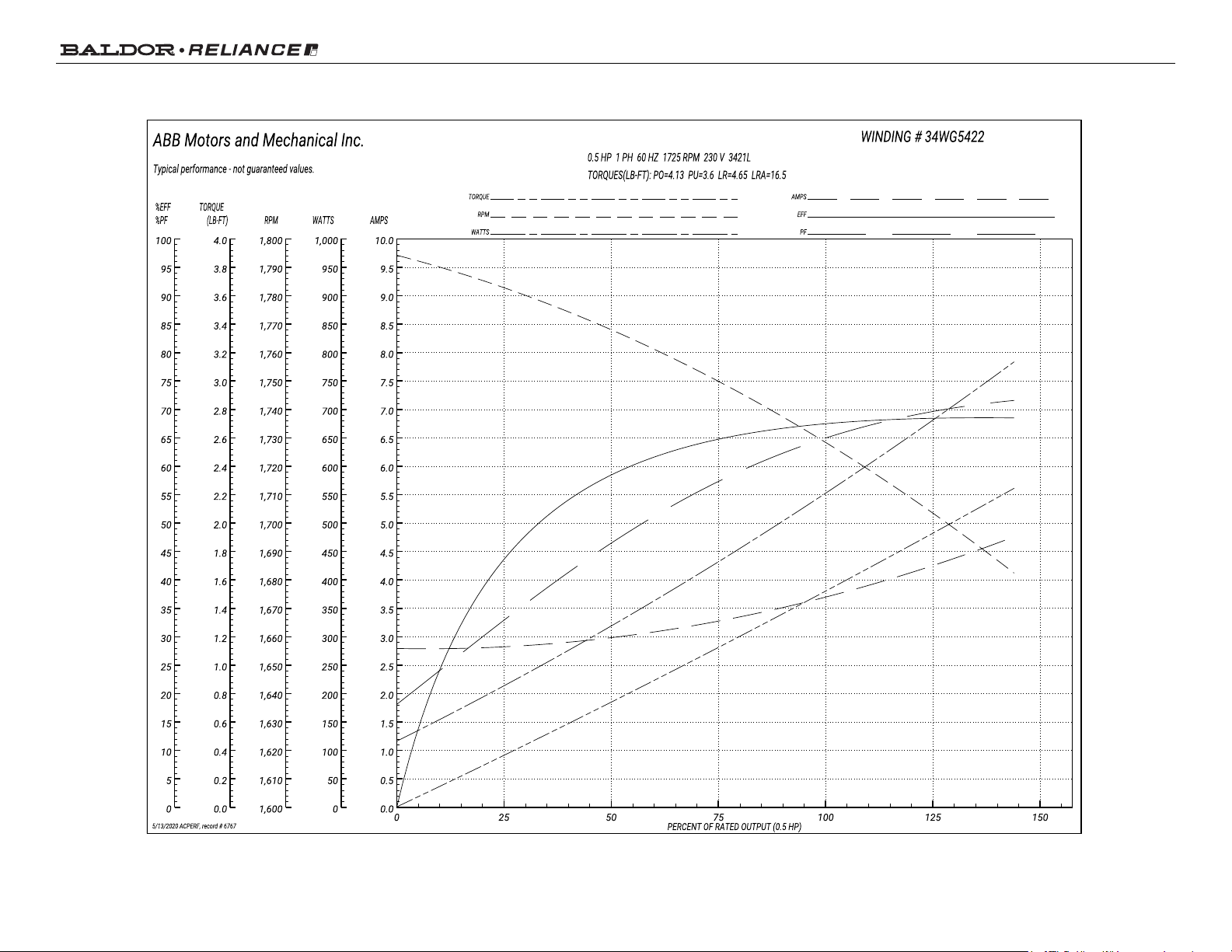

Performance Graph at 230V, 60Hz, 0.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
Page 9 of 10
Product Information Packet: KBL3409 - .5HP,1725RPM,1PH,60HZ,56C,BRAKE,3421L
Page 10 of 10
