Product Information Packet
JSL425A
.75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
Part Detail
Revision: K Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 34WGR050 CD Diagram: CD0203 Mfg Plant:

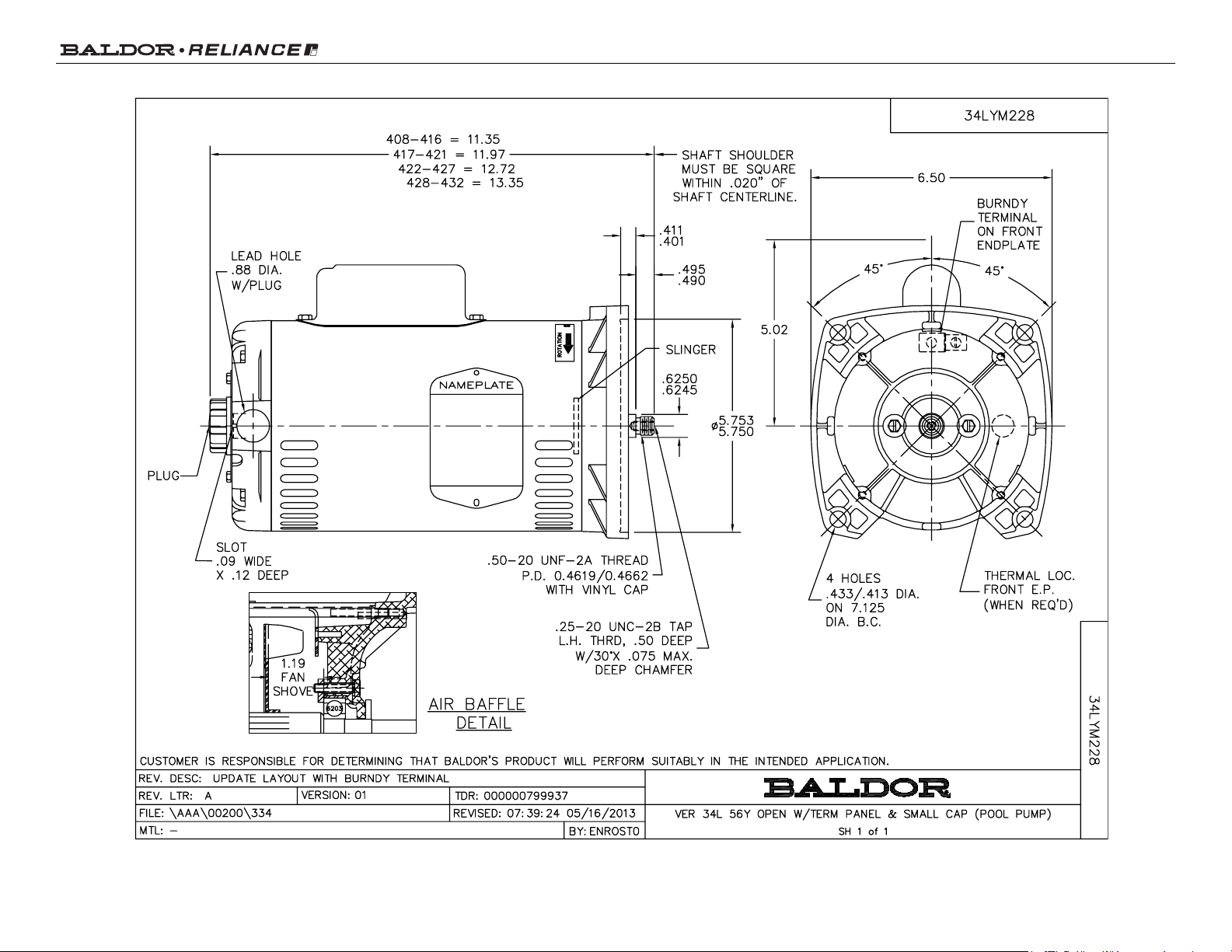

Mech. Spec: 34M228 Layout: 34LYM228 Poles: 02 Created Date: 05-09-2013
Base: N Eff. Date: 11-12-2018 Leads: 5#18,1#14 #1TH
Specs
Catalog Number: JSL425A
Enclosure: OPEN
Frame: 56Y
Frame Material: Steel
Output @ Frequency: .750 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: No Mounting
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 5 @ 18 AWG
Motor Lead Exit: Terminal Panel Or Lead Hole
Motor Lead Termination: Flying Leads With QC
Motor Type: 3420L
Mounting Arrangement: F1
Power Factor: 74
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Other
Pulley Shaft Indicator: Ext Thread & Tapped Hole
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Current @ Voltage: 10.400 A @ 115.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
5.200 A @ 230.0 V
6.300 A @ 208.0 V
Design Code: Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Terminal Panel
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Shaft Rotation: Fixed Opposite Standard
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: Automatic Thermal Overload
Winding Thermal 1 Location: EP
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
Nameplate NP1257L
CAT.NO. JSL425A
SPEC. 34M228R050G1
HP .75
VOLTS 115/230
AMP 10.4/5.2
RPM 3450
FRAME 56Y HZ 60 PH 1
SER.F. 1.50 CODE K DES - CL B
NEMA-NOM-EFF 62 PF 74
RATING 40C AMB-CONT
CC USABLE AT 208V 6.3
DE 6203 ODE 6203
ENCL OPEN SN
SFA 13.6/6.8
Page 4 of 10
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
Parts List
Part Number Description Quantity
SA262964 SA 34M228R050G1 1.000 EA
RA249687 RA 34M228R050G1 1.000 EA
TPMRJ26AX THERMAL 1PH 0.75 AUT 120C 1.000 EA
EC1216A02SP ELEC CAP, 216-259 MFD, 125V, 1.48D X 3. 1.000 EA
51XB1016A05 10-16X5/16HX WA SL SR TYB (F/S) 1.000 EA
WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 3.000 EA
HA1005A05SP SLINGER, OD 1.50, ID .659, 203 BRG 1.000 EA
34CB4800SP CAPACITOR COVER, STAMPED PRIMED 1.000 EA
34GS3001 GASKET, CAPACITOR BOX 1.000 EA
51XB1016A05 10-16X5/16HX WA SL SR TYB (F/S) 2.000 EA
WD4100A01 DP-875 HEYCO PLUG OR 62MP0875 MICRO PLAS 1.000 EA
WD4100A04 62MP0687 HOLE PLUG OR DP-687 HEYCO 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
34EP3501A03 ENDPLATE, MACH POOL PUMP 17 FRAME-ASSY/K 1.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
34AD2007 BAFFLE PLATE INJECTION MOLD 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
34CB4501SP TERMINAL BOX LID, STAMPED X (PLATED) 1.000 EA
34GS1018 GASKET, TERM PLATE LID BLACK NEOPRENE 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
RM1010A12 .437 I.D. 1" VINYL CAP (SHORT) MOCAP 1.000 EA
LB1009N LABEL,ROTATION DIRECTION (ON ROLLS) 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.014 GA
Page 5 of 10
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
Parts List (continued)
Part Number Description Quantity
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
34EP3202A07 FR ENDPLATE, MACH 1.000 EA
HA3100A38 THRUBOLT 10-32 X 9.375 4.000 EA
SP5086A01 34 TERM PANEL SWITCH W/E-BLK & 8-RED 1.000 EA
LC0546 CONNECTION LABEL 1.000 EA
LB1118 LABEL,WARNING (ROLL LABEL) 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
NP1257L ALUM UL CSA CC THERMAL REV MTG 1.000 EA
PK3083 STYROFOAM PACKING CRADLE 1.000 EA
35PA1066 PKG GRP, PRINT PK1008A06 1.000 EA
PK3088 MICROFOAM, 8"X"8 PERF. SHEETS 5,400/RL 1.000 EA
Page 6 of 10
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
AC Induction Motor Performance Data
Record # 42891 - Typical performance - not guaranteed values
Winding: 34WGR050-R001 Type: 3420L Enclosure: OPEN
Nameplate Data
115 V, 60 Hz:
Low Voltage Connection
Rated Output (HP) .75 Full Load Torque 1.13 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 10.4/5.2 Breakdown Torque 3.62 LB-FT
R.P.M. 3450 Pull-up Torque 1.71 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 2.19 LB-FT
NEMA Design Code - KVA Code K Starting Current 57.1 A
Service Factor (S.F.) 1.5 No-load Current 7.66 A
NEMA Nom. Eff. 62 Power Factor 74 LinelineRes.@25ºC
0.64683ΩAPh
2.6061ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 31°C
S.F. Amps 13.6/6.8 Temp. Rise @ S.F. Load 44°C
Load Characteristics 115 V, 60 Hz, 0.75 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 42 56 68 74 80 84 84
Efficiency 36.7 52.2 57.5 63.6 65.3 64.9 64.9
Speed 3560.7 3536.7 3510.6 3482.4 3449.5 3408.7 3409
Line amperes 7.98 8.39 9.44 10.3 11.7 13.5 13.5
Page 7 of 10
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
Performance Graph at 115V, 60Hz, 0.75HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
Page 9 of 10
Product Information Packet: JSL425A - .75HP,3450RPM,1PH,60HZ,56Y,3420L,OPEN,F1
Page 10 of 10
