Product Information Packet

JPM4114T

50HP,3525RPM,3PH,60HZ,326JP,1064M,TEFC,F

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: JPM4114T - 50HP,3525RPM,3PH,60HZ,326JP,1064M,TEFC,F

Part Detail

Revision: M Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 10WGX656 CD Diagram: CD0180 Mfg Plant:

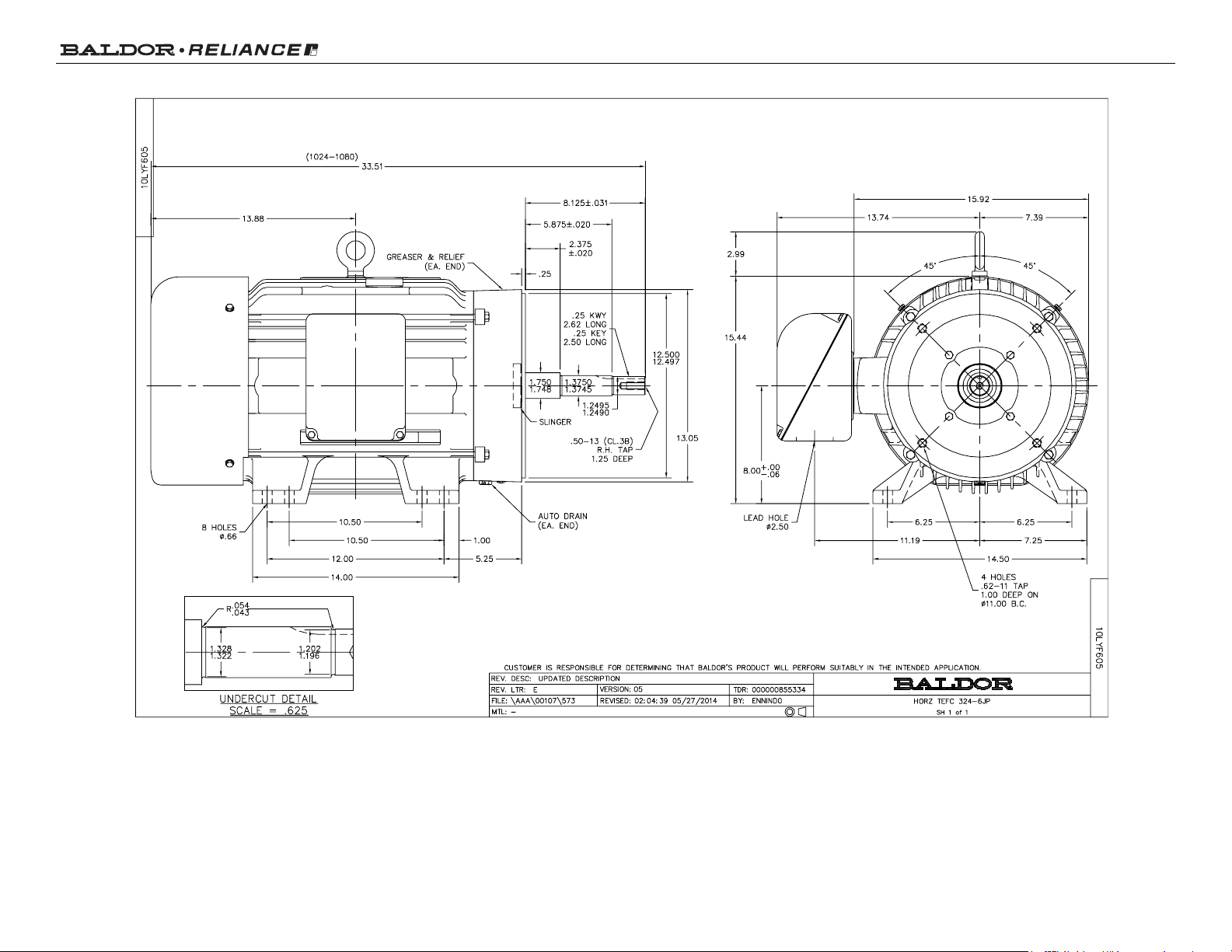

Mech. Spec: 10F605 Layout: 10LYF605 Poles: 02 Created Date:
Base: RG Eff. Date: 03-08-2016 Leads: 9#8

Specs

Catalog Number: JPM4114T
Enclosure: TEFC
Frame: 326JP
Frame Material: Iron
Output @ Frequency: 50.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA

UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None

Insulation Class: F
Inverter Code: Not Inverter
KVA Code: H
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 8 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 1064M
Mounting Arrangement: F1
Power Factor: 90
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Tapped & Key
Rodent Screen: None
Shaft Extension Location: Pulley End

Current @ Voltage: 112.000 A @ 230.0 V

Shaft Ground Indicator: No Shaft Grounding

Page 2 of 11

Product Information Packet: JPM4114T - 50HP,3525RPM,3PH,60HZ,326JP,1064M,TEFC,F

126.000 A @ 208.0 V

56.000 A @ 460.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater

Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
